#include <mgt-headers.h>

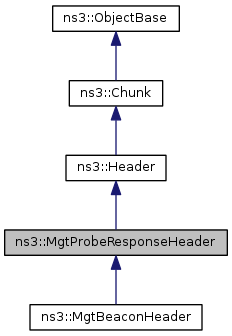

Inheritance diagram for ns3::MgtProbeResponseHeader:

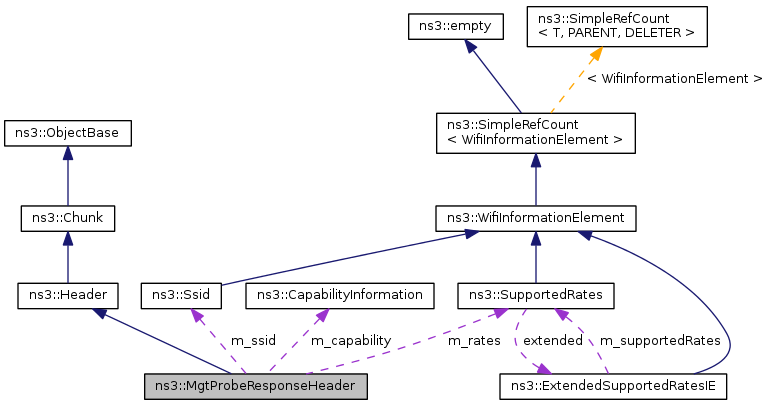

Collaboration diagram for ns3::MgtProbeResponseHeader:

Public Member Functions
	MgtProbeResponseHeader ()
	~MgtProbeResponseHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
uint64_t	GetBeaconIntervalUs (void) const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
Ssid	GetSsid (void) const
SupportedRates	GetSupportedRates (void) const
uint64_t	GetTimestamp ()
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetBeaconIntervalUs (uint64_t us)
void	SetSsid (Ssid ssid)
void	SetSupportedRates (SupportedRates rates)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MgtProbeResponseHeader.

Private Attributes
uint64_t	m_beaconInterval
CapabilityInformation	m_capability
SupportedRates	m_rates
Ssid	m_ssid
uint64_t	m_timestamp

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implement the header for management frames of type probe response.

Definition at line 129 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtProbeResponseHeader::MgtProbeResponseHeader ( )

Definition at line 113 of file mgt-headers.cc.

ns3::MgtProbeResponseHeader::~MgtProbeResponseHeader ( )

Definition at line 116 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtProbeResponseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 212 of file mgt-headers.cc.

References ns3::CapabilityInformation::Deserialize(), ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_beaconInterval, m_capability, m_rates, m_ssid, m_timestamp, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU64(), and visualizer.core::start().

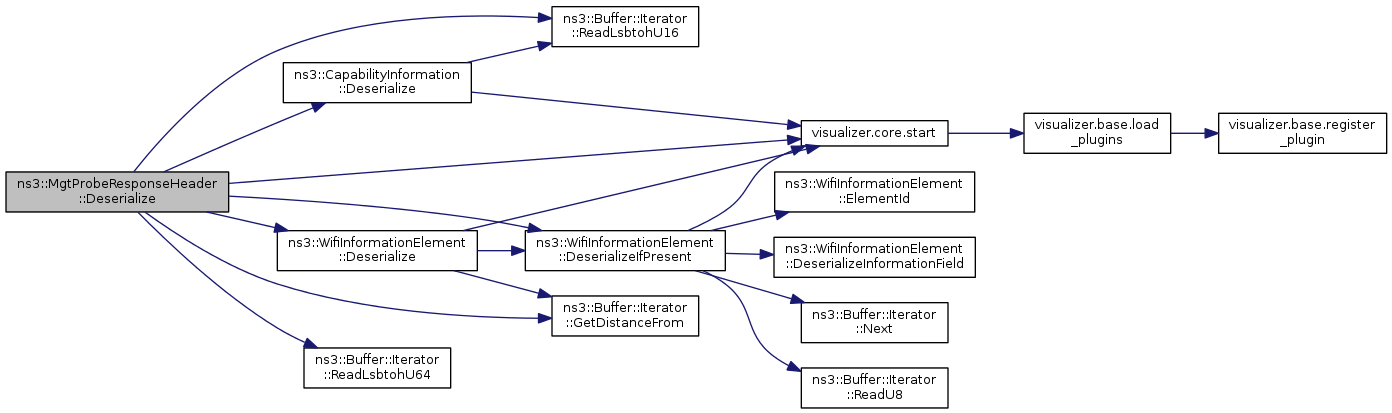

Here is the call graph for this function:

uint64_t ns3::MgtProbeResponseHeader::GetBeaconIntervalUs ( void ) const

Definition at line 130 of file mgt-headers.cc.

References m_beaconInterval.

Referenced by ns3::MeshWifiBeacon::GetBeaconInterval(), ns3::dot11s::PeerManagementProtocolMac::Receive(), and ns3::StaWifiMac::Receive().

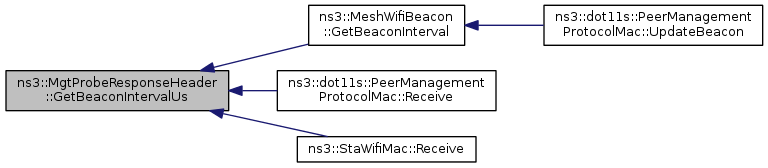

Here is the caller graph for this function:

TypeId ns3::MgtProbeResponseHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 165 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::MgtProbeResponseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 170 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::CapabilityInformation::GetSerializedSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_capability, m_rates, and m_ssid.

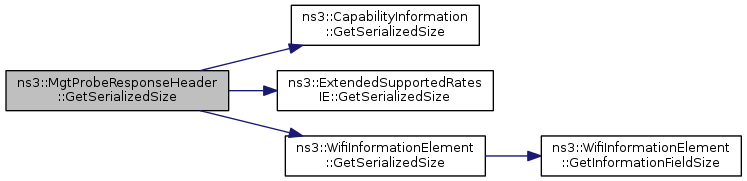

Here is the call graph for this function:

Ssid ns3::MgtProbeResponseHeader::GetSsid ( void ) const

Definition at line 125 of file mgt-headers.cc.

References m_ssid.

Referenced by ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

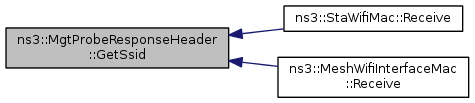

Here is the caller graph for this function:

SupportedRates ns3::MgtProbeResponseHeader::GetSupportedRates ( void ) const

Definition at line 135 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::MeshWifiInterfaceMac::Receive().

Here is the caller graph for this function:

uint64_t ns3::MgtProbeResponseHeader::GetTimestamp ( )

Definition at line 120 of file mgt-headers.cc.

References m_timestamp.

TypeId ns3::MgtProbeResponseHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::MgtProbeResponseHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 156 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MgtProbeResponseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 184 of file mgt-headers.cc.

References m_rates, and m_ssid.

void ns3::MgtProbeResponseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 190 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_beaconInterval, m_capability, m_rates, m_ssid, ns3::Simulator::Now(), ns3::CapabilityInformation::Serialize(), ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteHtolsbU64().
