#include <olsr-header.h>

Inheritance diagram for ns3::olsr::MessageHeader:

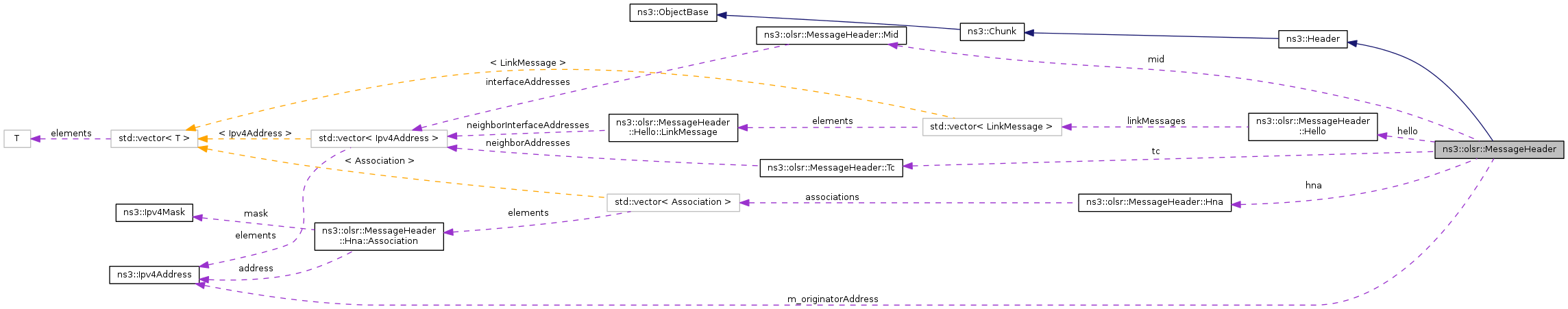

Collaboration diagram for ns3::olsr::MessageHeader:

Classes
struct	Hello
struct	Hna
struct	Mid
struct	Tc

Public Types
enum	MessageType { HELLO_MESSAGE = 1, TC_MESSAGE = 2, MID_MESSAGE = 3, HNA_MESSAGE = 4 }

Public Member Functions
	MessageHeader ()
virtual	~MessageHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
Hello &	GetHello ()
const Hello &	GetHello () const
Hna &	GetHna ()
const Hna &	GetHna () const
uint8_t	GetHopCount () const
virtual TypeId	GetInstanceTypeId (void) const
uint16_t	GetMessageSequenceNumber () const
MessageType	GetMessageType () const
Mid &	GetMid ()
const Mid &	GetMid () const
Ipv4Address	GetOriginatorAddress () const
virtual uint32_t	GetSerializedSize (void) const
Tc &	GetTc ()
const Tc &	GetTc () const
uint8_t	GetTimeToLive () const
Time	GetVTime () const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetHopCount (uint8_t hopCount)
void	SetMessageSequenceNumber (uint16_t messageSequenceNumber)
void	SetMessageType (MessageType messageType)
void	SetOriginatorAddress (Ipv4Address originatorAddress)
void	SetTimeToLive (uint8_t timeToLive)
void	SetVTime (Time time)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::olsr::MessageHeader.

Private Attributes
uint8_t	m_hopCount
struct {
Hello hello
Hna hna
Mid mid
Tc tc
}	m_message
uint16_t	m_messageSequenceNumber
uint16_t	m_messageSize
MessageType	m_messageType
Ipv4Address	m_originatorAddress
uint8_t	m_timeToLive
uint8_t	m_vTime

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 116 of file olsr-header.h.

Member Enumeration Documentation

enum ns3::olsr::MessageHeader::MessageType

Enumerator:

HELLO_MESSAGE
TC_MESSAGE
MID_MESSAGE
HNA_MESSAGE

Definition at line 120 of file olsr-header.h.

Constructor & Destructor Documentation

ns3::olsr::MessageHeader::MessageHeader ( )

Definition at line 156 of file olsr-header.cc.

ns3::olsr::MessageHeader::~MessageHeader ( )

virtual

Definition at line 161 of file olsr-header.cc.

Member Function Documentation

uint32_t ns3::olsr::MessageHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 244 of file olsr-header.cc.

References HELLO_MESSAGE, HNA_MESSAGE, m_hopCount, m_message, m_messageSequenceNumber, m_messageSize, m_messageType, m_originatorAddress, m_timeToLive, m_vTime, MID_MESSAGE, NS_ASSERT, OLSR_MSG_HEADER_SIZE, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), and TC_MESSAGE.

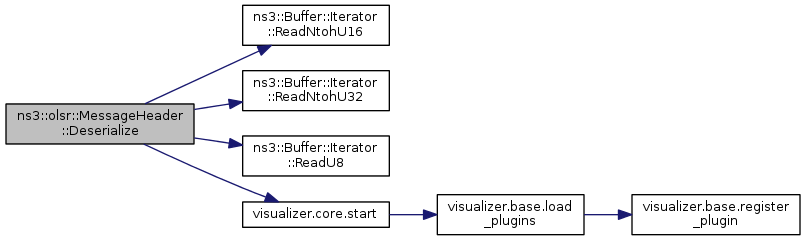

Here is the call graph for this function:

Hello& ns3::olsr::MessageHeader::GetHello ( )

inline

Definition at line 370 of file olsr-header.h.

References HELLO_MESSAGE, m_message, m_messageType, and NS_ASSERT.

Referenced by ns3::OlsrHelloTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessHello(), and ns3::olsr::RoutingProtocol::SendHello().

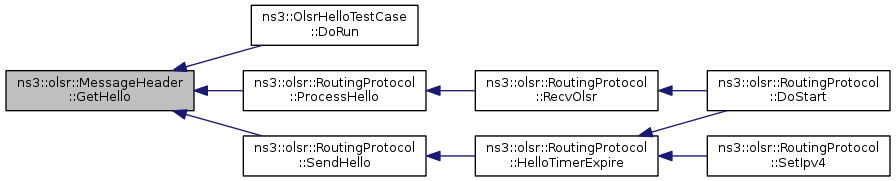

Here is the caller graph for this function:

const Hello& ns3::olsr::MessageHeader::GetHello ( ) const

inline

Definition at line 416 of file olsr-header.h.

References HELLO_MESSAGE, m_message, m_messageType, and NS_ASSERT.

Hna& ns3::olsr::MessageHeader::GetHna ( )

inline

Definition at line 396 of file olsr-header.h.

References HNA_MESSAGE, m_message, m_messageType, and NS_ASSERT.

Referenced by ns3::OlsrHnaTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessHna(), and ns3::olsr::RoutingProtocol::SendHna().

Here is the caller graph for this function:

const Hna& ns3::olsr::MessageHeader::GetHna ( ) const

inline

Definition at line 428 of file olsr-header.h.

References HNA_MESSAGE, m_message, m_messageType, and NS_ASSERT.

uint8_t ns3::olsr::MessageHeader::GetHopCount ( void ) const

inline

Definition at line 170 of file olsr-header.h.

References m_hopCount.

Referenced by ns3::olsr::RoutingProtocol::ForwardDefault().

Here is the caller graph for this function:

TypeId ns3::olsr::MessageHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 175 of file olsr-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::olsr::MessageHeader::GetMessageSequenceNumber ( ) const

inline

Definition at line 179 of file olsr-header.h.

References m_messageSequenceNumber.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ForwardDefault(), and ns3::olsr::RoutingProtocol::RecvOlsr().

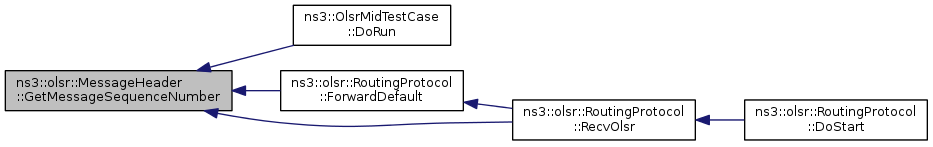

Here is the caller graph for this function:

MessageType ns3::olsr::MessageHeader::GetMessageType ( void ) const

inline

Definition at line 134 of file olsr-header.h.

References m_messageType.

Referenced by ns3::OlsrMidTestCase::DoRun(), and ns3::olsr::RoutingProtocol::RecvOlsr().

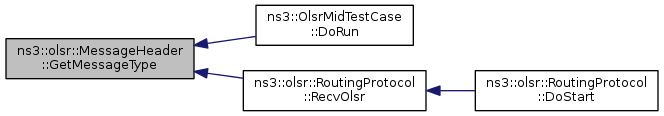

Here is the caller graph for this function:

Mid& ns3::olsr::MessageHeader::GetMid ( )

inline

Definition at line 357 of file olsr-header.h.

References m_message, m_messageType, MID_MESSAGE, and NS_ASSERT.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::SendMid().

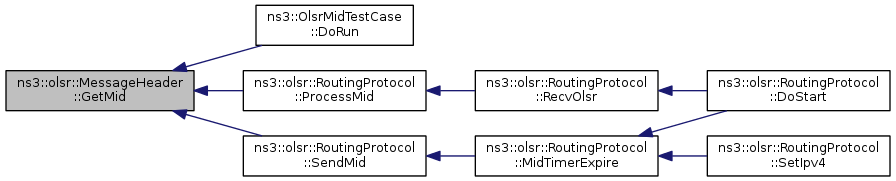

Here is the caller graph for this function:

const Mid& ns3::olsr::MessageHeader::GetMid ( ) const

inline

Definition at line 410 of file olsr-header.h.

References m_message, m_messageType, MID_MESSAGE, and NS_ASSERT.

Ipv4Address ns3::olsr::MessageHeader::GetOriginatorAddress ( void ) const

inline

Definition at line 152 of file olsr-header.h.

References m_originatorAddress.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateNeighborSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), ns3::olsr::RoutingProtocol::ProcessTc(), and ns3::olsr::RoutingProtocol::RecvOlsr().

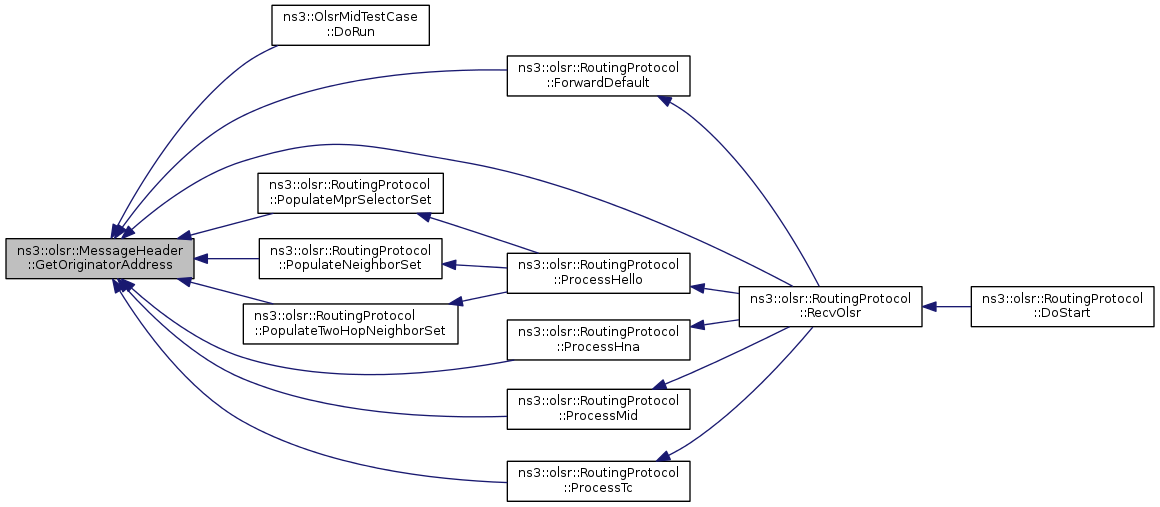

Here is the caller graph for this function:

uint32_t ns3::olsr::MessageHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 181 of file olsr-header.cc.

References HELLO_MESSAGE, HNA_MESSAGE, m_message, m_messageType, MID_MESSAGE, NS_ASSERT, NS_LOG_DEBUG, OLSR_MSG_HEADER_SIZE, and TC_MESSAGE.

Referenced by ns3::olsr::MessageHeader::Mid::Deserialize(), ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::olsr::RoutingProtocol::SendHello(), and Serialize().

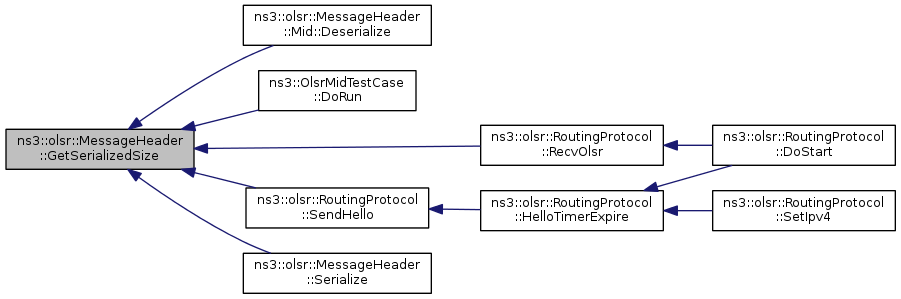

Here is the caller graph for this function:

Tc& ns3::olsr::MessageHeader::GetTc ( )

inline

Definition at line 383 of file olsr-header.h.

References m_message, m_messageType, NS_ASSERT, and TC_MESSAGE.

Referenced by ns3::OlsrTcTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessTc(), and ns3::olsr::RoutingProtocol::SendTc().

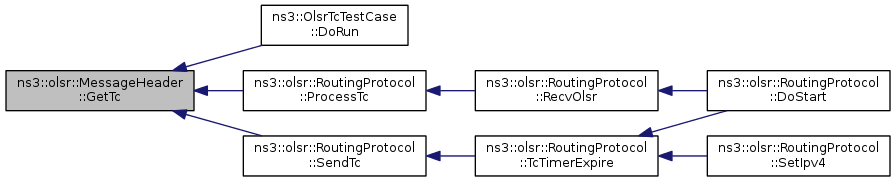

Here is the caller graph for this function:

const Tc& ns3::olsr::MessageHeader::GetTc ( ) const

inline

Definition at line 422 of file olsr-header.h.

References m_message, m_messageType, NS_ASSERT, and TC_MESSAGE.

uint8_t ns3::olsr::MessageHeader::GetTimeToLive ( ) const

inline

Definition at line 161 of file olsr-header.h.

References m_timeToLive.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ForwardDefault(), and ns3::olsr::RoutingProtocol::RecvOlsr().

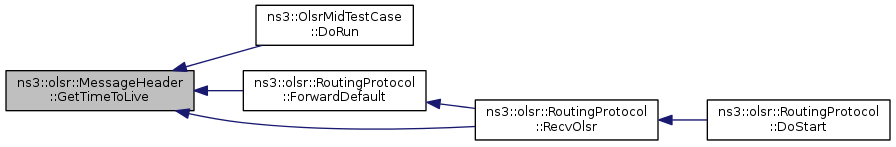

Here is the caller graph for this function:

TypeId ns3::olsr::MessageHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::olsr::MessageHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 166 of file olsr-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::olsr::MessageHeader::GetVTime ( ) const

inline

Definition at line 143 of file olsr-header.h.

References ns3::olsr::EmfToSeconds(), m_vTime, and ns3::Seconds().

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::ProcessTc().

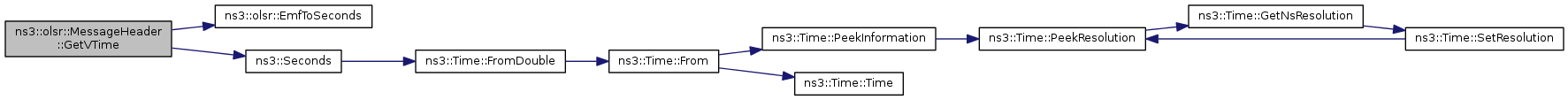

Here is the call graph for this function:

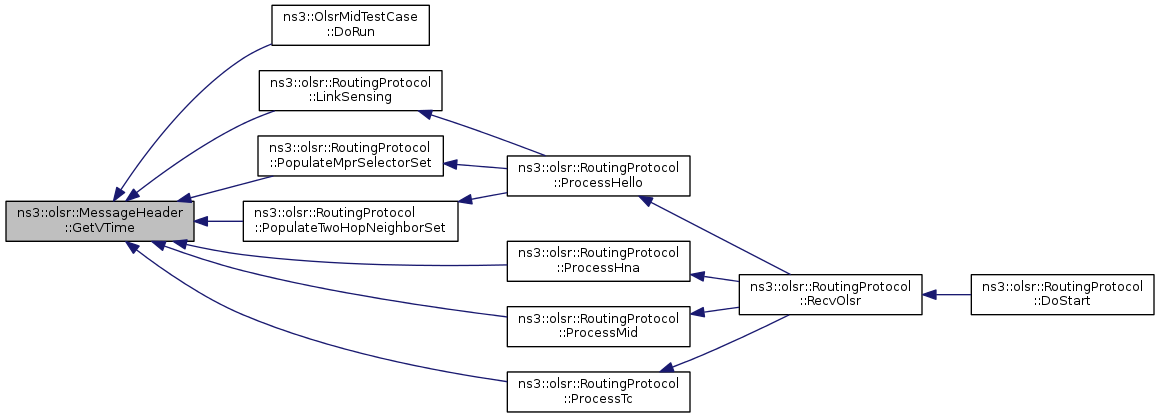

Here is the caller graph for this function:

void ns3::olsr::MessageHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 206 of file olsr-header.cc.

Referenced by ns3::olsr::operator<<().

Here is the caller graph for this function:

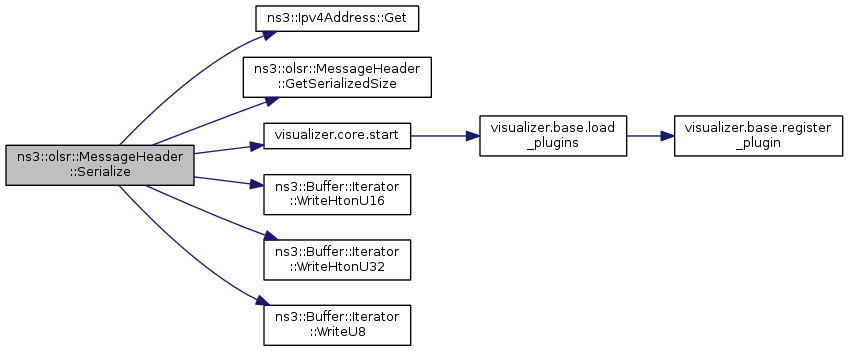

void ns3::olsr::MessageHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 212 of file olsr-header.cc.

References ns3::Ipv4Address::Get(), GetSerializedSize(), HELLO_MESSAGE, HNA_MESSAGE, m_hopCount, m_message, m_messageSequenceNumber, m_messageType, m_originatorAddress, m_timeToLive, m_vTime, MID_MESSAGE, NS_ASSERT, visualizer.core::start(), TC_MESSAGE, ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().
