Information element vectorImplements a vector of WifiInformationElements. Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format. More...

#include <wifi-information-element-vector.h>

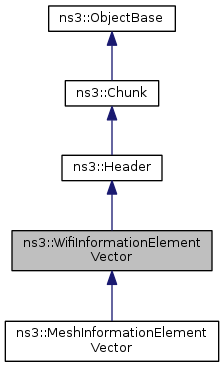

Inheritance diagram for ns3::WifiInformationElementVector:

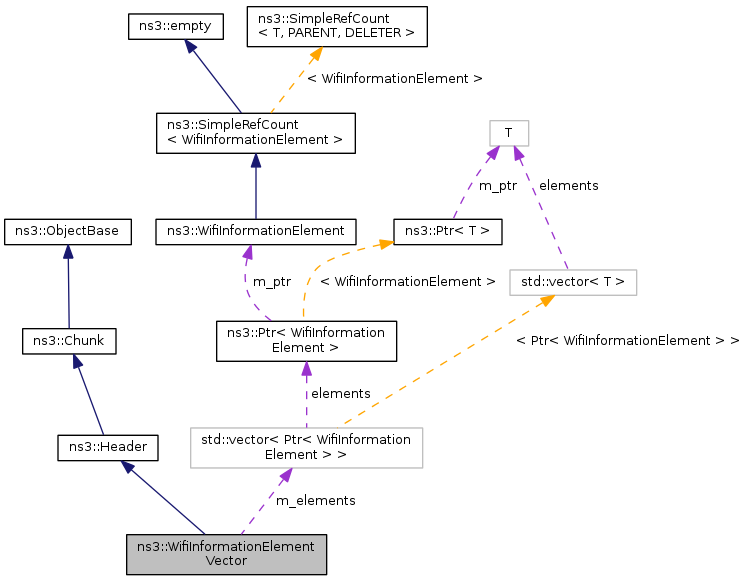

Collaboration diagram for ns3::WifiInformationElementVector:

Public Types
typedef std::vector< Ptr < WifiInformationElement > >::iterator	Iterator
	As soon as this is a vector, we define an Iterator.

Public Member Functions
	WifiInformationElementVector ()
	~WifiInformationElementVector ()
bool	AddInformationElement (Ptr< WifiInformationElement > element)
	add an IE, if maxSize has exceeded, returns false
Iterator	Begin ()
	Returns Begin of the vector.
virtual uint32_t	DeserializeSingleIe (Buffer::Iterator start)
	Needed when you try to deserialize a lonely IE inside other header.
Iterator	End ()
	Returns End of the vector.
Ptr< WifiInformationElement >	FindFirst (WifiInformationElementId id) const
	vector of pointers to information elements is the body of IeVector
virtual bool	operator== (const WifiInformationElementVector &a) const
void	SetMaxSize (uint16_t size)
	Set maximum size to control overflow of the max packet length.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Protected Types
typedef std::vector< Ptr < WifiInformationElement > >	IE_VECTOR

Protected Member Functions
uint32_t	GetSize () const
	Current number of bytes.

Protected Attributes
IE_VECTOR	m_elements
uint16_t	m_maxSize
	Size in bytes (actually, max packet length)

Inherited from Header
TypeId	GetInstanceTypeId () const
virtual uint32_t	GetSerializedSize () const
virtual void	Serialize (Buffer::Iterator start) const
virtual uint32_t	Deserialize (Buffer::Iterator start)
virtual void	Print (std::ostream &os) const
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::WifiInformationElementVector.

Detailed Description

Information element vector

Implements a vector of WifiInformationElements. Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format.

Definition at line 43 of file wifi-information-element-vector.h.

Member Typedef Documentation

typedef std::vector<Ptr<WifiInformationElement> > ns3::WifiInformationElementVector::IE_VECTOR

protected

Definition at line 84 of file wifi-information-element-vector.h.

typedef std::vector<Ptr<WifiInformationElement> >::iterator ns3::WifiInformationElementVector::Iterator

As soon as this is a vector, we define an Iterator.

Definition at line 72 of file wifi-information-element-vector.h.

Constructor & Destructor Documentation

ns3::WifiInformationElementVector::WifiInformationElementVector ( )

Definition at line 29 of file wifi-information-element-vector.cc.

ns3::WifiInformationElementVector::~WifiInformationElementVector ( )

Definition at line 33 of file wifi-information-element-vector.cc.

References m_elements.

Member Function Documentation

bool ns3::WifiInformationElementVector::AddInformationElement ( Ptr< WifiInformationElement > element )

add an IE, if maxSize has exceeded, returns false

Definition at line 123 of file wifi-information-element-vector.cc.

References ns3::WifiInformationElement::GetInformationFieldSize(), GetSize(), m_elements, and m_maxSize.

Referenced by ns3::MeshWifiBeacon::AddInformationElement(), ns3::MeshInformationElementVectorBist::DoRun(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), and ns3::dot11s::HwmpProtocolMac::SendPreq().

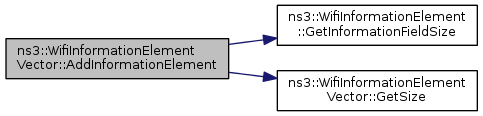

Here is the call graph for this function:

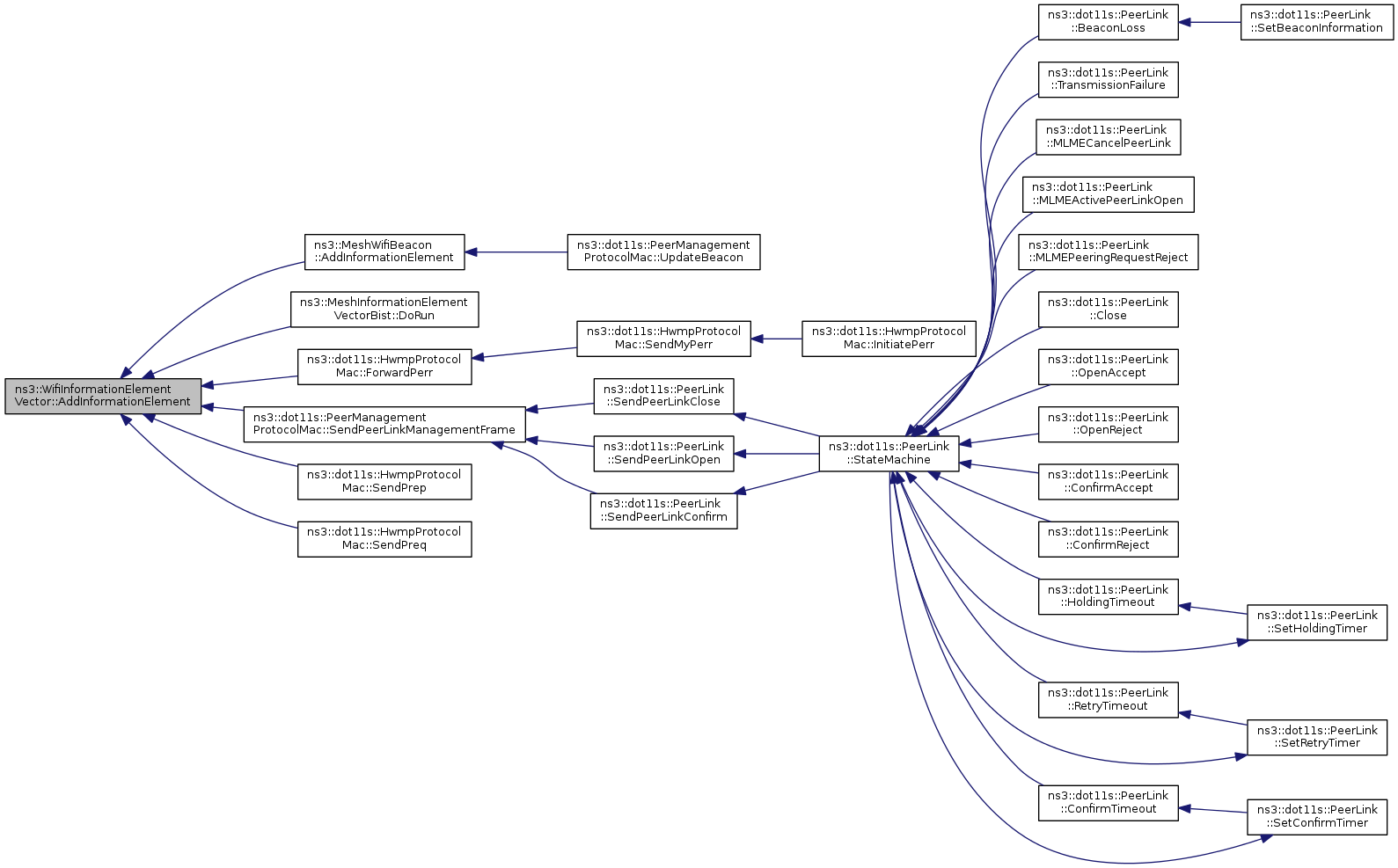

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::Begin ( void )

Returns Begin of the vector.

Definition at line 113 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

uint32_t ns3::WifiInformationElementVector::Deserialize ( Buffer::Iterator start )

virtual

Attention: When you use RemoveHeader, WifiInformationElementVector supposes, that all buffer consists of information elements

Parameters

start

Returns

Implements ns3::Header.

Definition at line 68 of file wifi-information-element-vector.cc.

References DeserializeSingleIe(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::GetSize(), ns3::Buffer::Iterator::Next(), and visualizer.core::start().

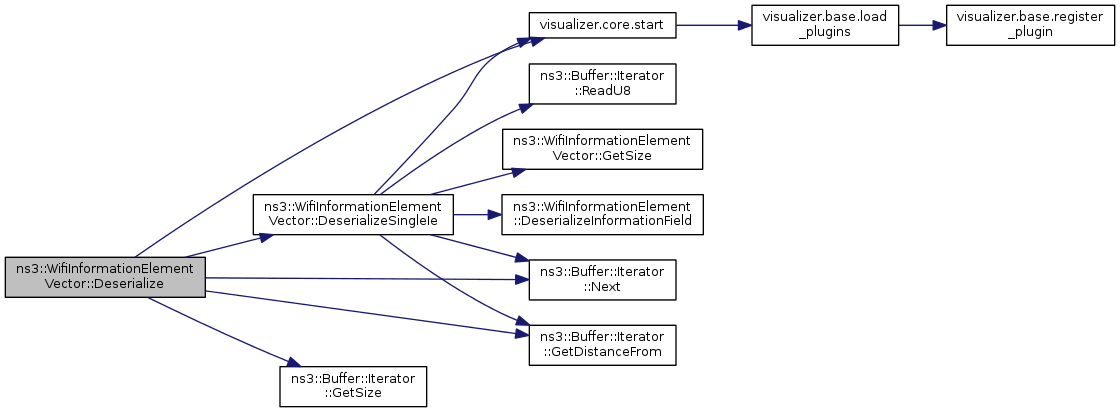

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::DeserializeSingleIe ( Buffer::Iterator start )

virtual

Needed when you try to deserialize a lonely IE inside other header.

Parameters

start is the start of the buffer

Returns: deserialized bytes

Reimplemented in ns3::MeshInformationElementVector.

Definition at line 81 of file wifi-information-element-vector.cc.

References ns3::WifiInformationElement::DeserializeInformationField(), ns3::Buffer::Iterator::GetDistanceFrom(), GetSize(), m_elements, m_maxSize, ns3::Buffer::Iterator::Next(), NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by Deserialize().

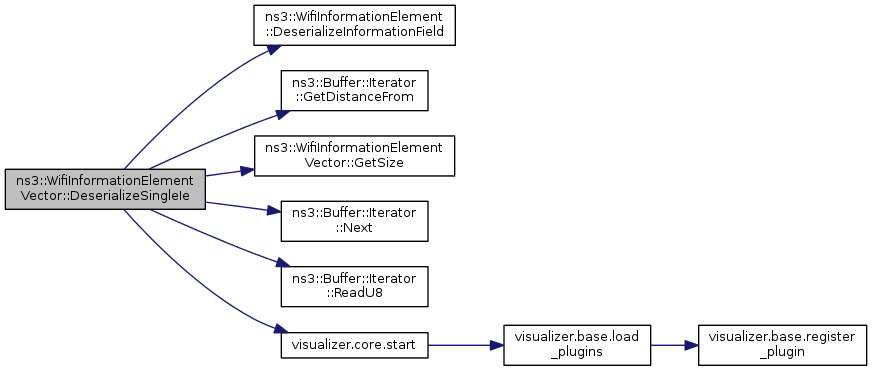

Here is the call graph for this function:

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::End ( void )

Returns End of the vector.

Definition at line 118 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

Ptr< WifiInformationElement > ns3::WifiInformationElementVector::FindFirst ( WifiInformationElementId id ) const

vector of pointers to information elements is the body of IeVector

Definition at line 133 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 50 of file wifi-information-element-vector.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 55 of file wifi-information-element-vector.cc.

References GetSize().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSize ( void ) const

protected

Current number of bytes.

Definition at line 155 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by AddInformationElement(), ns3::MeshInformationElementVector::DeserializeSingleIe(), DeserializeSingleIe(), and GetSerializedSize().

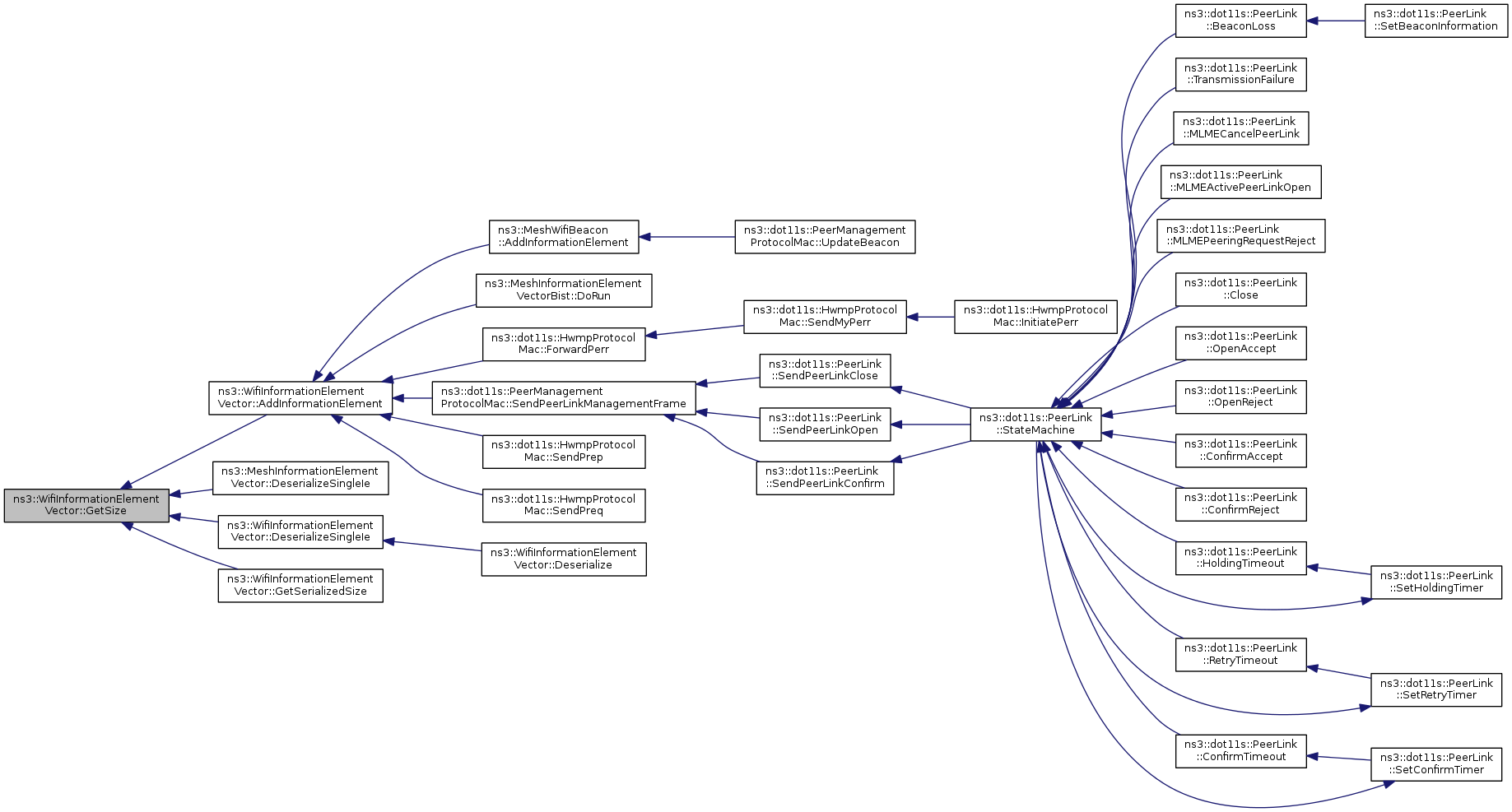

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::WifiInformationElementVector.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 42 of file wifi-information-element-vector.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiInformationElementVector::operator== ( const WifiInformationElementVector & a ) const

virtual

Definition at line 166 of file wifi-information-element-vector.cc.

References m_elements, and NS_ASSERT.

void ns3::WifiInformationElementVector::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 103 of file wifi-information-element-vector.cc.

void ns3::WifiInformationElementVector::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 60 of file wifi-information-element-vector.cc.

References m_elements.

void ns3::WifiInformationElementVector::SetMaxSize ( uint16_t size )

Set maximum size to control overflow of the max packet length.

Definition at line 108 of file wifi-information-element-vector.cc.

References m_maxSize.
