ns3::MeshInformationElementVector Class Reference

#include <mesh-information-element-vector.h>

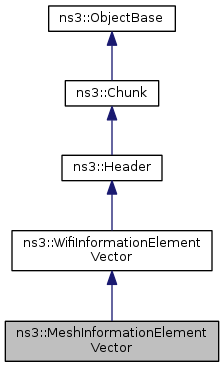

Inheritance diagram for ns3::MeshInformationElementVector:

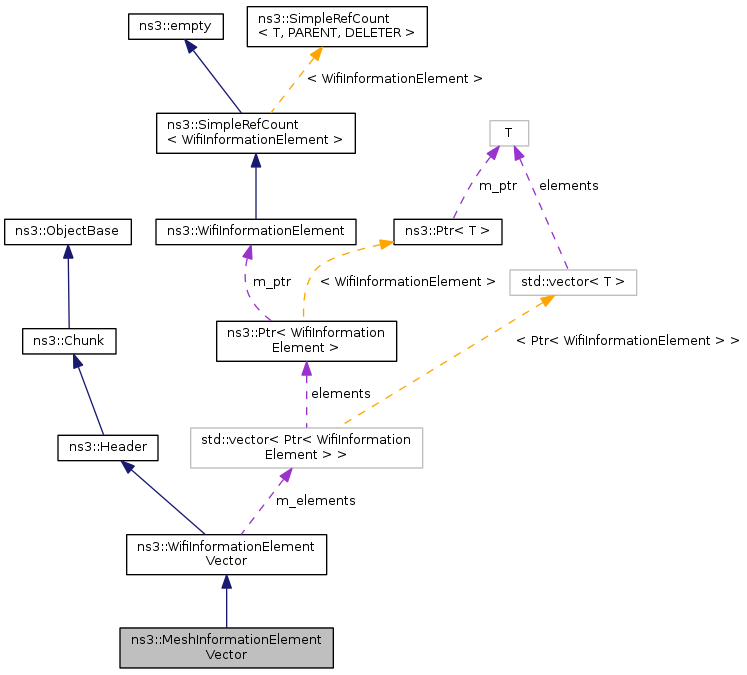

Collaboration diagram for ns3::MeshInformationElementVector:

Public Member Functions
virtual uint32_t	DeserializeSingleIe (Buffer::Iterator start)
	Needed when you try to deserialize a lonely IE inside other header.
Public Member Functions inherited from ns3::WifiInformationElementVector
	WifiInformationElementVector ()
	~WifiInformationElementVector ()
bool	AddInformationElement (Ptr< WifiInformationElement > element)
	add an IE, if maxSize has exceeded, returns false
Iterator	Begin ()
	Returns Begin of the vector.
Iterator	End ()
	Returns End of the vector.
Ptr< WifiInformationElement >	FindFirst (WifiInformationElementId id) const
	vector of pointers to information elements is the body of IeVector
virtual bool	operator== (const WifiInformationElementVector &a) const
void	SetMaxSize (uint16_t size)
	Set maximum size to control overflow of the max packet length.
TypeId	GetInstanceTypeId () const
virtual uint32_t	GetSerializedSize () const
virtual void	Serialize (Buffer::Iterator start) const
virtual uint32_t	Deserialize (Buffer::Iterator start)
virtual void	Print (std::ostream &os) const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Additional Inherited Members
Public Types inherited from ns3::WifiInformationElementVector
typedef std::vector< Ptr < WifiInformationElement > >::iterator	Iterator
	As soon as this is a vector, we define an Iterator.
Static Public Member Functions inherited from ns3::WifiInformationElementVector
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::WifiInformationElementVector.
Protected Types inherited from ns3::WifiInformationElementVector
typedef std::vector< Ptr < WifiInformationElement > >	IE_VECTOR
Protected Member Functions inherited from ns3::WifiInformationElementVector
uint32_t	GetSize () const
	Current number of bytes.
Protected Attributes inherited from ns3::WifiInformationElementVector
IE_VECTOR	m_elements
uint16_t	m_maxSize
	Size in bytes (actually, max packet length)

Detailed Description

Definition at line 30 of file mesh-information-element-vector.h.

Member Function Documentation

uint32_t ns3::MeshInformationElementVector::DeserializeSingleIe ( Buffer::Iterator  start )

virtual

Needed when you try to deserialize a lonely IE inside other header.

Parameters

start

is the start of the buffer

Returns

deserialized bytes

Reimplemented from ns3::WifiInformationElementVector.

Definition at line 40 of file mesh-information-element-vector.cc.

References ns3::WifiInformationElement::DeserializeInformationField(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::WifiInformationElementVector::GetSize(), IE11S_BEACON_TIMING, IE11S_LINK_METRIC_REPORT, IE11S_MESH_CONFIGURATION, IE11S_MESH_ID, IE11S_MESH_PEERING_PROTOCOL_VERSION, IE11S_PEERING_MANAGEMENT, IE11S_PERR, IE11S_PREP, IE11S_PREQ, IE11S_RANN, ns3::WifiInformationElementVector::m_elements, ns3::WifiInformationElementVector::m_maxSize, ns3::Buffer::Iterator::Next(), NS_FATAL_ERROR, ns3::Buffer::Iterator::Prev(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

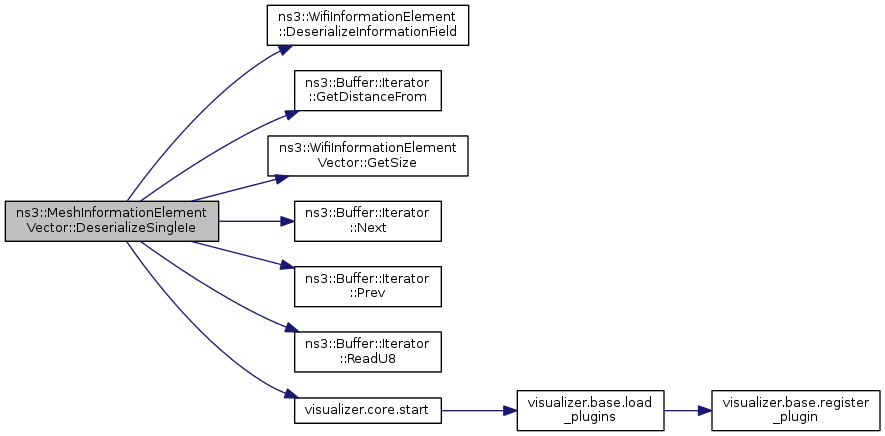

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/mesh/model/mesh-information-element-vector.h
• src/mesh/model/mesh-information-element-vector.cc
