ICMPv6 Error Parameter Error header. More...

#include <icmpv6-header.h>

Inheritance diagram for ns3::Icmpv6ParameterError:

Collaboration diagram for ns3::Icmpv6ParameterError:

Public Member Functions
	Icmpv6ParameterError ()
	Constructor.
virtual	~Icmpv6ParameterError ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
Ptr< Packet >	GetPacket () const
	Get the incorrect packet.
uint32_t	GetPtr () const
	Get the pointer field.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetPacket (Ptr< Packet > p)
	Set the incorrect packet.
void	SetPtr (uint32_t ptr)
	Set the pointer field.
Public Member Functions inherited from ns3::Icmpv6Header
	Icmpv6Header ()
	Constructor.
virtual	~Icmpv6Header ()
	Destructor.
void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6.
uint16_t	GetChecksum () const
	Get the checksum.
uint8_t	GetCode () const
	Get the code field.
uint8_t	GetType () const
	Get the type field.
void	SetChecksum (uint16_t checksum)
	Set the checksum.
void	SetCode (uint8_t code)
	Set the code field.
void	SetType (uint8_t type)
	Set the type.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Private Attributes
Ptr< Packet >	m_packet
	The incorrect packet.
uint32_t	m_ptr
	The pointer field.

Additional Inherited Members
Public Types inherited from ns3::Icmpv6Header
enum	ErrorDestinationUnreachable_e { ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE, ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable. More...
enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error. More...
enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded. More...
enum	OptionType_e { ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED, ICMPV6_OPT_MTU }
	ICMPv6 Option type code. More...
enum	Type_e { ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR, ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT, ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION, ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST, ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT, ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
Protected Attributes inherited from ns3::Icmpv6Header
bool	m_calcChecksum
	Checksum enable or not.
uint16_t	m_checksum
	The checksum.

Detailed Description

ICMPv6 Error Parameter Error header.

Definition at line 1275 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6ParameterError::Icmpv6ParameterError ( )

Constructor.

Definition at line 1228 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ERROR_PARAMETER_ERROR, and ns3::Icmpv6Header::SetType().

Here is the call graph for this function:

ns3::Icmpv6ParameterError::~Icmpv6ParameterError ( )

virtual

Destructor.

Definition at line 1235 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6ParameterError::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 1294 of file icmpv6-header.cc.

References data, GetSerializedSize(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::m_checksum, m_packet, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6Header::SetCode(), SetPtr(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

Here is the call graph for this function:

TypeId ns3::Icmpv6ParameterError::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 1223 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

Ptr< Packet > ns3::Icmpv6ParameterError::GetPacket ( ) const

Get the incorrect packet.

Returns: the incorrect packet

Definition at line 1239 of file icmpv6-header.cc.

References m_packet.

Referenced by ns3::Icmpv6L4Protocol::HandleParameterError().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6ParameterError::GetPtr ( ) const

Get the pointer field.

Returns: pointer value

Definition at line 1250 of file icmpv6-header.cc.

References m_ptr.

Referenced by Print(), and Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6ParameterError::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 1265 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), and m_packet.

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::Icmpv6ParameterError::GetTypeId ( void )

static

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6ParameterError.

Returns: UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Icmpv6Header.

Definition at line 1214 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6ParameterError::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 1260 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), GetPtr(), and ns3::Icmpv6Header::GetType().

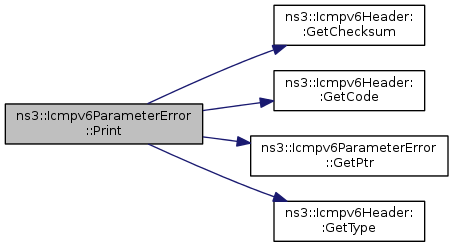

Here is the call graph for this function:

void ns3::Icmpv6ParameterError::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 1270 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Packet::CopyData(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), GetPtr(), ns3::Packet::GetSize(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), m_packet, ns3::Buffer::Iterator::Next(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

void ns3::Icmpv6ParameterError::SetPacket ( Ptr< Packet > p )

Set the incorrect packet.

Parameters

p	the incorrect packet

Definition at line 1244 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), m_packet, and NS_ASSERT.

Referenced by ns3::Icmpv6L4Protocol::SendErrorParameterError().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6ParameterError::SetPtr ( uint32_t ptr )

Set the pointer field.

Parameters

ptr	byte where the error is located in the incorrect packet

Definition at line 1255 of file icmpv6-header.cc.

References m_ptr.

Referenced by Deserialize(), and ns3::Icmpv6L4Protocol::SendErrorParameterError().

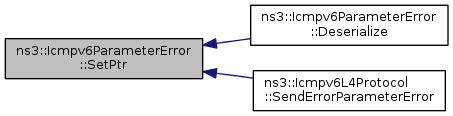

Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> ns3::Icmpv6ParameterError::m_packet

private

The incorrect packet.

Definition at line 1354 of file icmpv6-header.h.

Referenced by Deserialize(), GetPacket(), GetSerializedSize(), Serialize(), and SetPacket().

uint32_t ns3::Icmpv6ParameterError::m_ptr

private

The pointer field.

Definition at line 1359 of file icmpv6-header.h.

Referenced by GetPtr(), and SetPtr().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
doc/introspected-doxygen.h
src/internet/model/icmpv6-header.cc
