#include <aloha-noack-mac-header.h>

Inheritance diagram for ns3::AlohaNoackMacHeader:

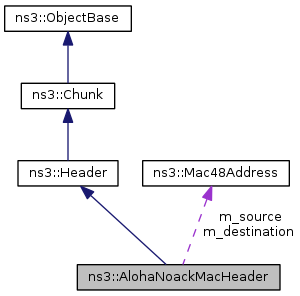

Collaboration diagram for ns3::AlohaNoackMacHeader:

Public Member Functions
virtual uint32_t	Deserialize (Buffer::Iterator start)
Mac48Address	GetDestination () const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
Mac48Address	GetSource () const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetDestination (Mac48Address destination)
void	SetSource (Mac48Address source)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::AlohaNoackMacHeader.

Private Attributes
Mac48Address	m_destination
Mac48Address	m_source

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 35 of file aloha-noack-mac-header.h.

Member Function Documentation

uint32_t ns3::AlohaNoackMacHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 65 of file aloha-noack-mac-header.cc.

References GetSerializedSize(), m_destination, m_source, and ns3::ReadFrom().

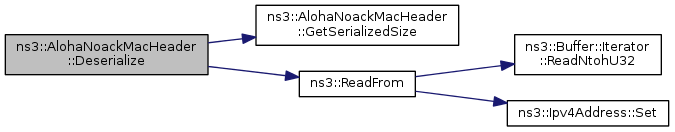

Here is the call graph for this function:

Mac48Address ns3::AlohaNoackMacHeader::GetDestination ( void ) const

Definition at line 100 of file aloha-noack-mac-header.cc.

References m_destination.

Referenced by ns3::AlohaNoackNetDevice::NotifyReceptionEndOk().

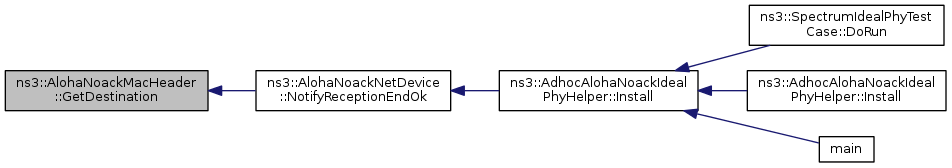

Here is the caller graph for this function:

TypeId ns3::AlohaNoackMacHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 42 of file aloha-noack-mac-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::AlohaNoackMacHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 50 of file aloha-noack-mac-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

Mac48Address ns3::AlohaNoackMacHeader::GetSource ( void ) const

Definition at line 88 of file aloha-noack-mac-header.cc.

References m_source.

Referenced by ns3::AlohaNoackNetDevice::NotifyReceptionEndOk().

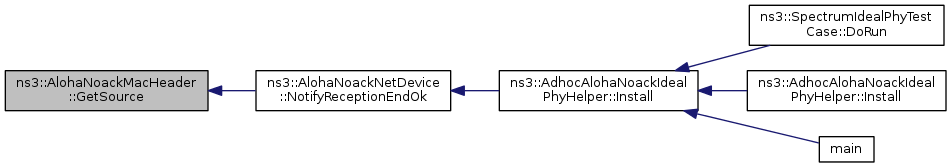

Here is the caller graph for this function:

TypeId ns3::AlohaNoackMacHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::AlohaNoackMacHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 32 of file aloha-noack-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AlohaNoackMacHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 74 of file aloha-noack-mac-header.cc.

References m_destination, and m_source.

void ns3::AlohaNoackMacHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 58 of file aloha-noack-mac-header.cc.

References m_destination, m_source, and ns3::WriteTo().

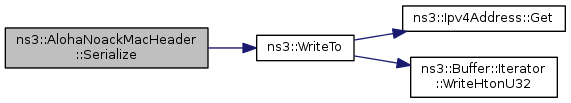

Here is the call graph for this function:
