Dsr fixed size header Format. More...

#include <dsr-fs-header.h>

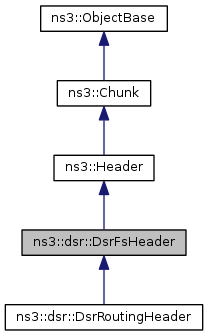

Inheritance diagram for ns3::dsr::DsrFsHeader:

Collaboration diagram for ns3::dsr::DsrFsHeader:

Public Member Functions
	DsrFsHeader ()
	Constructor.
virtual	~DsrFsHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
uint16_t	GetDestId () const
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint8_t	GetMessageType () const
uint8_t	GetNextHeader () const
	Get the next header.
uint16_t	GetPayloadLength () const
	Get the payload length of the header.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
uint16_t	GetSourceId () const
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetDestId (uint16_t destId)
void	SetMessageType (uint8_t messageType)
void	SetNextHeader (uint8_t protocol)
	Set the "Next header" field.
void	SetPayloadLength (uint16_t length)
void	SetSourceId (uint16_t sourceId)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
Buffer	m_data
	The data of the extension.
uint16_t	m_destId
	The destination node id.
uint8_t	m_messageType
	The type of the message.
uint8_t	m_nextHeader
	The "next header" field.
uint16_t	m_payloadLen
	The "payload length" field.
uint16_t	m_sourceId
	The source node id.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Dsr fixed size header Format.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Next Header |F|     Reservd    |       Payload Length       |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Options                           |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

The modified version of Dsr fixed size header Format

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Next Header |F|  Message Type  |       Payload Length       |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |             Source Id           |            Dest Id         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Options                           |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Definition at line 79 of file dsr-fs-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrFsHeader::DsrFsHeader ( )

Constructor.

Definition at line 58 of file dsr-fs-header.cc.

ns3::dsr::DsrFsHeader::~DsrFsHeader ( )

virtual

Destructor.

Definition at line 68 of file dsr-fs-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrFsHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 148 of file dsr-fs-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::Begin(), data, GetPayloadLength(), GetSerializedSize(), ns3::Buffer::GetSize(), m_data, m_destId, m_messageType, m_nextHeader, m_payloadLen, m_sourceId, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Buffer::RemoveAtEnd(), visualizer.core::start(), and ns3::Buffer::Iterator::Write().

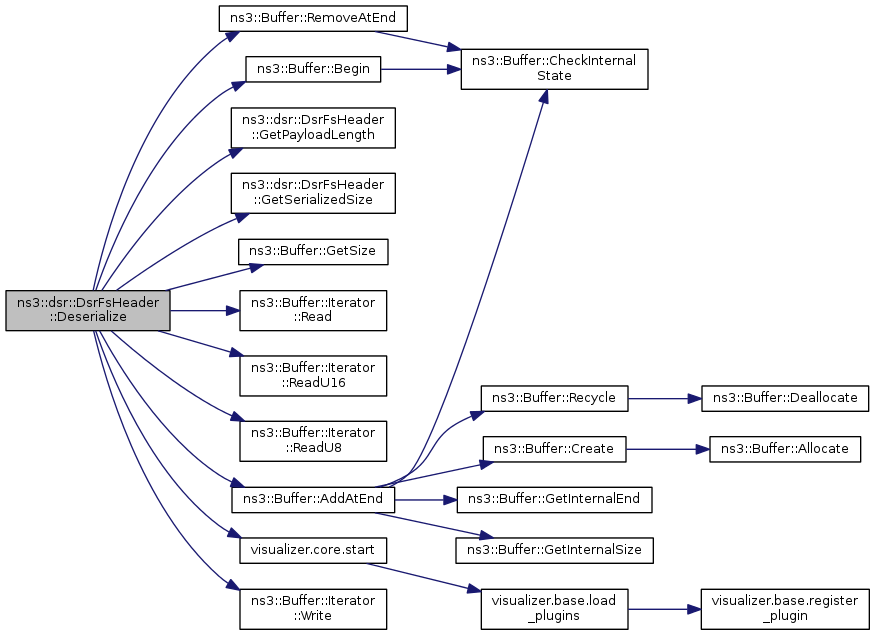

Here is the call graph for this function:

uint16_t ns3::dsr::DsrFsHeader::GetDestId ( ) const

brief Get the dest id of the header.

Returns: dest id the dest id of the header

Definition at line 117 of file dsr-fs-header.cc.

References m_destId.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), Print(), ns3::dsr::DsrRoutingHeader::Print(), and ns3::dsr::DsrRoutingHeader::Serialize().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrFsHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 53 of file dsr-fs-header.cc.

References GetTypeId().

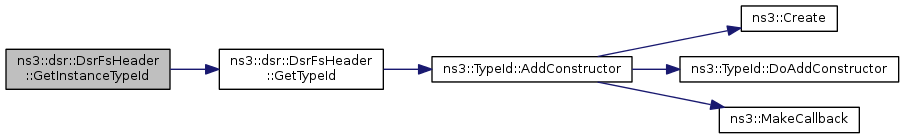

Here is the call graph for this function:

uint8_t ns3::dsr::DsrFsHeader::GetMessageType ( ) const

brief Get the message type of the header.

Returns: message type the message type of the header

Definition at line 87 of file dsr-fs-header.cc.

References m_messageType.

Referenced by Print(), ns3::dsr::DsrRoutingHeader::Print(), and ns3::dsr::DsrRoutingHeader::Serialize().

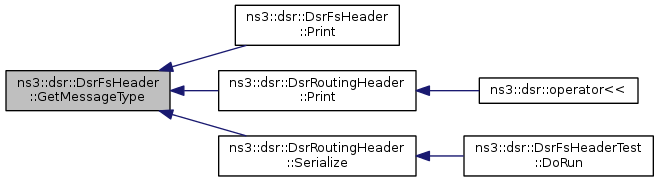

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrFsHeader::GetNextHeader ( ) const

Get the next header.

Returns: the next header number

Definition at line 77 of file dsr-fs-header.cc.

References m_nextHeader.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), Print(), ns3::dsr::DsrRoutingHeader::Print(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::dsr::DsrRouting::Receive(), and ns3::dsr::DsrRoutingHeader::Serialize().

Here is the caller graph for this function:

uint16_t ns3::dsr::DsrFsHeader::GetPayloadLength ( ) const

Get the payload length of the header.

Returns: the payload length of the header

Definition at line 97 of file dsr-fs-header.cc.

References m_payloadLen.

Referenced by Deserialize(), ns3::dsr::DsrRoutingHeader::Deserialize(), Print(), ns3::dsr::DsrRoutingHeader::Print(), and ns3::dsr::DsrRoutingHeader::Serialize().

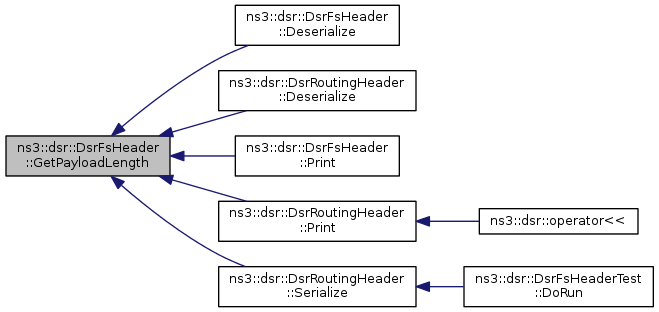

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrFsHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 130 of file dsr-fs-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

uint16_t ns3::dsr::DsrFsHeader::GetSourceId ( ) const

brief Get the source id of the header.

Returns: source id the source id of the header

Definition at line 107 of file dsr-fs-header.cc.

References m_sourceId.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), Print(), ns3::dsr::DsrRoutingHeader::Print(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::dsr::DsrRouting::Receive(), and ns3::dsr::DsrRoutingHeader::Serialize().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrFsHeader::GetTypeId ( void )

static

Get the type identificator.

This method returns the TypeId associated to ns3::dsr::DsrFsHeader.

Returns: type identificator

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 44 of file dsr-fs-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

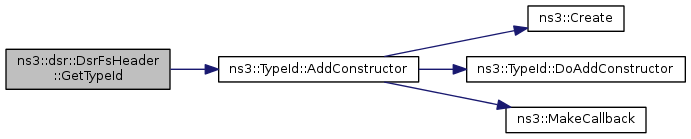

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrFsHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 122 of file dsr-fs-header.cc.

References GetDestId(), GetMessageType(), GetNextHeader(), GetPayloadLength(), and GetSourceId().

Here is the call graph for this function:

void ns3::dsr::DsrFsHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 135 of file dsr-fs-header.cc.

References ns3::Buffer::GetSize(), m_data, m_destId, m_messageType, m_nextHeader, m_payloadLen, m_sourceId, ns3::Buffer::PeekData(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

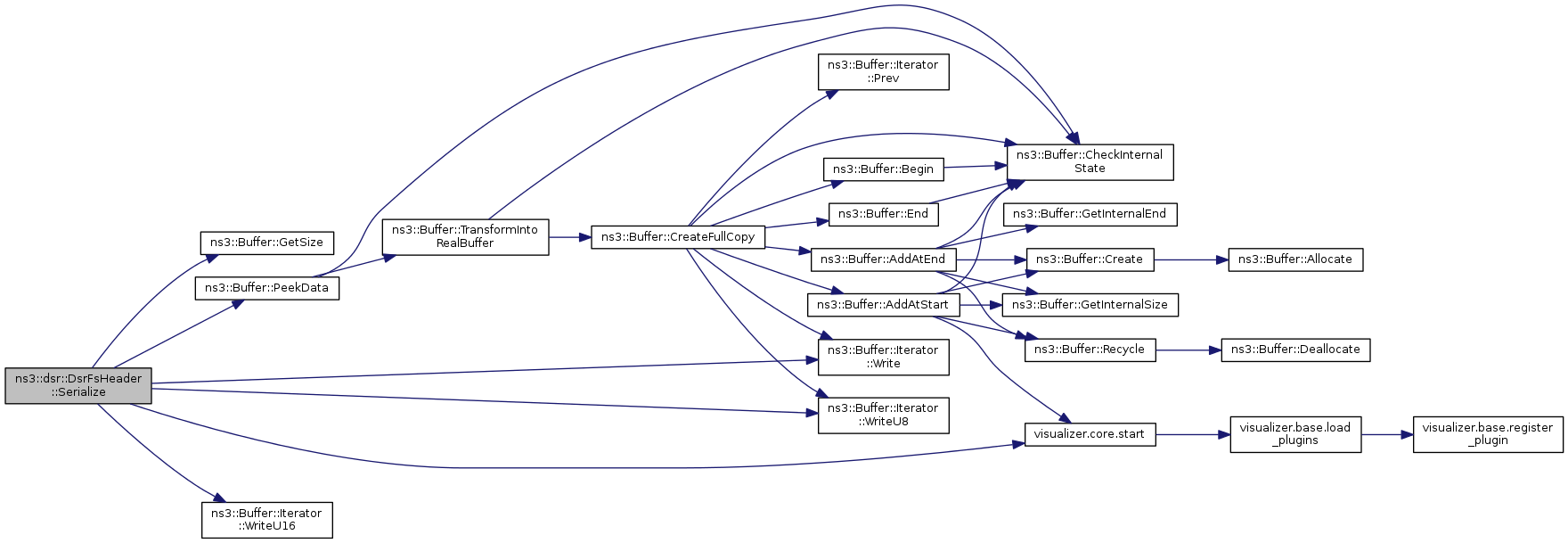

Here is the call graph for this function:

void ns3::dsr::DsrFsHeader::SetDestId ( uint16_t destId )

brief Set the dest id of the header.

Parameters

dest	id the dest id of the header

Definition at line 112 of file dsr-fs-header.cc.

References m_destId.

Here is the caller graph for this function:

void ns3::dsr::DsrFsHeader::SetMessageType ( uint8_t messageType )

brief Set the message type of the header.

Parameters

message type the message type of the header

Definition at line 82 of file dsr-fs-header.cc.

References m_messageType.

Here is the caller graph for this function:

void ns3::dsr::DsrFsHeader::SetNextHeader ( uint8_t protocol )

Set the "Next header" field.

Parameters

nextHeader the next header number

Definition at line 72 of file dsr-fs-header.cc.

References m_nextHeader.

Here is the caller graph for this function:

void ns3::dsr::DsrFsHeader::SetPayloadLength ( uint16_t length )

brief Set the payload length of the header.

Parameters

length the payload length of the header in bytes

Definition at line 92 of file dsr-fs-header.cc.

References m_payloadLen.

Here is the caller graph for this function:

void ns3::dsr::DsrFsHeader::SetSourceId ( uint16_t sourceId )

brief Set the source id of the header.

Parameters

source id the source id of the header

Definition at line 102 of file dsr-fs-header.cc.

References m_sourceId.

Here is the caller graph for this function:

Member Data Documentation

Buffer ns3::dsr::DsrFsHeader::m_data

private

The data of the extension.

Definition at line 197 of file dsr-fs-header.h.

Referenced by Deserialize(), and Serialize().

uint16_t ns3::dsr::DsrFsHeader::m_destId

private

The destination node id.

Definition at line 193 of file dsr-fs-header.h.

Referenced by Deserialize(), GetDestId(), Serialize(), and SetDestId().

uint8_t ns3::dsr::DsrFsHeader::m_messageType

private

The type of the message.

Definition at line 181 of file dsr-fs-header.h.

Referenced by Deserialize(), GetMessageType(), Serialize(), and SetMessageType().

uint8_t ns3::dsr::DsrFsHeader::m_nextHeader

private

The "next header" field.

Definition at line 177 of file dsr-fs-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().

uint16_t ns3::dsr::DsrFsHeader::m_payloadLen

private

The "payload length" field.

Definition at line 185 of file dsr-fs-header.h.

Referenced by Deserialize(), GetPayloadLength(), Serialize(), and SetPayloadLength().

uint16_t ns3::dsr::DsrFsHeader::m_sourceId

private

The source node id.

Definition at line 189 of file dsr-fs-header.h.

Referenced by Deserialize(), GetSourceId(), Serialize(), and SetSourceId().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-fs-header.h
doc/introspected-doxygen.h
src/dsr/model/dsr-fs-header.cc
