#include <mac-messages.h>

Inheritance diagram for ns3::DsaRsp:

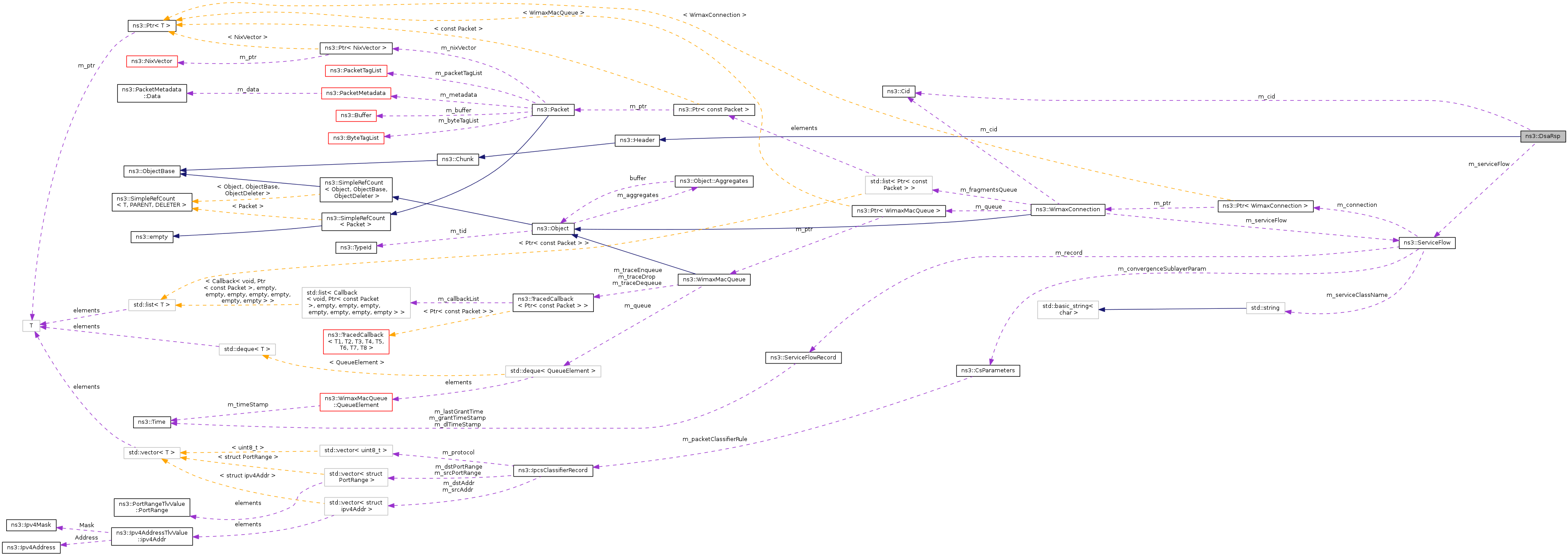

Collaboration diagram for ns3::DsaRsp:

Public Member Functions
	DsaRsp (void)
	This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63.
	~DsaRsp (void)
uint32_t	Deserialize (Buffer::Iterator start)
Cid	GetCid (void) const
uint16_t	GetConfirmationCode (void) const
virtual TypeId	GetInstanceTypeId (void) const
std::string	GetName (void) const
uint32_t	GetSerializedSize (void) const
ServiceFlow	GetServiceFlow (void) const
uint32_t	GetSfid (void) const
uint16_t	GetTransactionId (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetCid (Cid cid)
	set the connection identifier
void	SetConfirmationCode (uint16_t confirmationCode)
void	SetServiceFlow (ServiceFlow sf)
	specify a service flow to be requested by this message
void	SetSfid (uint32_t sfid)
	set the service flow identifier
void	SetTransactionId (uint16_t transactionId)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::DsaRsp.

Private Attributes
Cid	m_cid
uint8_t	m_confirmationCode
ServiceFlow	m_serviceFlow
uint32_t	m_sfid
uint16_t	m_transactionId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 335 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::DsaRsp::DsaRsp ( void )

This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63.

Definition at line 636 of file mac-messages.cc.

ns3::DsaRsp::~DsaRsp ( void )

Definition at line 644 of file mac-messages.cc.

Member Function Documentation

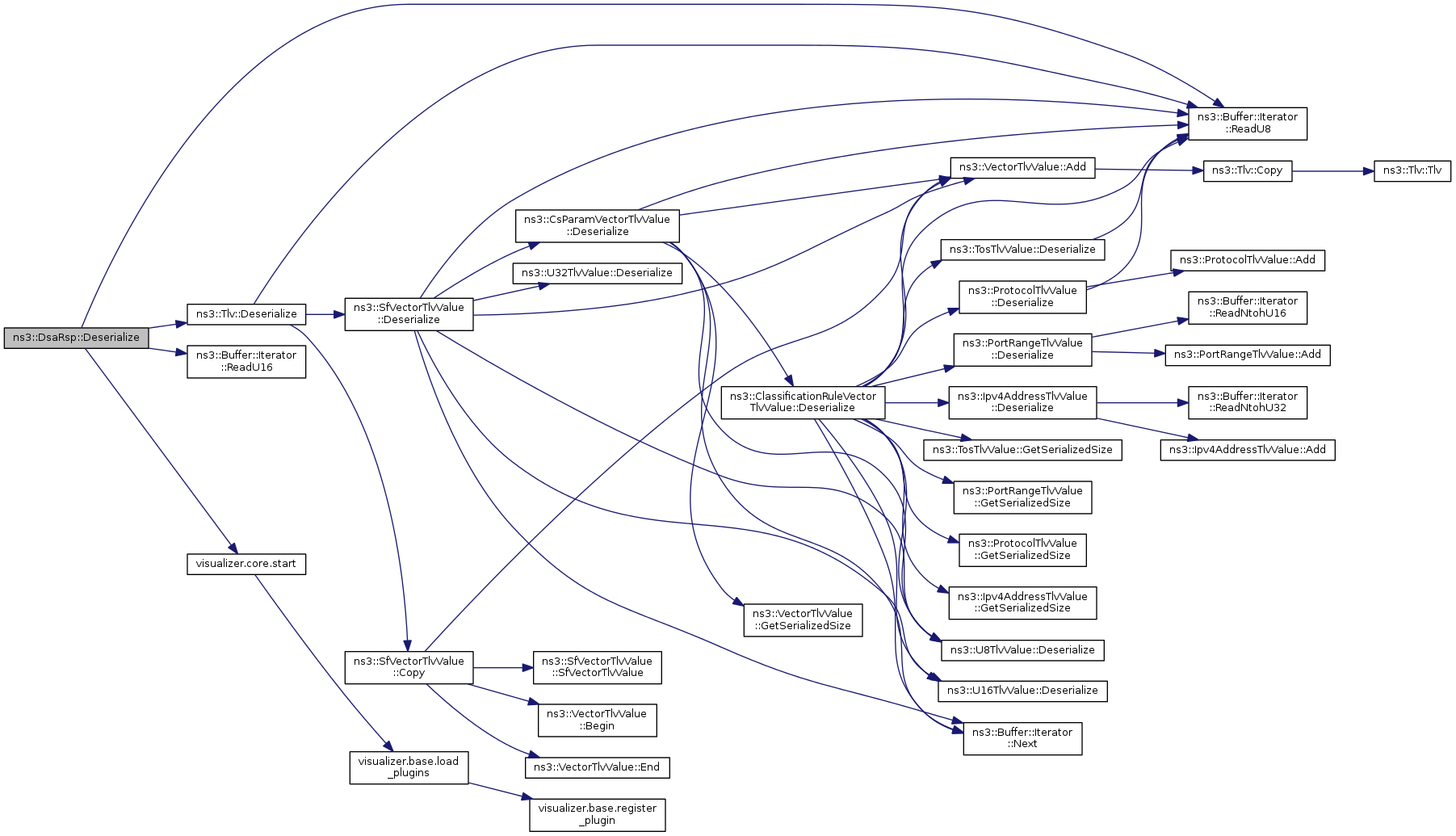

uint32_t ns3::DsaRsp::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 760 of file mac-messages.cc.

References ns3::Tlv::Deserialize(), m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

Cid ns3::DsaRsp::GetCid ( void ) const

Returns: the connection identifier

Definition at line 703 of file mac-messages.cc.

References m_cid.

uint16_t ns3::DsaRsp::GetConfirmationCode ( void ) const

Definition at line 679 of file mac-messages.cc.

References m_confirmationCode.

TypeId ns3::DsaRsp::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 722 of file mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::DsaRsp::GetName ( void ) const

Definition at line 709 of file mac-messages.cc.

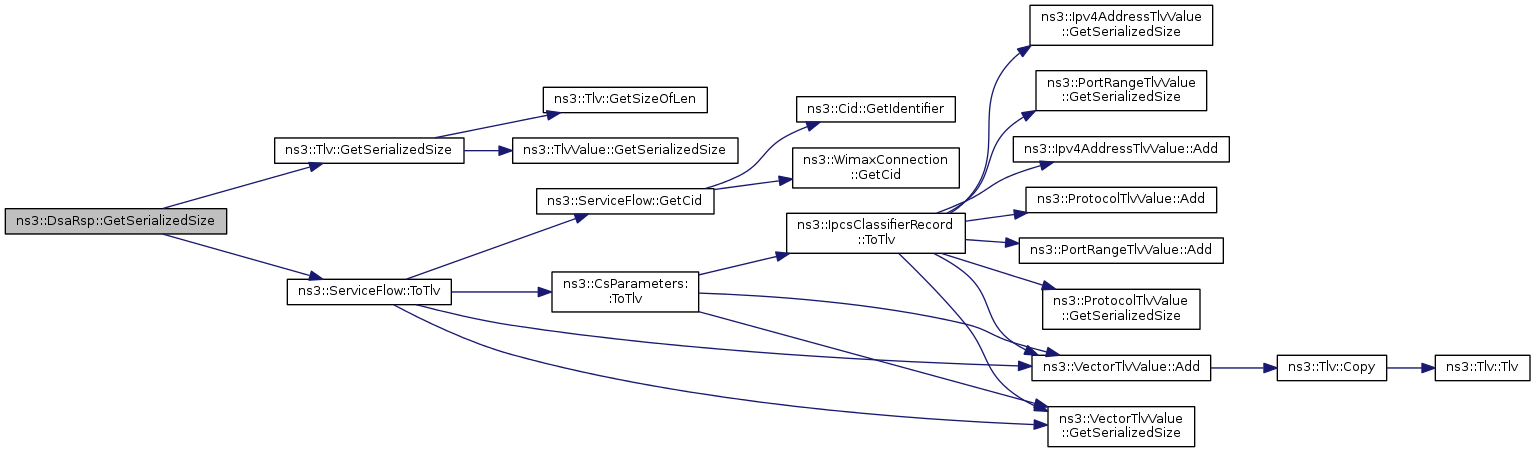

uint32_t ns3::DsaRsp::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 735 of file mac-messages.cc.

References ns3::Tlv::GetSerializedSize(), m_serviceFlow, and ns3::ServiceFlow::ToTlv().

Here is the call graph for this function:

ServiceFlow ns3::DsaRsp::GetServiceFlow ( void ) const

Returns: the service flow requested by this message

Definition at line 661 of file mac-messages.cc.

References m_serviceFlow.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

Here is the caller graph for this function:

uint32_t ns3::DsaRsp::GetSfid ( void ) const

Returns: the service flow identifier

Definition at line 691 of file mac-messages.cc.

References m_sfid.

uint16_t ns3::DsaRsp::GetTransactionId ( void ) const

Definition at line 655 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

Here is the caller graph for this function:

TypeId ns3::DsaRsp::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::DsaRsp.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 715 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DsaRsp::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 728 of file mac-messages.cc.

References m_cid, m_confirmationCode, m_sfid, and m_transactionId.

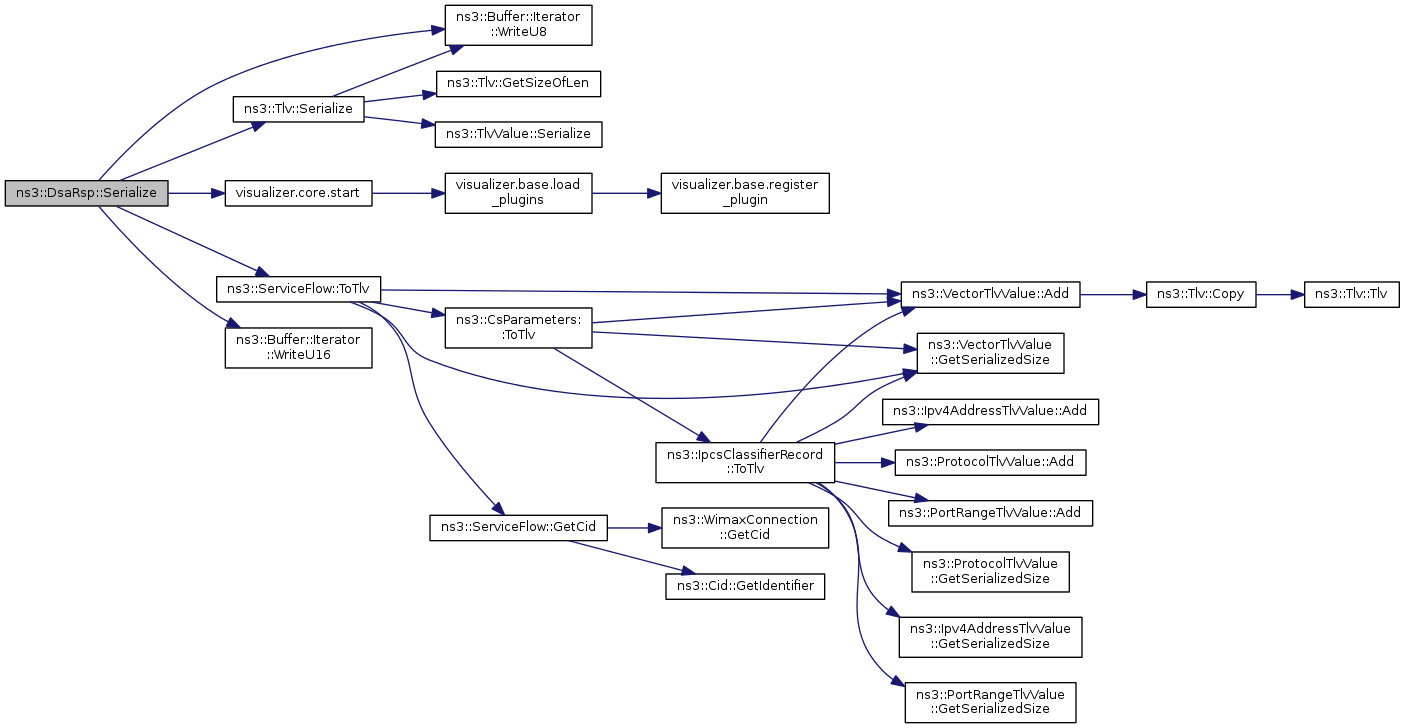

void ns3::DsaRsp::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 750 of file mac-messages.cc.

References m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Tlv::Serialize(), visualizer.core::start(), ns3::ServiceFlow::ToTlv(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:
