DSDV Update Packet Format. More...

#include <dsdv-packet.h>

Inheritance diagram for ns3::dsdv::DsdvHeader:

Collaboration diagram for ns3::dsdv::DsdvHeader:

Public Member Functions
	DsdvHeader (Ipv4Address dst=Ipv4Address(), uint32_t hopcount=0, uint32_t dstSeqNo=0)
virtual	~DsdvHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
Ipv4Address	GetDst () const
uint32_t	GetDstSeqno () const
uint32_t	GetHopCount () const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize () const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetDst (Ipv4Address destination)
void	SetDstSeqno (uint32_t sequenceNumber)
void	SetHopCount (uint32_t hopCount)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::dsdv::DsdvHeader.

Private Attributes
Ipv4Address	m_dst
	Destination IP Address.
uint32_t	m_dstSeqNo
	Destination Sequence Number.
uint32_t	m_hopCount
	Number of Hops.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

DSDV Update Packet Format.

|      0        |      1        |      2        |       3       |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                      Destination Address                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                            HopCount                           |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                       Sequence Number                         |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
*

Definition at line 58 of file dsdv-packet.h.

Constructor & Destructor Documentation

ns3::dsdv::DsdvHeader::DsdvHeader	(	Ipv4Address	dst = `Ipv4Address ()`,
		uint32_t	hopcount = `0`,
		uint32_t	dstSeqNo = `0`
	)

Definition at line 38 of file dsdv-packet.cc.

ns3::dsdv::DsdvHeader::~DsdvHeader ( )

virtual

Definition at line 45 of file dsdv-packet.cc.

Member Function Documentation

uint32_t ns3::dsdv::DsdvHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 80 of file dsdv-packet.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_dst, m_dstSeqNo, m_hopCount, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU32(), and visualizer.core::start().

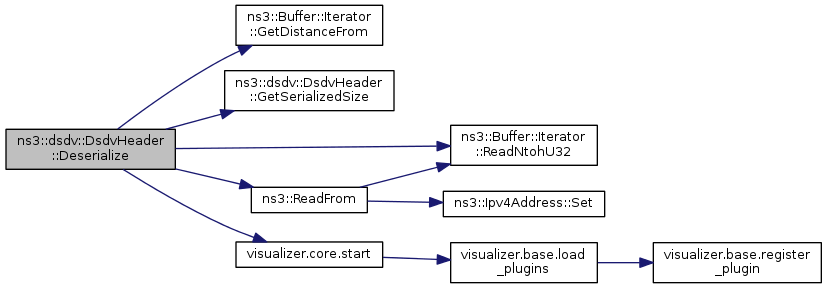

Here is the call graph for this function:

Ipv4Address ns3::dsdv::DsdvHeader::GetDst ( ) const

inline

Definition at line 76 of file dsdv-packet.h.

References m_dst.

Referenced by ns3::DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

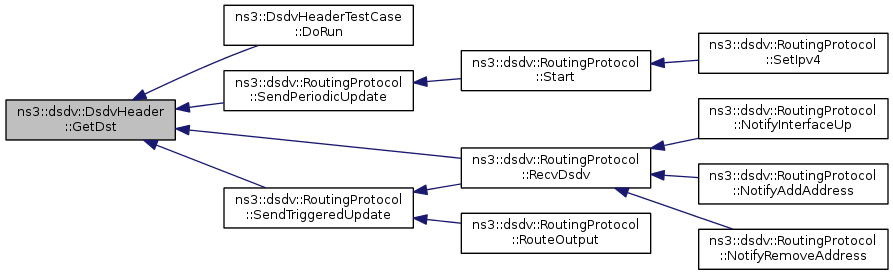

Here is the caller graph for this function:

uint32_t ns3::dsdv::DsdvHeader::GetDstSeqno ( ) const

inline

Definition at line 96 of file dsdv-packet.h.

References m_dstSeqNo.

Referenced by ns3::DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::RecvDsdv(), and ns3::dsdv::RoutingProtocol::SendPeriodicUpdate().

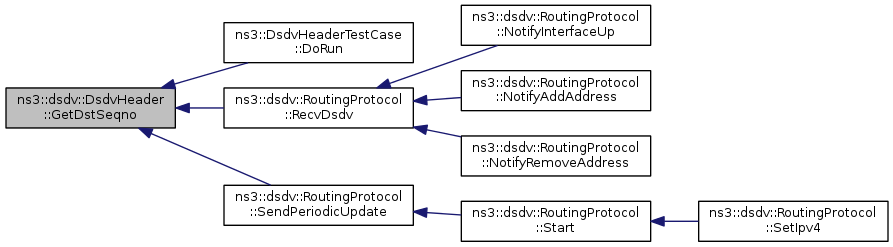

Here is the caller graph for this function:

uint32_t ns3::dsdv::DsdvHeader::GetHopCount ( ) const

inline

Definition at line 86 of file dsdv-packet.h.

References m_hopCount.

Referenced by ns3::DsdvHeaderTestCase::DoRun(), ns3::dsdv::RoutingProtocol::RecvDsdv(), and ns3::dsdv::RoutingProtocol::SendPeriodicUpdate().

Here is the caller graph for this function:

TypeId ns3::dsdv::DsdvHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 59 of file dsdv-packet.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::dsdv::DsdvHeader::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 65 of file dsdv-packet.cc.

Referenced by Deserialize(), and ns3::DsdvHeaderTestCase::DoRun().

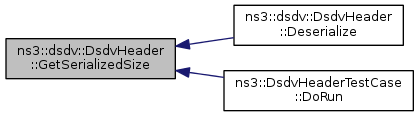

Here is the caller graph for this function:

TypeId ns3::dsdv::DsdvHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::dsdv::DsdvHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 50 of file dsdv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsdv::DsdvHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 94 of file dsdv-packet.cc.

References m_dst, m_dstSeqNo, and m_hopCount.

Referenced by ns3::dsdv::operator<<().

Here is the caller graph for this function:

void ns3::dsdv::DsdvHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 71 of file dsdv-packet.cc.

References m_dst, m_dstSeqNo, m_hopCount, ns3::Buffer::Iterator::WriteHtonU32(), and ns3::WriteTo().

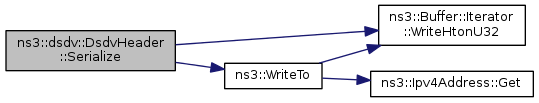

Here is the call graph for this function:
