ns3::Ipv6ExtensionHopByHopHeader Class Reference

Header of IPv6 Extension "Hop by Hop". More...

#include <ipv6-extension-header.h>

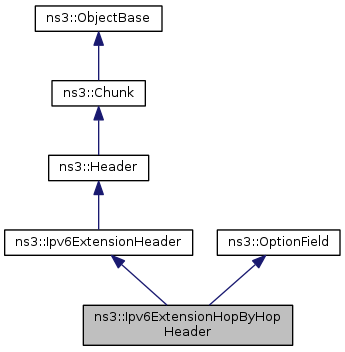

Inheritance diagram for ns3::Ipv6ExtensionHopByHopHeader:

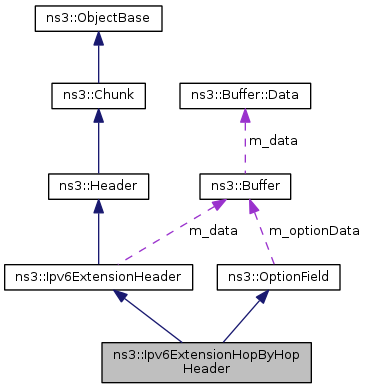

Collaboration diagram for ns3::Ipv6ExtensionHopByHopHeader:

Public Member Functions
	Ipv6ExtensionHopByHopHeader ()
	Constructor.
virtual	~Ipv6ExtensionHopByHopHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor.
virtual	~Ipv6ExtensionHeader ()
	Destructor.
uint16_t	GetLength () const
	Get the length of the extension.
uint8_t	GetNextHeader () const
	Get the next header.
void	SetLength (uint16_t length)
void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field.
Public Member Functions inherited from ns3::Header
virtual	~Header ()
Public Member Functions inherited from ns3::OptionField
	OptionField (uint32_t optionsOffset)
	Constructor.
	~OptionField ()
	Destructor.
void	AddOption (Ipv6OptionHeader const &option)
	Serialize the option, prepending pad1 or padn option as necessary.
uint32_t	Deserialize (Buffer::Iterator start, uint32_t length)
	Deserialize the packet.
Buffer	GetOptionBuffer ()
	Get the buffer.
uint32_t	GetOptionsOffset ()
	Get the offset where the options begin, measured from the start of the extension header.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Extension "Hop by Hop".

Definition at line 217 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionHopByHopHeader::Ipv6ExtensionHopByHopHeader

(

)

Constructor.

Definition at line 218 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionHopByHopHeader::~Ipv6ExtensionHopByHopHeader ( )

virtual

Destructor.

Definition at line 223 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionHopByHopHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 246 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

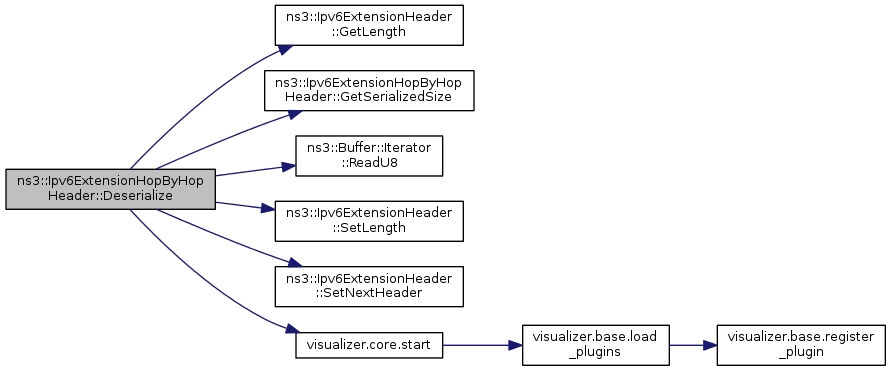

Here is the call graph for this function:

TypeId ns3::Ipv6ExtensionHopByHopHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 213 of file ipv6-extension-header.cc.

References GetTypeId().

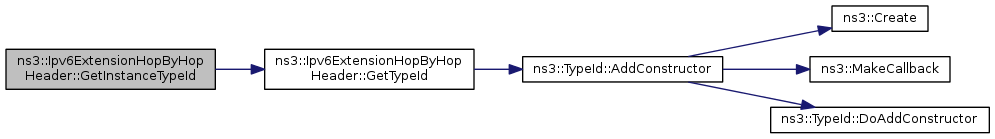

Here is the call graph for this function:

uint32_t ns3::Ipv6ExtensionHopByHopHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 232 of file ipv6-extension-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionHopByHopHeader::GetTypeId ( void  )

static

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6ExtensionHopByHopHeader.

Returns

type identificator

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 204 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

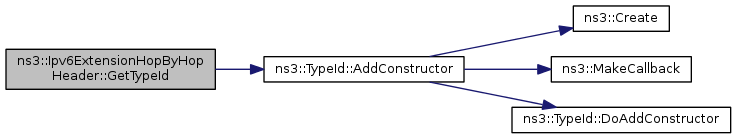

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6ExtensionHopByHopHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 227 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), and ns3::Ipv6ExtensionHeader::GetNextHeader().

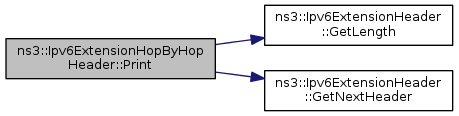

Here is the call graph for this function:

void ns3::Ipv6ExtensionHopByHopHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 237 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

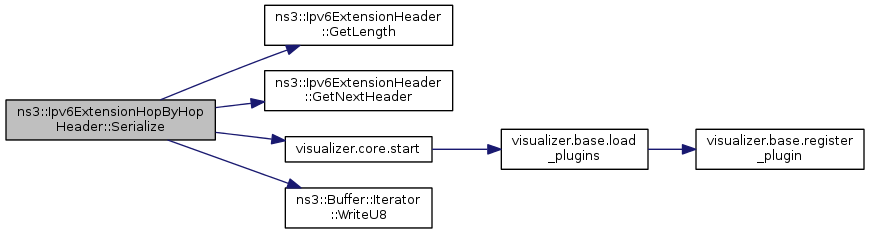

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-extension-header.h
• doc/introspected-doxygen.h
• src/internet/model/ipv6-extension-header.cc
