#include <dl-mac-messages.h>

Inheritance diagram for ns3::Dcd:

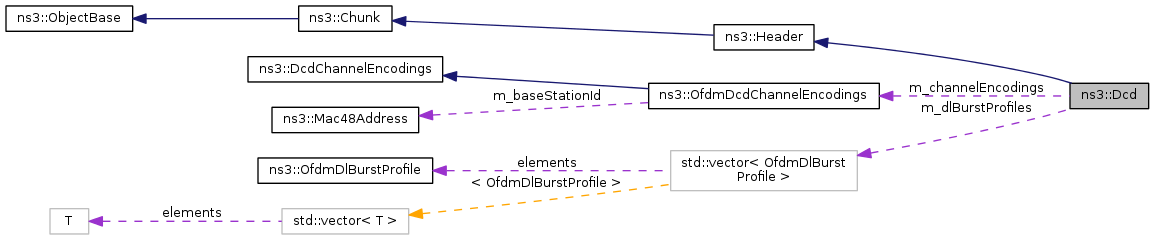

Collaboration diagram for ns3::Dcd:

Public Member Functions
	Dcd (void)
	This class implements Downlink channel descriptor as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.1 Downlink Channel Descriptor (DCD) message, page 45.
virtual	~Dcd (void)
void	AddDlBurstProfile (OfdmDlBurstProfile dlBurstProfile)
uint32_t	Deserialize (Buffer::Iterator start)
OfdmDcdChannelEncodings	GetChannelEncodings (void) const
uint8_t	GetConfigurationChangeCount (void) const
std::vector< OfdmDlBurstProfile >	GetDlBurstProfiles (void) const
virtual TypeId	GetInstanceTypeId (void) const
std::string	GetName (void) const
uint8_t	GetNrDlBurstProfiles (void) const
uint32_t	GetSerializedSize (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetChannelEncodings (OfdmDcdChannelEncodings channelEncodings)
void	SetConfigurationChangeCount (uint8_t configurationChangeCount)
void	SetNrDlBurstProfiles (uint8_t nrDlBurstProfiles)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Dcd.

Private Attributes
OfdmDcdChannelEncodings	m_channelEncodings
uint8_t	m_configurationChangeCount
std::vector< OfdmDlBurstProfile >	m_dlBurstProfiles
uint8_t	m_nrDlBurstProfiles
uint8_t	m_reserved

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 210 of file dl-mac-messages.h.

Constructor & Destructor Documentation

ns3::Dcd::Dcd ( void )

This class implements Downlink channel descriptor as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.1 Downlink Channel Descriptor (DCD) message, page 45.

Definition at line 317 of file dl-mac-messages.cc.

ns3::Dcd::~Dcd ( void )

virtual

Definition at line 324 of file dl-mac-messages.cc.

Member Function Documentation

void ns3::Dcd::AddDlBurstProfile ( OfdmDlBurstProfile dlBurstProfile )

Definition at line 347 of file dl-mac-messages.cc.

References m_dlBurstProfiles.

Referenced by Deserialize(), and ns3::BaseStationNetDevice::SetDlBurstProfiles().

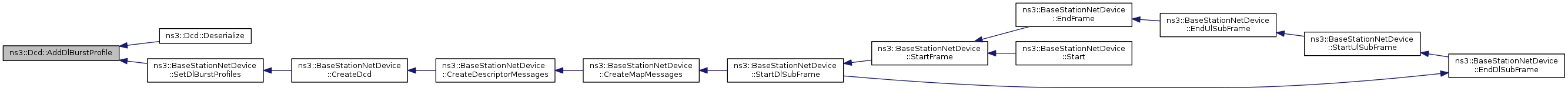

Here is the caller graph for this function:

uint32_t ns3::Dcd::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 438 of file dl-mac-messages.cc.

References AddDlBurstProfile(), ns3::Buffer::Iterator::GetDistanceFrom(), m_channelEncodings, m_configurationChangeCount, m_nrDlBurstProfiles, m_reserved, ns3::DcdChannelEncodings::Read(), ns3::OfdmDlBurstProfile::Read(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

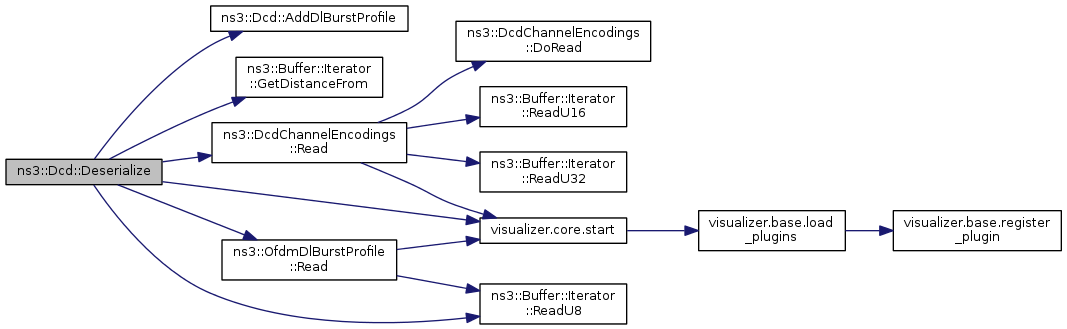

Here is the call graph for this function:

OfdmDcdChannelEncodings ns3::Dcd::GetChannelEncodings ( void ) const

Definition at line 359 of file dl-mac-messages.cc.

References m_channelEncodings.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

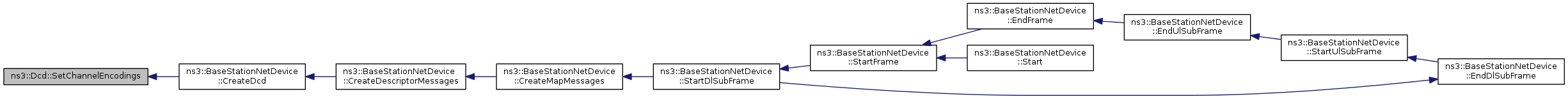

Here is the caller graph for this function:

uint8_t ns3::Dcd::GetConfigurationChangeCount ( void ) const

Definition at line 353 of file dl-mac-messages.cc.

References m_configurationChangeCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

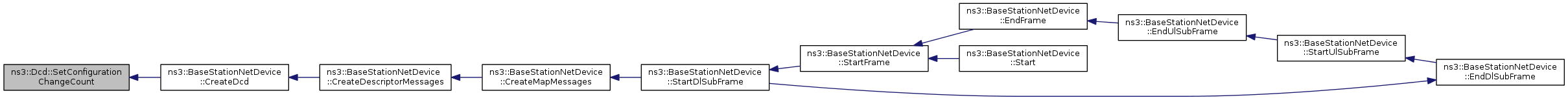

Here is the caller graph for this function:

std::vector< OfdmDlBurstProfile > ns3::Dcd::GetDlBurstProfiles ( void ) const

Definition at line 365 of file dl-mac-messages.cc.

References m_dlBurstProfiles.

Referenced by ns3::BurstProfileManager::GetBurstProfile(), ns3::BurstProfileManager::GetModulationType(), and ns3::SubscriberStationNetDevice::ProcessDcd().

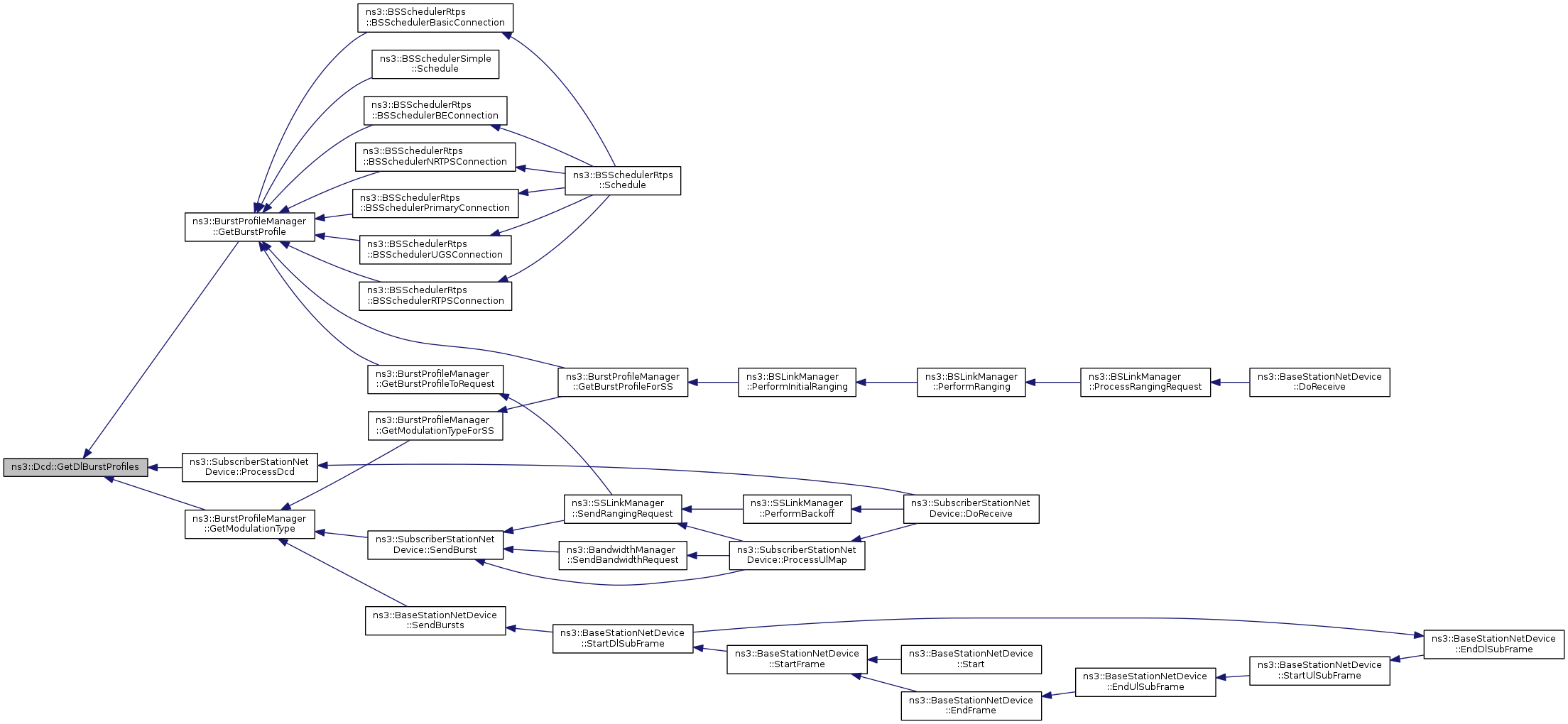

Here is the caller graph for this function:

TypeId ns3::Dcd::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 393 of file dl-mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::Dcd::GetName ( void ) const

Definition at line 377 of file dl-mac-messages.cc.

uint8_t ns3::Dcd::GetNrDlBurstProfiles ( void ) const

Definition at line 371 of file dl-mac-messages.cc.

References m_nrDlBurstProfiles.

uint32_t ns3::Dcd::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 407 of file dl-mac-messages.cc.

References ns3::OfdmDcdChannelEncodings::GetSize(), ns3::OfdmDlBurstProfile::GetSize(), m_channelEncodings, and m_dlBurstProfiles.

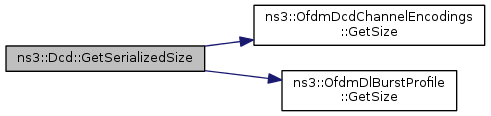

Here is the call graph for this function:

TypeId ns3::Dcd::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::Dcd.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 383 of file dl-mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Dcd::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 399 of file dl-mac-messages.cc.

References m_configurationChangeCount, and m_dlBurstProfiles.

void ns3::Dcd::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 422 of file dl-mac-messages.cc.

References m_channelEncodings, m_configurationChangeCount, m_dlBurstProfiles, m_reserved, visualizer.core::start(), ns3::DcdChannelEncodings::Write(), ns3::OfdmDlBurstProfile::Write(), and ns3::Buffer::Iterator::WriteU8().

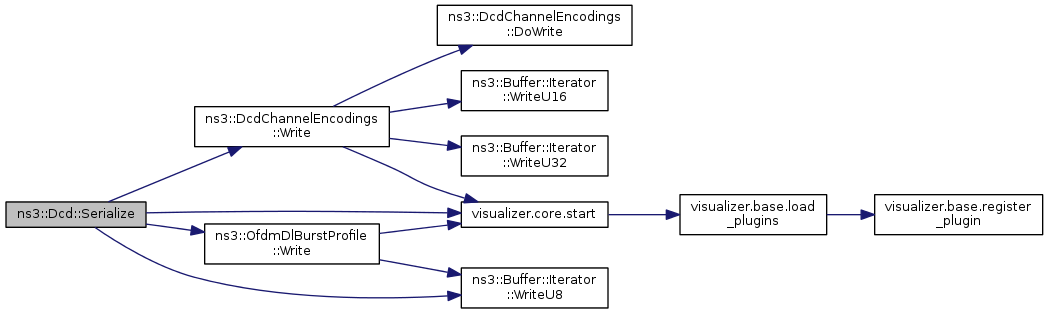

Here is the call graph for this function:
