#include <amsdu-subframe-header.h>

Inheritance diagram for ns3::AmsduSubframeHeader:

Collaboration diagram for ns3::AmsduSubframeHeader:

Public Member Functions
	AmsduSubframeHeader ()
virtual	~AmsduSubframeHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
Mac48Address	GetDestinationAddr (void) const
virtual TypeId	GetInstanceTypeId (void) const
uint16_t	GetLength (void) const
virtual uint32_t	GetSerializedSize (void) const
Mac48Address	GetSourceAddr (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetDestinationAddr (Mac48Address to)
void	SetLength (uint16_t)
void	SetSourceAddr (Mac48Address to)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::AmsduSubframeHeader.

Private Attributes
Mac48Address	m_da
uint16_t	m_length
Mac48Address	m_sa

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 33 of file amsdu-subframe-header.h.

Constructor & Destructor Documentation

ns3::AmsduSubframeHeader::AmsduSubframeHeader ( )

Definition at line 43 of file amsdu-subframe-header.cc.

ns3::AmsduSubframeHeader::~AmsduSubframeHeader ( )

virtual

Definition at line 48 of file amsdu-subframe-header.cc.

Member Function Documentation

uint32_t ns3::AmsduSubframeHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 67 of file amsdu-subframe-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_da, m_length, m_sa, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), and visualizer.core::start().

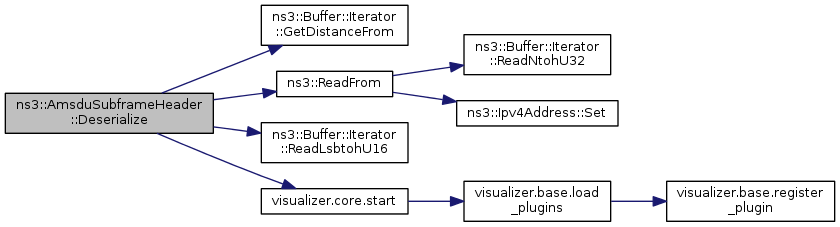

Here is the call graph for this function:

Mac48Address ns3::AmsduSubframeHeader::GetDestinationAddr ( void ) const

Definition at line 101 of file amsdu-subframe-header.cc.

References m_da.

TypeId ns3::AmsduSubframeHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 38 of file amsdu-subframe-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::AmsduSubframeHeader::GetLength ( void ) const

Definition at line 113 of file amsdu-subframe-header.cc.

References m_length.

Referenced by ns3::MsduAggregator::Deaggregate().

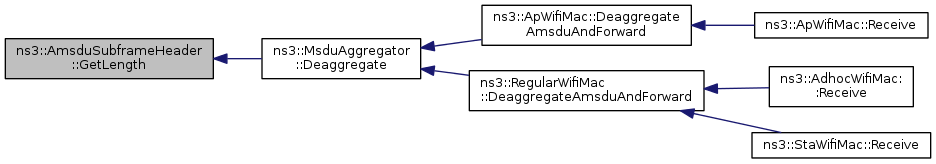

Here is the caller graph for this function:

uint32_t ns3::AmsduSubframeHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 53 of file amsdu-subframe-header.cc.

Mac48Address ns3::AmsduSubframeHeader::GetSourceAddr ( void ) const

Definition at line 107 of file amsdu-subframe-header.cc.

References m_sa.

TypeId ns3::AmsduSubframeHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::AmsduSubframeHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 28 of file amsdu-subframe-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AmsduSubframeHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 77 of file amsdu-subframe-header.cc.

References m_da, m_length, and m_sa.

void ns3::AmsduSubframeHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 59 of file amsdu-subframe-header.cc.

References m_da, m_length, m_sa, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::WriteTo().

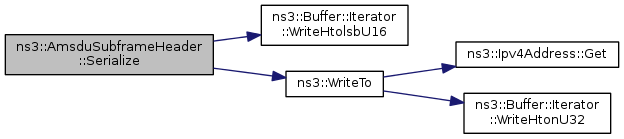

Here is the call graph for this function:
