ICMPv6 Neighbor Advertisement header. More...

#include <icmpv6-header.h>

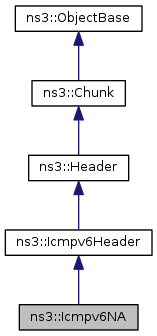

Inheritance diagram for ns3::Icmpv6NA:

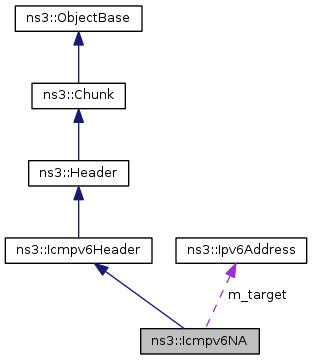

Collaboration diagram for ns3::Icmpv6NA:

Public Member Functions
	Icmpv6NA ()
	Constructor.
virtual	~Icmpv6NA ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
bool	GetFlagO () const
	Get the O flag.
bool	GetFlagR () const
	Get the R flag.
bool	GetFlagS () const
	Get the S flag.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
Ipv6Address	GetIpv6Target () const
	Get the IPv6 target field.
uint32_t	GetReserved () const
	Get the reserved field.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetFlagO (bool o)
	Set the O flag.
void	SetFlagR (bool r)
	Set the R flag.
void	SetFlagS (bool s)
	Set the S flag.
void	SetIpv6Target (Ipv6Address target)
	Set the IPv6 target field.
void	SetReserved (uint32_t reserved)
	Set the reserved field.
Public Member Functions inherited from ns3::Icmpv6Header
	Icmpv6Header ()
	Constructor.
virtual	~Icmpv6Header ()
	Destructor.
void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6.
uint16_t	GetChecksum () const
	Get the checksum.
uint8_t	GetCode () const
	Get the code field.
uint8_t	GetType () const
	Get the type field.
void	SetChecksum (uint16_t checksum)
	Set the checksum.
void	SetCode (uint8_t code)
	Set the code field.
void	SetType (uint8_t type)
	Set the type.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Private Attributes
bool	m_flagO
	The M flag.
bool	m_flagR
	The R flag.
bool	m_flagS
	The O flag.
uint32_t	m_reserved
	The reserved value.
Ipv6Address	m_target
	The IPv6 target address.

Additional Inherited Members
Public Types inherited from ns3::Icmpv6Header
enum	ErrorDestinationUnreachable_e { ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE, ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable. More...
enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error. More...
enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded. More...
enum	OptionType_e { ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED, ICMPV6_OPT_MTU }
	ICMPv6 Option type code. More...
enum	Type_e { ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR, ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT, ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION, ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST, ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT, ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
Protected Attributes inherited from ns3::Icmpv6Header
bool	m_calcChecksum
	Checksum enable or not.
uint16_t	m_checksum
	The checksum.

Detailed Description

ICMPv6 Neighbor Advertisement header.

Definition at line 428 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6NA::Icmpv6NA ( )

Constructor.

Definition at line 287 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ns3::Icmpv6Header::m_checksum, ns3::Icmpv6Header::SetCode(), SetFlagO(), SetFlagR(), SetFlagS(), SetReserved(), and ns3::Icmpv6Header::SetType().

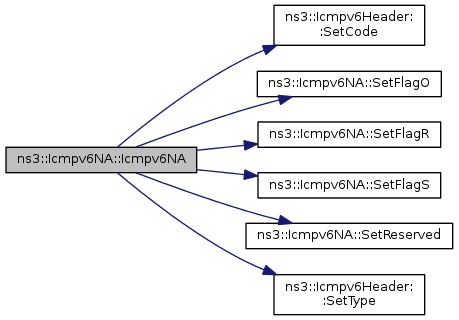

Here is the call graph for this function:

ns3::Icmpv6NA::~Icmpv6NA ( )

virtual

Destructor.

Definition at line 298 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6NA::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 402 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_flagO, m_flagR, m_flagS, m_reserved, m_target, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6Address::Set(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

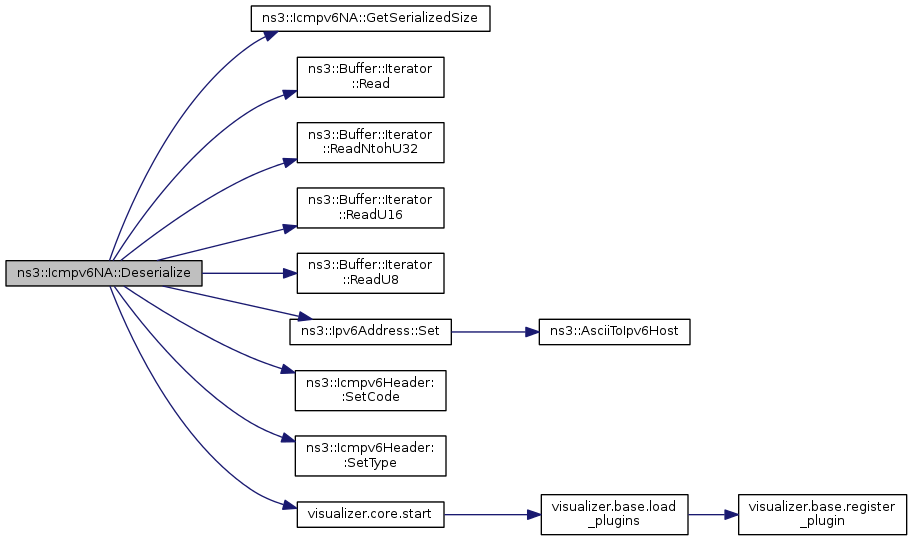

Here is the call graph for this function:

bool ns3::Icmpv6NA::GetFlagO ( ) const

Get the O flag.

Returns: O flag

Definition at line 337 of file icmpv6-header.cc.

References m_flagO.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

bool ns3::Icmpv6NA::GetFlagR ( ) const

Get the R flag.

Returns: R flag

Definition at line 317 of file icmpv6-header.cc.

References m_flagR.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

bool ns3::Icmpv6NA::GetFlagS ( ) const

Get the S flag.

Returns: S flag

Definition at line 327 of file icmpv6-header.cc.

References m_flagS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

TypeId ns3::Icmpv6NA::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 282 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

Ipv6Address ns3::Icmpv6NA::GetIpv6Target ( ) const

Get the IPv6 target field.

Returns: IPv6 address

Definition at line 312 of file icmpv6-header.cc.

References m_target.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6NA::GetReserved ( ) const

Get the reserved field.

Returns: reserved value

Definition at line 302 of file icmpv6-header.cc.

References m_reserved.

uint32_t ns3::Icmpv6NA::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 357 of file icmpv6-header.cc.

Referenced by Deserialize(), and ns3::Icmpv6L4Protocol::ForgeNA().

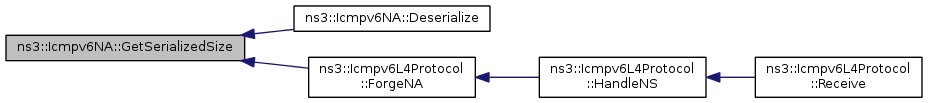

Here is the caller graph for this function:

TypeId ns3::Icmpv6NA::GetTypeId ( void )

static

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6NA.

Returns: UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Icmpv6Header.

Definition at line 273 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6NA::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 352 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), and ns3::Icmpv6Header::GetType().

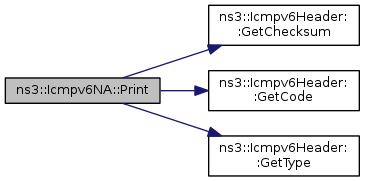

Here is the call graph for this function:

void ns3::Icmpv6NA::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 362 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), ns3::Icmpv6Header::m_calcChecksum, m_flagO, m_flagR, m_flagS, m_reserved, m_target, ns3::Buffer::Iterator::Next(), ns3::Ipv6Address::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

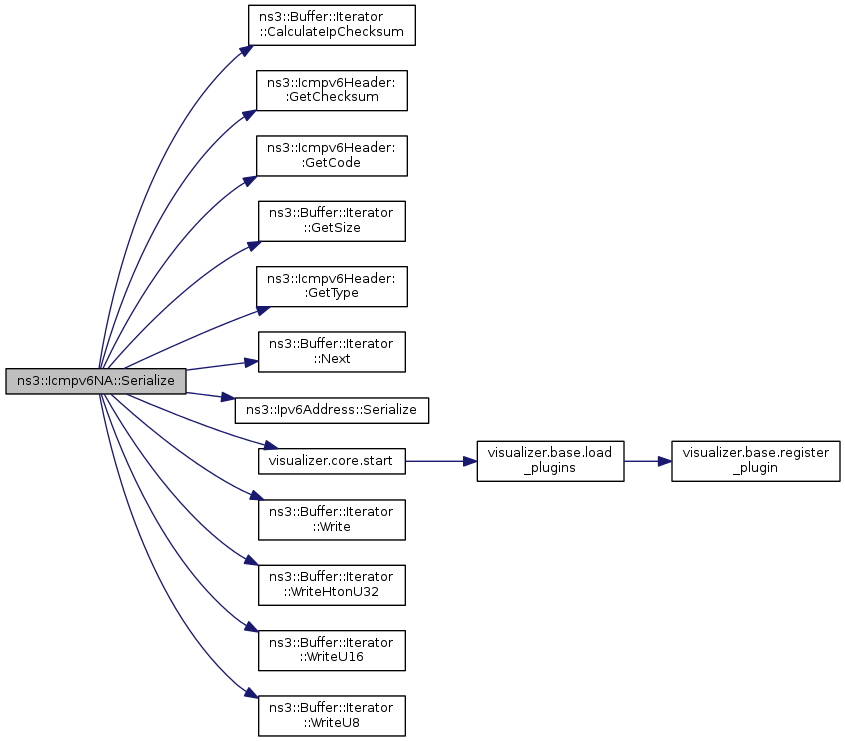

Here is the call graph for this function:

void ns3::Icmpv6NA::SetFlagO ( bool o )

Set the O flag.

Parameters

o value

Definition at line 342 of file icmpv6-header.cc.

References m_flagO.

Referenced by ns3::Icmpv6L4Protocol::ForgeNA(), and Icmpv6NA().

Here is the caller graph for this function:

void ns3::Icmpv6NA::SetFlagR ( bool r )

Set the R flag.

Parameters

r value

Definition at line 322 of file icmpv6-header.cc.

References m_flagR.

Referenced by ns3::Icmpv6L4Protocol::ForgeNA(), and Icmpv6NA().

Here is the caller graph for this function:

void ns3::Icmpv6NA::SetFlagS ( bool s )

Set the S flag.

Parameters

s value

Definition at line 332 of file icmpv6-header.cc.

References m_flagS.

Referenced by ns3::Icmpv6L4Protocol::ForgeNA(), and Icmpv6NA().

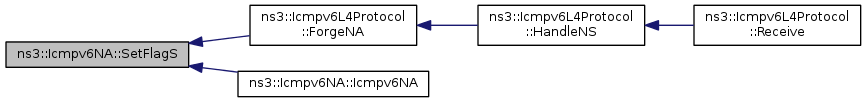

Here is the caller graph for this function:

void ns3::Icmpv6NA::SetIpv6Target ( Ipv6Address target )

Set the IPv6 target field.

Parameters

target IPv6 address

Definition at line 347 of file icmpv6-header.cc.

References m_target.

Referenced by ns3::Icmpv6L4Protocol::ForgeNA().

Here is the caller graph for this function:

void ns3::Icmpv6NA::SetReserved ( uint32_t reserved )

Set the reserved field.

Parameters

reserved the reserved value

Definition at line 307 of file icmpv6-header.cc.

References m_reserved.

Referenced by Icmpv6NA().

Here is the caller graph for this function:

Member Data Documentation

bool ns3::Icmpv6NA::m_flagO

private

The M flag.

Definition at line 552 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagO(), Serialize(), and SetFlagO().

bool ns3::Icmpv6NA::m_flagR

private

The R flag.

Definition at line 542 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagR(), Serialize(), and SetFlagR().

bool ns3::Icmpv6NA::m_flagS

private

The O flag.

Definition at line 547 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagS(), Serialize(), and SetFlagS().

uint32_t ns3::Icmpv6NA::m_reserved

private

The reserved value.

Definition at line 557 of file icmpv6-header.h.

Referenced by Deserialize(), GetReserved(), Serialize(), and SetReserved().

Ipv6Address ns3::Icmpv6NA::m_target

private

The IPv6 target address.

Definition at line 562 of file icmpv6-header.h.

Referenced by Deserialize(), GetIpv6Target(), Serialize(), and SetIpv6Target().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
doc/introspected-doxygen.h
src/internet/model/icmpv6-header.cc
