#include <ipv6-header.h>

Inheritance diagram for ns3::Ipv6Header:

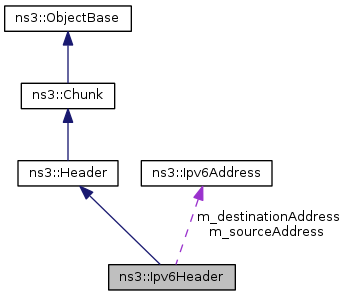

Collaboration diagram for ns3::Ipv6Header:

Public Types
enum	NextHeader_e { IPV6_EXT_HOP_BY_HOP = 0, IPV6_IPV4 = 4, IPV6_TCP = 6, IPV6_UDP = 17, IPV6_IPV6 = 41, IPV6_EXT_ROUTING = 43, IPV6_EXT_FRAGMENTATION = 44, IPV6_EXT_CONFIDENTIALITY = 50, IPV6_EXT_AUTHENTIFICATION = 51, IPV6_ICMPV6 = 58, IPV6_EXT_END = 59, IPV6_EXT_DESTINATION = 60, IPV6_SCTP = 135, IPV6_EXT_MOBILITY = 135, IPV6_UDP_LITE = 136 }
	IPv6 next-header value. More...

Public Member Functions
	Ipv6Header (void)
	Constructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
Ipv6Address	GetDestinationAddress (void) const
	Get the "Destination address" field.
uint32_t	GetFlowLabel (void) const
	Get the "Flow label" field.
uint8_t	GetHopLimit (void) const
	Get the "Hop limit" field (TTL).
virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier.
uint8_t	GetNextHeader (void) const
	Get the next header.
uint16_t	GetPayloadLength (void) const
	Get the "Payload length" field.
virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet.
Ipv6Address	GetSourceAddress (void) const
	Get the "Source address" field.
uint8_t	GetTrafficClass (void) const
	Get the "Traffic class" field.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetDestinationAddress (Ipv6Address dst)
	Set the "Destination address" field.
void	SetFlowLabel (uint32_t flow)
	Set the "Flow label" field.
void	SetHopLimit (uint8_t limit)
	Set the "Hop limit" field (TTL).
void	SetNextHeader (uint8_t next)
	Set the "Next header" field.
void	SetPayloadLength (uint16_t len)
	Set the "Payload length" field.
void	SetSourceAddress (Ipv6Address src)
	Set the "Source address" field.
void	SetTrafficClass (uint8_t traffic)
	Set the "Traffic class" field.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type identifier.

Private Attributes
Ipv6Address	m_destinationAddress
	The destination address.
uint32_t	m_flowLabel: 20
	The flow label.
uint8_t	m_hopLimit
	The Hop limit value.
uint8_t	m_nextHeader
	The Next header number.
uint16_t	m_payloadLength
	The payload length.
Ipv6Address	m_sourceAddress
	The source address.
uint32_t	m_trafficClass: 8
	The traffic class.
uint32_t	m_version: 4
	The version (always equal to 6).

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Packet header for IPv6.

Definition at line 33 of file ipv6-header.h.

Member Enumeration Documentation

enum ns3::Ipv6Header::NextHeader_e

IPv6 next-header value.

Enumerator:

IPV6_EXT_HOP_BY_HOP
IPV6_IPV4
IPV6_TCP
IPV6_UDP
IPV6_IPV6
IPV6_EXT_ROUTING
IPV6_EXT_FRAGMENTATION
IPV6_EXT_CONFIDENTIALITY
IPV6_EXT_AUTHENTIFICATION
IPV6_ICMPV6
IPV6_EXT_END
IPV6_EXT_DESTINATION
IPV6_SCTP
IPV6_EXT_MOBILITY
IPV6_UDP_LITE

Definition at line 40 of file ipv6-header.h.

Constructor & Destructor Documentation

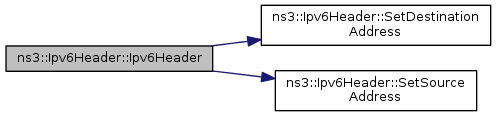

ns3::Ipv6Header::Ipv6Header ( void )

Constructor.

Definition at line 34 of file ipv6-header.cc.

References SetDestinationAddress(), and SetSourceAddress().

Here is the call graph for this function:

Member Function Documentation

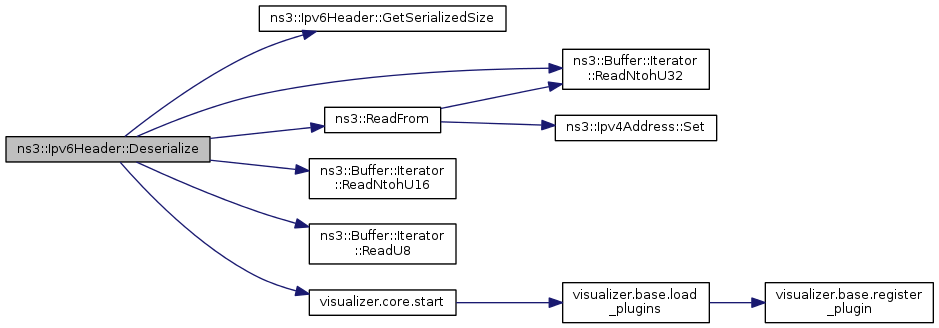

uint32_t ns3::Ipv6Header::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 164 of file ipv6-header.cc.

References GetSerializedSize(), m_destinationAddress, m_flowLabel, m_hopLimit, m_nextHeader, m_payloadLength, m_sourceAddress, m_trafficClass, m_version, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6Header::GetDestinationAddress ( void ) const

Get the "Destination address" field.

Returns: the destination address

Definition at line 111 of file ipv6-header.cc.

References m_destinationAddress.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv6L3Protocol::IpMulticastForward(), ns3::Ipv6L3Protocol::LocalDeliver(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6Extension::ProcessOptions(), ns3::Ipv6L3Protocol::Receive(), ns3::Ipv6ListRouting::RouteInput(), ns3::Ipv6StaticRouting::RouteInput(), ns3::Ipv6ListRouting::RouteOutput(), ns3::Ipv6StaticRouting::RouteOutput(), and ns3::Ipv6L3Protocol::SendRealOut().

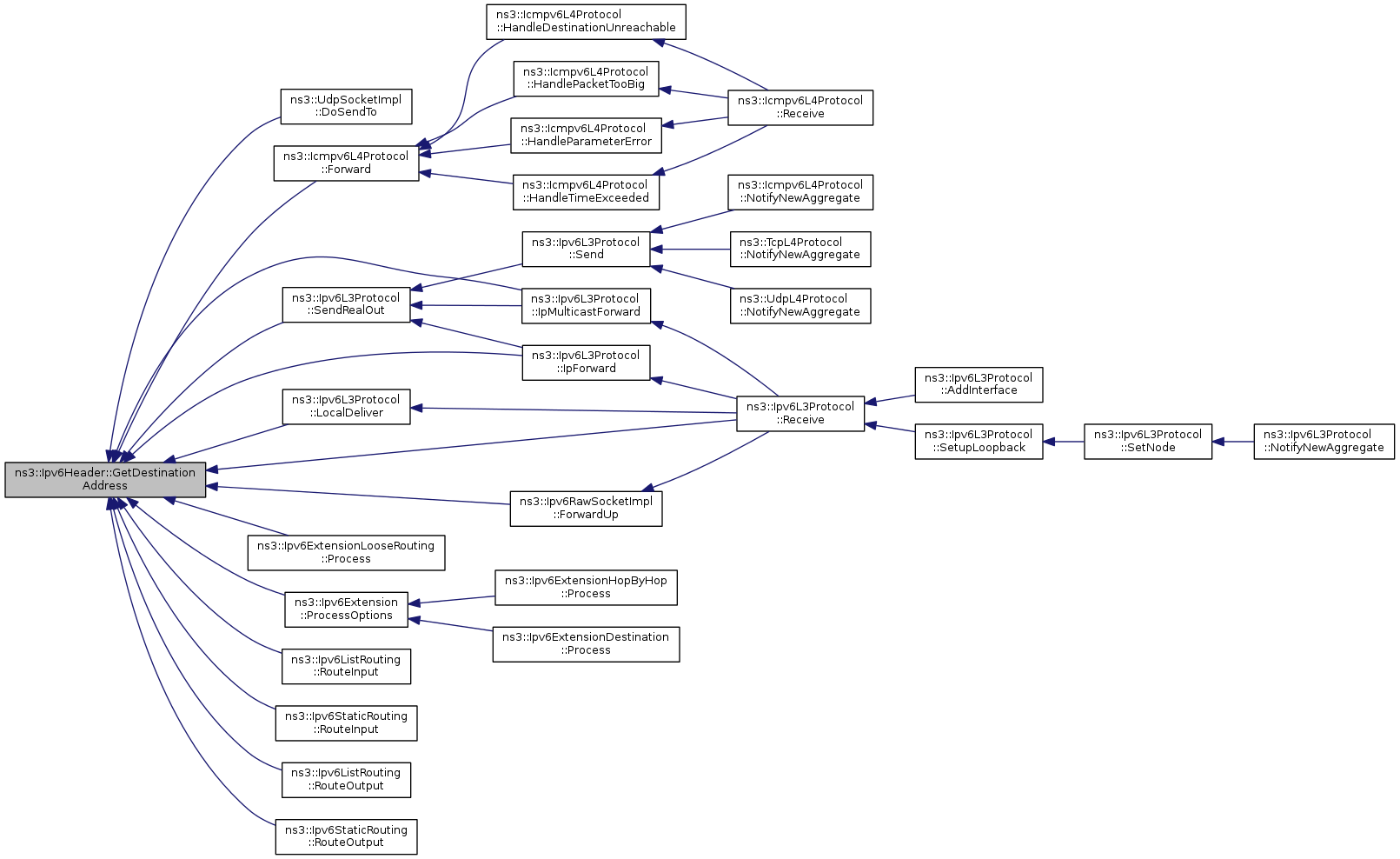

Here is the caller graph for this function:

uint32_t ns3::Ipv6Header::GetFlowLabel ( void ) const

Get the "Flow label" field.

Returns: the flow label value

Definition at line 61 of file ipv6-header.cc.

References m_flowLabel.

uint8_t ns3::Ipv6Header::GetHopLimit ( void ) const

Get the "Hop limit" field (TTL).

Returns: the hop limit value

Definition at line 91 of file ipv6-header.cc.

References m_hopLimit.

Referenced by ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6L3Protocol::IpMulticastForward(), and ns3::Ipv6ExtensionLooseRouting::Process().

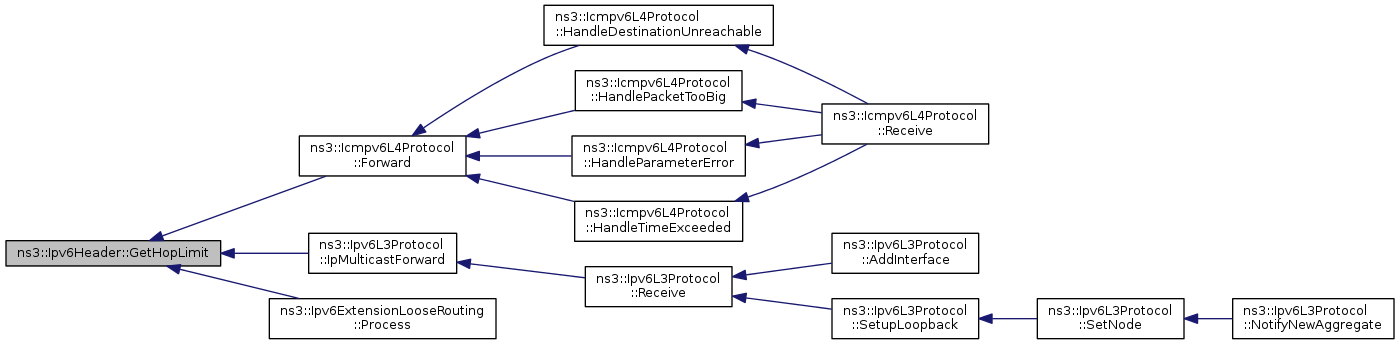

Here is the caller graph for this function:

TypeId ns3::Ipv6Header::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 125 of file ipv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::Ipv6Header::GetNextHeader ( void ) const

Get the next header.

Returns: the next header number

Definition at line 81 of file ipv6-header.cc.

References m_nextHeader.

Referenced by ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Ipv6L3Protocol::LocalDeliver(), and ns3::Ipv6L3Protocol::Receive().

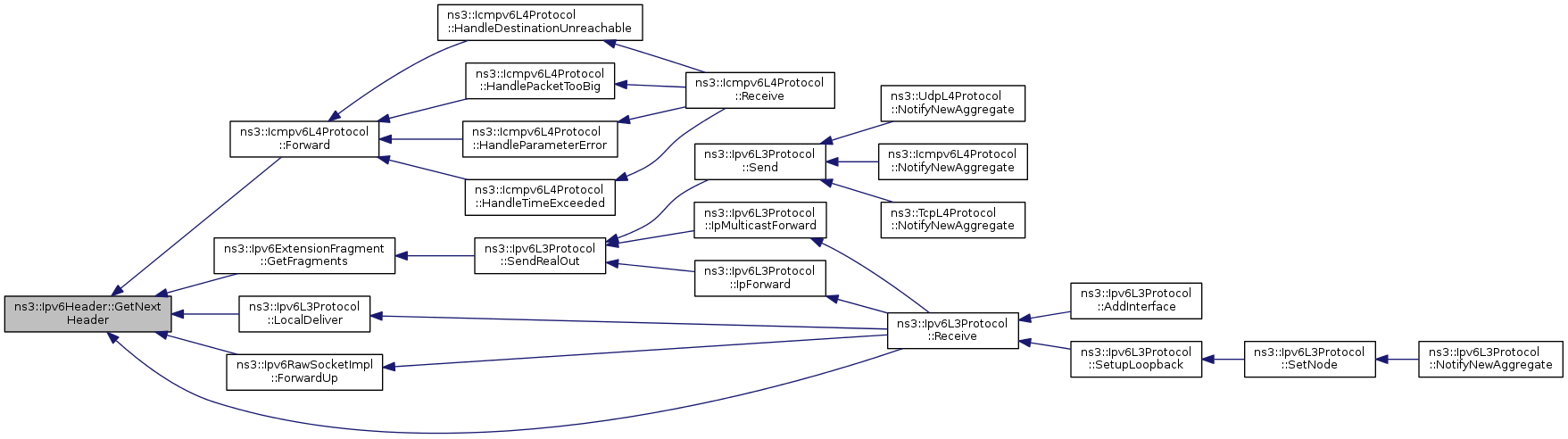

Here is the caller graph for this function:

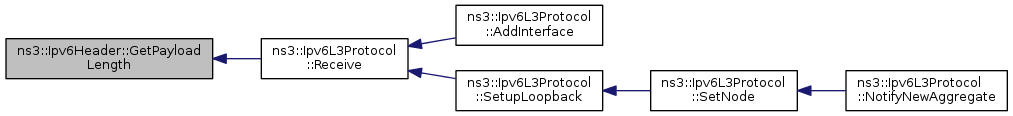

uint16_t ns3::Ipv6Header::GetPayloadLength ( void ) const

Get the "Payload length" field.

Returns: the payload length

Definition at line 71 of file ipv6-header.cc.

References m_payloadLength.

Referenced by ns3::Ipv6L3Protocol::Receive().

Here is the caller graph for this function:

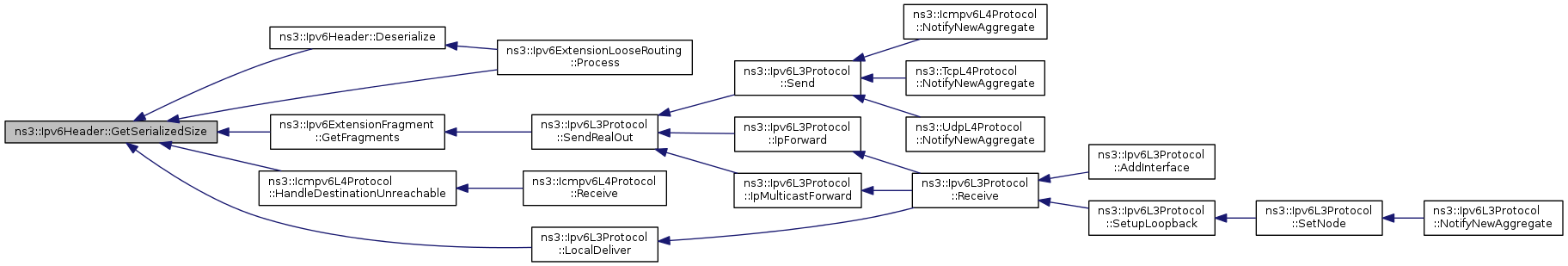

uint32_t ns3::Ipv6Header::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 143 of file ipv6-header.cc.

Referenced by Deserialize(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Icmpv6L4Protocol::HandleDestinationUnreachable(), ns3::Ipv6L3Protocol::LocalDeliver(), and ns3::Ipv6ExtensionLooseRouting::Process().

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6Header::GetSourceAddress ( void ) const

Get the "Source address" field.

Returns: the source address

Definition at line 101 of file ipv6-header.cc.

References m_sourceAddress.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Ipv6ExtensionFragment::HandleFragmentsTimeout(), ns3::Radvd::HandleRead(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv6L3Protocol::IpMulticastForward(), ns3::Ipv6L3Protocol::LocalDeliver(), ns3::Ipv6ExtensionFragment::Process(), ns3::Ipv6ExtensionRouting::Process(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6Extension::ProcessOptions(), ns3::Ipv6StaticRouting::RouteInput(), ns3::Ipv6ListRouting::RouteOutput(), and ns3::Ipv6L3Protocol::SendRealOut().

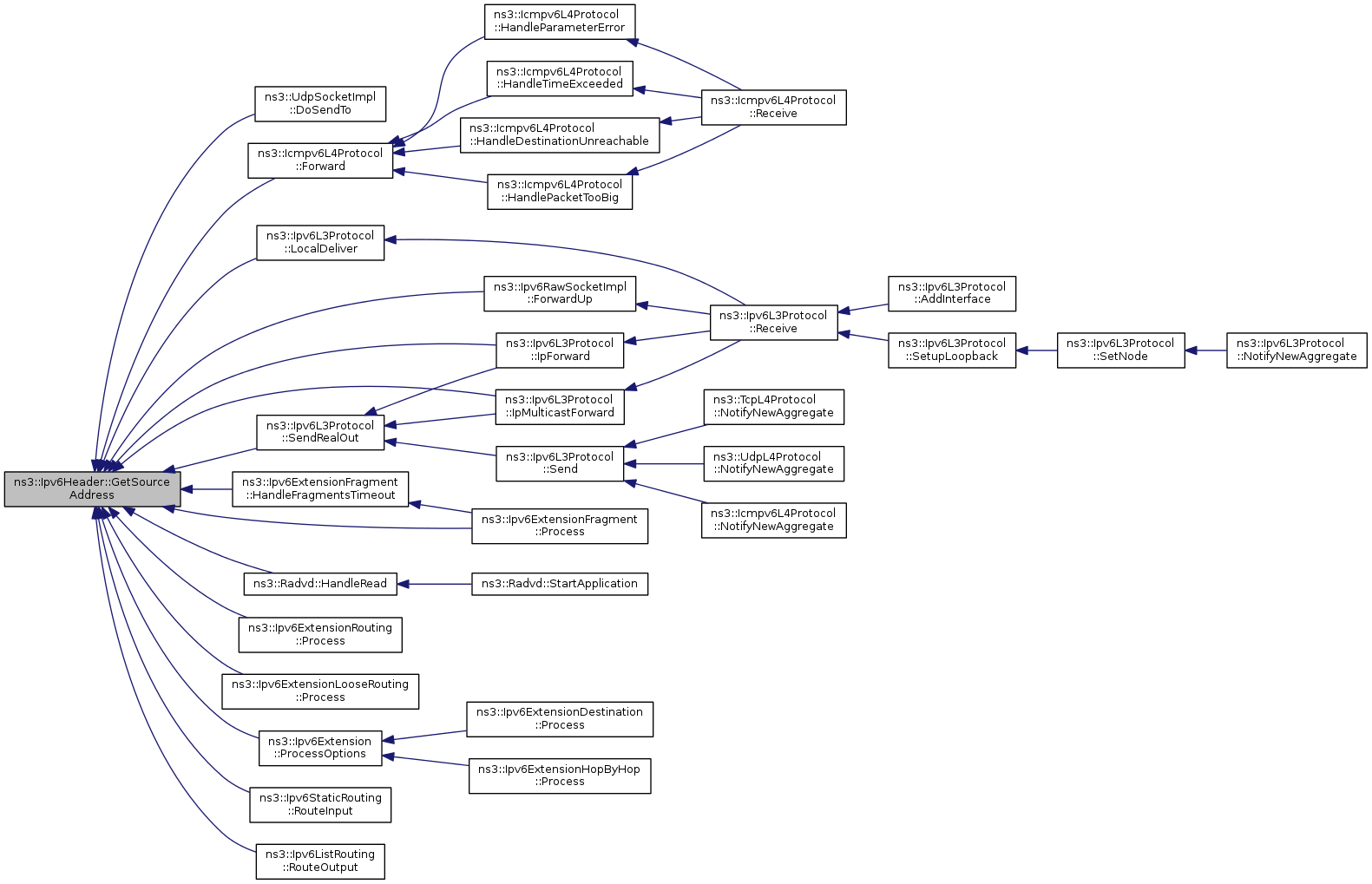

Here is the caller graph for this function:

uint8_t ns3::Ipv6Header::GetTrafficClass ( void ) const

Get the "Traffic class" field.

Returns: the traffic value

Definition at line 51 of file ipv6-header.cc.

References m_trafficClass.

TypeId ns3::Ipv6Header::GetTypeId ( void )

static

Get the type identifier.

This method returns the TypeId associated to ns3::Ipv6Header.

Returns: type identifier

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 116 of file ipv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6Header::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Implements ns3::Header.

Definition at line 130 of file ipv6-header.cc.

References m_destinationAddress, m_flowLabel, m_hopLimit, m_nextHeader, m_payloadLength, m_sourceAddress, m_trafficClass, and m_version.

void ns3::Ipv6Header::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Implements ns3::Header.

Definition at line 148 of file ipv6-header.cc.

References m_destinationAddress, m_flowLabel, m_hopLimit, m_nextHeader, m_payloadLength, m_sourceAddress, m_trafficClass, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::Ipv6ExtensionLooseRouting::Process().

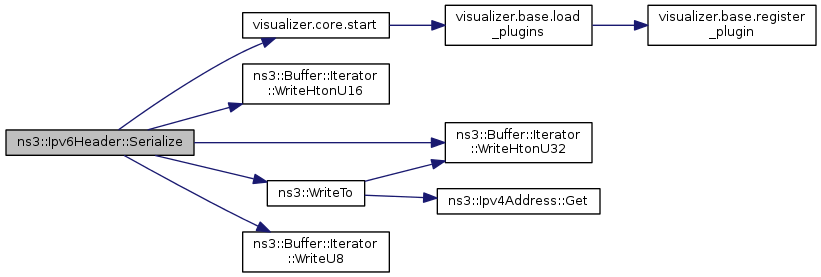

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6Header::SetDestinationAddress ( Ipv6Address dst )

Set the "Destination address" field.

Parameters

dst	the destination address

Definition at line 106 of file ipv6-header.cc.

References m_destinationAddress.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::UdpSocketImpl::DoSendTo(), Ipv6Header(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::TcpL4Protocol::Send(), ns3::TcpL4Protocol::SendPacket(), ns3::Ipv6RawSocketImpl::SendTo(), and ns3::TcpSocketBase::SetupEndpoint6().

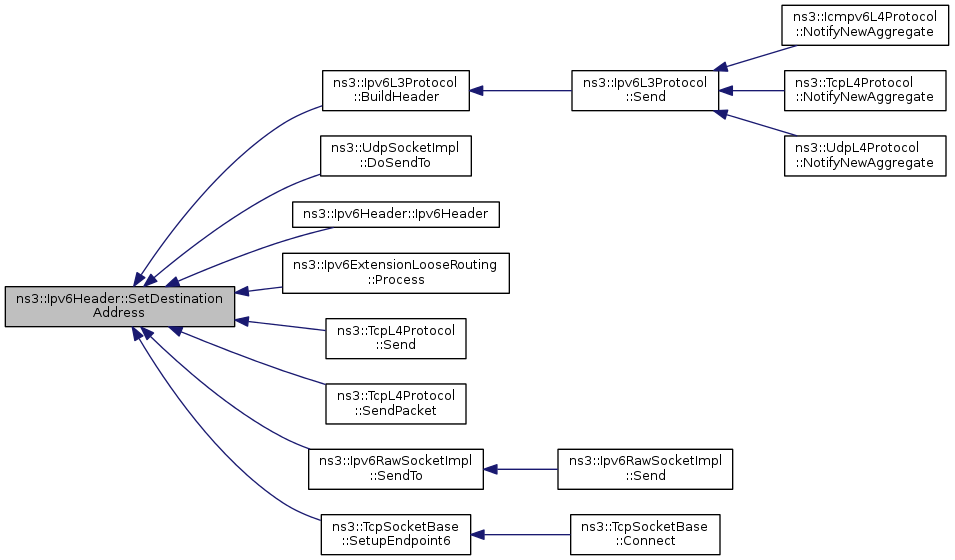

Here is the caller graph for this function:

void ns3::Ipv6Header::SetFlowLabel ( uint32_t flow )

Set the "Flow label" field.

Parameters

flow	the 20-bit value

Definition at line 56 of file ipv6-header.cc.

References m_flowLabel.

void ns3::Ipv6Header::SetHopLimit ( uint8_t limit )

Set the "Hop limit" field (TTL).

Parameters

limit the 8-bit value

Definition at line 86 of file ipv6-header.cc.

References m_hopLimit.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::Ipv6L3Protocol::IpMulticastForward(), and ns3::Ipv6ExtensionLooseRouting::Process().

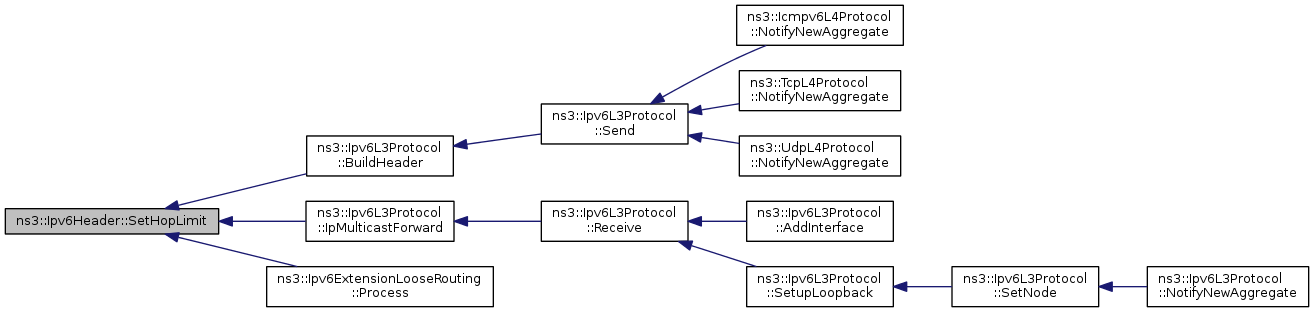

Here is the caller graph for this function:

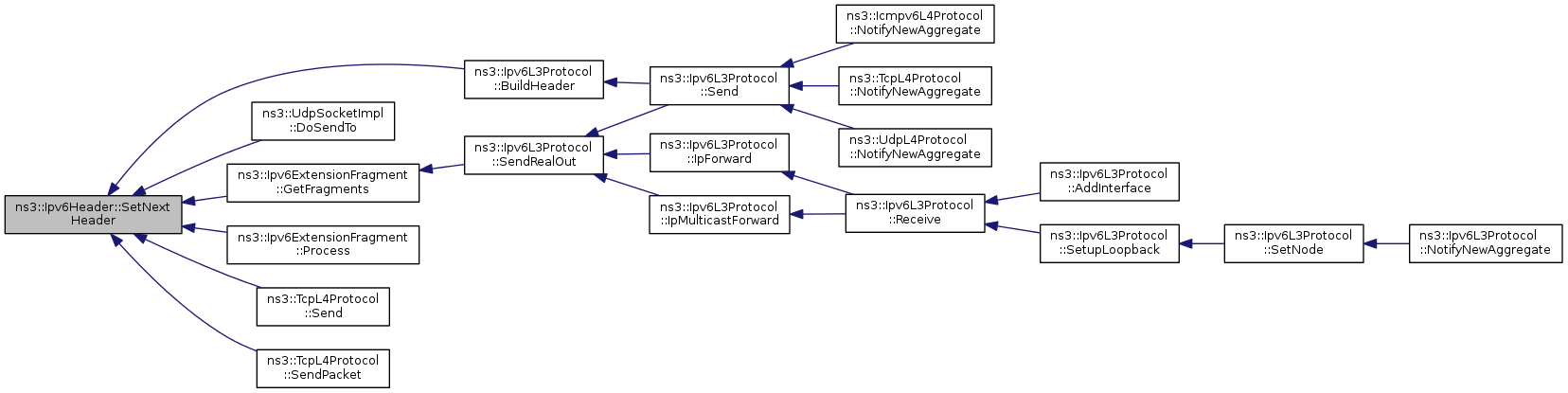

void ns3::Ipv6Header::SetNextHeader ( uint8_t next )

Set the "Next header" field.

Parameters

next	the next header number

Definition at line 76 of file ipv6-header.cc.

References m_nextHeader.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Ipv6ExtensionFragment::Process(), ns3::TcpL4Protocol::Send(), and ns3::TcpL4Protocol::SendPacket().

Here is the caller graph for this function:

void ns3::Ipv6Header::SetPayloadLength ( uint16_t len )

Set the "Payload length" field.

Parameters

len	the length of the payload in bytes

Definition at line 66 of file ipv6-header.cc.

References m_payloadLength.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), and ns3::Ipv6ExtensionFragment::GetFragments().

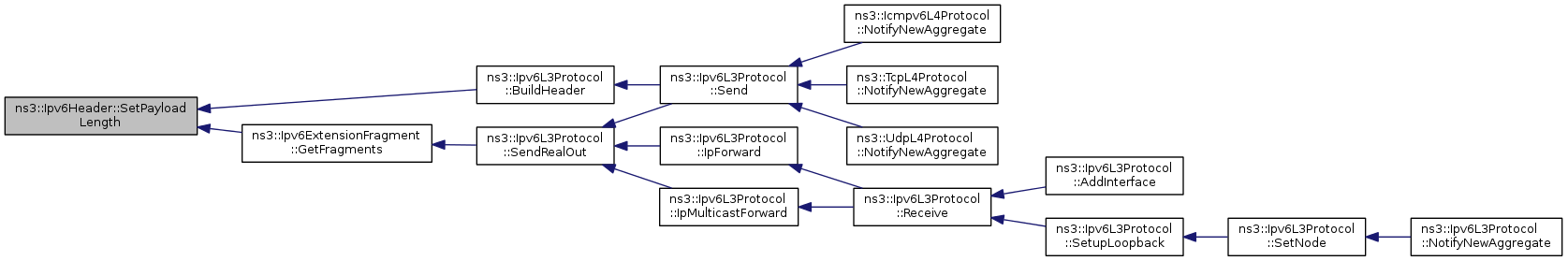

Here is the caller graph for this function:

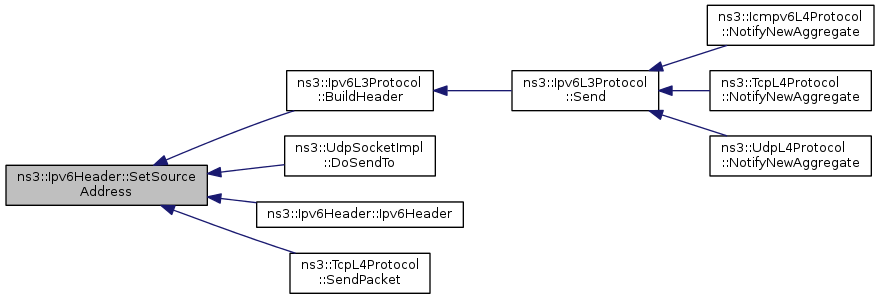

void ns3::Ipv6Header::SetSourceAddress ( Ipv6Address src )

Set the "Source address" field.

Parameters

src	the source address

Definition at line 96 of file ipv6-header.cc.

References m_sourceAddress.

Referenced by ns3::Ipv6L3Protocol::BuildHeader(), ns3::UdpSocketImpl::DoSendTo(), Ipv6Header(), and ns3::TcpL4Protocol::SendPacket().

Here is the caller graph for this function:

void ns3::Ipv6Header::SetTrafficClass ( uint8_t traffic )

Set the "Traffic class" field.

Parameters

traffic the 8-bit value

Definition at line 46 of file ipv6-header.cc.

References m_trafficClass.

Member Data Documentation

Ipv6Address ns3::Ipv6Header::m_destinationAddress

private

The destination address.

Definition at line 225 of file ipv6-header.h.

Referenced by Deserialize(), GetDestinationAddress(), Print(), Serialize(), and SetDestinationAddress().

uint32_t ns3::Ipv6Header::m_flowLabel

private

The flow label.

Note: This is 20-bit value.

Definition at line 200 of file ipv6-header.h.

Referenced by Deserialize(), GetFlowLabel(), Print(), Serialize(), and SetFlowLabel().

uint8_t ns3::Ipv6Header::m_hopLimit

private

The Hop limit value.

Definition at line 215 of file ipv6-header.h.

Referenced by Deserialize(), GetHopLimit(), Print(), Serialize(), and SetHopLimit().

uint8_t ns3::Ipv6Header::m_nextHeader

private

The Next header number.

Definition at line 210 of file ipv6-header.h.

Referenced by Deserialize(), GetNextHeader(), Print(), Serialize(), and SetNextHeader().

uint16_t ns3::Ipv6Header::m_payloadLength

private

The payload length.

Definition at line 205 of file ipv6-header.h.

Referenced by Deserialize(), GetPayloadLength(), Print(), Serialize(), and SetPayloadLength().

Ipv6Address ns3::Ipv6Header::m_sourceAddress

private

The source address.

Definition at line 220 of file ipv6-header.h.

Referenced by Deserialize(), GetSourceAddress(), Print(), Serialize(), and SetSourceAddress().

uint32_t ns3::Ipv6Header::m_trafficClass

private

The traffic class.

Definition at line 194 of file ipv6-header.h.

Referenced by Deserialize(), GetTrafficClass(), Print(), Serialize(), and SetTrafficClass().

uint32_t ns3::Ipv6Header::m_version

private

The version (always equal to 6).

Definition at line 190 of file ipv6-header.h.

Referenced by Deserialize(), and Print().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-header.h
doc/introspected-doxygen.h
src/internet/model/ipv6-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
