802.11s Peer link management frame More...

#include <peer-link-frame.h>

Inheritance diagram for ns3::dot11s::PeerLinkFrameStart:

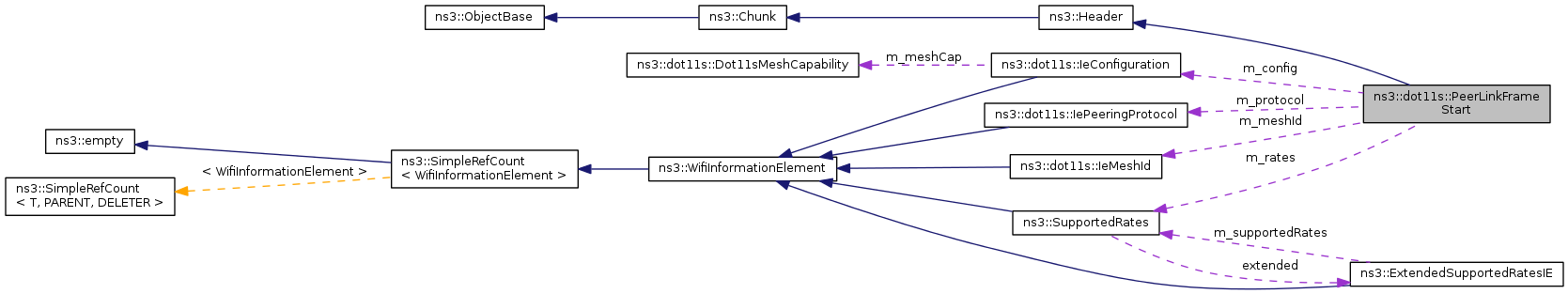

Collaboration diagram for ns3::dot11s::PeerLinkFrameStart:

Classes
struct	PlinkFrameStartFields
	fields: More...

Public Member Functions
	PeerLinkFrameStart ()
PlinkFrameStartFields	GetFields () const
void	SetPlinkFrameStart (PlinkFrameStartFields)
void	SetPlinkFrameSubtype (uint8_t subtype)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Member Functions
	PeerLinkFrameStart (const PeerLinkFrameStart &)
PeerLinkFrameStart &	operator= (const PeerLinkFrameStart &)

Private Attributes
uint16_t	m_aid
uint16_t	m_capability
IeConfiguration	m_config
IeMeshId	m_meshId
IePeeringProtocol	m_protocol
SupportedRates	m_rates
uint16_t	m_reasonCode
uint8_t	m_subtype

Friends
bool	operator== (const PeerLinkFrameStart &a, const PeerLinkFrameStart &b)

Inherited from header:
virtual TypeId	GetInstanceTypeId () const
virtual void	Print (std::ostream &os) const
virtual uint32_t	GetSerializedSize () const
virtual void	Serialize (Buffer::Iterator start) const
virtual uint32_t	Deserialize (Buffer::Iterator start)
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::dot11s::PeerLinkFrameStart.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

802.11s Peer link management frame

Peer link management frame included the following (see chapters 7.4.12.1-7.4.12.3 of 802.11s):

Subtype field
Association ID field
Supported rates
Mesh ID of mesh

Definition at line 45 of file peer-link-frame.h.

Constructor & Destructor Documentation

ns3::dot11s::PeerLinkFrameStart::PeerLinkFrameStart ( )

Definition at line 31 of file peer-link-frame.cc.

ns3::dot11s::PeerLinkFrameStart::PeerLinkFrameStart ( const PeerLinkFrameStart & )

private

Member Function Documentation

uint32_t ns3::dot11s::PeerLinkFrameStart::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 172 of file peer-link-frame.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::dot11s::IePeeringProtocol::DeserializeInformationField(), ns3::dot11s::IeMeshId::DeserializeInformationField(), ns3::dot11s::IeConfiguration::DeserializeInformationField(), ns3::dot11s::IePeeringProtocol::ElementId(), ns3::dot11s::IeMeshId::ElementId(), ns3::dot11s::IeConfiguration::ElementId(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), ns3::dot11s::IePeeringProtocol::GetInformationFieldSize(), ns3::dot11s::IeMeshId::GetInformationFieldSize(), ns3::dot11s::IeConfiguration::GetInformationFieldSize(), m_aid, m_capability, m_config, m_meshId, m_protocol, m_rates, m_reasonCode, m_subtype, ns3::Buffer::Iterator::Next(), NS_ASSERT, NS_FATAL_ERROR, ns3::WifiActionHeader::PEER_LINK_CLOSE, ns3::WifiActionHeader::PEER_LINK_CONFIRM, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

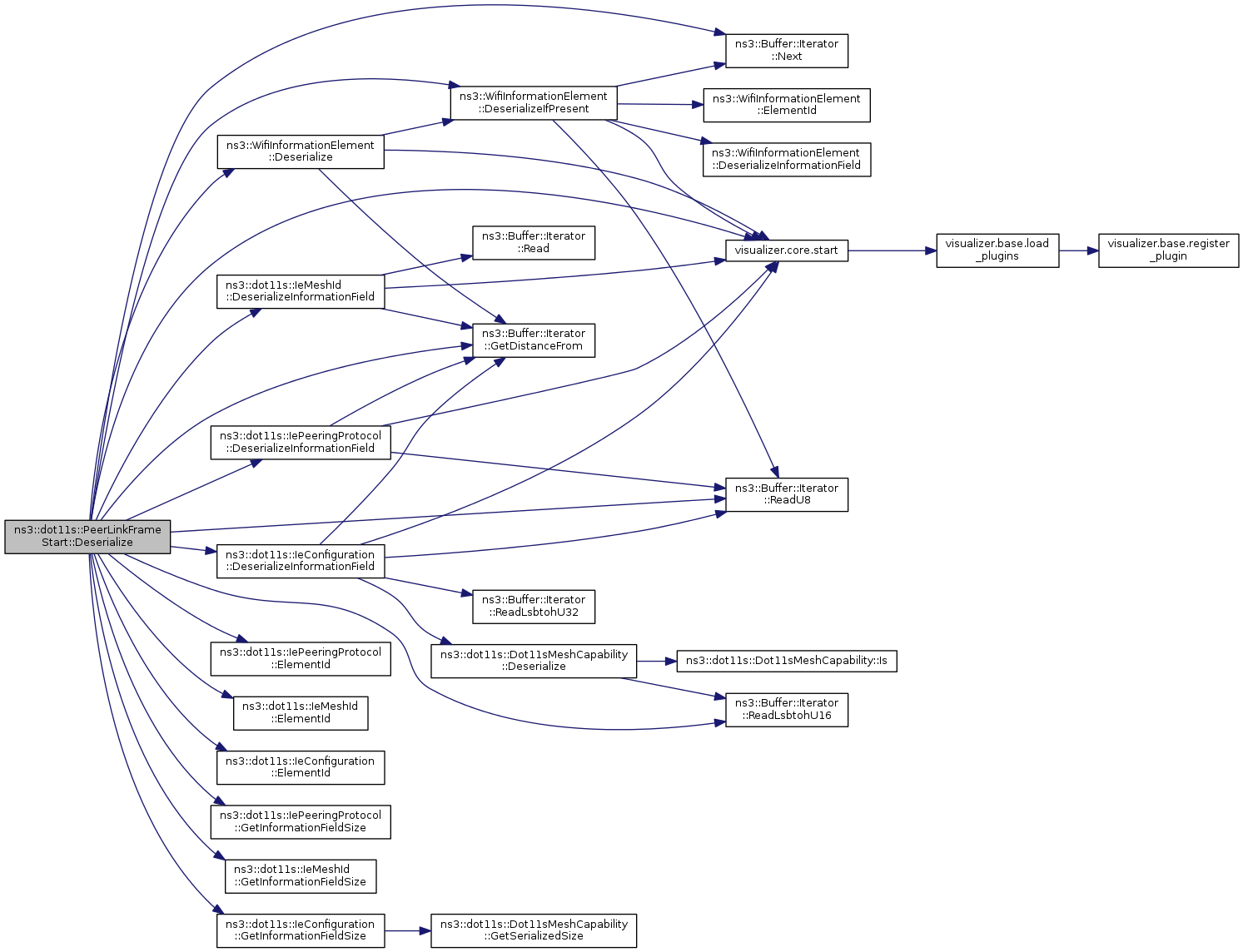

Here is the call graph for this function:

PeerLinkFrameStart::PlinkFrameStartFields ns3::dot11s::PeerLinkFrameStart::GetFields ( ) const

Definition at line 72 of file peer-link-frame.cc.

References ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::aid, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::capability, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::config, m_aid, m_capability, m_config, m_meshId, m_rates, m_reasonCode, m_subtype, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::meshId, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::rates, ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::reasonCode, and ns3::dot11s::PeerLinkFrameStart::PlinkFrameStartFields::subtype.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

TypeId ns3::dot11s::PeerLinkFrameStart::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 93 of file peer-link-frame.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::dot11s::PeerLinkFrameStart::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 108 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, ns3::dot11s::IeMeshId::GetInformationFieldSize(), ns3::dot11s::IeConfiguration::GetInformationFieldSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_config, m_meshId, m_rates, m_subtype, NS_ASSERT, ns3::WifiActionHeader::PEER_LINK_CLOSE, and ns3::WifiActionHeader::PEER_LINK_CONFIRM.

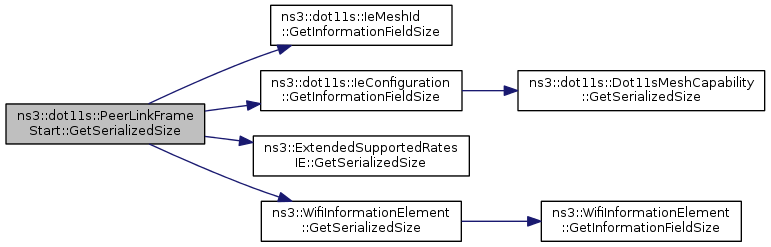

Here is the call graph for this function:

TypeId ns3::dot11s::PeerLinkFrameStart::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::dot11s::PeerLinkFrameStart.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 86 of file peer-link-frame.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

PeerLinkFrameStart& ns3::dot11s::PeerLinkFrameStart::operator= ( const PeerLinkFrameStart & )

private

void ns3::dot11s::PeerLinkFrameStart::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 98 of file peer-link-frame.cc.

References m_aid, m_capability, m_config, m_meshId, m_rates, m_reasonCode, m_subtype, ns3::dot11s::IeMeshId::Print(), and ns3::dot11s::IeConfiguration::Print().

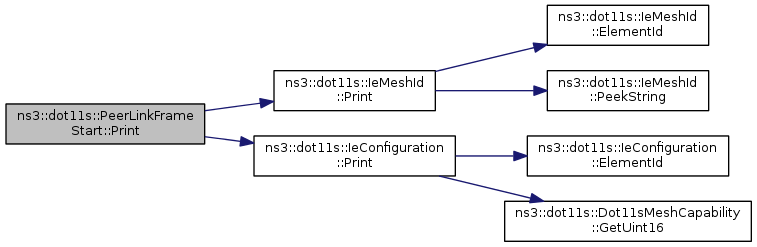

Here is the call graph for this function:

void ns3::dot11s::PeerLinkFrameStart::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 140 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, m_aid, m_capability, m_config, m_meshId, m_protocol, m_rates, m_reasonCode, m_subtype, NS_ASSERT, ns3::WifiActionHeader::PEER_LINK_CLOSE, ns3::WifiActionHeader::PEER_LINK_CONFIRM, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().
