Flame header. More...

#include <flame-header.h>

Inheritance diagram for ns3::flame::FlameHeader:

Collaboration diagram for ns3::flame::FlameHeader:

Public Member Functions
	FlameHeader ()
	~FlameHeader ()
Seeters/Getters for fields:
void	AddCost (uint8_t cost)
uint8_t	GetCost () const
void	SetSeqno (uint16_t seqno)
uint16_t	GetSeqno () const
void	SetOrigDst (Mac48Address dst)
Mac48Address	GetOrigDst () const
void	SetOrigSrc (Mac48Address OrigSrc)
Mac48Address	GetOrigSrc () const
void	SetProtocol (uint16_t protocol)
uint16_t	GetProtocol () const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Attributes
uint8_t	m_cost
Mac48Address	m_origDst
Mac48Address	m_origSrc
uint16_t	m_protocol
uint16_t	m_seqno

Friends
bool	operator== (const FlameHeader &a, const FlameHeader &b)

Inherited from Header class:
virtual TypeId	GetInstanceTypeId (void) const
virtual void	Print (std::ostream &os) const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Serialize (Buffer::Iterator start) const
virtual uint32_t	Deserialize (Buffer::Iterator start)
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::flame::FlameHeader.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Flame header.

Definition at line 37 of file flame-header.h.

Constructor & Destructor Documentation

ns3::flame::FlameHeader::FlameHeader ( )

Definition at line 31 of file flame-header.cc.

ns3::flame::FlameHeader::~FlameHeader ( )

Definition at line 35 of file flame-header.cc.

Member Function Documentation

void ns3::flame::FlameHeader::AddCost ( uint8_t cost )

Definition at line 92 of file flame-header.cc.

References m_cost.

Referenced by ns3::flame::FlameHeaderTest::DoRun(), and ns3::flame::FlameProtocol::RequestRoute().

Here is the caller graph for this function:

uint32_t ns3::flame::FlameHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 80 of file flame-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_cost, m_origDst, m_origSrc, m_protocol, m_seqno, ns3::Buffer::Iterator::Next(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

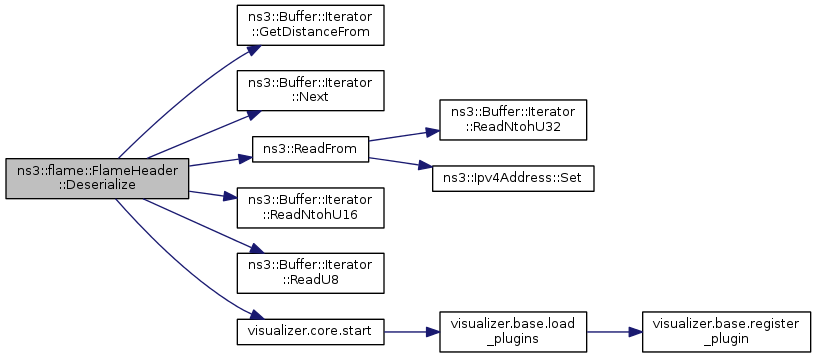

Here is the call graph for this function:

uint8_t ns3::flame::FlameHeader::GetCost ( ) const

Definition at line 97 of file flame-header.cc.

References m_cost.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame().

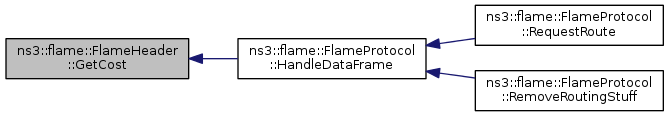

Here is the caller graph for this function:

TypeId ns3::flame::FlameHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 47 of file flame-header.cc.

References GetTypeId().

Here is the call graph for this function:

Mac48Address ns3::flame::FlameHeader::GetOrigDst ( ) const

Definition at line 117 of file flame-header.cc.

References m_origDst.

Mac48Address ns3::flame::FlameHeader::GetOrigSrc ( ) const

Definition at line 127 of file flame-header.cc.

References m_origSrc.

uint16_t ns3::flame::FlameHeader::GetProtocol ( void ) const

Definition at line 137 of file flame-header.cc.

References m_protocol.

uint16_t ns3::flame::FlameHeader::GetSeqno ( ) const

Definition at line 107 of file flame-header.cc.

References m_seqno.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), and ns3::flame::FlameProtocol::RequestRoute().

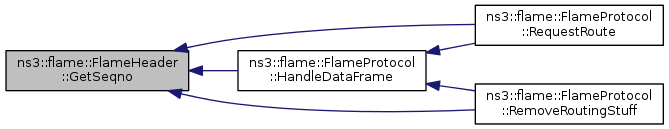

Here is the caller graph for this function:

uint32_t ns3::flame::FlameHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 58 of file flame-header.cc.

TypeId ns3::flame::FlameHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::flame::FlameHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 39 of file flame-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::flame::FlameHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 52 of file flame-header.cc.

References m_cost, m_origDst, m_origSrc, and m_seqno.

void ns3::flame::FlameHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 69 of file flame-header.cc.

References m_cost, m_origDst, m_origSrc, m_protocol, m_seqno, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

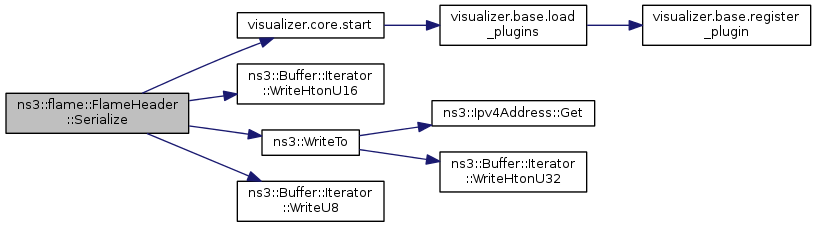

Here is the call graph for this function:
