#include <mac-messages.h>

Inheritance diagram for ns3::RngRsp:

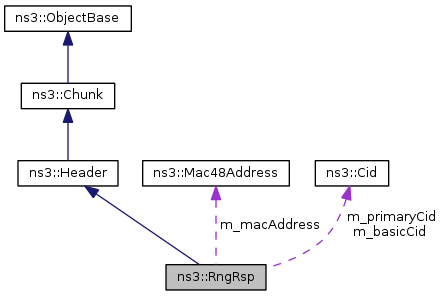

Collaboration diagram for ns3::RngRsp:

Public Member Functions
	RngRsp (void)
	This class implements the ranging response message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.6 Ranging response (RNG-RSP) message, page 50.
virtual	~RngRsp (void)
uint32_t	Deserialize (Buffer::Iterator start)
uint8_t	GetAasBdcastPermission (void) const
Cid	GetBasicCid (void) const
uint32_t	GetDlFreqOverride (void) const
uint16_t	GetDlOperBurstProfile (void) const
uint32_t	GetFrameNumber (void) const
uint8_t	GetInitRangOppNumber (void) const
virtual TypeId	GetInstanceTypeId (void) const
Mac48Address	GetMacAddress (void) const
std::string	GetName (void) const
uint32_t	GetOffsetFreqAdjust (void) const
uint8_t	GetPowerLevelAdjust (void) const
Cid	GetPrimaryCid (void) const
uint8_t	GetRangStatus (void) const
uint8_t	GetRangSubchnl (void) const
uint32_t	GetSerializedSize (void) const
uint32_t	GetTimingAdjust (void) const
uint8_t	GetUlChnlIdOverride (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetAasBdcastPermission (uint8_t aasBdcastPermission)
void	SetBasicCid (Cid basicCid)
void	SetDlFreqOverride (uint32_t dlFreqOverride)
	set the Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.
void	SetDlOperBurstProfile (uint16_t dlOperBurstProfile)
void	SetFrameNumber (uint32_t frameNumber)
void	SetInitRangOppNumber (uint8_t initRangOppNumber)
void	SetMacAddress (Mac48Address macAddress)
void	SetOffsetFreqAdjust (uint32_t offsetFreqAdjust)
	set the relative change in transmission frequency that the SS should take in order to better match the BS. This is fine-frequency adjustment within a channel, not reassignment to a different channel
void	SetPowerLevelAdjust (uint8_t powerLevelAdjust)
	set the relative change in transmission power level that the SS should make in order that transmissions arrive at the BS at the desired power. When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.
void	SetPrimaryCid (Cid primaryCid)
void	SetRangStatus (uint8_t rangStatus)
void	SetRangSubchnl (uint8_t rangSubchnl)
void	SetTimingAdjust (uint32_t timingAdjust)
	set the Tx timing offset adjustment (signed 32-bit).
void	SetUlChnlIdOverride (uint8_t ulChnlIdOverride)
	set the identifier of the uplink channel with which the SS is to redo initial ranging
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RngRsp.

Private Attributes
uint8_t	m_aasBdcastPermission
Cid	m_basicCid
uint32_t	m_dlFreqOverride
uint16_t	m_dlOperBurstProfile
uint32_t	m_frameNumber
uint8_t	m_initRangOppNumber
Mac48Address	m_macAddress
uint32_t	m_offsetFreqAdjust
uint8_t	m_powerLevelAdjust
Cid	m_primaryCid
uint8_t	m_rangStatus
uint8_t	m_rangSubchnl
uint8_t	m_reserved
uint32_t	m_timingAdjust
uint8_t	m_ulChnlIdOverride

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Definition at line 97 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::RngRsp::RngRsp ( void )

This class implements the ranging response message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.6 Ranging response (RNG-RSP) message, page 50.

Definition at line 225 of file mac-messages.cc.

ns3::RngRsp::~RngRsp ( void )

virtual

Definition at line 244 of file mac-messages.cc.

Member Function Documentation

uint32_t ns3::RngRsp::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 476 of file mac-messages.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_reserved, m_timingAdjust, m_ulChnlIdOverride, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

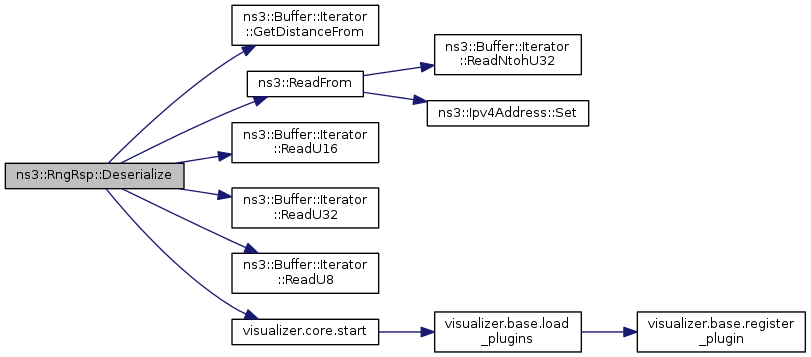

Here is the call graph for this function:

uint8_t ns3::RngRsp::GetAasBdcastPermission ( void ) const

Definition at line 393 of file mac-messages.cc.

References m_aasBdcastPermission.

Cid ns3::RngRsp::GetBasicCid ( void ) const

Definition at line 381 of file mac-messages.cc.

References m_basicCid.

Referenced by ns3::SSLinkManager::PerformRanging().

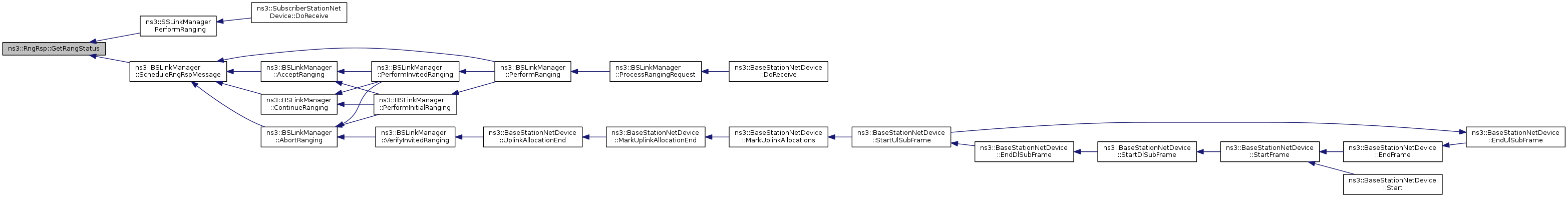

Here is the caller graph for this function:

uint32_t ns3::RngRsp::GetDlFreqOverride ( void ) const

Returns: Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.

Definition at line 357 of file mac-messages.cc.

References m_dlFreqOverride.

Referenced by ns3::SSLinkManager::PerformRanging().

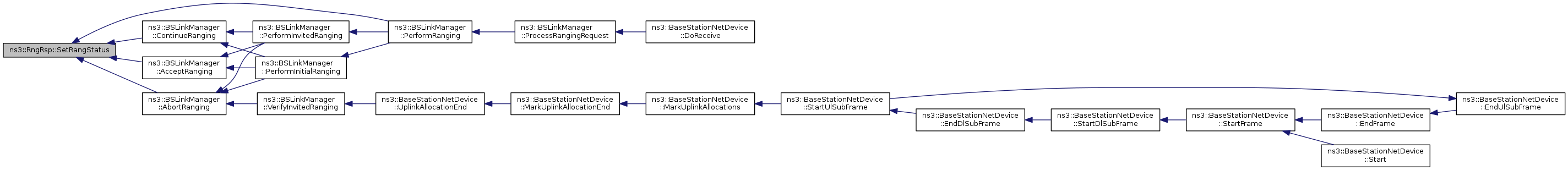

Here is the caller graph for this function:

uint16_t ns3::RngRsp::GetDlOperBurstProfile ( void ) const

Returns: DlOperBurstProfile: This parameter is sent in response to the RNG-REQ Requested Downlink Burst Profile parameter

Definition at line 369 of file mac-messages.cc.

References m_dlOperBurstProfile.

uint32_t ns3::RngRsp::GetFrameNumber ( void ) const

Definition at line 399 of file mac-messages.cc.

References m_frameNumber.

Referenced by ns3::SSLinkManager::PerformRanging().

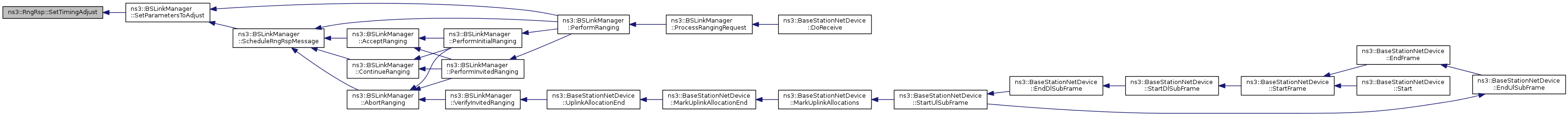

Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetInitRangOppNumber ( void ) const

Definition at line 405 of file mac-messages.cc.

References m_initRangOppNumber.

Referenced by ns3::SSLinkManager::PerformRanging().

Here is the caller graph for this function:

TypeId ns3::RngRsp::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 430 of file mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

Mac48Address ns3::RngRsp::GetMacAddress ( void ) const

Definition at line 375 of file mac-messages.cc.

References m_macAddress.

Referenced by ns3::SSLinkManager::PerformRanging().

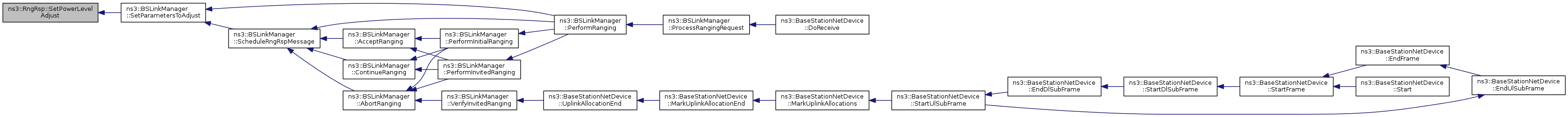

Here is the caller graph for this function:

std::string ns3::RngRsp::GetName ( void ) const

Definition at line 417 of file mac-messages.cc.

uint32_t ns3::RngRsp::GetOffsetFreqAdjust ( void ) const

Returns: the relative change in transmission frequency that the SS should take in order to better match the BS. This is fine-frequency adjustment within a channel, not reassignment to a different channel.

Definition at line 345 of file mac-messages.cc.

References m_offsetFreqAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetPowerLevelAdjust ( void ) const

Returns: the relative change in transmission power level that the SS should take in order that transmissions arrive at the BS at the desired power. When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.

Definition at line 339 of file mac-messages.cc.

References m_powerLevelAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

Here is the caller graph for this function:

Cid ns3::RngRsp::GetPrimaryCid ( void ) const

Definition at line 387 of file mac-messages.cc.

References m_primaryCid.

Referenced by ns3::SSLinkManager::PerformRanging().

Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetRangStatus ( void ) const

Definition at line 351 of file mac-messages.cc.

References m_rangStatus.

Referenced by ns3::SSLinkManager::PerformRanging(), and ns3::BSLinkManager::ScheduleRngRspMessage().

Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetRangSubchnl ( void ) const

Definition at line 411 of file mac-messages.cc.

References m_rangSubchnl.

uint32_t ns3::RngRsp::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 449 of file mac-messages.cc.

uint32_t ns3::RngRsp::GetTimingAdjust ( void ) const

Returns: Tx timing offset adjustment (signed 32-bit). The time required to advance SS transmission so frames arrive at the expected time instance at the BS.

Definition at line 333 of file mac-messages.cc.

References m_timingAdjust.

Referenced by ns3::SSLinkManager::AdjustRangingParameters().

Here is the caller graph for this function:

TypeId ns3::RngRsp::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::RngRsp.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 423 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::RngRsp::GetUlChnlIdOverride ( void ) const

Returns: The identifier of the uplink channel with which the SS is to redo initial ranging

Definition at line 363 of file mac-messages.cc.

References m_ulChnlIdOverride.

void ns3::RngRsp::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 436 of file mac-messages.cc.

References m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_timingAdjust, and m_ulChnlIdOverride.

void ns3::RngRsp::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 455 of file mac-messages.cc.

References ns3::Cid::GetIdentifier(), m_aasBdcastPermission, m_basicCid, m_dlFreqOverride, m_dlOperBurstProfile, m_frameNumber, m_initRangOppNumber, m_macAddress, m_offsetFreqAdjust, m_powerLevelAdjust, m_primaryCid, m_rangStatus, m_rangSubchnl, m_reserved, m_timingAdjust, m_ulChnlIdOverride, visualizer.core::start(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

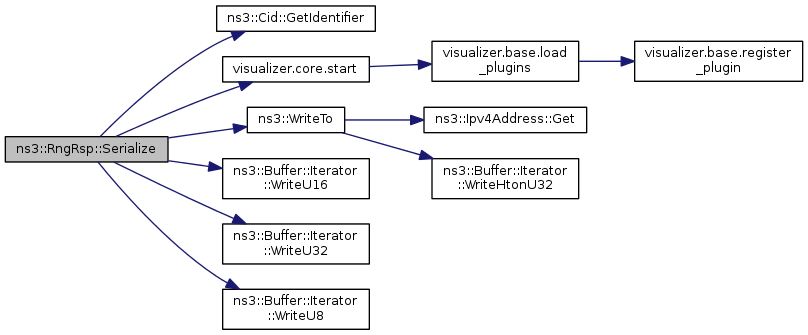

Here is the call graph for this function:

void ns3::RngRsp::SetAasBdcastPermission ( uint8_t aasBdcastPermission )

Definition at line 309 of file mac-messages.cc.

References m_aasBdcastPermission.

void ns3::RngRsp::SetBasicCid ( Cid basicCid )

Definition at line 297 of file mac-messages.cc.

References m_basicCid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections().

Here is the caller graph for this function:

void ns3::RngRsp::SetDlFreqOverride ( uint32_t dlFreqOverride )

set the Center frequency, in kHz, of new downlink channel where the SS should redo initial ranging.

Parameters

dlFreqOverride the Center frequency in kHz

Definition at line 273 of file mac-messages.cc.

References m_dlFreqOverride.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

Here is the caller graph for this function:

void ns3::RngRsp::SetDlOperBurstProfile ( uint16_t dlOperBurstProfile )

Definition at line 285 of file mac-messages.cc.

References m_dlOperBurstProfile.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

Here is the caller graph for this function:

void ns3::RngRsp::SetFrameNumber ( uint32_t frameNumber )

Definition at line 315 of file mac-messages.cc.

References m_frameNumber.

Referenced by ns3::BSLinkManager::PerformRanging().

Here is the caller graph for this function:

void ns3::RngRsp::SetInitRangOppNumber ( uint8_t initRangOppNumber )

Definition at line 321 of file mac-messages.cc.

References m_initRangOppNumber.

Referenced by ns3::BSLinkManager::PerformRanging().

Here is the caller graph for this function:

void ns3::RngRsp::SetMacAddress ( Mac48Address macAddress )

Definition at line 291 of file mac-messages.cc.

References m_macAddress.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

Here is the caller graph for this function:

void ns3::RngRsp::SetOffsetFreqAdjust ( uint32_t offsetFreqAdjust )

set the relative change in transmission frequency that the SS should take in order to better match the BS. This is fine-frequency adjustment within a channel, not reassignment to a different channel

Parameters

offsetFreqAdjust

Definition at line 261 of file mac-messages.cc.

References m_offsetFreqAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

Here is the caller graph for this function:

void ns3::RngRsp::SetPowerLevelAdjust ( uint8_t powerLevelAdjust )

set the relative change in transmission power level that the SS should make in order that transmissions arrive at the BS at the desired power. When subchannelization is employed, the subscriber shall interpret the power offset adjustment as a required change to the transmitted power density.

Parameters

powerLevelAdjust the relative change in transmission power level

Definition at line 255 of file mac-messages.cc.

References m_powerLevelAdjust.

Referenced by ns3::BSLinkManager::SetParametersToAdjust().

Here is the caller graph for this function:
