ns3::Ipv6OptionPadnHeader Class Reference

Header of IPv6 Option Padn. More...

#include <ipv6-option-header.h>

Inheritance diagram for ns3::Ipv6OptionPadnHeader:

Collaboration diagram for ns3::Ipv6OptionPadnHeader:

Public Member Functions
	Ipv6OptionPadnHeader (uint32_t pad=2)
	Constructor.
virtual	~Ipv6OptionPadnHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
Public Member Functions inherited from ns3::Ipv6OptionHeader
	Ipv6OptionHeader ()
	Constructor.
virtual	~Ipv6OptionHeader ()
	Destructor.
virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header.
uint8_t	GetLength () const
	Get the option length.
uint8_t	GetType () const
	Get the type of the option.
void	SetLength (uint8_t length)
	Set the option length.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Option Padn.

Definition at line 210 of file ipv6-option-header.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader

(

uint32_t

pad = 2

)

Constructor.

Parameters

pad	Number of bytes to pad (>=2)

Definition at line 186 of file ipv6-option-header.cc.

References NS_ASSERT_MSG, ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

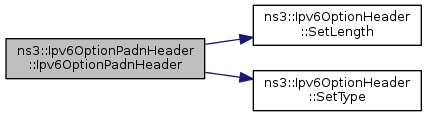

Here is the call graph for this function:

ns3::Ipv6OptionPadnHeader::~Ipv6OptionPadnHeader ( )

virtual

Destructor.

Definition at line 193 of file ipv6-option-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6OptionPadnHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 220 of file ipv6-option-header.cc.

References GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().

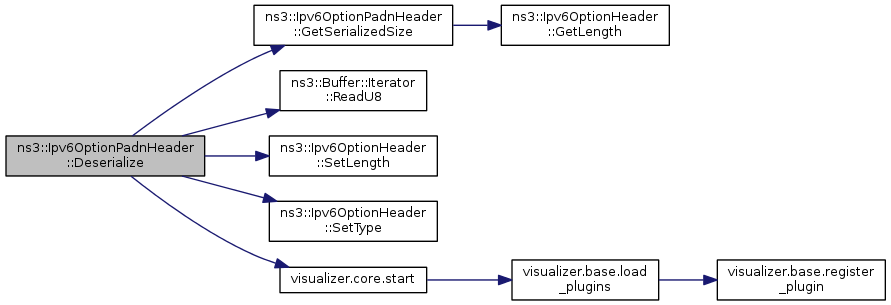

Here is the call graph for this function:

TypeId ns3::Ipv6OptionPadnHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 181 of file ipv6-option-header.cc.

References GetTypeId().

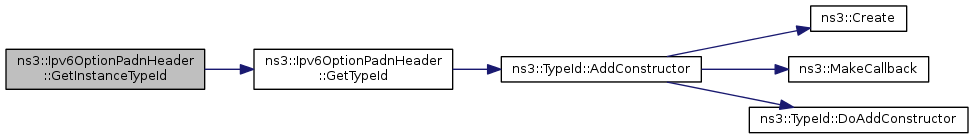

Here is the call graph for this function:

uint32_t ns3::Ipv6OptionPadnHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 202 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength().

Referenced by Deserialize(), and ns3::Ipv6OptionPadn::Process().

Here is the call graph for this function:

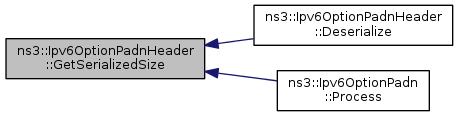

Here is the caller graph for this function:

TypeId ns3::Ipv6OptionPadnHeader::GetTypeId ( void  )

static

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6OptionPadnHeader.

Returns

type identificator

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 172 of file ipv6-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

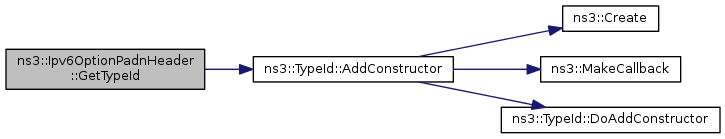

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6OptionPadnHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 197 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), and ns3::Ipv6OptionHeader::GetType().

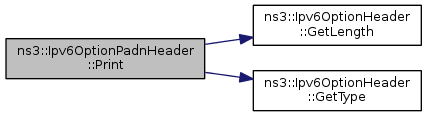

Here is the call graph for this function:

void ns3::Ipv6OptionPadnHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 207 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::OptionField::Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-option-header.h
• doc/introspected-doxygen.h
• src/internet/model/ipv6-option-header.cc
