Route Request (RREQ) Message Format. More...

#include <aodv-packet.h>

Inheritance diagram for ns3::aodv::RreqHeader:

Collaboration diagram for ns3::aodv::RreqHeader:

Public Member Functions
	RreqHeader (uint8_t flags=0, uint8_t reserved=0, uint8_t hopCount=0, uint32_t requestID=0, Ipv4Address dst=Ipv4Address(), uint32_t dstSeqNo=0, Ipv4Address origin=Ipv4Address(), uint32_t originSeqNo=0)
	c-tor
bool	operator== (RreqHeader const &o) const
Fields

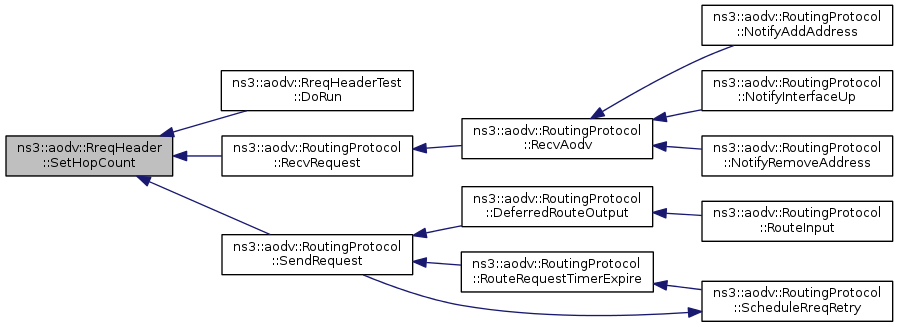

void	SetHopCount (uint8_t count)
uint8_t	GetHopCount () const

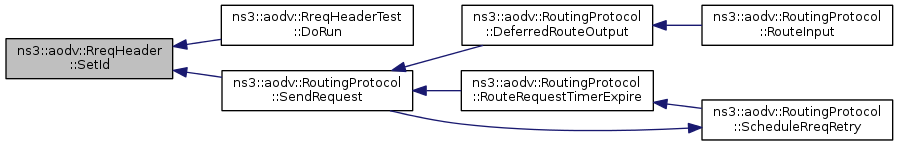

void	SetId (uint32_t id)
uint32_t	GetId () const
void	SetDst (Ipv4Address a)
Ipv4Address	GetDst () const
void	SetDstSeqno (uint32_t s)
uint32_t	GetDstSeqno () const
void	SetOrigin (Ipv4Address a)
Ipv4Address	GetOrigin () const

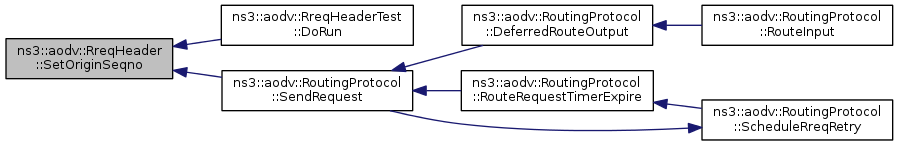

void	SetOriginSeqno (uint32_t s)
uint32_t	GetOriginSeqno () const
Flags
void	SetGratiousRrep (bool f)
bool	GetGratiousRrep () const

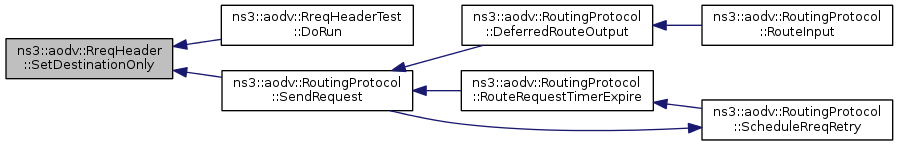

void	SetDestinationOnly (bool f)
bool	GetDestinationOnly () const
void	SetUnknownSeqno (bool f)
bool	GetUnknownSeqno () const
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Private Attributes
Ipv4Address	m_dst
	Destination IP Address.
uint32_t	m_dstSeqNo
	Destination Sequence Number.
uint8_t	m_flags
	\|J\|R\|G\|D\|U\| bit flags, see RFC
uint8_t	m_hopCount
	Hop Count.
Ipv4Address	m_origin
	Originator IP Address.
uint32_t	m_originSeqNo
	Source Sequence Number.
uint32_t	m_requestID
	RREQ ID.
uint8_t	m_reserved
	Not used.

Header serialization/deserialization
TypeId	GetInstanceTypeId () const
uint32_t	GetSerializedSize () const
void	Serialize (Buffer::Iterator start) const
uint32_t	Deserialize (Buffer::Iterator start)
void	Print (std::ostream &os) const
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::aodv::RreqHeader.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Route Request (RREQ) Message Format.

0                   1                   2                   3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|     Type      |J|R|G|D|U|   Reserved          |   Hop Count   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                            RREQ ID                            |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Destination IP Address                     |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                  Destination Sequence Number                  |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Originator IP Address                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                  Originator Sequence Number                   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Definition at line 102 of file aodv-packet.h.

Constructor & Destructor Documentation

ns3::aodv::RreqHeader::RreqHeader	(	uint8_t	flags = `0`,
		uint8_t	reserved = `0`,
		uint8_t	hopCount = `0`,
		uint32_t	requestID = `0`,
		Ipv4Address	dst = `Ipv4Address ()`,
		uint32_t	dstSeqNo = `0`,
		Ipv4Address	origin = `Ipv4Address ()`,
		uint32_t	originSeqNo = `0`
	)

c-tor

Definition at line 142 of file aodv-packet.cc.

Member Function Documentation

uint32_t ns3::aodv::RreqHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 187 of file aodv-packet.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_dst, m_dstSeqNo, m_flags, m_hopCount, m_origin, m_originSeqNo, m_requestID, m_reserved, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

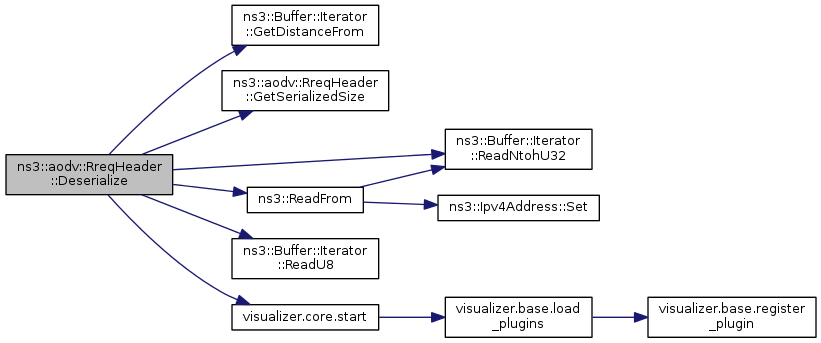

Here is the call graph for this function:

bool ns3::aodv::RreqHeader::GetDestinationOnly ( ) const

Definition at line 247 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

Ipv4Address ns3::aodv::RreqHeader::GetDst ( ) const

inline

Definition at line 128 of file aodv-packet.h.

References m_dst.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendReply().

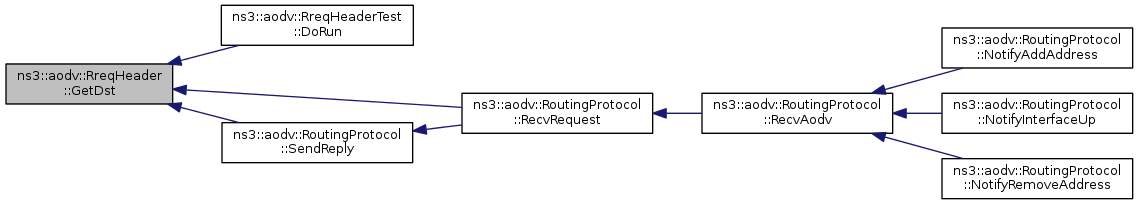

Here is the caller graph for this function:

uint32_t ns3::aodv::RreqHeader::GetDstSeqno ( ) const

inline

Definition at line 130 of file aodv-packet.h.

References m_dstSeqNo.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendReply().

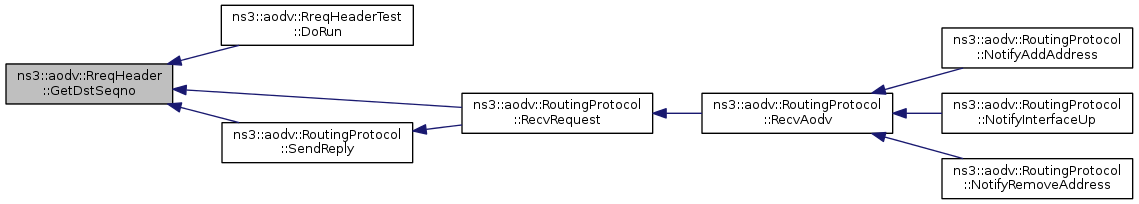

Here is the caller graph for this function:

bool ns3::aodv::RreqHeader::GetGratiousRrep ( ) const

Definition at line 232 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

uint8_t ns3::aodv::RreqHeader::GetHopCount ( ) const

inline

Definition at line 124 of file aodv-packet.h.

References m_hopCount.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

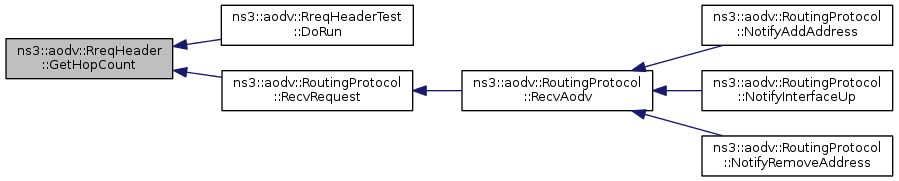

Here is the caller graph for this function:

uint32_t ns3::aodv::RreqHeader::GetId ( ) const

inline

Definition at line 126 of file aodv-packet.h.

References m_requestID.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendRequest().

Here is the caller graph for this function:

TypeId ns3::aodv::RreqHeader::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 162 of file aodv-packet.cc.

References GetTypeId().

Here is the call graph for this function:

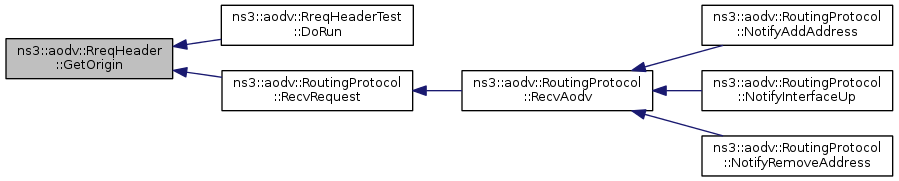

Ipv4Address ns3::aodv::RreqHeader::GetOrigin ( ) const

inline

Definition at line 132 of file aodv-packet.h.

References m_origin.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

uint32_t ns3::aodv::RreqHeader::GetOriginSeqno ( ) const

inline

Definition at line 134 of file aodv-packet.h.

References m_originSeqNo.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

uint32_t ns3::aodv::RreqHeader::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 168 of file aodv-packet.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::aodv::RreqHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::aodv::RreqHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 152 of file aodv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RreqHeader::GetUnknownSeqno ( ) const

Definition at line 262 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RreqHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendReply().

Here is the caller graph for this function:

bool ns3::aodv::RreqHeader::operator== ( RreqHeader const & o ) const

Definition at line 268 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_origin, m_originSeqNo, m_requestID, and m_reserved.

void ns3::aodv::RreqHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 205 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_origin, m_originSeqNo, and m_requestID.

Referenced by ns3::aodv::operator<<().

Here is the caller graph for this function:

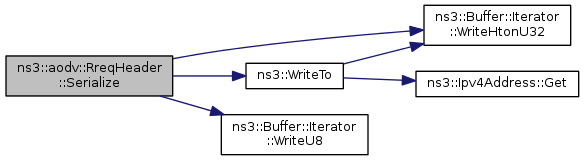

void ns3::aodv::RreqHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 174 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_origin, m_originSeqNo, m_requestID, m_reserved, ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().
