ns3::Average< T > Class Template Reference

#include <average.h>

Inheritance diagram for ns3::Average< T >:

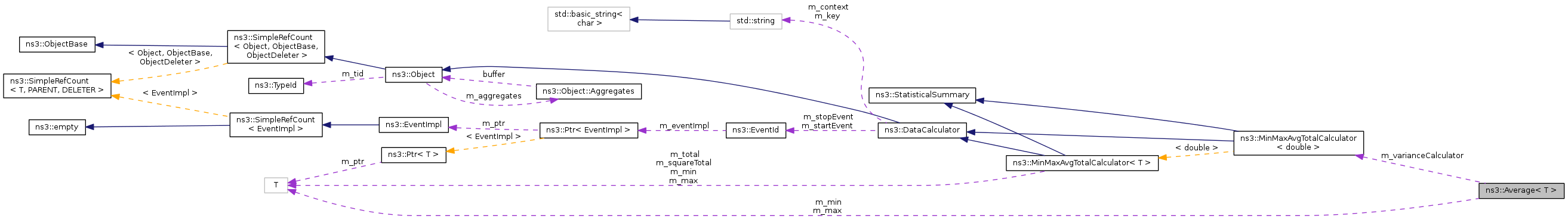

Collaboration diagram for ns3::Average< T >:

Public Member Functions
	Average ()
void	Reset ()
	Reset statistics.
void	Update (T const &x)
	Add new sample.
Sample statistics
uint32_t	Count () const
	Sample size.
T	Min () const
	Minimum.
T	Max () const
	Maximum.
double	Avg () const
	Sample average.
double	Mean () const
	Estimate of mean, alias to Avg.
double	Var () const
	Unbiased estimate of variance.
double	Stddev () const
	Standard deviation.
Error of the mean estimates
Note that estimates are valid for uncorrelated measurements, normal distribution and large enough sample size.
double	Error90 () const
	Margin of error of the mean for 90% confidence level.
double	Error95 () const
	Margin of error of the mean for 95% confidence level.
double	Error99 () const
	Margin of error of the mean for 99% confidence level.

Private Attributes
T	m_max
T	m_min
uint32_t	m_size
MinMaxAvgTotalCalculator< double >	m_varianceCalculator

Detailed Description

template<typename T = double>
class ns3::Average< T >

Simple average, min, max and std. deviation calculator

Definition at line 45 of file average.h.

Constructor & Destructor Documentation

template<typename T = double>

ns3::Average< T >::Average ( )

inline

Definition at line 48 of file average.h.

Member Function Documentation

template<typename T = double>

double ns3::Average< T >::Avg ( ) const

inline

Sample average.

Definition at line 82 of file average.h.

Referenced by ns3::Average< double >::Mean(), and ns3::V4Ping::StopApplication().

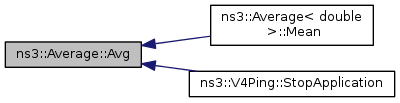

Here is the caller graph for this function:

template<typename T = double>

uint32_t ns3::Average< T >::Count ( ) const

inline

Sample size.

Definition at line 76 of file average.h.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), ns3::Average< double >::Error90(), ns3::Average< double >::Error95(), ns3::Average< double >::Error99(), and ns3::V4Ping::StopApplication().

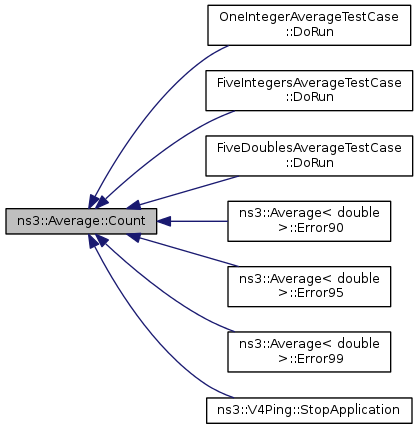

Here is the caller graph for this function:

template<typename T = double>

double ns3::Average< T >::Error90 ( ) const

inline

Margin of error of the mean for 90% confidence level.

Definition at line 101 of file average.h.

template<typename T = double>

double ns3::Average< T >::Error95 ( ) const

inline

Margin of error of the mean for 95% confidence level.

Definition at line 103 of file average.h.

template<typename T = double>

double ns3::Average< T >::Error99 ( ) const

inline

Margin of error of the mean for 99% confidence level.

Definition at line 105 of file average.h.

template<typename T = double>

T ns3::Average< T >::Max ( ) const

inline

Maximum.

Definition at line 80 of file average.h.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), and ns3::V4Ping::StopApplication().

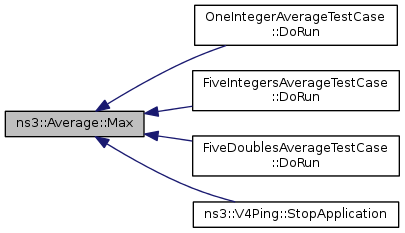

Here is the caller graph for this function:

template<typename T = double>

double ns3::Average< T >::Mean ( ) const

inline

Estimate of mean, alias to Avg.

Definition at line 84 of file average.h.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), and FiveDoublesAverageTestCase::DoRun().

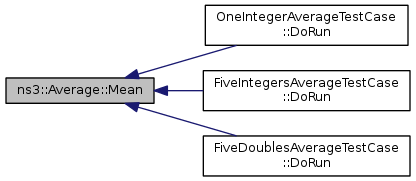

Here is the caller graph for this function:

template<typename T = double>

T ns3::Average< T >::Min ( ) const

inline

Minimum.

Definition at line 78 of file average.h.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), and ns3::V4Ping::StopApplication().

Here is the caller graph for this function:

template<typename T = double>

void ns3::Average< T >::Reset ( void  )

inline

Reset statistics.

Definition at line 64 of file average.h.

template<typename T = double>

double ns3::Average< T >::Stddev ( ) const

inline

Standard deviation.

Definition at line 88 of file average.h.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), and ns3::V4Ping::StopApplication().

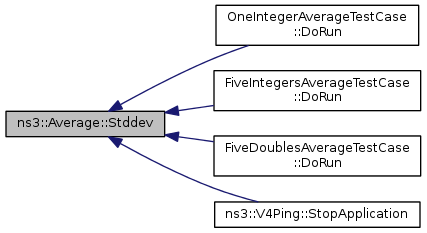

Here is the caller graph for this function:

template<typename T = double>

void ns3::Average< T >::Update ( T const &  x )

inline

Add new sample.

Definition at line 54 of file average.h.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), and ns3::V4Ping::Receive().

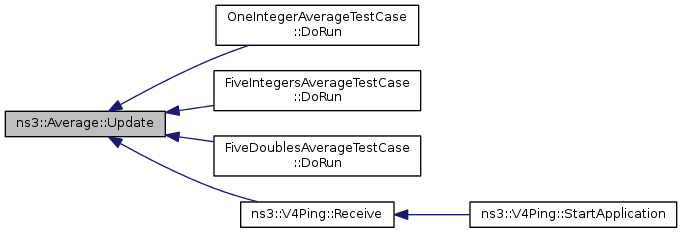

Here is the caller graph for this function:

template<typename T = double>

double ns3::Average< T >::Var ( ) const

inline

Unbiased estimate of variance.

Definition at line 86 of file average.h.

Referenced by OneIntegerAverageTestCase::DoRun(), FiveIntegersAverageTestCase::DoRun(), FiveDoublesAverageTestCase::DoRun(), ns3::Average< double >::Error90(), ns3::Average< double >::Error95(), ns3::Average< double >::Error99(), and ns3::Average< double >::Stddev().

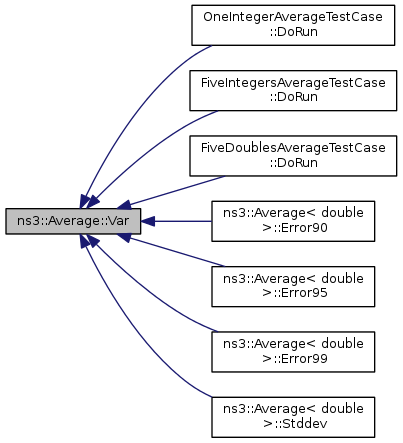

Here is the caller graph for this function:

Member Data Documentation

template<typename T = double>

T ns3::Average< T >::m_max

private

Definition at line 110 of file average.h.

Referenced by ns3::Average< double >::Max(), ns3::Average< double >::Reset(), and ns3::Average< double >::Update().

template<typename T = double>

T ns3::Average< T >::m_min

private

Definition at line 110 of file average.h.

Referenced by ns3::Average< double >::Min(), ns3::Average< double >::Reset(), and ns3::Average< double >::Update().

template<typename T = double>

uint32_t ns3::Average< T >::m_size

private

Definition at line 109 of file average.h.

Referenced by ns3::Average< double >::Count(), ns3::Average< double >::Reset(), and ns3::Average< double >::Update().

template<typename T = double>

MinMaxAvgTotalCalculator<double> ns3::Average< T >::m_varianceCalculator

private

Definition at line 111 of file average.h.

Referenced by ns3::Average< double >::Avg(), ns3::Average< double >::Reset(), ns3::Average< double >::Update(), and ns3::Average< double >::Var().

---

The documentation for this class was generated from the following file:

• src/tools/model/average.h
