parse command-line argumentsInstances of this class can be used to parse command-line arguments: users can register new arguments with CommandLine::AddValue but the most important functionality provided by this class is that it can be used to set the 'initial value' of every attribute in the system with the More...

#include <command-line.h>

Collaboration diagram for ns3::CommandLine:

Classes
class	CallbackItem
class	Item
class	UserItem

Public Member Functions
	CommandLine ()
	CommandLine (const CommandLine &cmd)
	~CommandLine ()
template<typename T >
void	AddValue (const std::string &name, const std::string &help, T &value)
void	AddValue (const std::string &name, const std::string &help, Callback< bool, std::string > callback)
CommandLine &	operator= (const CommandLine &cmd)
void	Parse (int argc, char *argv[]) const

Private Types
typedef std::list< Item * >	Items

Private Member Functions
void	Clear (void)
void	Copy (const CommandLine &cmd)
void	HandleArgument (std::string name, std::string value) const
void	PrintAttributes (std::string type) const
void	PrintGlobals (void) const
void	PrintGroup (std::string group) const
void	PrintGroups (void) const
void	PrintHelp (void) const
void	PrintTypeIds (void) const

Private Attributes
Items	m_items

Detailed Description

parse command-line arguments

Instances of this class can be used to parse command-line arguments: users can register new arguments with CommandLine::AddValue but the most important functionality provided by this class is that it can be used to set the 'initial value' of every attribute in the system with the

*   --TypeIdName::AttributeName=value
*

syntax and it can be used to set the value of every GlobalValue in the system with the

*   --GlobalValueName=value
*

syntax.

Definition at line 50 of file command-line.h.

Member Typedef Documentation

typedef std::list<Item *> ns3::CommandLine::Items

private

Definition at line 124 of file command-line.h.

Constructor & Destructor Documentation

ns3::CommandLine::CommandLine ( )

Definition at line 33 of file command-line.cc.

ns3::CommandLine::CommandLine ( const CommandLine & cmd )

Definition at line 36 of file command-line.cc.

References Copy().

Here is the call graph for this function:

ns3::CommandLine::~CommandLine ( )

Definition at line 47 of file command-line.cc.

References Clear().

Here is the call graph for this function:

Member Function Documentation

template<typename T >

void ns3::CommandLine::AddValue	(	const std::string &	name,
		const std::string &	help,
		T &	value
	)

Parameters

name	the name of the user-supplied argument
help	some help text used by –PrintHelp
value	a reference to the variable where the value parsed will be stored (if no value is parsed, this variable is not modified).

Definition at line 134 of file command-line.h.

References ns3::CommandLine::Item::m_help, m_items, ns3::CommandLine::Item::m_name, and ns3::CommandLine::UserItem< T >::m_valuePtr.

Referenced by AodvExample::Configure(), MeshTest::Configure(), ns3::CommandLineBooleanTestCase::DoRun(), ns3::CommandLineIntTestCase::DoRun(), ns3::CommandLineUnsignedIntTestCase::DoRun(), ns3::CommandLineStringTestCase::DoRun(), main(), PrintPsr(), PrintPsrVsCollisionInterval(), PrintPsrVsDistance(), and PrintSizeVsRange().

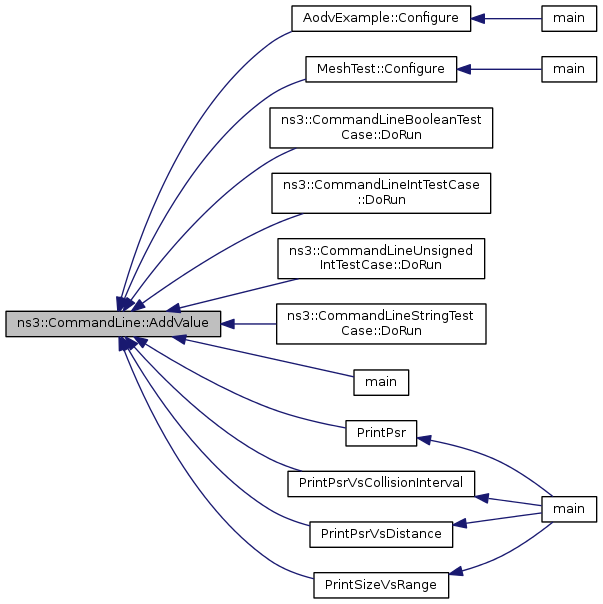

Here is the caller graph for this function:

void ns3::CommandLine::AddValue	(	const std::string &	name,
		const std::string &	help,
		Callback< bool, std::string >	callback
	)

Parameters

name	the name of the user-supplied argument
help	some help text used by –PrintHelp
callback	a callback function that will be invoked to parse and collect the value. This normally used by language bindings.

Definition at line 297 of file command-line.cc.

References ns3::CommandLine::CallbackItem::m_callback, ns3::CommandLine::Item::m_help, m_items, ns3::CommandLine::Item::m_name, and NS_LOG_FUNCTION.

void ns3::CommandLine::Clear ( void )

private

Definition at line 61 of file command-line.cc.

References m_items.

Referenced by operator=(), and ~CommandLine().

Here is the caller graph for this function:

void ns3::CommandLine::Copy ( const CommandLine & cmd )

private

Definition at line 52 of file command-line.cc.

References m_items.

Referenced by CommandLine(), and operator=().

Here is the caller graph for this function:

void ns3::CommandLine::HandleArgument	(	std::string	name,
		std::string	value
	)		const

private

Definition at line 223 of file command-line.cc.

References m_items, NS_LOG_DEBUG, PrintAttributes(), PrintGlobals(), PrintGroup(), PrintGroups(), PrintHelp(), PrintTypeIds(), ns3::Config::SetDefaultFailSafe(), and ns3::Config::SetGlobalFailSafe().

Referenced by Parse().

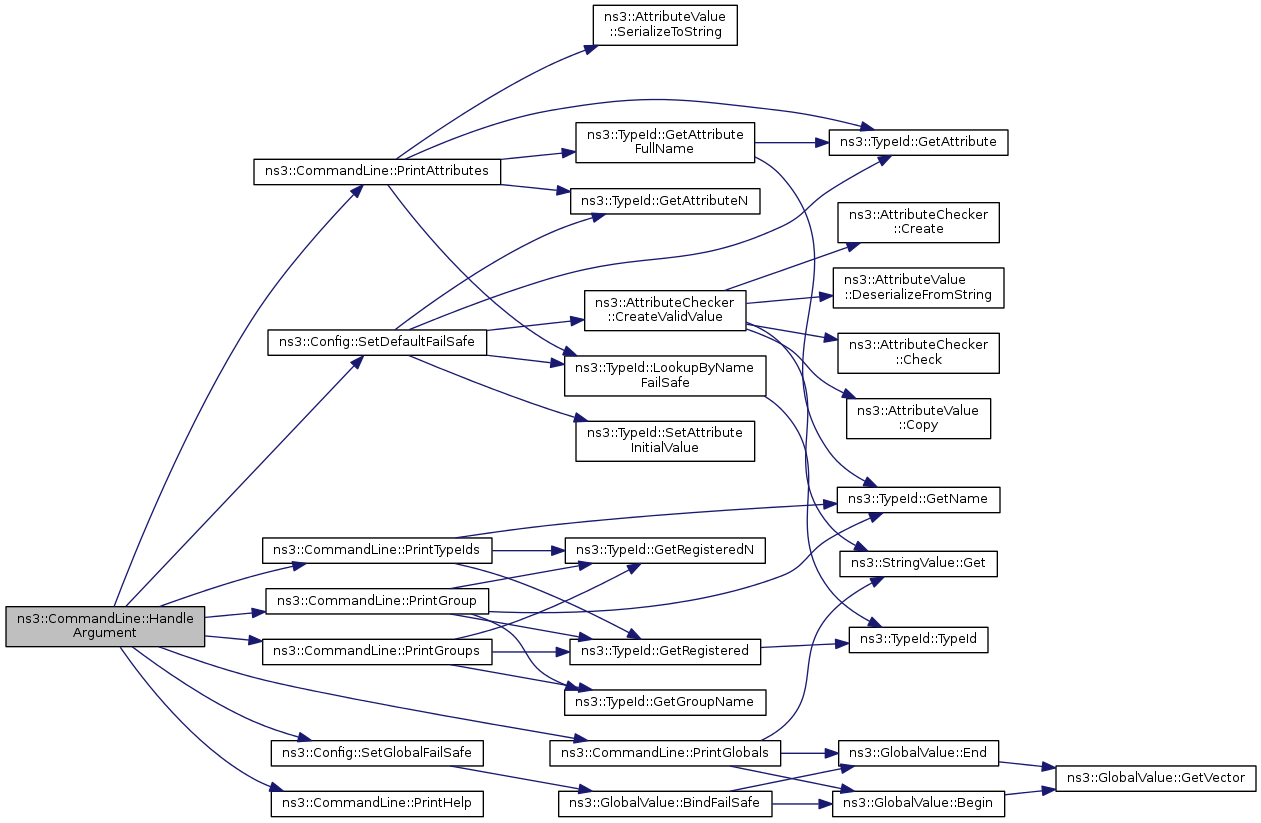

Here is the call graph for this function:

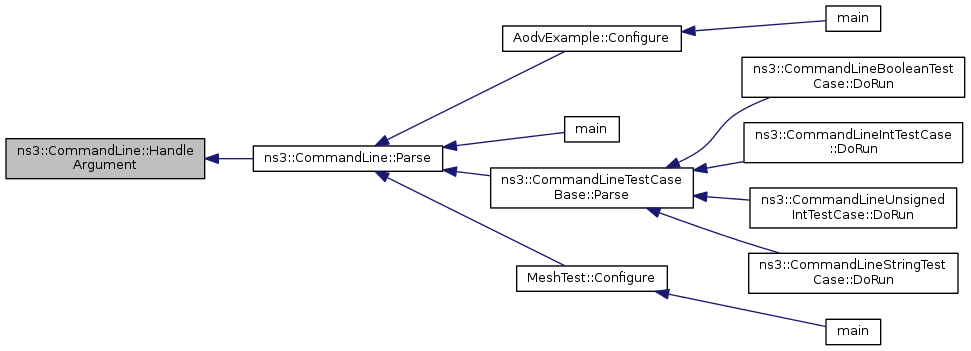

Here is the caller graph for this function:

CommandLine & ns3::CommandLine::operator= ( const CommandLine & cmd )

Definition at line 41 of file command-line.cc.

References Clear(), and Copy().

Here is the call graph for this function:

void ns3::CommandLine::Parse	(	int	argc,
		char *	argv[]
	)		const

Parameters

argc	the 'argc' variable: number of arguments (including the main program name as first element).
argv	the 'argv' variable: a null-terminated array of strings, each of which identifies a command-line argument.

Obviously, this method will parse the input command-line arguments and will attempt to handle them all.

Definition at line 75 of file command-line.cc.

References HandleArgument().

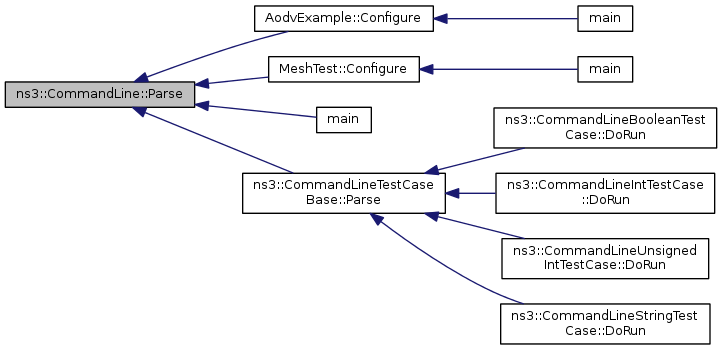

Referenced by AodvExample::Configure(), MeshTest::Configure(), main(), and ns3::CommandLineTestCaseBase::Parse().

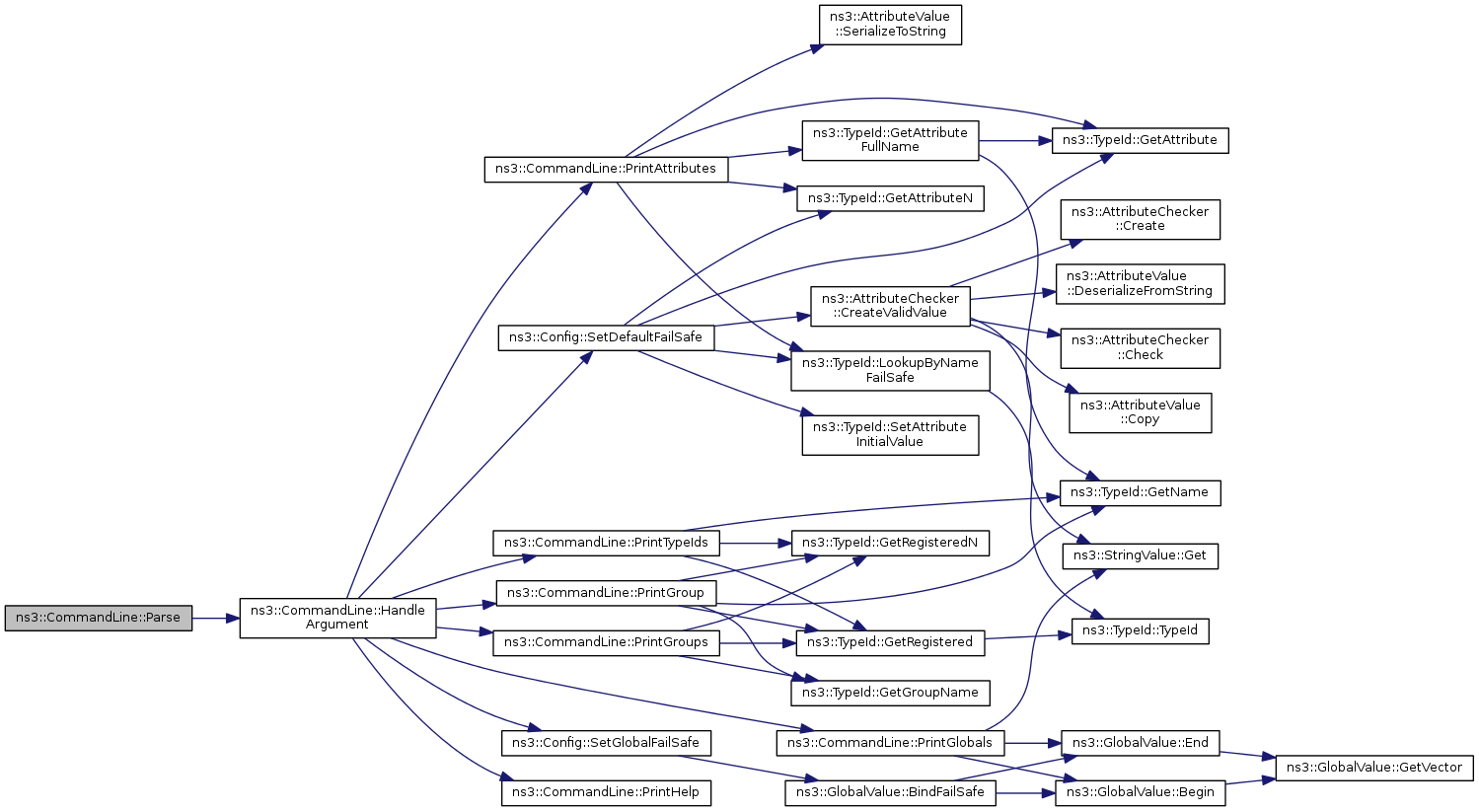

Here is the call graph for this function:
