hold a so-called 'global value'. More...

#include <global-value.h>

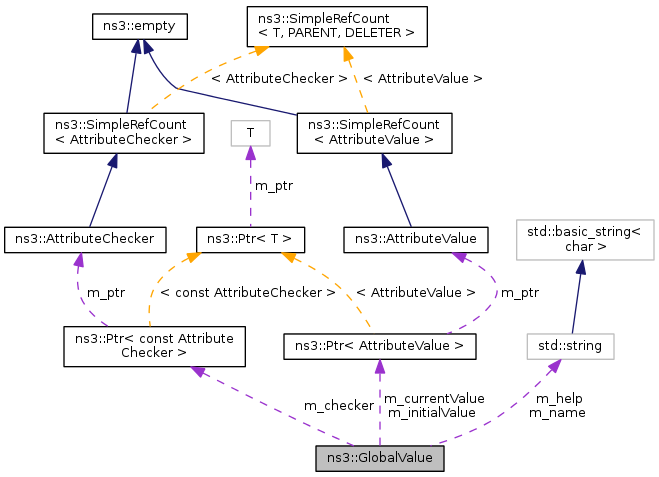

Collaboration diagram for ns3::GlobalValue:

Public Types
typedef Vector::const_iterator	Iterator

Public Member Functions
	GlobalValue (std::string name, std::string help, const AttributeValue &initialValue, Ptr< const AttributeChecker > checker)
Ptr< const AttributeChecker >	GetChecker (void) const
std::string	GetHelp (void) const
std::string	GetName (void) const
void	GetValue (AttributeValue &value) const
void	ResetInitialValue (void)
bool	SetValue (const AttributeValue &value)

Static Public Member Functions
static Iterator	Begin (void)
static void	Bind (std::string name, const AttributeValue &value)
static bool	BindFailSafe (std::string name, const AttributeValue &value)
static Iterator	End (void)
static void	GetValueByName (std::string name, AttributeValue &value)
static bool	GetValueByNameFailSafe (std::string name, AttributeValue &value)

Private Types
typedef std::vector < GlobalValue * >	Vector

Private Member Functions
void	InitializeFromEnv (void)

Static Private Member Functions
static Vector *	GetVector (void)

Private Attributes
Ptr< const AttributeChecker >	m_checker
Ptr< AttributeValue >	m_currentValue
std::string	m_help
Ptr< AttributeValue >	m_initialValue
std::string	m_name

Friends
class	GlobalValueTestCase

Detailed Description

hold a so-called 'global value'.

Instances of this class are expected to be allocated as static global variables and should be used to store configurable global state. GlobalValues can be set directly by calling ns3::GlobalValue::SetValue but they can also be set through the NS_GLOBAL_VALUE environment variable. For example, NS_GLOBAL_VALUE='Name=Value;OtherName=OtherValue;' would set global values Name and OtherName to Value and OtherValue respectively.

Users of the ns3::CommandLine class also get the ability to set global values through commandline arguments to their program: –Name=Value will set global value Name to Value.

Definition at line 47 of file global-value.h.

Member Typedef Documentation

typedef Vector::const_iterator ns3::GlobalValue::Iterator

Definition at line 51 of file global-value.h.

typedef std::vector<GlobalValue *> ns3::GlobalValue::Vector

private

Definition at line 49 of file global-value.h.

Constructor & Destructor Documentation

ns3::GlobalValue::GlobalValue	(	std::string	name,
		std::string	help,
		const AttributeValue &	initialValue,
		Ptr< const AttributeChecker >	checker
	)

Parameters

name	the name of this global value.
help	some help text which describes the purpose of this global value.
initialValue	the value to assign to this global value during construction.
checker	a pointer to an AttributeChecker which can verify that any user-supplied value to override the initial value matches the requested type constraints.

Definition at line 33 of file global-value.cc.

References ns3::AttributeChecker::CreateValidValue(), GetVector(), InitializeFromEnv(), m_checker, m_currentValue, m_initialValue, and NS_FATAL_ERROR.

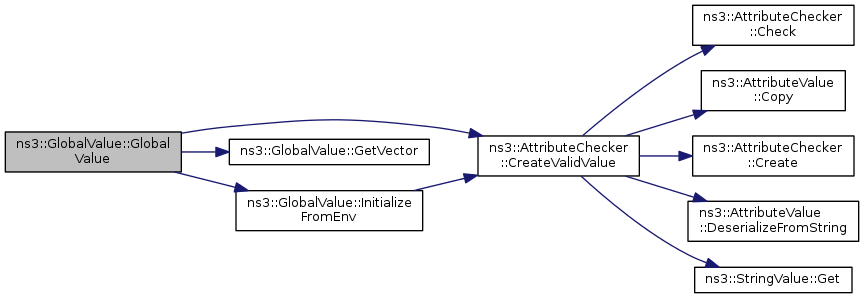

Here is the call graph for this function:

Member Function Documentation

GlobalValue::Iterator ns3::GlobalValue::Begin ( void )

static

Returns: an iterator which represents a pointer to the first GlobalValue registered.

Definition at line 165 of file global-value.cc.

References GetVector().

Referenced by Bind(), BindFailSafe(), GetValueByNameFailSafe(), ns3::RawTextConfigSave::Global(), ns3::XmlConfigSave::Global(), main(), ns3::CommandLine::PrintGlobals(), and ns3::Config::Reset().

Here is the call graph for this function:

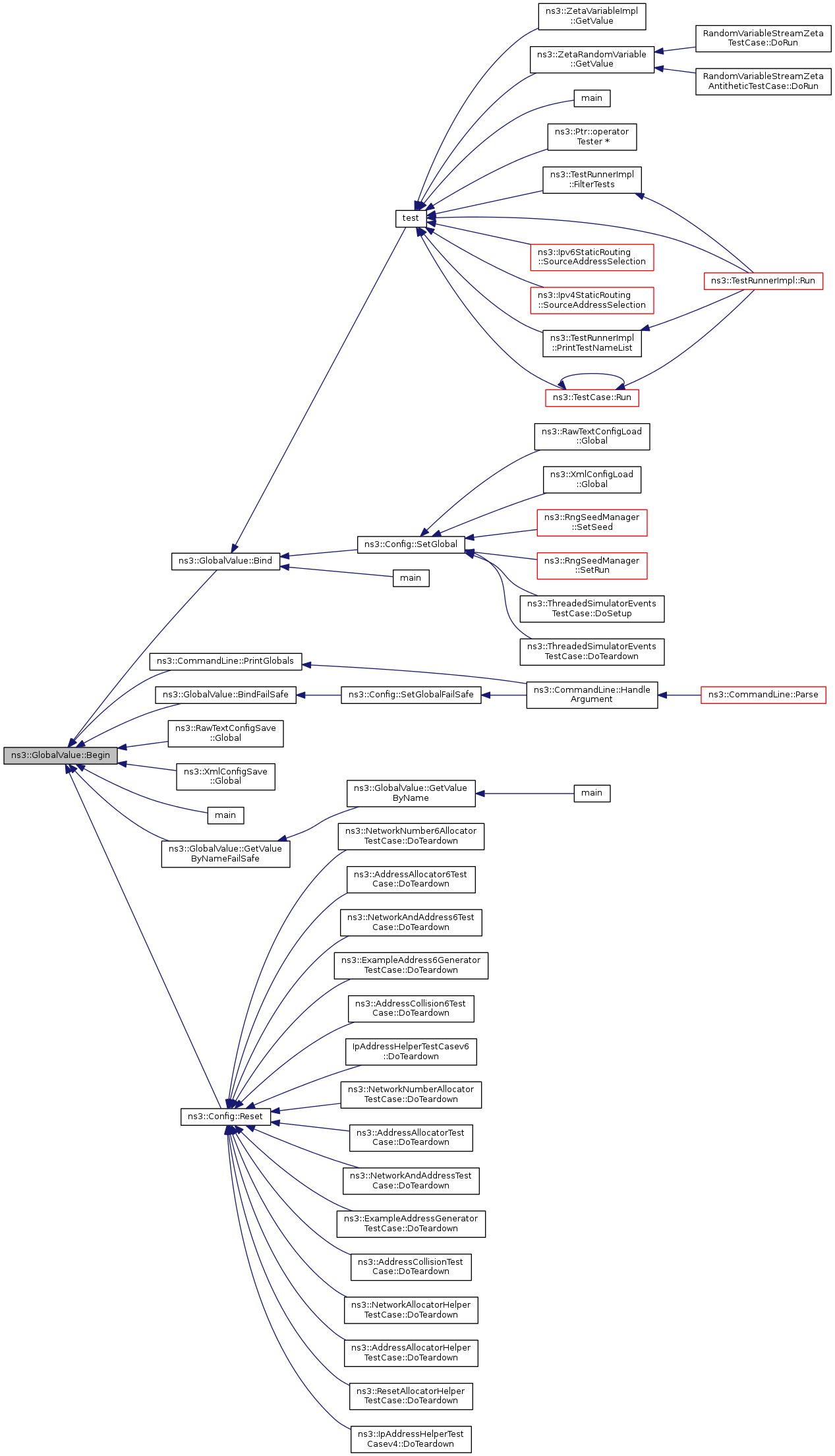

Here is the caller graph for this function:

void ns3::GlobalValue::Bind	(	std::string	name,
		const AttributeValue &	value
	)

static

Parameters

name	the name of the global value
value	the value to set in the requested global value.

Iterate over the set of GlobalValues until a matching name is found and then set its value with GlobalValue::SetValue.

This method cannot fail. It will crash if the input is not valid.

Definition at line 137 of file global-value.cc.

References Begin(), End(), and NS_FATAL_ERROR.

Referenced by main(), ns3::Config::SetGlobal(), and test().

Here is the call graph for this function:

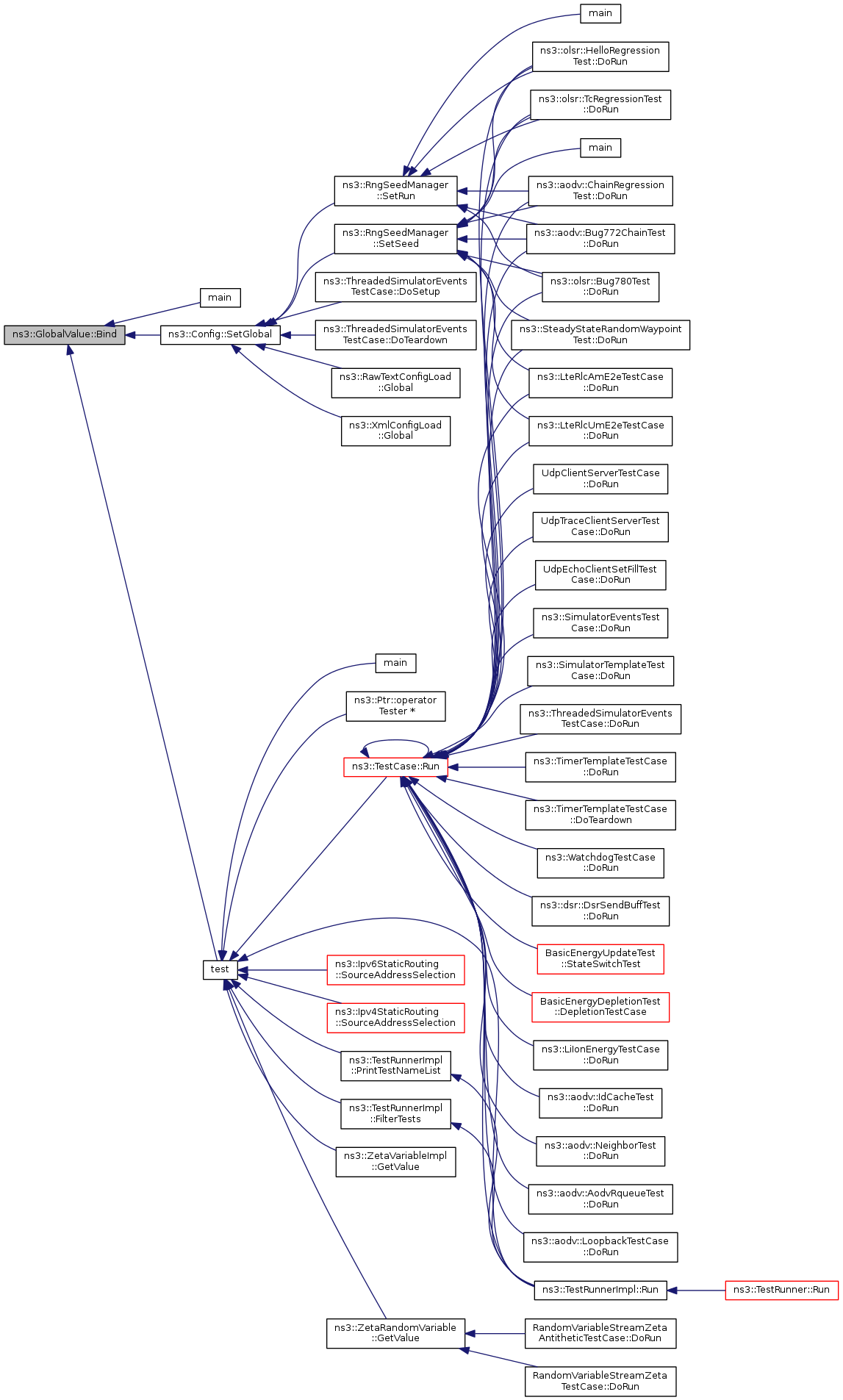

Here is the caller graph for this function:

bool ns3::GlobalValue::BindFailSafe	(	std::string	name,
		const AttributeValue &	value
	)

static

Parameters

name	the name of the global value
value	the value to set in the requested global value.

Returns: true if the value could be set successfully, false otherwise.

Iterate over the set of GlobalValues until a matching name is found and then set its value with GlobalValue::SetValue.

Definition at line 153 of file global-value.cc.

References Begin(), and End().

Referenced by ns3::Config::SetGlobalFailSafe().

Here is the call graph for this function:

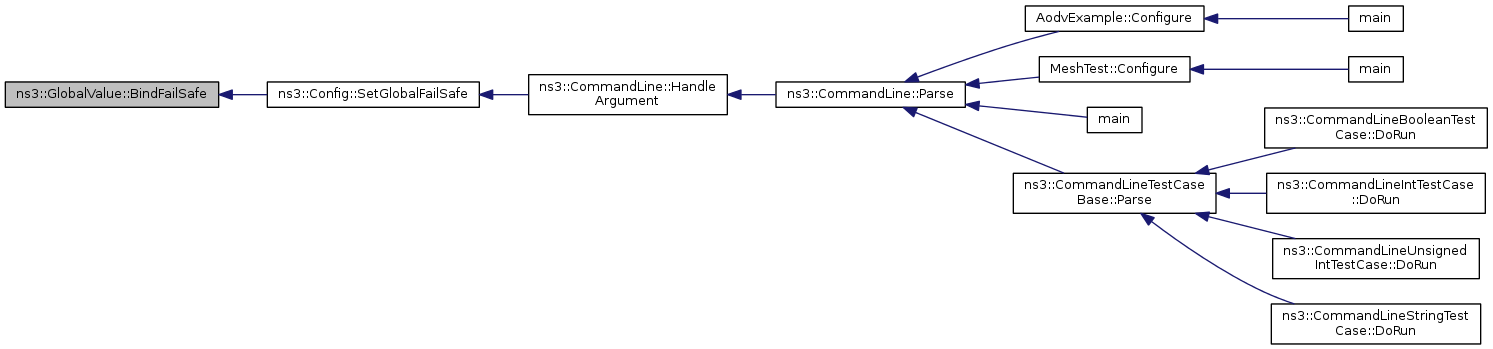

Here is the caller graph for this function:

GlobalValue::Iterator ns3::GlobalValue::End ( void )

static

Returns: an iterator which represents a pointer to the last GlobalValue registered.

Definition at line 170 of file global-value.cc.

References GetVector().

Referenced by Bind(), BindFailSafe(), GetValueByNameFailSafe(), ns3::RawTextConfigSave::Global(), ns3::XmlConfigSave::Global(), main(), ns3::CommandLine::PrintGlobals(), and ns3::Config::Reset().

Here is the call graph for this function:

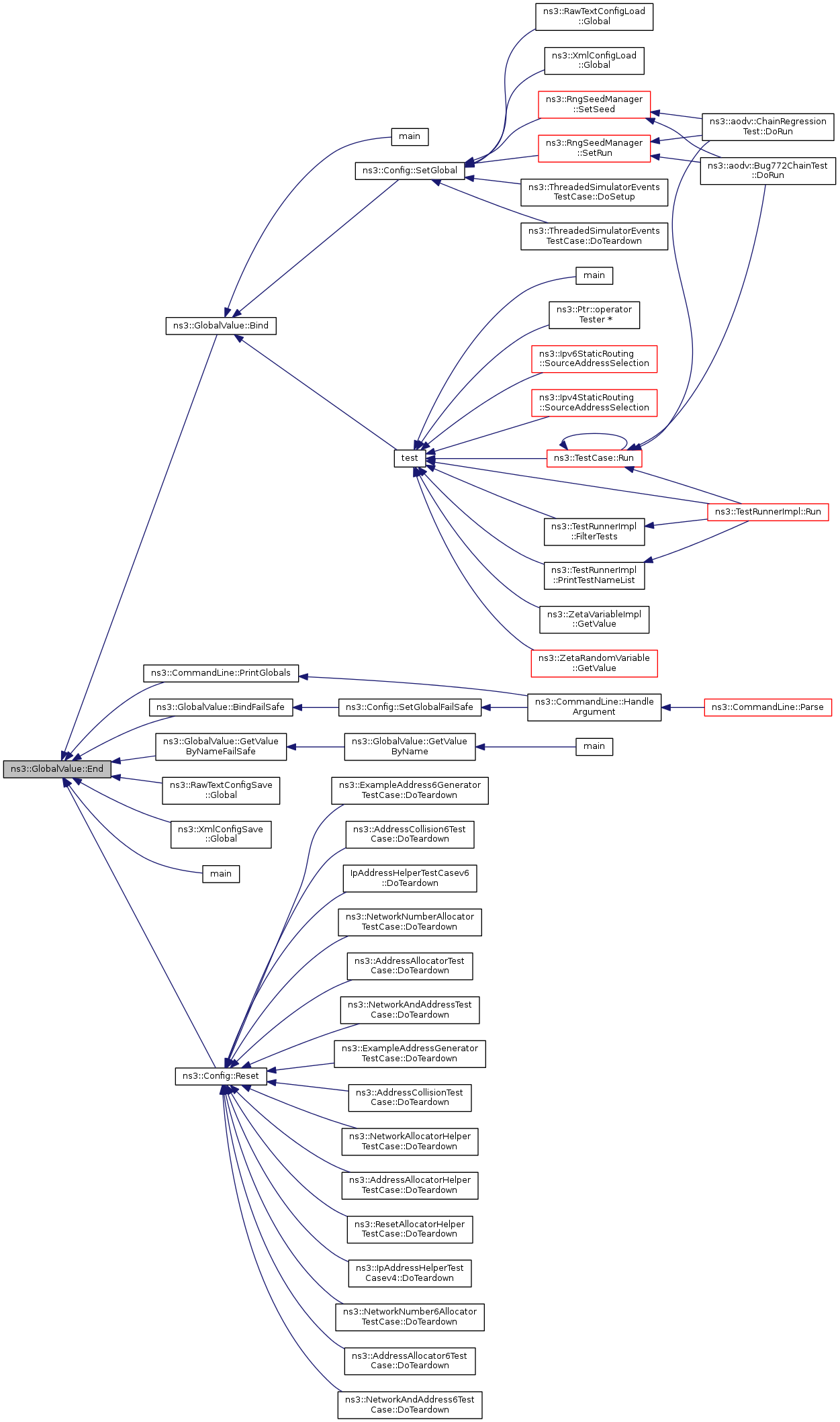

Here is the caller graph for this function:

Ptr< const AttributeChecker > ns3::GlobalValue::GetChecker ( void ) const

Returns: the checker associated to this GlobalValue.

Definition at line 119 of file global-value.cc.

References m_checker.

std::string ns3::GlobalValue::GetHelp ( void ) const

Returns: the help text of this GlobalValue.

Definition at line 99 of file global-value.cc.

References m_help.

std::string ns3::GlobalValue::GetName ( void ) const

Returns: the name of this GlobalValue.

Definition at line 94 of file global-value.cc.

References m_name.

void ns3::GlobalValue::GetValue ( AttributeValue & value ) const

Returns: the current value of this GlobalValue.

Definition at line 104 of file global-value.cc.

References ns3::AttributeChecker::Copy(), m_checker, m_currentValue, m_name, NS_FATAL_ERROR, ns3::AttributeValue::SerializeToString(), and ns3::StringValue::Set().

Referenced by ns3::Node::ChecksumEnabled(), ns3::GlobalValueTestCase::DoRun(), ns3::GetImpl(), ns3::RngSeedManager::GetRun(), ns3::RngSeedManager::GetSeed(), and ns3::Simulator::SetImplementation().

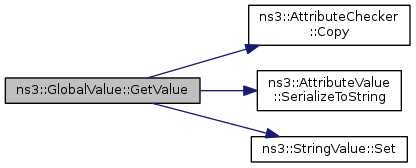

Here is the call graph for this function:

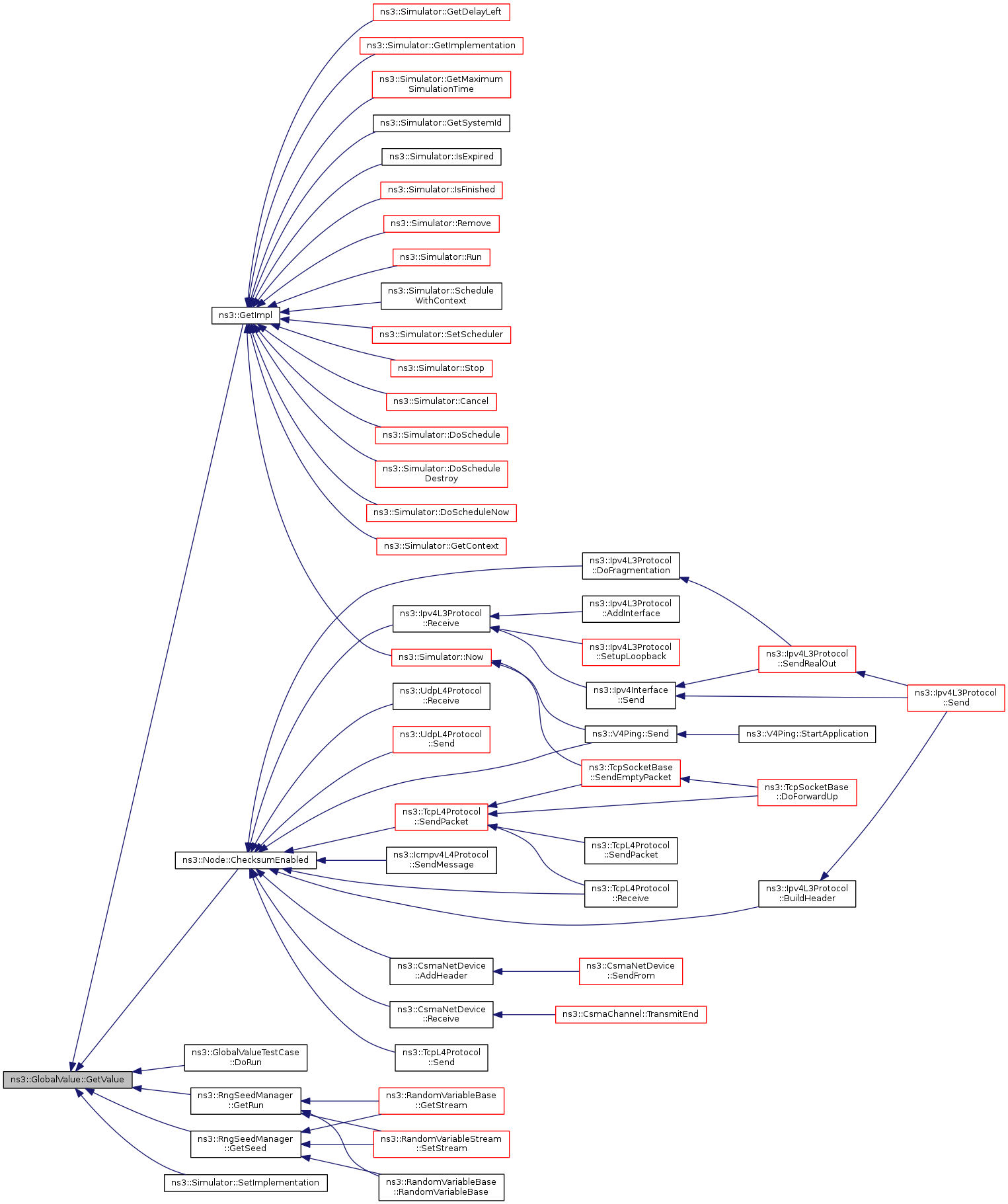

Here is the caller graph for this function:

void ns3::GlobalValue::GetValueByName	(	std::string	name,
		AttributeValue &	value
	)

static

finds the GlobalValue with the given name and returns its value. This method cannot fail, i.e., it will trigger a NS_FATAL_ERROR if the requested GlobalValue is not found.

Parameters
