ns3::FlowClassifier Class Reference

#include <flow-classifier.h>

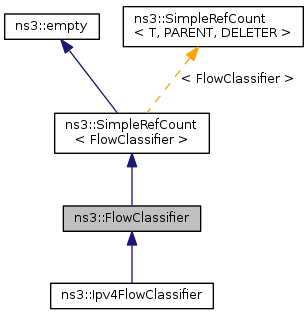

Inheritance diagram for ns3::FlowClassifier:

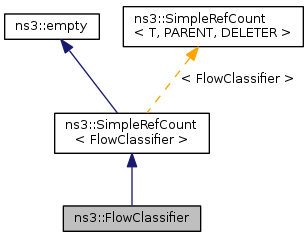

Collaboration diagram for ns3::FlowClassifier:

Public Member Functions
	FlowClassifier ()
virtual	~FlowClassifier ()
virtual void	SerializeToXmlStream (std::ostream &os, int indent) const =0
Public Member Functions inherited from ns3::SimpleRefCount< FlowClassifier >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Protected Member Functions
FlowId	GetNewFlowId ()

Private Member Functions
	FlowClassifier (FlowClassifier const &)
FlowClassifier &	operator= (FlowClassifier const &)

Private Attributes
FlowId	m_lastNewFlowId

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< FlowClassifier >
static void	Cleanup (void)

Detailed Description

provides a method to translate raw packet data into abstract flow identifier'' andpacket identifier'' parameters. These identifiers are unsigned 32-bit integers that uniquely identify a flow and a packet within that flow, respectively, for the whole simulation, regardless of the point in which the packet was captured. These abstract identifiers are used in the communication between FlowProbe and FlowMonitor, and all collected statistics reference only those abstract identifiers in order to keep the core architecture generic and not tied down to any particular flow capture method or classification system.

Definition at line 42 of file flow-classifier.h.

Constructor & Destructor Documentation

ns3::FlowClassifier::FlowClassifier ( FlowClassifier const &  )

private

ns3::FlowClassifier::FlowClassifier

(

)

Definition at line 25 of file flow-classifier.cc.

ns3::FlowClassifier::~FlowClassifier ( )

virtual

Definition at line 31 of file flow-classifier.cc.

Member Function Documentation

FlowId ns3::FlowClassifier::GetNewFlowId ( )

protected

Definition at line 36 of file flow-classifier.cc.

References m_lastNewFlowId.

Referenced by ns3::Ipv4FlowClassifier::Classify().

Here is the caller graph for this function:

FlowClassifier& ns3::FlowClassifier::operator= ( FlowClassifier const &  )

private

virtual void ns3::FlowClassifier::SerializeToXmlStream ( std::ostream &  os, int  indent  ) const

pure virtual

Implemented in ns3::Ipv4FlowClassifier.

Referenced by ns3::FlowMonitor::SerializeToXmlStream().

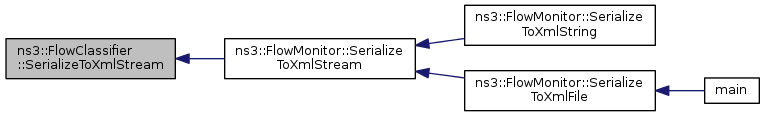

Here is the caller graph for this function:

Member Data Documentation

FlowId ns3::FlowClassifier::m_lastNewFlowId

private

Definition at line 45 of file flow-classifier.h.

Referenced by GetNewFlowId().

---

The documentation for this class was generated from the following files:

• src/flow-monitor/model/flow-classifier.h
• src/flow-monitor/model/flow-classifier.cc
