ns3::Ipv4FlowClassifier Class Reference

#include <ipv4-flow-classifier.h>

Inheritance diagram for ns3::Ipv4FlowClassifier:

Collaboration diagram for ns3::Ipv4FlowClassifier:

Classes
struct	FiveTuple

Public Member Functions
	Ipv4FlowClassifier ()
bool	Classify (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t *out_flowId, uint32_t *out_packetId)
	try to classify the packet into flow-id and packet-id
FiveTuple	FindFlow (FlowId flowId) const
	Searches for the FiveTuple corresponding to the given flowId.
virtual void	SerializeToXmlStream (std::ostream &os, int indent) const
Public Member Functions inherited from ns3::FlowClassifier
	FlowClassifier ()
virtual	~FlowClassifier ()
Public Member Functions inherited from ns3::SimpleRefCount< FlowClassifier >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
std::map< FiveTuple, FlowId >	m_flowMap

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< FlowClassifier >
static void	Cleanup (void)
Protected Member Functions inherited from ns3::FlowClassifier
FlowId	GetNewFlowId ()

Detailed Description

Classifies packets by looking at their IP and TCP/UDP headers. From these packet headers, a tuple (source-ip, destination-ip, protocol, source-port, destination-port) is created, and a unique flow identifier is assigned for each different tuple combination

Definition at line 38 of file ipv4-flow-classifier.h.

Constructor & Destructor Documentation

ns3::Ipv4FlowClassifier::Ipv4FlowClassifier

(

)

Definition at line 98 of file ipv4-flow-classifier.cc.

Member Function Documentation

bool ns3::Ipv4FlowClassifier::Classify	(	const Ipv4Header &	ipHeader,
		Ptr< const Packet >	ipPayload,
		uint32_t *	out_flowId,
		uint32_t *	out_packetId
	)

try to classify the packet into flow-id and packet-id

Returns

true if the packet was classified, false if not (i.e. it does not appear to be part of a flow).

Definition at line 103 of file ipv4-flow-classifier.cc.

References ns3::Ipv4FlowClassifier::FiveTuple::destinationAddress, ns3::Ipv4FlowClassifier::FiveTuple::destinationPort, ns3::Ipv4Address::GetBroadcast(), ns3::Ipv4Header::GetDestination(), ns3::UdpHeader::GetDestinationPort(), ns3::TcpHeader::GetDestinationPort(), ns3::Ipv4Header::GetIdentification(), ns3::FlowClassifier::GetNewFlowId(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::UdpHeader::GetSourcePort(), ns3::TcpHeader::GetSourcePort(), m_flowMap, ns3::Packet::PeekHeader(), ns3::Ipv4FlowClassifier::FiveTuple::protocol, ns3::Ipv4FlowClassifier::FiveTuple::sourceAddress, ns3::Ipv4FlowClassifier::FiveTuple::sourcePort, ns3::TCP_PROT_NUMBER, and ns3::UDP_PROT_NUMBER.

Referenced by ns3::Ipv4FlowProbe::DropLogger(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), and ns3::Ipv4FlowProbe::SendOutgoingLogger().

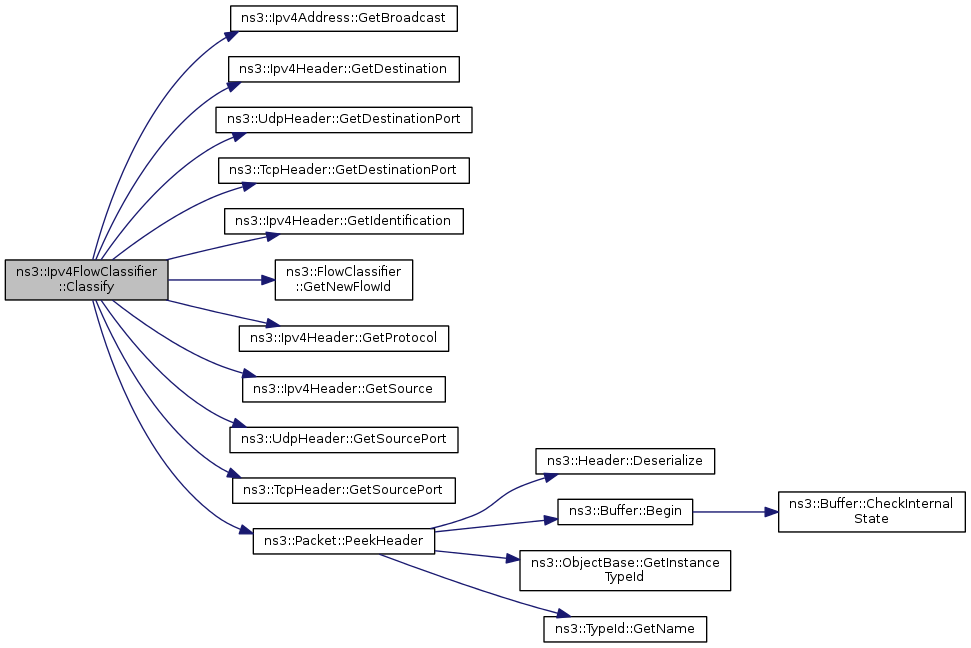

Here is the call graph for this function:

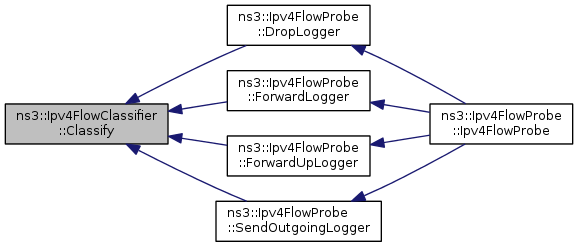

Here is the caller graph for this function:

Ipv4FlowClassifier::FiveTuple ns3::Ipv4FlowClassifier::FindFlow

(

FlowId

flowId

)

const

Searches for the FiveTuple corresponding to the given flowId.

Definition at line 159 of file ipv4-flow-classifier.cc.

References ns3::Ipv4Address::GetZero(), m_flowMap, and NS_FATAL_ERROR.

Here is the call graph for this function:

void ns3::Ipv4FlowClassifier::SerializeToXmlStream ( std::ostream &  os, int  indent  ) const

virtual

Implements ns3::FlowClassifier.

Definition at line 175 of file ipv4-flow-classifier.cc.

References INDENT, and m_flowMap.

Member Data Documentation

std::map<FiveTuple, FlowId> ns3::Ipv4FlowClassifier::m_flowMap

private

Definition at line 66 of file ipv4-flow-classifier.h.

Referenced by Classify(), FindFlow(), and SerializeToXmlStream().

---

The documentation for this class was generated from the following files:

• src/flow-monitor/model/ipv4-flow-classifier.h
• src/flow-monitor/model/ipv4-flow-classifier.cc
