ns3::IpcsClassifier Class Reference

#include <ipcs-classifier.h>

Inheritance diagram for ns3::IpcsClassifier:

Collaboration diagram for ns3::IpcsClassifier:

Public Member Functions
	IpcsClassifier (void)
	~IpcsClassifier (void)
ServiceFlow *	Classify (Ptr< const Packet > packet, Ptr< ServiceFlowManager > sfm, ServiceFlow::Direction dir)
	classify a packet in a service flow
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::IpcsClassifier.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 37 of file ipcs-classifier.h.

Constructor & Destructor Documentation

ns3::IpcsClassifier::IpcsClassifier

(

void

)

Definition at line 47 of file ipcs-classifier.cc.

ns3::IpcsClassifier::~IpcsClassifier

(

void

)

Definition at line 51 of file ipcs-classifier.cc.

Member Function Documentation

ServiceFlow * ns3::IpcsClassifier::Classify	(	Ptr< const Packet >	packet,
		Ptr< ServiceFlowManager >	sfm,
		ServiceFlow::Direction	dir
	)

classify a packet in a service flow

Parameters

packet	the packet to classify
sfm	the service flow manager to be used to classify packets
dir	The direction on wich the packet should be sent (UP or DOWN)

Returns

The service flow that should be used to send this packet

Definition at line 56 of file ipcs-classifier.cc.

References ns3::Packet::Copy(), ns3::Ipv4Header::GetDestination(), ns3::UdpHeader::GetDestinationPort(), ns3::TcpHeader::GetDestinationPort(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::UdpHeader::GetSourcePort(), ns3::TcpHeader::GetSourcePort(), NS_LOG_INFO, ns3::UdpL4Protocol::PROT_NUMBER, ns3::TcpL4Protocol::PROT_NUMBER, and ns3::Packet::RemoveHeader().

Referenced by ns3::BaseStationNetDevice::DoSend(), and ns3::SubscriberStationNetDevice::DoSend().

Here is the call graph for this function:

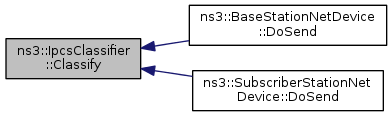

Here is the caller graph for this function:

TypeId ns3::IpcsClassifier::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::IpcsClassifier.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 40 of file ipcs-classifier.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/wimax/model/ipcs-classifier.h
• doc/introspected-doxygen.h
• src/wimax/model/ipcs-classifier.cc
