ns3::Ipv4EndPoint Class Reference

A representation of an internet endpoint/connection. More...

#include <ipv4-end-point.h>

Collaboration diagram for ns3::Ipv4EndPoint:

Public Member Functions
	Ipv4EndPoint (Ipv4Address address, uint16_t port)
	~Ipv4EndPoint ()
void	BindToNetDevice (Ptr< NetDevice > netdevice)
void	ForwardIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)
void	ForwardUp (Ptr< Packet > p, const Ipv4Header &header, uint16_t sport, Ptr< Ipv4Interface > incomingInterface)
Ptr< NetDevice >	GetBoundNetDevice (void)
Ipv4Address	GetLocalAddress (void)
uint16_t	GetLocalPort (void)
Ipv4Address	GetPeerAddress (void)
uint16_t	GetPeerPort (void)
void	SetDestroyCallback (Callback< void > callback)
void	SetIcmpCallback (Callback< void, Ipv4Address, uint8_t, uint8_t, uint8_t, uint32_t > callback)
void	SetLocalAddress (Ipv4Address address)
void	SetPeer (Ipv4Address address, uint16_t port)
void	SetRxCallback (Callback< void, Ptr< Packet >, Ipv4Header, uint16_t, Ptr< Ipv4Interface > > callback)

Private Member Functions
void	DoForwardIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)
void	DoForwardUp (Ptr< Packet > p, const Ipv4Header &header, uint16_t sport, Ptr< Ipv4Interface > incomingInterface)

Private Attributes
Ptr< NetDevice >	m_boundnetdevice
Callback< void >	m_destroyCallback
Callback< void, Ipv4Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback
Ipv4Address	m_localAddr
uint16_t	m_localPort
Ipv4Address	m_peerAddr
uint16_t	m_peerPort
Callback< void, Ptr< Packet > , Ipv4Header, uint16_t, Ptr < Ipv4Interface > >	m_rxCallback

Detailed Description

A representation of an internet endpoint/connection.

This class provides an internet four-tuple (source and destination ports and addresses). These are used in the ns3::Ipv4EndPointDemux as targets of lookups. The class also has a callback for notification to higher layers that a packet from a lower layer was received. In the ns3 internet-stack, these notifications are automatically registered to be received by the corresponding socket.

Definition at line 47 of file ipv4-end-point.h.

Constructor & Destructor Documentation

ns3::Ipv4EndPoint::Ipv4EndPoint	(	Ipv4Address	address,
		uint16_t	port
	)

Definition at line 30 of file ipv4-end-point.cc.

ns3::Ipv4EndPoint::~Ipv4EndPoint

(

)

Definition at line 37 of file ipv4-end-point.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_destroyCallback, m_icmpCallback, m_rxCallback, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

Member Function Documentation

void ns3::Ipv4EndPoint::BindToNetDevice

(

Ptr< NetDevice >

netdevice

)

Definition at line 83 of file ipv4-end-point.cc.

References m_boundnetdevice.

Referenced by ns3::UdpSocketImpl::BindToNetDevice(), and ns3::TcpSocketBase::BindToNetDevice().

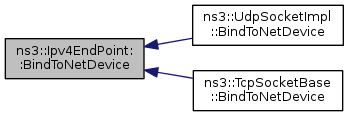

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::DoForwardIcmp ( Ipv4Address  icmpSource, uint8_t  icmpTtl, uint8_t  icmpType, uint8_t  icmpCode, uint32_t  icmpInfo  )

private

Definition at line 143 of file ipv4-end-point.cc.

References m_icmpCallback.

Referenced by ForwardIcmp().

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::DoForwardUp ( Ptr< Packet >  p, const Ipv4Header &  header, uint16_t  sport, Ptr< Ipv4Interface >  incomingInterface  )

private

Definition at line 123 of file ipv4-end-point.cc.

References m_rxCallback.

Referenced by ForwardUp().

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::ForwardIcmp	(	Ipv4Address	icmpSource,
		uint8_t	icmpTtl,
		uint8_t	icmpType,
		uint8_t	icmpCode,
		uint32_t	icmpInfo
	)

Definition at line 130 of file ipv4-end-point.cc.

References DoForwardIcmp(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_icmpCallback, NS_LOG_FUNCTION, and ns3::Simulator::ScheduleNow().

Referenced by ns3::UdpL4Protocol::ReceiveIcmp().

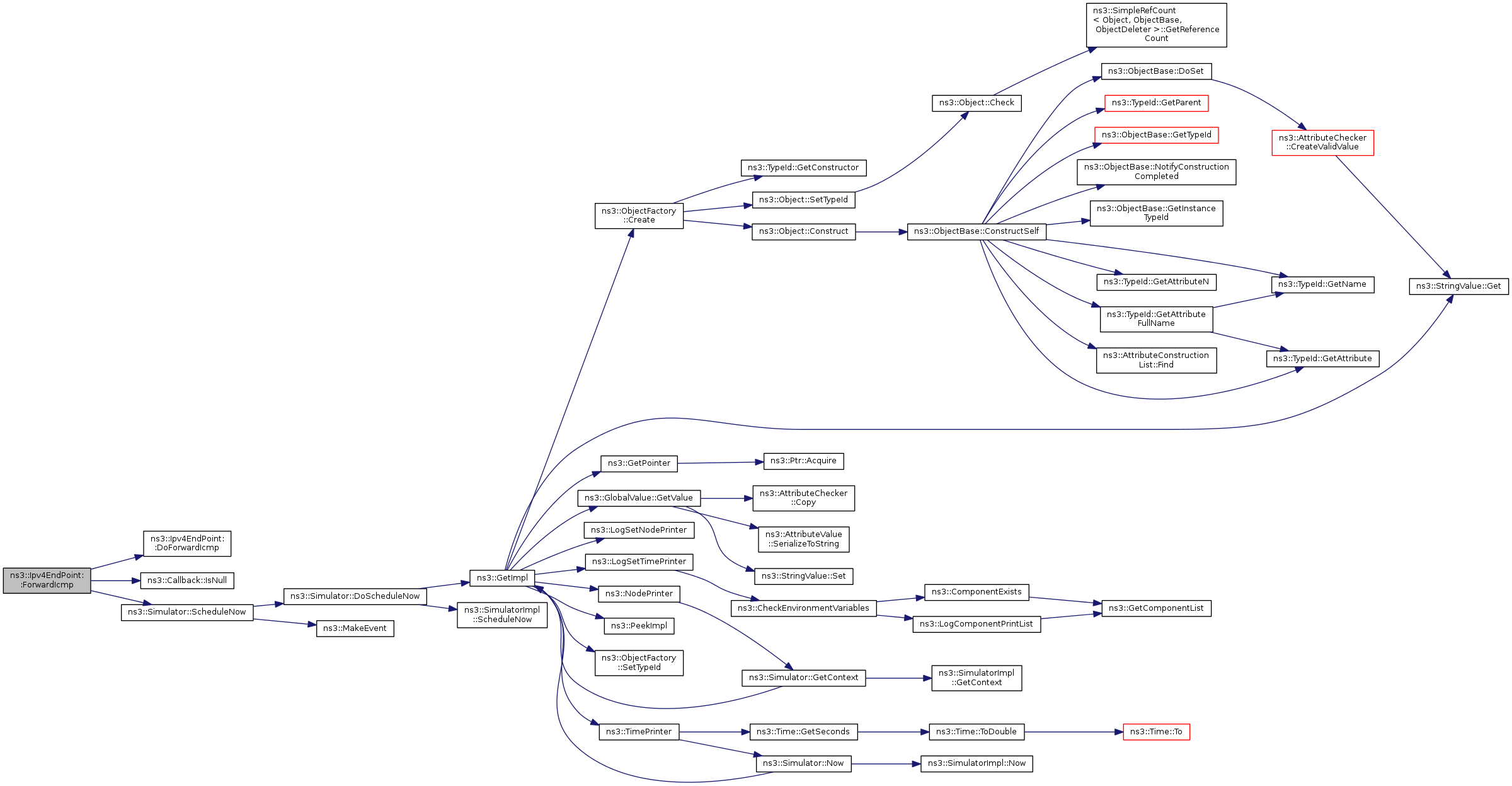

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::ForwardUp	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		uint16_t	sport,
		Ptr< Ipv4Interface >	incomingInterface
	)

Definition at line 113 of file ipv4-end-point.cc.

References DoForwardUp(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_rxCallback, and ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

Ptr< NetDevice > ns3::Ipv4EndPoint::GetBoundNetDevice

(

void

)

Definition at line 90 of file ipv4-end-point.cc.

References m_boundnetdevice.

Referenced by ns3::Ipv4EndPointDemux::Lookup().

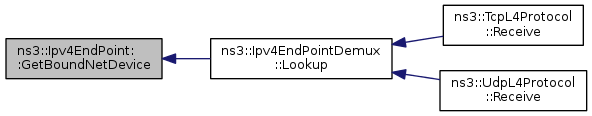

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4EndPoint::GetLocalAddress

(

void

)

Definition at line 49 of file ipv4-end-point.cc.

References m_localAddr.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::NscTcpSocketImpl::FinishBind(), ns3::UdpSocketImpl::GetSockName(), ns3::TcpSocketBase::GetSockName(), ns3::Ipv4EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

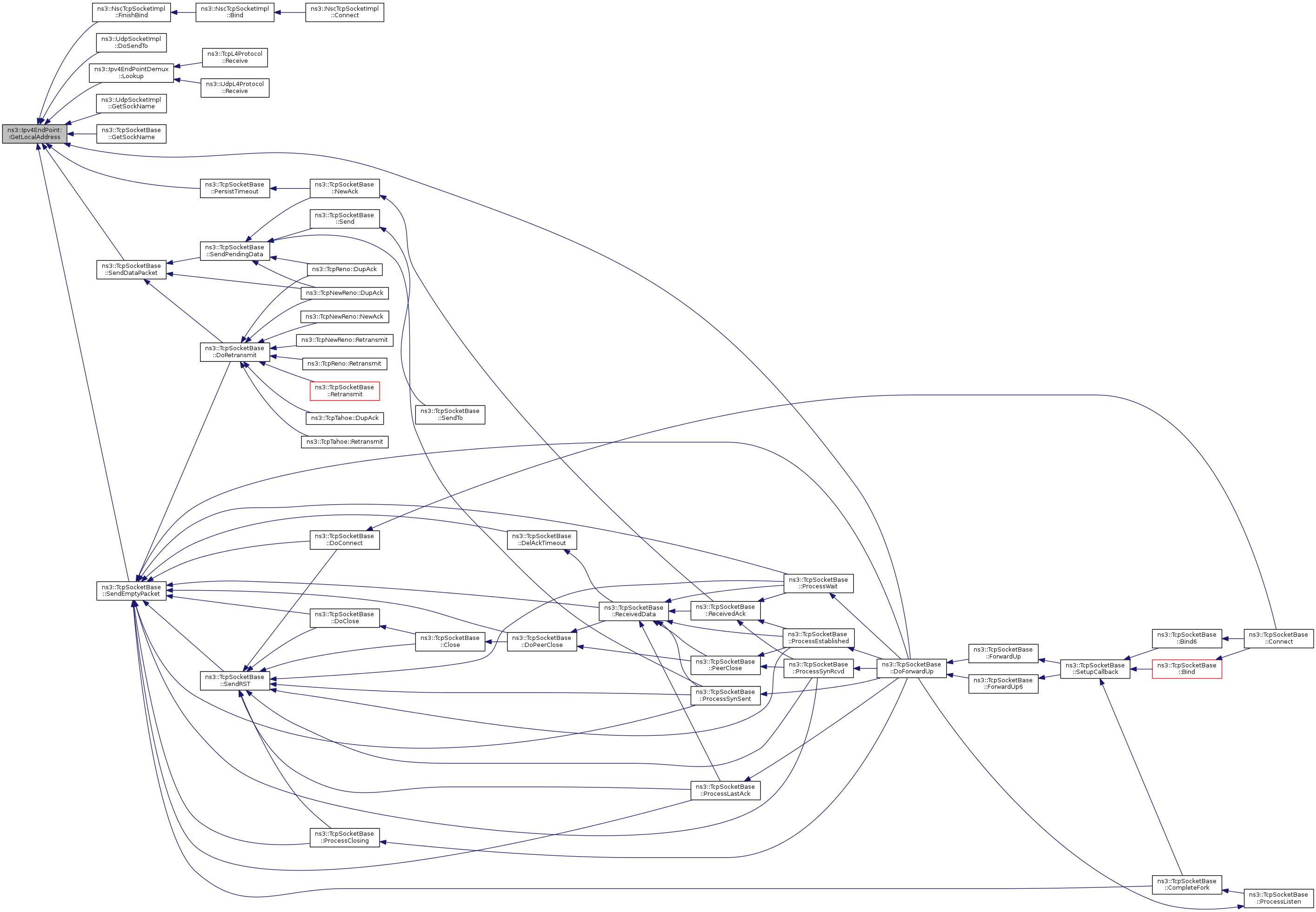

Here is the caller graph for this function:

uint16_t ns3::Ipv4EndPoint::GetLocalPort

(

void

)

Definition at line 61 of file ipv4-end-point.cc.

References m_localPort.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::NscTcpSocketImpl::FinishBind(), ns3::UdpSocketImpl::GetSockName(), ns3::TcpSocketBase::GetSockName(), ns3::Ipv4EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4EndPoint::GetPeerAddress

(

void

)

Definition at line 66 of file ipv4-end-point.cc.

References m_peerAddr.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::Ipv4EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::Recv(), ns3::TcpSocketBase::RecvFrom(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), and ns3::TcpSocketBase::SetupEndpoint().

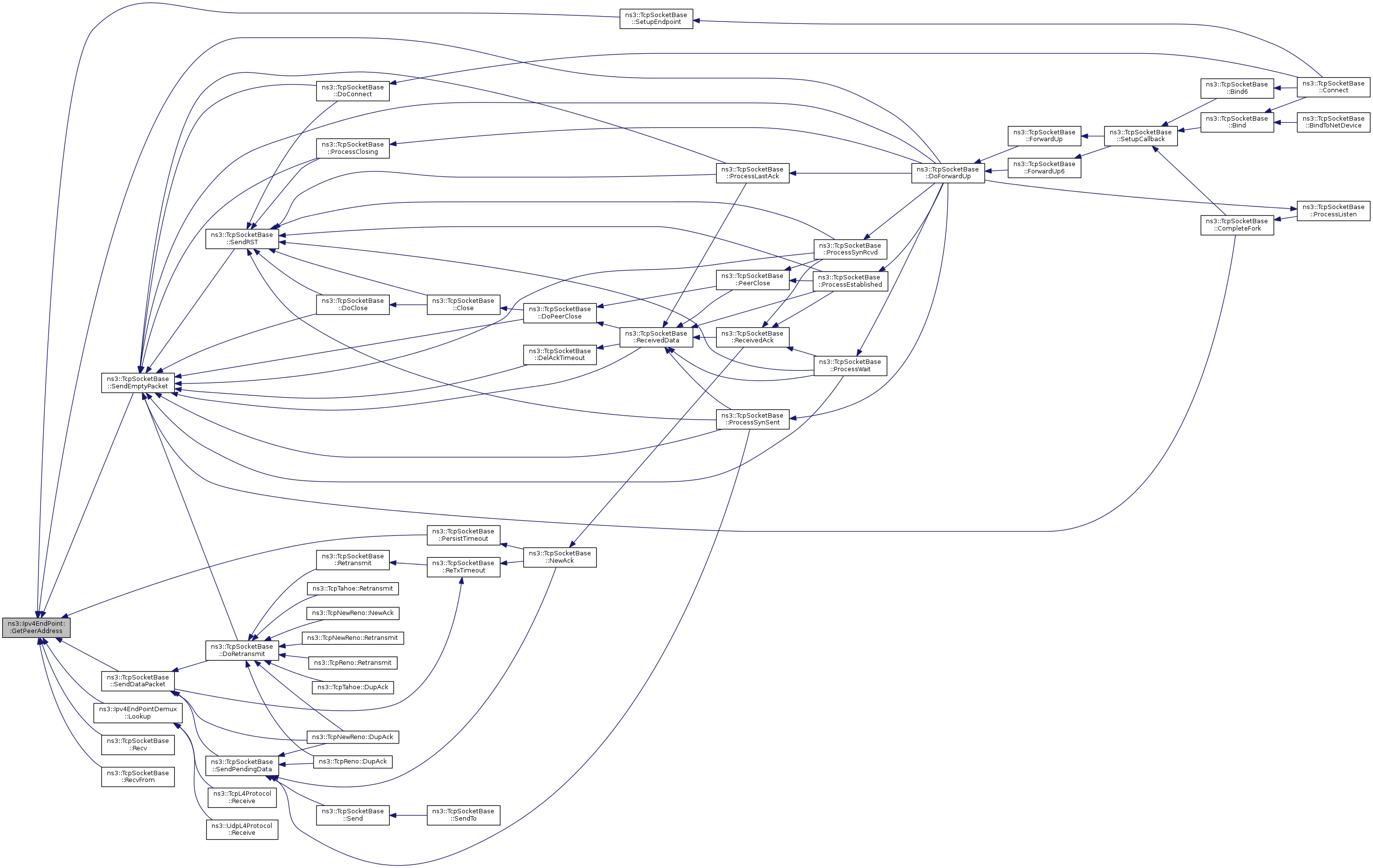

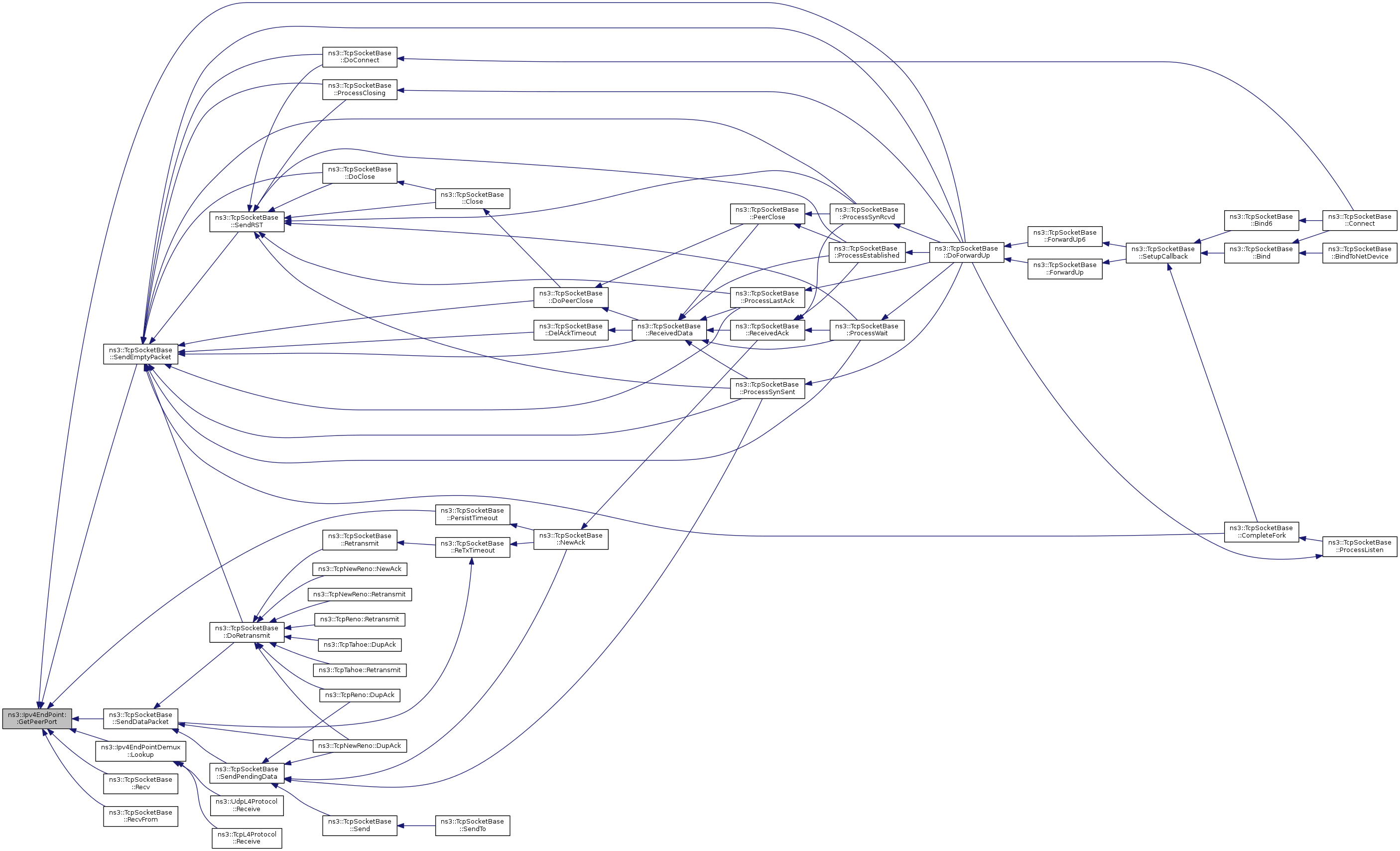

Here is the caller graph for this function:

uint16_t ns3::Ipv4EndPoint::GetPeerPort

(

void

)

Definition at line 71 of file ipv4-end-point.cc.

References m_peerPort.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::Ipv4EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::Recv(), ns3::TcpSocketBase::RecvFrom(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::SetDestroyCallback

(

Callback< void >

callback

)

Definition at line 107 of file ipv4-end-point.cc.

References m_destroyCallback.

Referenced by ns3::NscTcpSocketImpl::CompleteFork(), ns3::TcpSocketBase::DeallocateEndPoint(), ns3::NscTcpSocketImpl::FinishBind(), ns3::UdpSocketImpl::FinishBind(), and ns3::TcpSocketBase::SetupCallback().

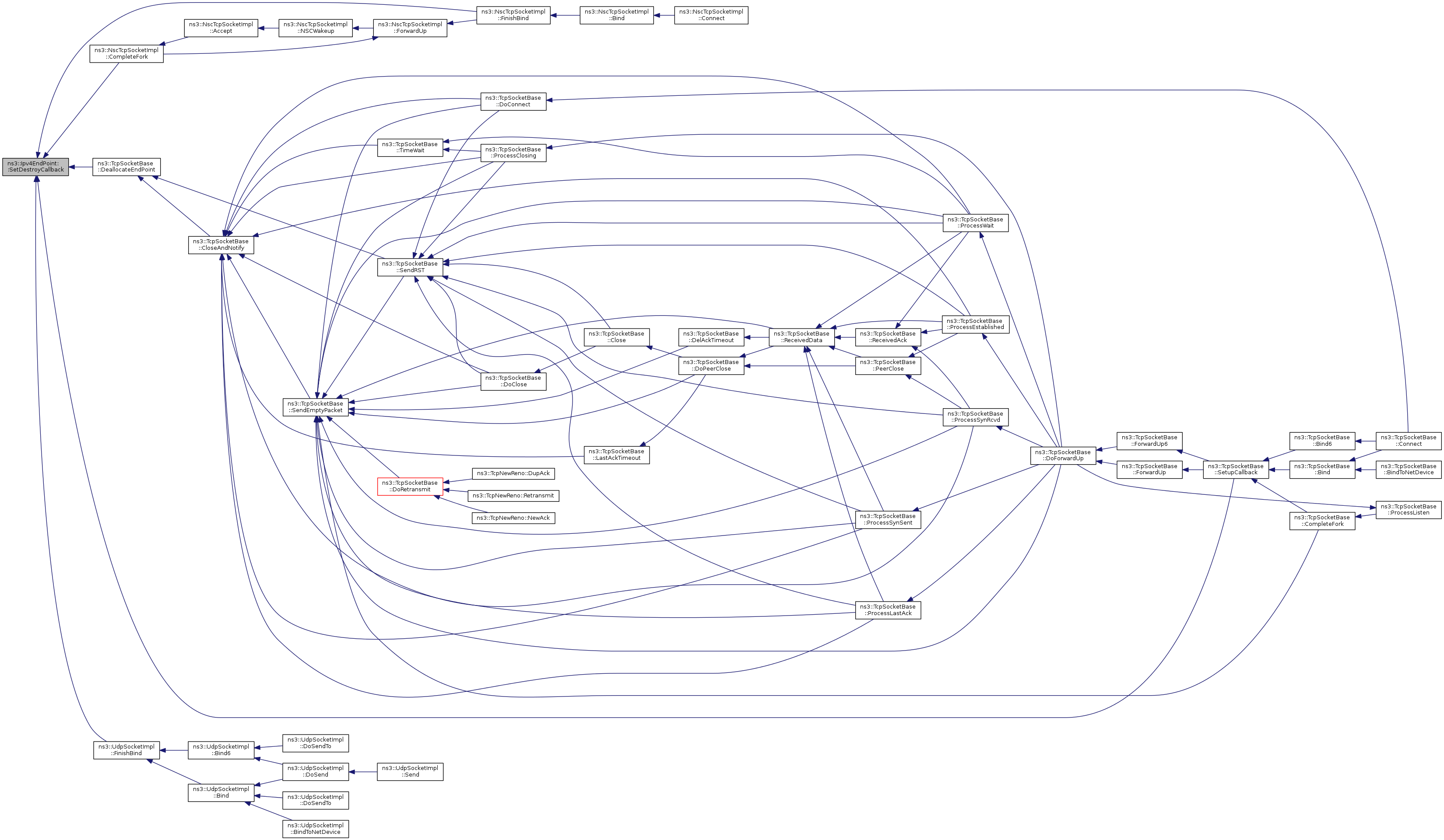

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::SetIcmpCallback

(

Callback< void, Ipv4Address, uint8_t, uint8_t, uint8_t, uint32_t >

callback

)

Definition at line 101 of file ipv4-end-point.cc.

References m_icmpCallback.

Referenced by ns3::UdpSocketImpl::FinishBind().

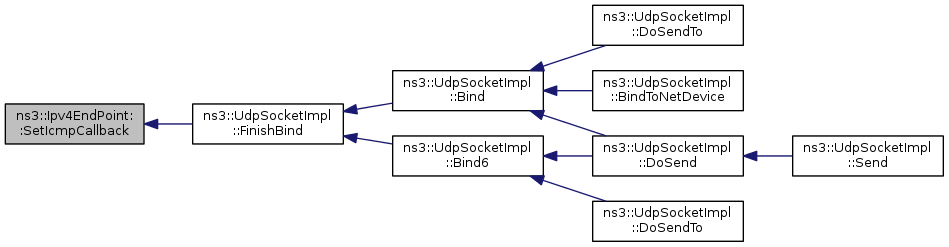

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::SetLocalAddress

(

Ipv4Address

address

)

Definition at line 55 of file ipv4-end-point.cc.

References m_localAddr.

Referenced by ns3::TcpSocketBase::SetupEndpoint().

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::SetPeer	(	Ipv4Address	address,
		uint16_t	port
	)

Definition at line 76 of file ipv4-end-point.cc.

References m_peerAddr, m_peerPort, and port.

Referenced by ns3::Ipv4EndPointDemux::Allocate(), ns3::TcpSocketBase::Connect(), and ns3::TcpSocketBase::ProcessSynRcvd().

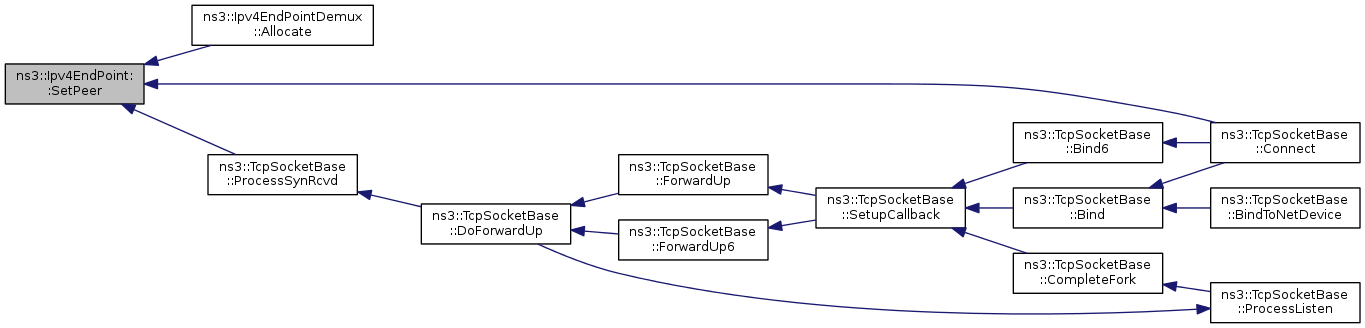

Here is the caller graph for this function:

void ns3::Ipv4EndPoint::SetRxCallback

(

Callback< void, Ptr< Packet >, Ipv4Header, uint16_t, Ptr< Ipv4Interface > >

callback

)

Definition at line 96 of file ipv4-end-point.cc.

References m_rxCallback.

Referenced by ns3::NscTcpSocketImpl::CompleteFork(), ns3::NscTcpSocketImpl::FinishBind(), ns3::UdpSocketImpl::FinishBind(), and ns3::TcpSocketBase::SetupCallback().

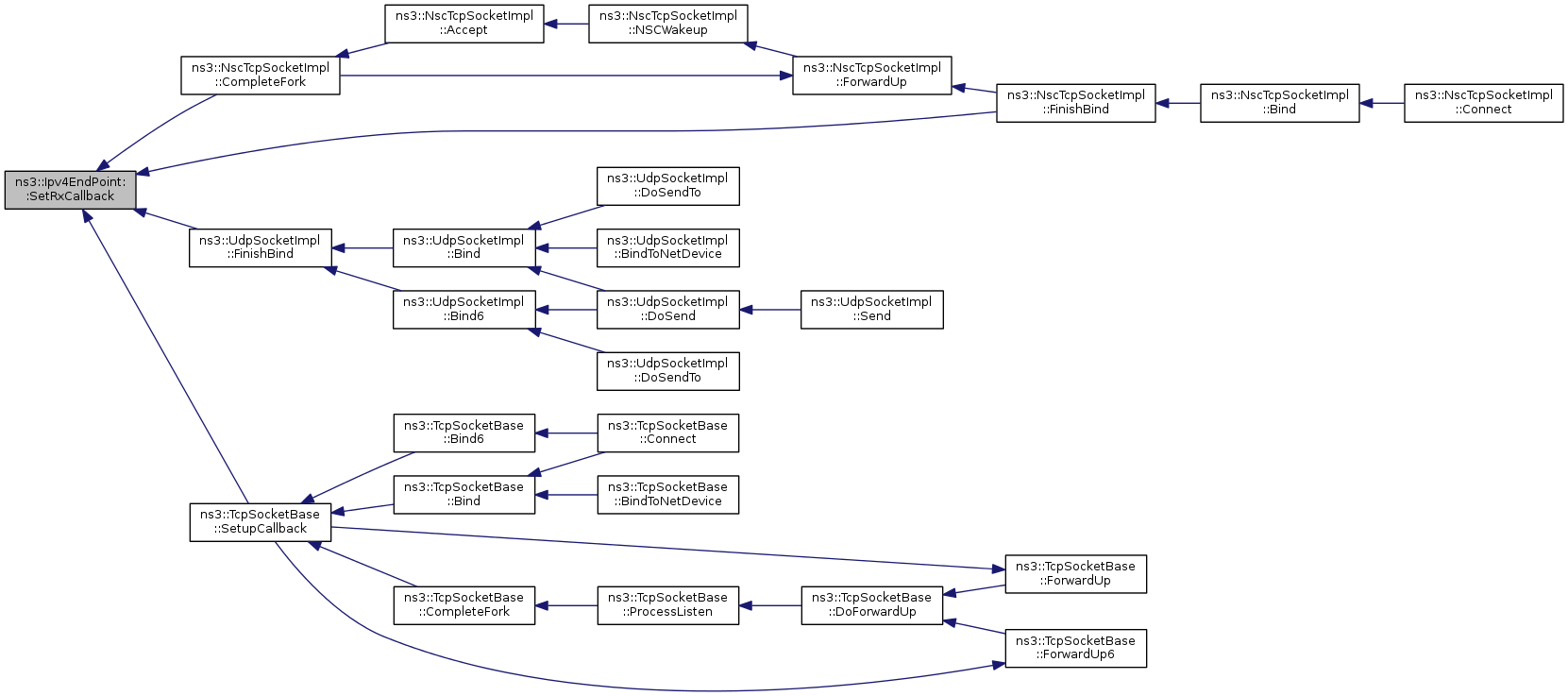

Here is the caller graph for this function:

Member Data Documentation

Ptr<NetDevice> ns3::Ipv4EndPoint::m_boundnetdevice

private

Definition at line 88 of file ipv4-end-point.h.

Referenced by BindToNetDevice(), and GetBoundNetDevice().

Callback<void> ns3::Ipv4EndPoint::m_destroyCallback

private

Definition at line 91 of file ipv4-end-point.h.

Referenced by SetDestroyCallback(), and ~Ipv4EndPoint().

Callback<void,Ipv4Address,uint8_t,uint8_t,uint8_t,uint32_t> ns3::Ipv4EndPoint::m_icmpCallback

private

Definition at line 90 of file ipv4-end-point.h.

Referenced by DoForwardIcmp(), ForwardIcmp(), SetIcmpCallback(), and ~Ipv4EndPoint().

Ipv4Address ns3::Ipv4EndPoint::m_localAddr

private

Definition at line 84 of file ipv4-end-point.h.

Referenced by GetLocalAddress(), and SetLocalAddress().

uint16_t ns3::Ipv4EndPoint::m_localPort

private

Definition at line 85 of file ipv4-end-point.h.

Referenced by GetLocalPort().

Ipv4Address ns3::Ipv4EndPoint::m_peerAddr

private

Definition at line 86 of file ipv4-end-point.h.

Referenced by GetPeerAddress(), and SetPeer().

uint16_t ns3::Ipv4EndPoint::m_peerPort

private

Definition at line 87 of file ipv4-end-point.h.

Referenced by GetPeerPort(), and SetPeer().

Callback<void,Ptr<Packet>, Ipv4Header, uint16_t, Ptr<Ipv4Interface> > ns3::Ipv4EndPoint::m_rxCallback

private

Definition at line 89 of file ipv4-end-point.h.

Referenced by DoForwardUp(), ForwardUp(), SetRxCallback(), and ~Ipv4EndPoint().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv4-end-point.h
• src/internet/model/ipv4-end-point.cc
