Helper class that adds ns3::Ipv4ListRouting objects. More...

#include <ipv4-list-routing-helper.h>

Inheritance diagram for ns3::Ipv4ListRoutingHelper:

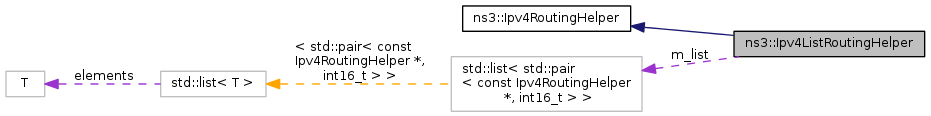

Collaboration diagram for ns3::Ipv4ListRoutingHelper:

Public Member Functions
	Ipv4ListRoutingHelper ()
	Ipv4ListRoutingHelper (const Ipv4ListRoutingHelper &)
	Construct an Ipv4ListRoutingHelper from another previously initialized instance (Copy Constructor).
virtual	~Ipv4ListRoutingHelper ()
void	Add (const Ipv4RoutingHelper &routing, int16_t priority)
Ipv4ListRoutingHelper *	Copy (void) const
virtual Ptr< Ipv4RoutingProtocol >	Create (Ptr< Node > node) const
Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual	~Ipv4RoutingHelper ()
void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of all nodes at a particular time.
void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of all nodes at regular intervals specified by user.
void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node at a particular time.
void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node at regular intervals specified by user.

Private Member Functions
Ipv4ListRoutingHelper &	operator= (const Ipv4ListRoutingHelper &o)
	Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own.

Private Attributes
std::list< std::pair< const Ipv4RoutingHelper *, int16_t > >	m_list

Detailed Description

Helper class that adds ns3::Ipv4ListRouting objects.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 35 of file ipv4-list-routing-helper.h.

Constructor & Destructor Documentation

ns3::Ipv4ListRoutingHelper::Ipv4ListRoutingHelper ( )

Definition at line 26 of file ipv4-list-routing-helper.cc.

Referenced by Copy().

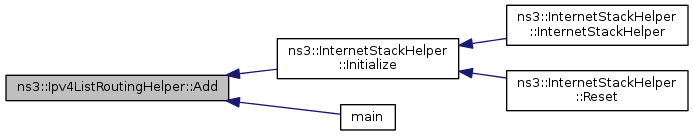

Here is the caller graph for this function:

ns3::Ipv4ListRoutingHelper::~Ipv4ListRoutingHelper ( )

virtual

Definition at line 30 of file ipv4-list-routing-helper.cc.

References list, and m_list.

ns3::Ipv4ListRoutingHelper::Ipv4ListRoutingHelper ( const Ipv4ListRoutingHelper & o )

Construct an Ipv4ListRoutingHelper from another previously initialized instance (Copy Constructor).

Definition at line 39 of file ipv4-list-routing-helper.cc.

References m_list.

Member Function Documentation

void ns3::Ipv4ListRoutingHelper::Add	(	const Ipv4RoutingHelper &	routing,
		int16_t	priority
	)

Parameters

routing	a routing helper
priority	the priority of the associated helper

Store in the internal list a reference to the input routing helper and associated priority. These helpers will be used later by the ns3::Ipv4ListRoutingHelper::Create method to create an ns3::Ipv4ListRouting object and add in it routing protocols created with the helpers.

Definition at line 55 of file ipv4-list-routing-helper.cc.

References ns3::Ipv4RoutingHelper::Copy(), and m_list.

Referenced by ns3::InternetStackHelper::Initialize(), and main().

Here is the call graph for this function:
