ns3::Node Class Reference

A network Node. More...

#include <node.h>

+ Inheritance diagram for ns3::Node:

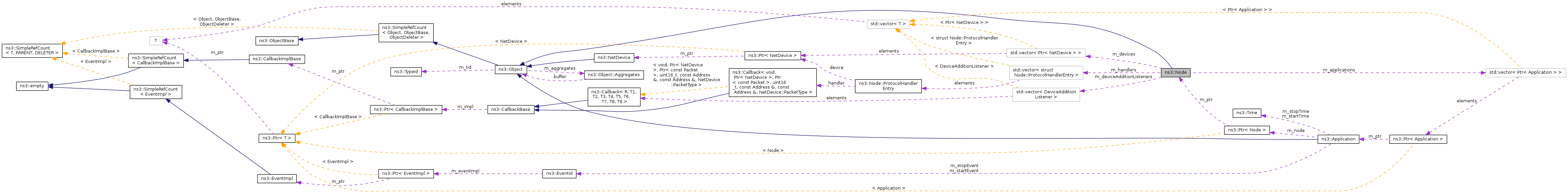

+ Collaboration diagram for ns3::Node:

Classes

struct  ProtocolHandlerEntry

Public Types

typedef Callback< void, Ptr
< NetDevice > >
DeviceAdditionListener
typedef Callback< void, Ptr
< NetDevice >, Ptr< const
Packet >, uint16_t, const
Address &, const Address
&, NetDevice::PacketType
ProtocolHandler

Public Member Functions

 Node ()
 Node (uint32_t systemId)
virtual ~Node ()
uint32_t AddApplication (Ptr< Application > application)
uint32_t AddDevice (Ptr< NetDevice > device)
Ptr< ApplicationGetApplication (uint32_t index) const
Ptr< NetDeviceGetDevice (uint32_t index) const
uint32_t GetId (void) const
uint32_t GetNApplications (void) const
uint32_t GetNDevices (void) const
uint32_t GetSystemId (void) const
void RegisterDeviceAdditionListener (DeviceAdditionListener listener)
void RegisterProtocolHandler (ProtocolHandler handler, uint16_t protocolType, Ptr< NetDevice > device, bool promiscuous=false)
void UnregisterDeviceAdditionListener (DeviceAdditionListener listener)
void UnregisterProtocolHandler (ProtocolHandler handler)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCountoperator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

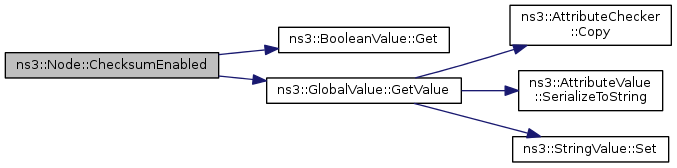

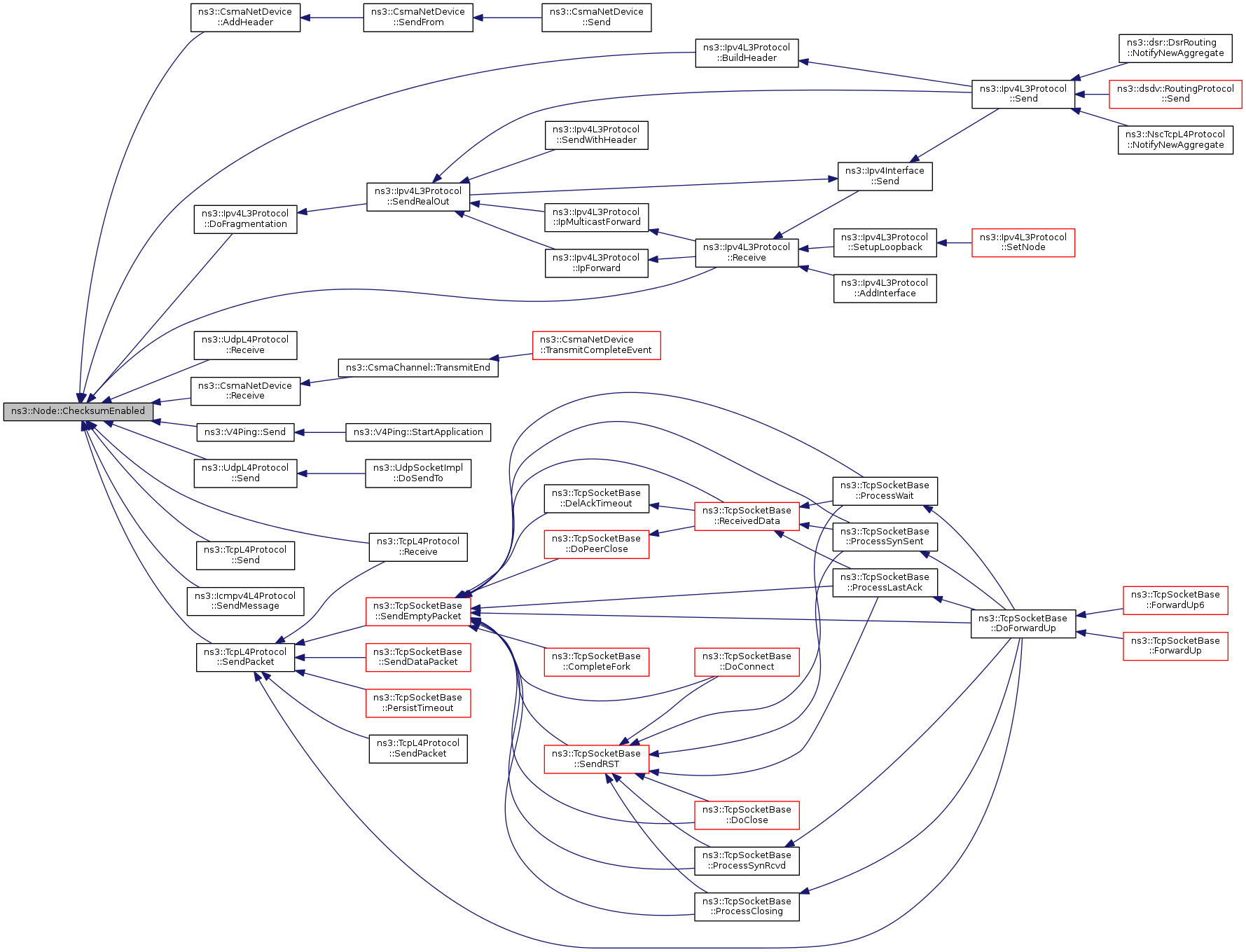

static bool ChecksumEnabled (void)
static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::Node.

Protected Member Functions

virtual void DoDispose (void)
virtual void DoStart (void)
- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void NotifyNewAggregate (void)

Private Types

typedef std::vector
< DeviceAdditionListener
DeviceAdditionListenerList
typedef std::vector< struct
Node::ProtocolHandlerEntry
ProtocolHandlerList

Private Member Functions

void Construct (void)
bool NonPromiscReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet >, uint16_t protocol, const Address &from)
void NotifyDeviceAdded (Ptr< NetDevice > device)
bool PromiscReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet >, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
bool ReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet >, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType, bool promisc)

Private Attributes

std::vector< Ptr< Application > > m_applications
DeviceAdditionListenerList m_deviceAdditionListeners
std::vector< Ptr< NetDevice > > m_devices
ProtocolHandlerList m_handlers
uint32_t m_id
uint32_t m_sid

Detailed Description

A network Node.

This class holds together:

  • a list of NetDevice objects which represent the network interfaces of this node which are connected to other Node instances through Channel instances.
  • a list of Application objects which represent the userspace traffic generation applications which interact with the Node through the Socket API.
  • a node Id: a unique per-node identifier.
  • a system Id: a unique Id used for parallel simulations.

Every Node created is added to the NodeList automatically.

Definition at line 55 of file node.h.

Member Typedef Documentation

A callback invoked whenever a device is added to a node.

Definition at line 173 of file node.h.

Definition at line 223 of file node.h.

typedef Callback<void,Ptr<NetDevice>, Ptr<const Packet>,uint16_t,const Address &, const Address &, NetDevice::PacketType> ns3::Node::ProtocolHandler

A protocol handler

Parameters
devicea pointer to the net device which received the packet
packetthe packet received
protocolthe 16 bit protocol number associated with this packet. This protocol number is expected to be the same protocol number given to the Send method by the user on the sender side.
senderthe address of the sender
receiverthe address of the receiver; Note: this value is only valid for promiscuous mode protocol handlers. Note: If the L2 protocol does not use L2 addresses, the address reported here is the value of device->GetAddress().
packetTypetype of packet received (broadcast/multicast/unicast/otherhost); Note: this value is only valid for promiscuous mode protocol handlers.

Definition at line 144 of file node.h.

typedef std::vector<struct Node::ProtocolHandlerEntry> ns3::Node::ProtocolHandlerList
private

Definition at line 222 of file node.h.

Constructor & Destructor Documentation

ns3::Node::Node ( )

Definition at line 69 of file node.cc.

References Construct().

+ Here is the call graph for this function:

ns3::Node::Node ( uint32_t  systemId)
Parameters
systemIda unique integer used for parallel simulations.

Definition at line 76 of file node.cc.

References Construct().

+ Here is the call graph for this function:

ns3::Node::~Node ( )
virtual

Definition at line 89 of file node.cc.

Member Function Documentation

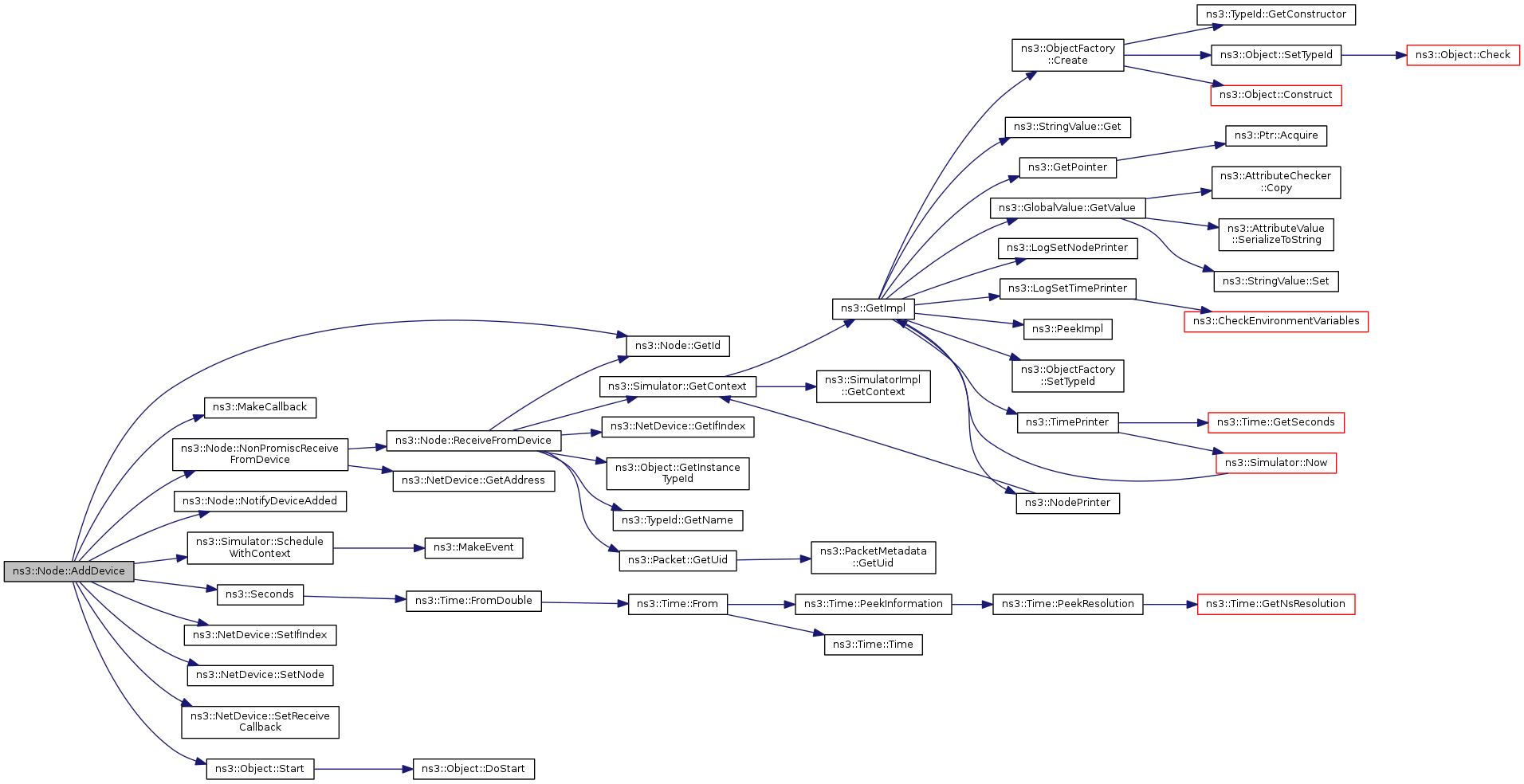

uint32_t ns3::Node::AddDevice ( Ptr< NetDevice device)
Parameters
deviceNetDevice to associate to this node.
Returns
the index of the NetDevice into the Node's list of NetDevice.

Associate this device to this node.

Definition at line 106 of file node.cc.

References GetId(), m_devices, ns3::MakeCallback(), NonPromiscReceiveFromDevice(), NotifyDeviceAdded(), ns3::Simulator::ScheduleWithContext(), ns3::Seconds(), ns3::NetDevice::SetIfIndex(), ns3::NetDevice::SetNode(), ns3::NetDevice::SetReceiveCallback(), and ns3::Object::Start().

Referenced by ns3::TcpTestCase::AddSimpleNetDevice(), ns3::AddSimpleNetDevice(), ns3::TcpTestCase::AddSimpleNetDevice6(), BuildSimpleTopology(), ns3::MeshHelper::CreateInterface(), ns3::WifiTest::CreateOne(), ns3::InterferenceHelperSequenceTest::CreateOne(), ns3::PointToPointTest::DoRun(), IpAddressHelperTestCasev6::DoRun(), StaticRoutingSlash32TestCase::DoRun(), ns3::Ipv4L3ProtocolTestCase::DoRun(), UdpClientServerTestCase::DoRun(), ns3::Ipv6L3ProtocolTestCase::DoRun(), ns3::Ipv6PacketInfoTagTest::DoRun(), ns3::Ipv4PacketInfoTagTest::DoRun(), ns3::Ipv4HeaderTest::DoRun(), ns3::Ipv4RawSocketImplTest::DoRun(), ns3::Ipv4FragmentationTest::DoRun(), ns3::Ipv6FragmentationTest::DoRun(), UdpTraceClientServerTestCase::DoRun(), ns3::UdpSocketImplTest::DoRun(), UdpEchoClientSetFillTestCase::DoRun(), GlobalRoutingSlash32TestCase::DoRun(), ns3::Udp6SocketImplTest::DoRun(), ns3::EpcHelper::EpcHelper(), ns3::BridgeHelper::Install(), ns3::TapBridgeHelper::Install(), ns3::PointToPointHelper::Install(), ns3::WaveformGeneratorHelper::Install(), ns3::AdhocAlohaNoackIdealPhyHelper::Install(), ns3::SpectrumAnalyzerHelper::Install(), ns3::WifiHelper::Install(), ns3::MeshHelper::Install(), ns3::WimaxHelper::Install(), ns3::UanHelper::Install(), ns3::EmuHelper::InstallPriv(), ns3::CsmaHelper::InstallPriv(), ns3::LteSimpleHelper::InstallSingleEnbDevice(), ns3::LteHelper::InstallSingleEnbDevice(), ns3::LteSimpleHelper::InstallSingleUeDevice(), main(), ns3::Ipv4L3Protocol::SetupLoopback(), ns3::Ipv6L3Protocol::SetupLoopback(), and Tunnel::Tunnel().

+ Here is the call graph for this function:

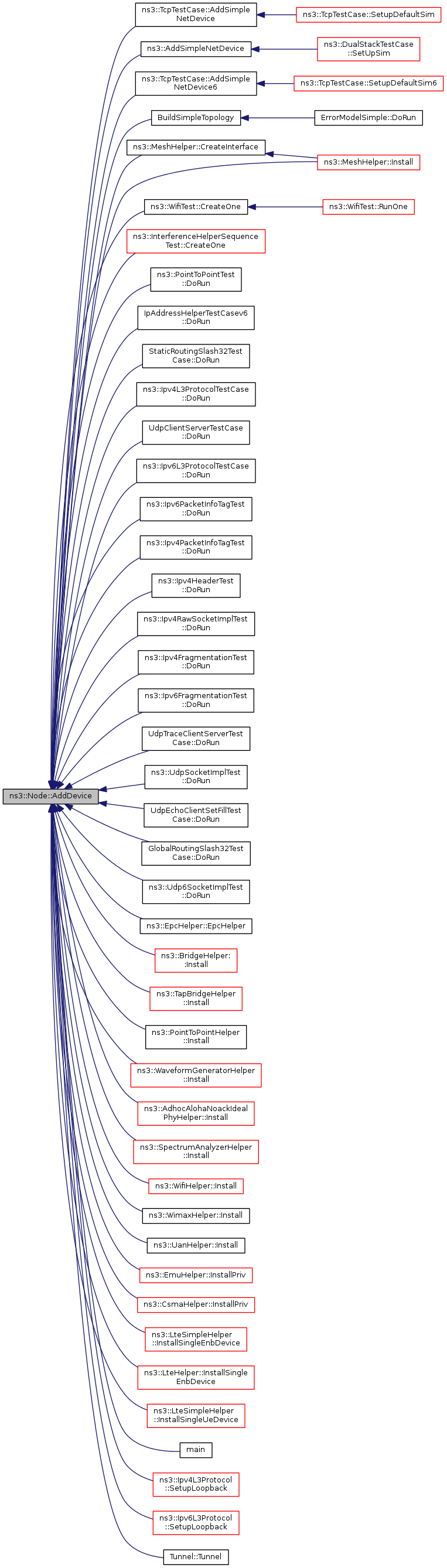

+ Here is the caller graph for this function:

void ns3::Node::Construct ( void  )
private

Definition at line 84 of file node.cc.

References ns3::NodeList::Add(), and m_id.

Referenced by Node().

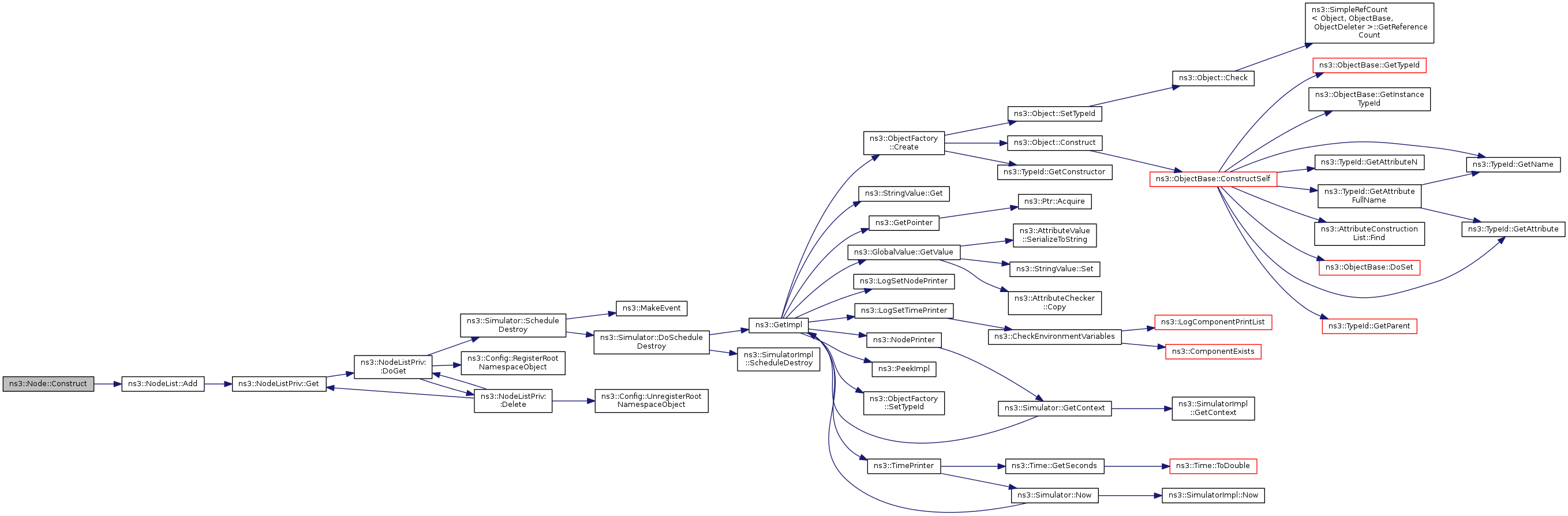

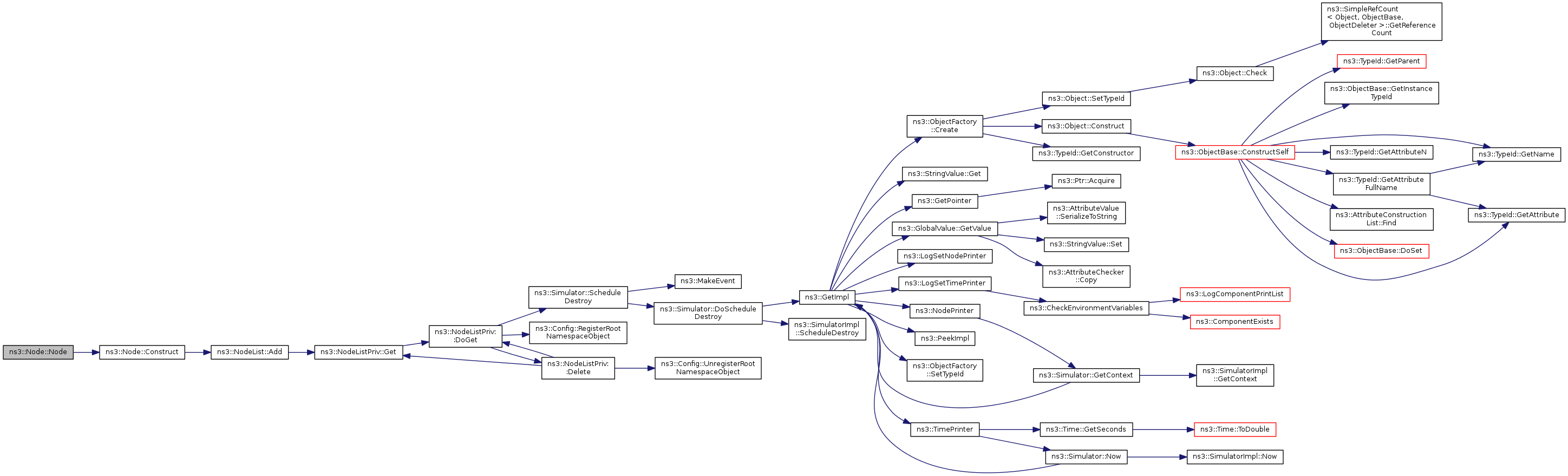

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Node::DoDispose ( void  )
protectedvirtual

The dispose method. Subclasses must override this method and must chain up to it by calling Node::DoDispose at the end of their own DoDispose method.

Reimplemented from ns3::Object.

Definition at line 155 of file node.cc.

References ns3::Object::Dispose(), m_applications, m_deviceAdditionListeners, m_devices, and m_handlers.

+ Here is the call graph for this function:

void ns3::Node::DoStart ( void  )
protectedvirtual

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 178 of file node.cc.

References m_applications, m_devices, and ns3::Object::Start().

+ Here is the call graph for this function:

Ptr< Application > ns3::Node::GetApplication ( uint32_t  index) const
Parameters
index
Returns
the application associated to this requested index within this Node.

Definition at line 142 of file node.cc.

References m_applications, and NS_ASSERT_MSG.

Referenced by ns3::EpcHelper::ActivateEpsBearer(), ns3::EpcHelper::AddEnb(), ns3::OnOffHelper::AssignStreams(), and ns3::V4Ping::GetApplicationId().

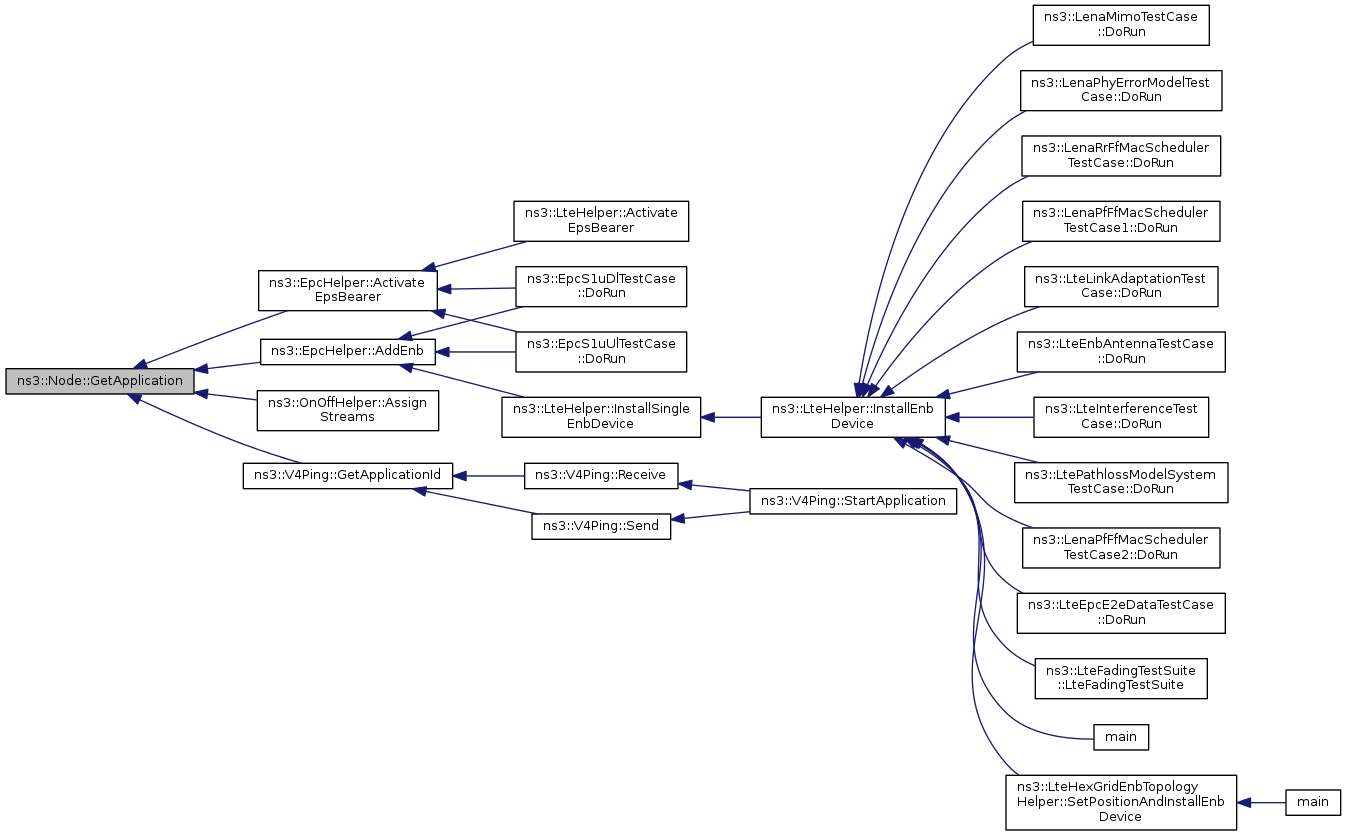

+ Here is the caller graph for this function:

Ptr< NetDevice > ns3::Node::GetDevice ( uint32_t  index) const
Parameters
indexthe index of the requested NetDevice
Returns
the requested NetDevice associated to this Node.

The indexes used by the GetDevice method start at one and end at GetNDevices ()

Definition at line 119 of file node.cc.

References m_devices, and NS_ASSERT_MSG.

Referenced by ns3::Ipv4NixVectorRouting::BFS(), ns3::Socket::BindToNetDevice(), ns3::Ipv4NixVectorRouting::BuildNixVector(), ns3::Ipv4NixVectorRouting::BuildNixVectorLocal(), ns3::AnimationInterface::ConnectLte(), ns3::GlobalRouter::DiscoverLSAs(), ns3::PacketSocket::DoBind(), ns3::LteEnbRrc::DoRrcConfigurationUpdateInd(), ns3::AcousticModemEnergyTestCase::DoRun(), ns3::InterferenceHelperSequenceTest::DoRun(), ns3::UanHelper::EnableAscii(), ns3::AsciiTraceHelperForDevice::EnableAsciiImpl(), ns3::AthstatsHelper::EnableAthstats(), ns3::PcapHelperForDevice::EnablePcap(), ns3::Ipv4NixVectorRouting::FindNetDeviceForNixIndex(), ns3::Ipv4NixVectorRouting::FindTotalNeighbors(), ns3::PacketSocket::GetMinMtu(), ns3::AnimationInterface::GetNetDeviceFromContext(), ns3::PacketSocket::GetSockName(), ns3::AcousticModemEnergyModel::HandleEnergyDepletion(), ns3::Ipv4NixVectorRouting::NetDeviceIsBridged(), ns3::GlobalRouter::NetDeviceIsBridged(), PrintGnuplottableEnbListToFile(), PrintGnuplottableUeListToFile(), ns3::MpiInterface::ReceiveMessages(), ns3::Ipv4NixVectorRouting::RouteInput(), ns3::Ipv4NixVectorRouting::RouteOutput(), ns3::AcousticModemEnergyTestCase::SendOnePacket(), ns3::AcousticModemEnergyDepletionTestCase::SendOnePacket(), ns3::PacketSocket::SendTo(), ns3::Ipv4L3Protocol::SetupLoopback(), ns3::Ipv6L3Protocol::SetupLoopback(), ns3::AnimationInterface::StartAnimation(), ns3::PyViz::TraceNetDevRxCommon(), and ns3::PyViz::TraceNetDevTxCommon().

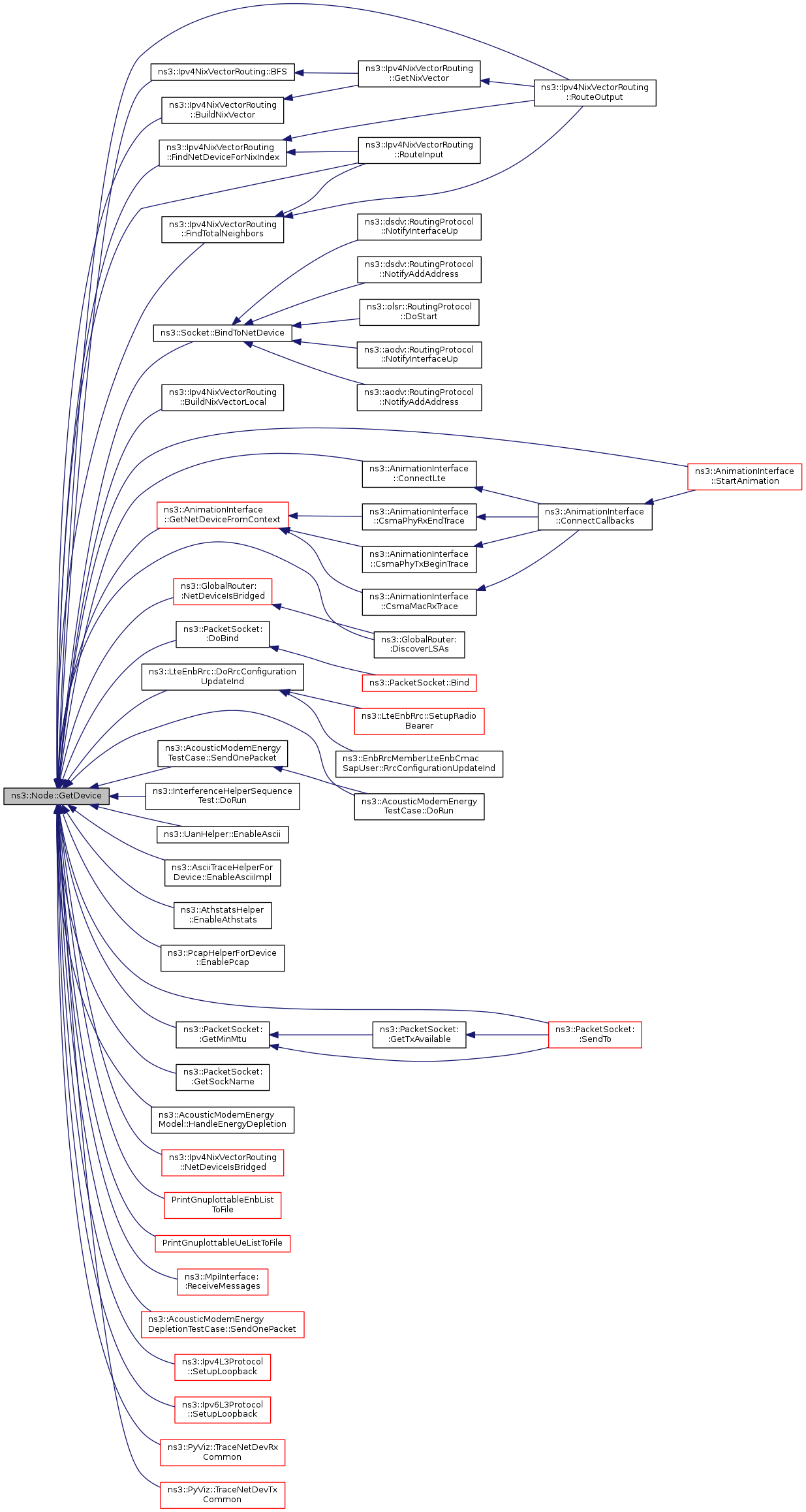

+ Here is the caller graph for this function:

uint32_t ns3::Node::GetId ( void  ) const
Returns
the unique id of this node.

This unique id happens to be also the index of the Node into the NodeList.

Definition at line 94 of file node.cc.

References m_id.

Referenced by AddApplication(), AddDevice(), ns3::GlobalRouter::AnotherRouterOnLink(), ns3::Ipv4NixVectorRouting::BFS(), ns3::Ipv4NixVectorRouting::BuildNixVector(), ns3::Ipv4NixVectorRouting::BuildNixVectorLocal(), ns3::AcousticModemEnergyModel::ChangeState(), ns3::AnimationInterface::ConnectLteEnb(), ns3::AnimationInterface::ConnectLteUe(), ns3::MobilityHelper::CourseChanged(), ns3::Ipv4GlobalRoutingHelper::Create(), ns3::GlobalRouteManagerImpl::DeleteGlobalRoutes(), ns3::AnimationInterface::DevTxTrace(), ns3::GlobalRouter::DiscoverLSAs(), WifiMsduAggregatorThroughputTest::DoRun(), ns3::Ipv4FragmentationTest::DoRun(), ns3::Ipv6FragmentationTest::DoRun(), ns3::UanHelper::EnableAscii(), ns3::AsciiTraceHelperForDevice::EnableAsciiImpl(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), ns3::YansWifiPhyHelper::EnableAsciiInternal(), ns3::WimaxHelper::EnableAsciiInternal(), ns3::AsciiTraceHelperForIpv4::EnableAsciiIpv4Impl(), ns3::InternetStackHelper::EnableAsciiIpv4Internal(), ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl(), ns3::InternetStackHelper::EnableAsciiIpv6Internal(), ns3::AthstatsHelper::EnableAthstats(), ns3::PcapHelperForDevice::EnablePcap(), ns3::PcapHelperForIpv4::EnablePcapIpv4(), ns3::PcapHelperForIpv6::EnablePcapIpv6(), ns3::UanPhyGen::EnergyDepletionHandler(), ns3::GlobalRouter::FindDesignatedRouterForLink(), ns3::GlobalRouter::FindInterfaceForDevice(), ns3::PcapHelper::GetFilenameFromDevice(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::PcapHelper::GetFilenameFromInterfacePair(), ns3::AsciiTraceHelper::GetFilenameFromInterfacePair(), ns3::AnimationInterface::GetIpv4Address(), ns3::Ipv4NixVectorRouting::GetNixVector(), ns3::PyViz::GetPacketDropSamples(), ns3::AnimationInterface::GetPosition(), ns3::AnimPacketInfo::GetRxInfo(), ns3::PyViz::GetTransmissionSamples(), ns3::AcousticModemEnergyModel::HandleEnergyDepletion(), ns3::ArpCache::HandleWaitReplyTimeout(), ns3::BridgeHelper::Install(), ns3::TapBridgeHelper::Install(), ns3::SpectrumAnalyzerHelper::Install(), ns3::Ipv4L3Protocol::IpForward(), ns3::Ipv6L3Protocol::IpForward(), ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::Ipv6L3Protocol::IpMulticastForward(), ns3::Ipv4FlowProbe::Ipv4FlowProbe(), ns3::ArpL3Protocol::Lookup(), main(), ns3::AnimationInterface::MobilityAutoCheck(), ns3::AnimationInterface::MobilityCourseChangeTrace(), ns3::AnimationInterface::OutputCsmaPacket(), ns3::AnimationInterface::OutputWirelessPacket(), ns3::GlobalRouter::ProcessBridgedBroadcastLink(), ns3::AnimPacketInfo::ProcessRxBegin(), ns3::AnimPacketInfo::ProcessRxEnd(), ns3::GlobalRouter::ProcessSingleBroadcastLink(), ns3::ArpL3Protocol::Receive(), ns3::Ipv6L3Protocol::Receive(), ns3::Ipv4L3Protocol::Receive(), ns3::TapBridge::ReceiveFromBridgedDevice(), ReceiveFromDevice(), ns3::MpiInterface::ReceiveMessages(), ns3::AnimPacketInfo::RemoveRxInfo(), ns3::Ipv4ListRouting::RouteInput(), ns3::Ipv6ListRouting::RouteInput(), ns3::Ipv4NixVectorRouting::RouteInput(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::olsr::RoutingProtocol::RouteOutput(), ns3::SimpleChannel::Send(), ns3::ErrorChannel::Send(), ns3::V4Ping::Send(), ns3::LoopbackNetDevice::Send(), ns3::ArpL3Protocol::SendArpReply(), ns3::ArpL3Protocol::SendArpRequest(), ns3::Ipv4RawSocketImplTest::SendData(), ns3::UdpSocketImplTest::SendData(), ns3::Udp6SocketImplTest::SendData(), ns3::Ipv4RawSocketImplTest::SendData_IpHdr(), ns3::Ipv4HeaderTest::SendData_IpHdr_Dscp(), ns3::LoopbackNetDevice::SendFrom(), ns3::AnimationInterface::SetConstantPosition(), ns3::AnimationInterface::SetLinkDescription(), ns3::GlobalRoutingLSA::SetNode(), ns3::AnimationInterface::SetNodeColor(), ns3::AnimationInterface::SetNodeDescription(), ns3::GlobalRouteManagerImpl::SPFAddASExternal(), ns3::GlobalRouteManagerImpl::SPFIntraAddRouter(), ns3::GlobalRouteManagerImpl::SPFIntraAddStub(), ns3::GlobalRouteManagerImpl::SPFIntraAddTransit(), ns3::AnimationInterface::StartAnimation(), ns3::EmuNetDevice::StartDevice(), ns3::TapBridge::StartTapDevice(), ns3::SingleModelSpectrumChannel::StartTx(), ns3::MultiModelSpectrumChannel::StartTx(), ns3::PyViz::TraceNetDevRxCommon(), ns3::PointToPointRemoteChannel::TransmitStart(), ns3::AnimationInterface::UpdateLinkDescription(), ns3::AnimationInterface::UpdateNodeColor(), ns3::AnimationInterface::UpdateNodeDescription(), ns3::AnimationInterface::UpdatePosition(), ns3::AnimationInterface::WifiPhyTxBeginTrace(), and WifiInterferenceTestCase::WifiSimpleInterference().

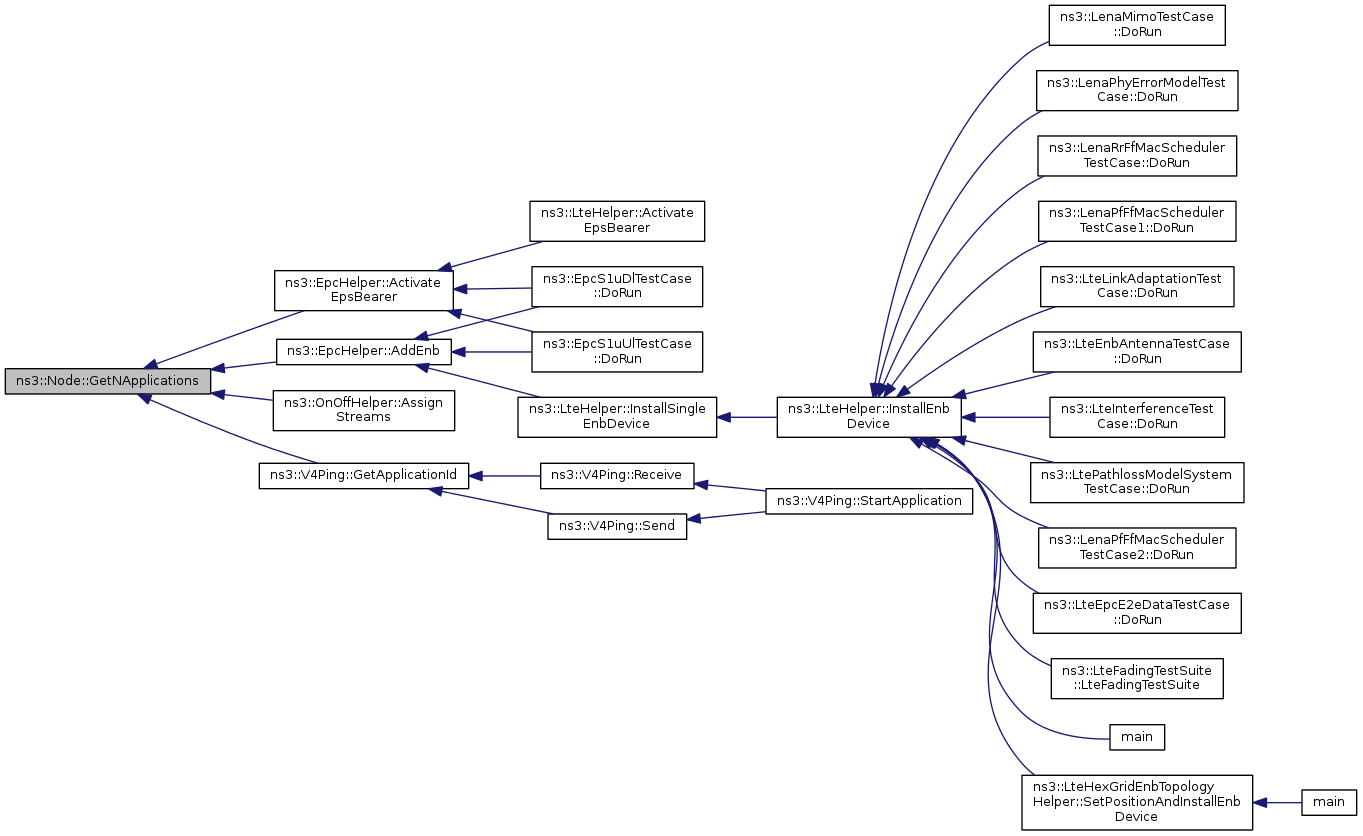

uint32_t ns3::Node::GetNApplications ( void  ) const
Returns
the number of applications associated to this Node.

Definition at line 149 of file node.cc.

References m_applications.

Referenced by ns3::EpcHelper::ActivateEpsBearer(), ns3::EpcHelper::AddEnb(), ns3::OnOffHelper::AssignStreams(), and ns3::V4Ping::GetApplicationId().

+ Here is the caller graph for this function:

uint32_t ns3::Node::GetSystemId ( void  ) const
Returns
the system id for parallel simulations associated to this node.

Definition at line 100 of file node.cc.

References m_sid.

Referenced by ns3::DistributedSimulatorImpl::CalculateLookAhead(), ns3::GlobalRouteManagerImpl::InitializeRoutes(), ns3::PointToPointHelper::Install(), and ns3::MpiInterface::SendPacket().

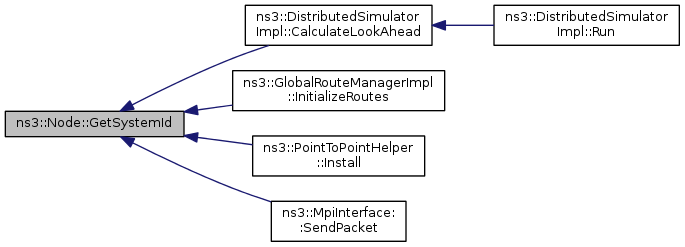

+ Here is the caller graph for this function:

TypeId ns3::Node::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::Node.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]

Attributes defined for this type:

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 47 of file node.cc.

References ns3::TypeId::ATTR_GET, m_applications, m_devices, m_id, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

bool ns3::Node::NonPromiscReceiveFromDevice ( Ptr< NetDevice device,
Ptr< const Packet packet,
uint16_t  protocol,
const Address from
)
private

Definition at line 260 of file node.cc.

References ns3::NetDevice::GetAddress(), NS_LOG_FUNCTION, and ReceiveFromDevice().

Referenced by AddDevice().

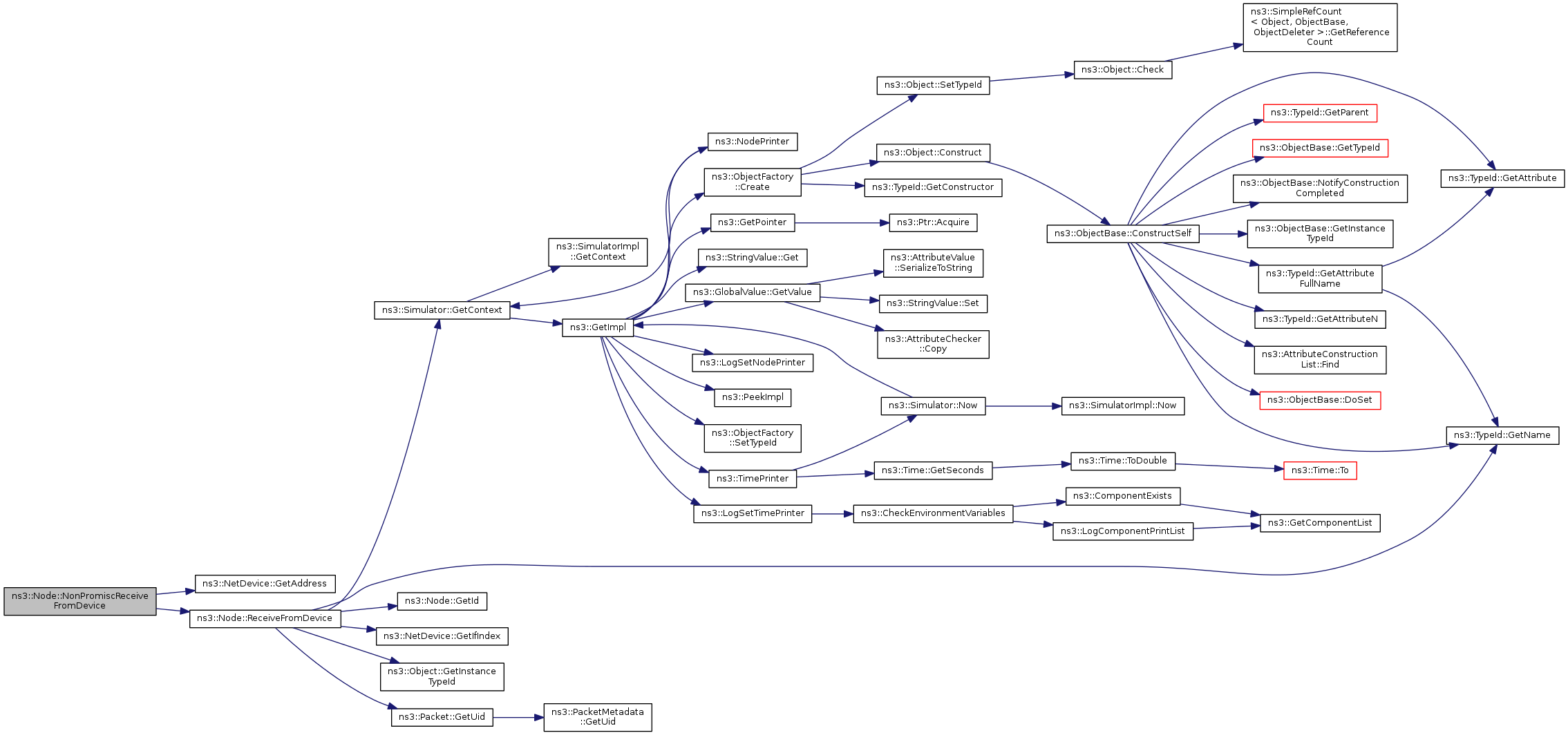

+ Here is the call graph for this function:

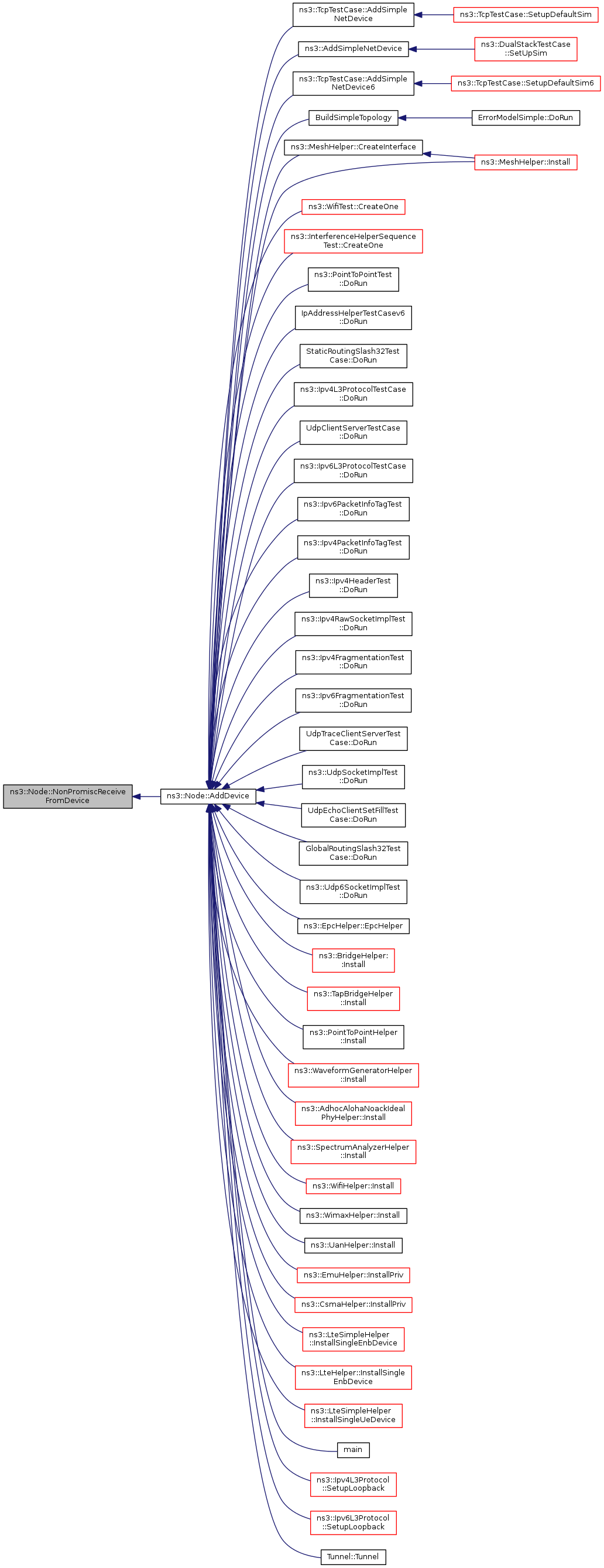

+ Here is the caller graph for this function:

void ns3::Node::NotifyDeviceAdded ( Ptr< NetDevice device)
private

Definition at line 324 of file node.cc.

References m_deviceAdditionListeners.

Referenced by AddDevice().

+ Here is the caller graph for this function:

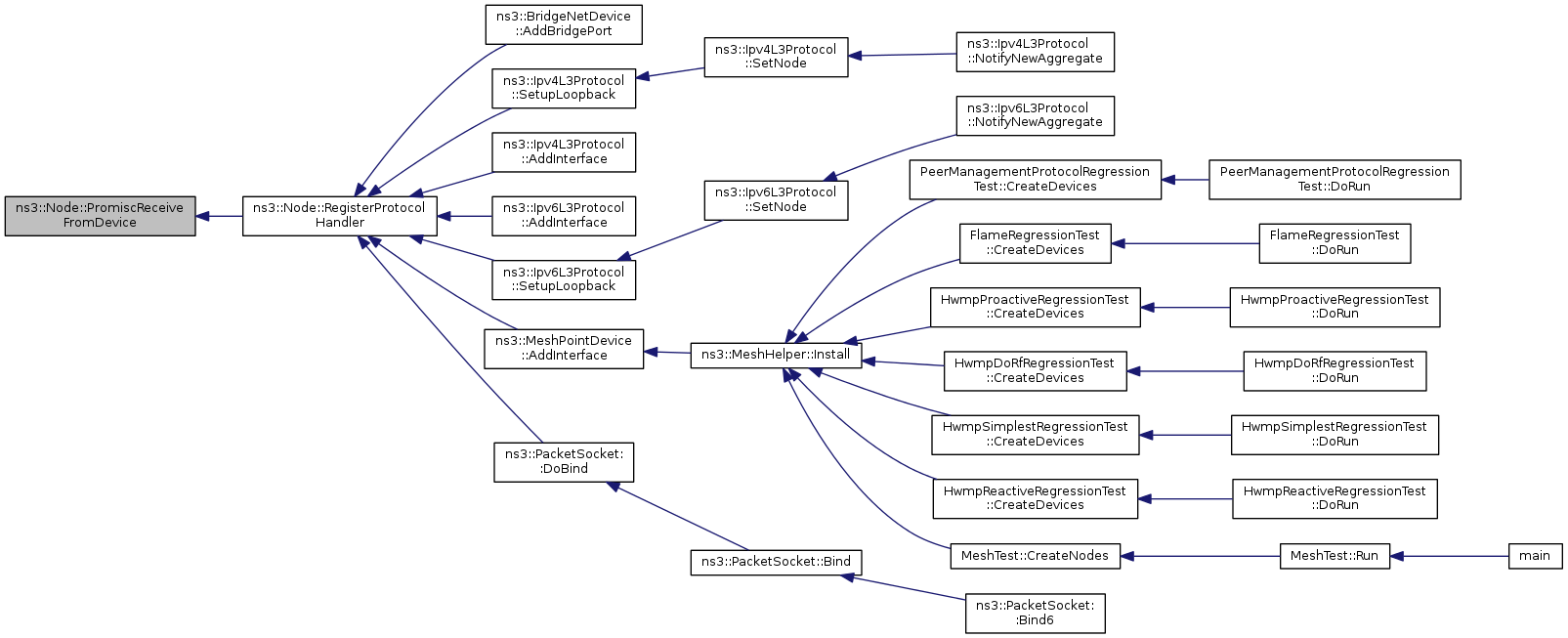

bool ns3::Node::PromiscReceiveFromDevice ( Ptr< NetDevice device,
Ptr< const Packet packet,
uint16_t  protocol,
const Address from,
const Address to,
NetDevice::PacketType  packetType
)
private

Definition at line 252 of file node.cc.

References NS_LOG_FUNCTION, and ReceiveFromDevice().

Referenced by RegisterProtocolHandler().

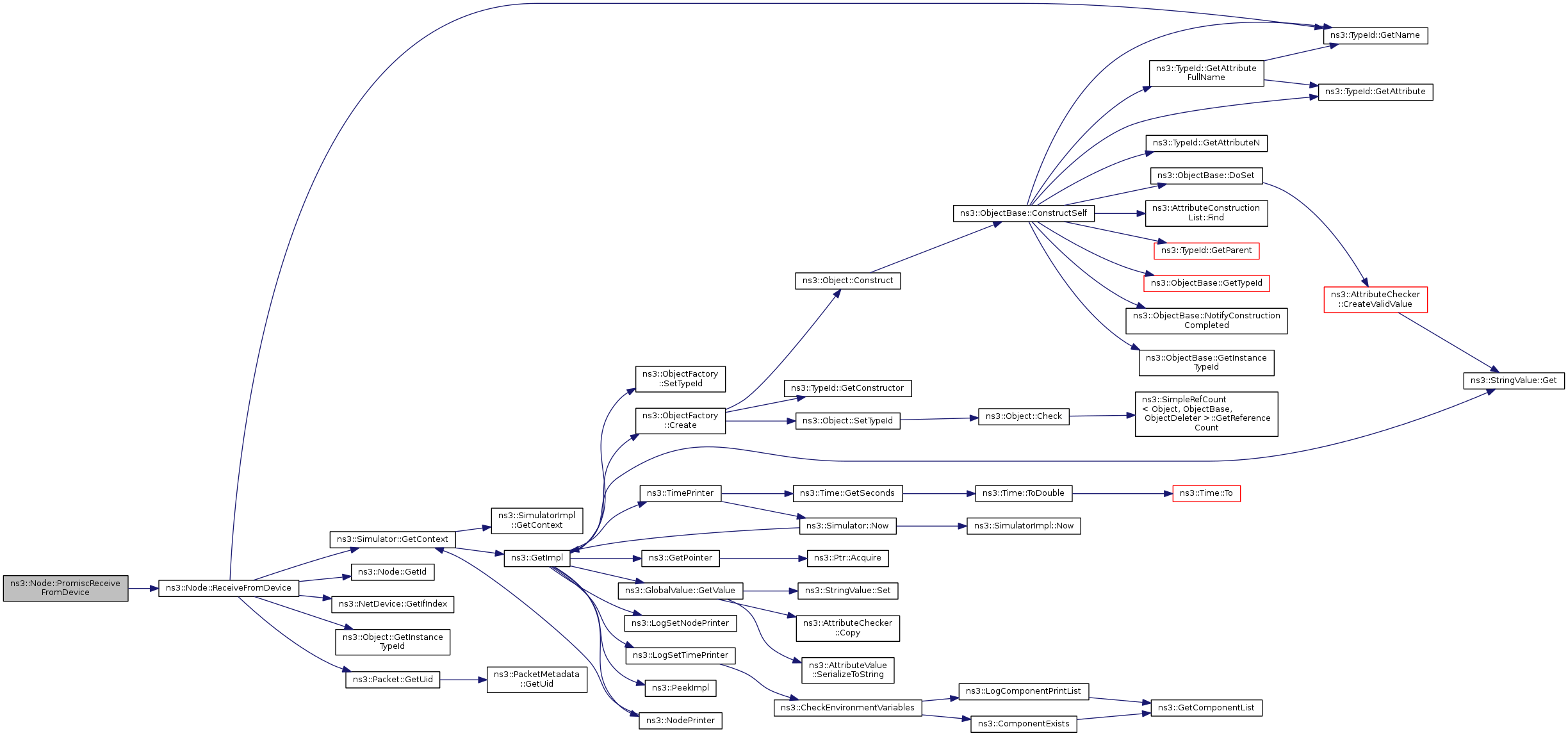

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

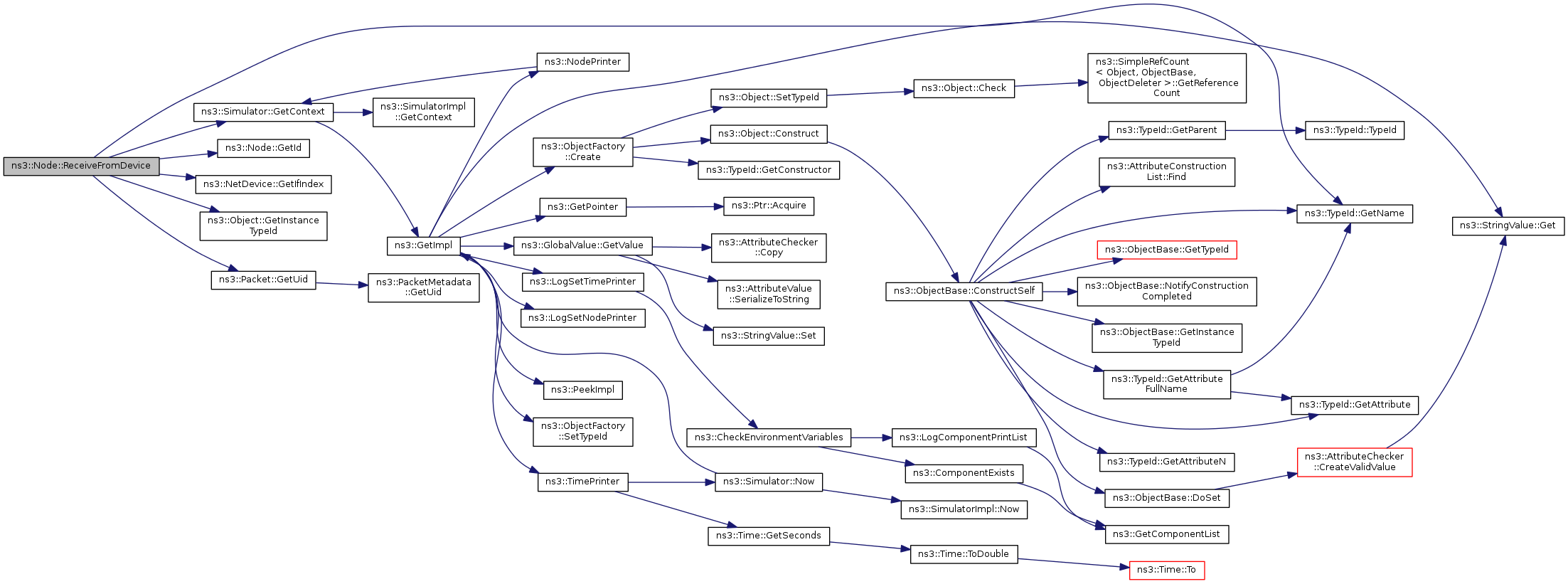

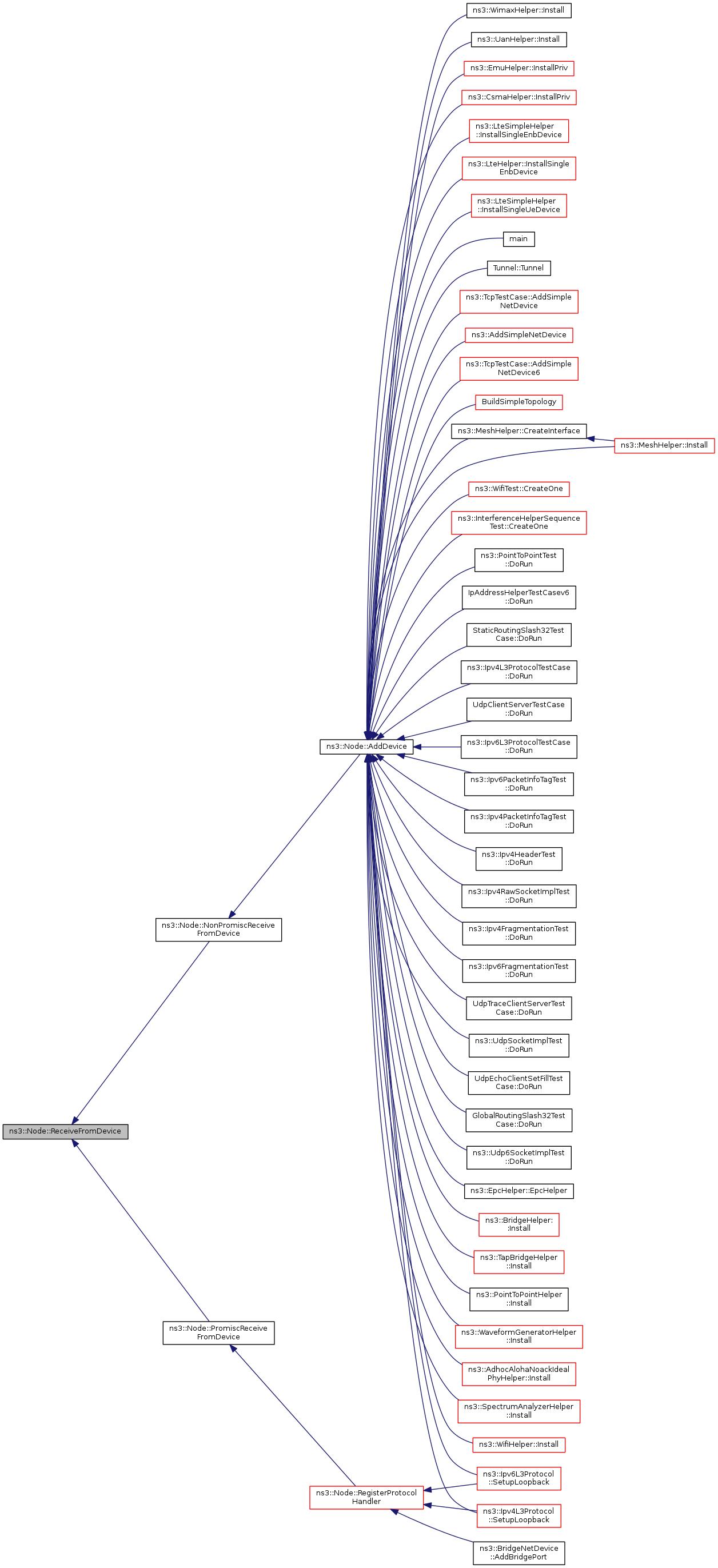

bool ns3::Node::ReceiveFromDevice ( Ptr< NetDevice device,
Ptr< const Packet packet,
uint16_t  protocol,
const Address from,
const Address to,
NetDevice::PacketType  packetType,
bool  promisc
)
private

Definition at line 268 of file node.cc.

References ns3::Simulator::GetContext(), GetId(), ns3::NetDevice::GetIfIndex(), ns3::Object::GetInstanceTypeId(), ns3::TypeId::GetName(), ns3::Packet::GetUid(), m_handlers, NS_ASSERT_MSG, and NS_LOG_DEBUG.

Referenced by NonPromiscReceiveFromDevice(), and PromiscReceiveFromDevice().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Node::RegisterDeviceAdditionListener ( DeviceAdditionListener  listener)
Parameters
listenerthe listener to add

Add a new listener to the list of listeners for the device-added event. When a new listener is added, it is notified of the existance of all already-added devices to make discovery of devices easier.

Definition at line 299 of file node.cc.

References m_deviceAdditionListeners, and m_devices.

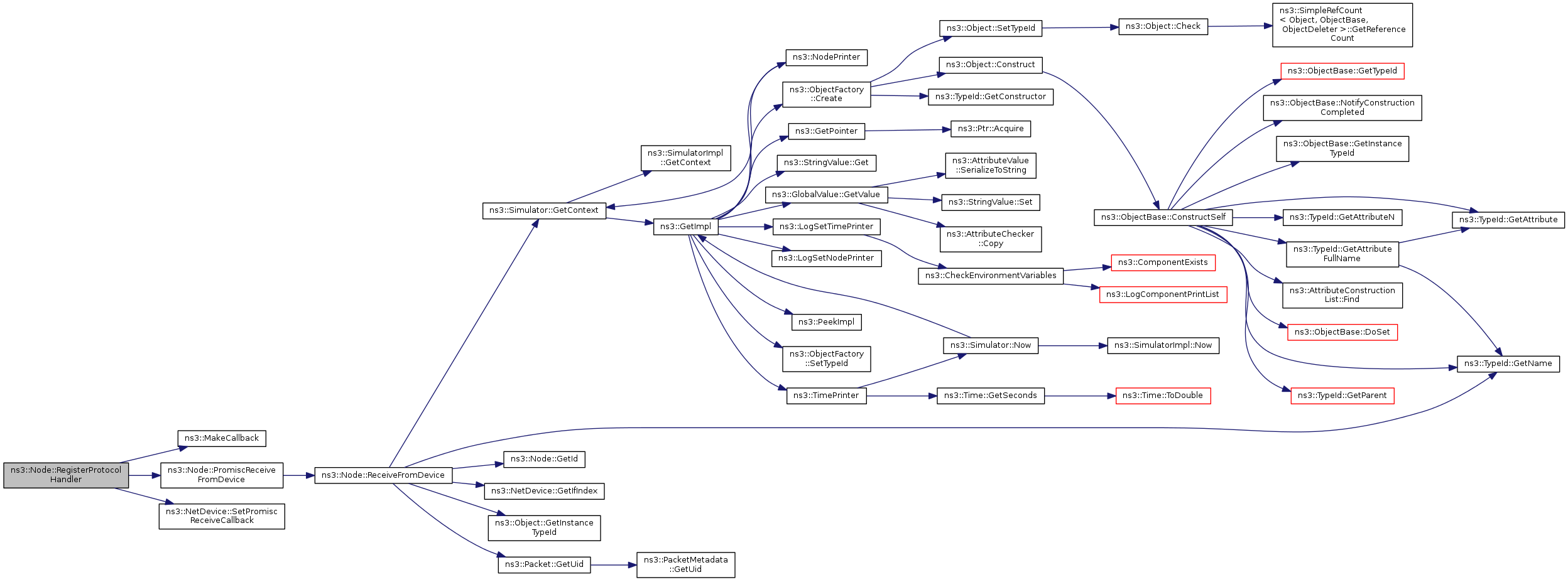

void ns3::Node::RegisterProtocolHandler ( ProtocolHandler  handler,
uint16_t  protocolType,
Ptr< NetDevice device,
bool  promiscuous = false
)
Parameters
handlerthe handler to register
protocolTypethe type of protocol this handler is interested in. This protocol type is a so-called EtherType, as registered here: http://standards.ieee.org/regauth/ethertype/eth.txt the value zero is interpreted as matching all protocols.
devicethe device attached to this handler. If the value is zero, the handler is attached to all devices on this node.
promiscuouswhether to register a promiscuous mode handler

Definition at line 197 of file node.cc.

References ns3::Node::ProtocolHandlerEntry::device, ns3::Node::ProtocolHandlerEntry::handler, m_devices, m_handlers, ns3::MakeCallback(), PromiscReceiveFromDevice(), ns3::Node::ProtocolHandlerEntry::promiscuous, ns3::Node::ProtocolHandlerEntry::protocol, and ns3::NetDevice::SetPromiscReceiveCallback().

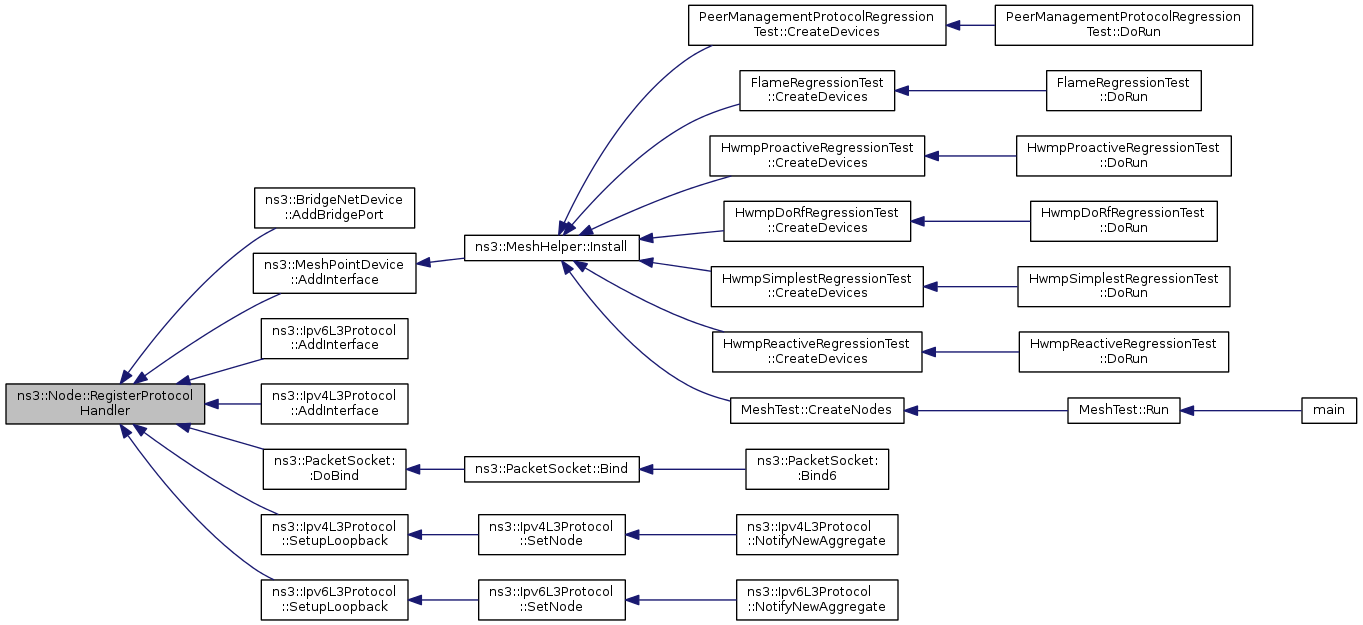

Referenced by ns3::BridgeNetDevice::AddBridgePort(), ns3::MeshPointDevice::AddInterface(), ns3::Ipv6L3Protocol::AddInterface(), ns3::Ipv4L3Protocol::AddInterface(), ns3::PacketSocket::DoBind(), ns3::Ipv4L3Protocol::SetupLoopback(), and ns3::Ipv6L3Protocol::SetupLoopback().

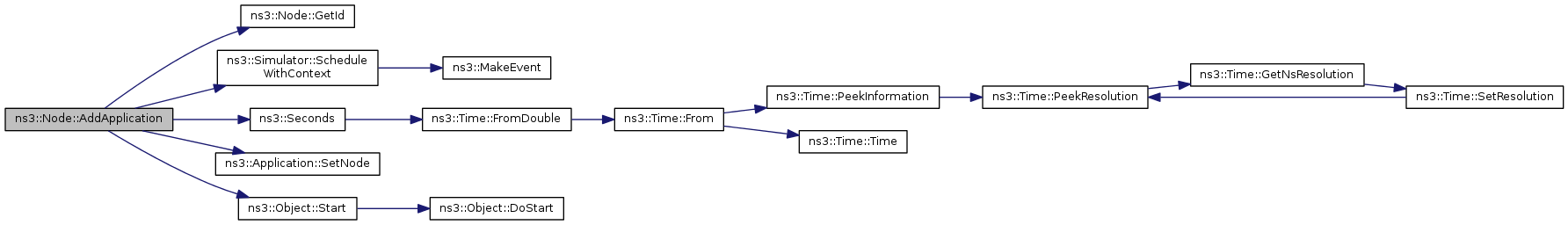

+ Here is the call graph for this function:

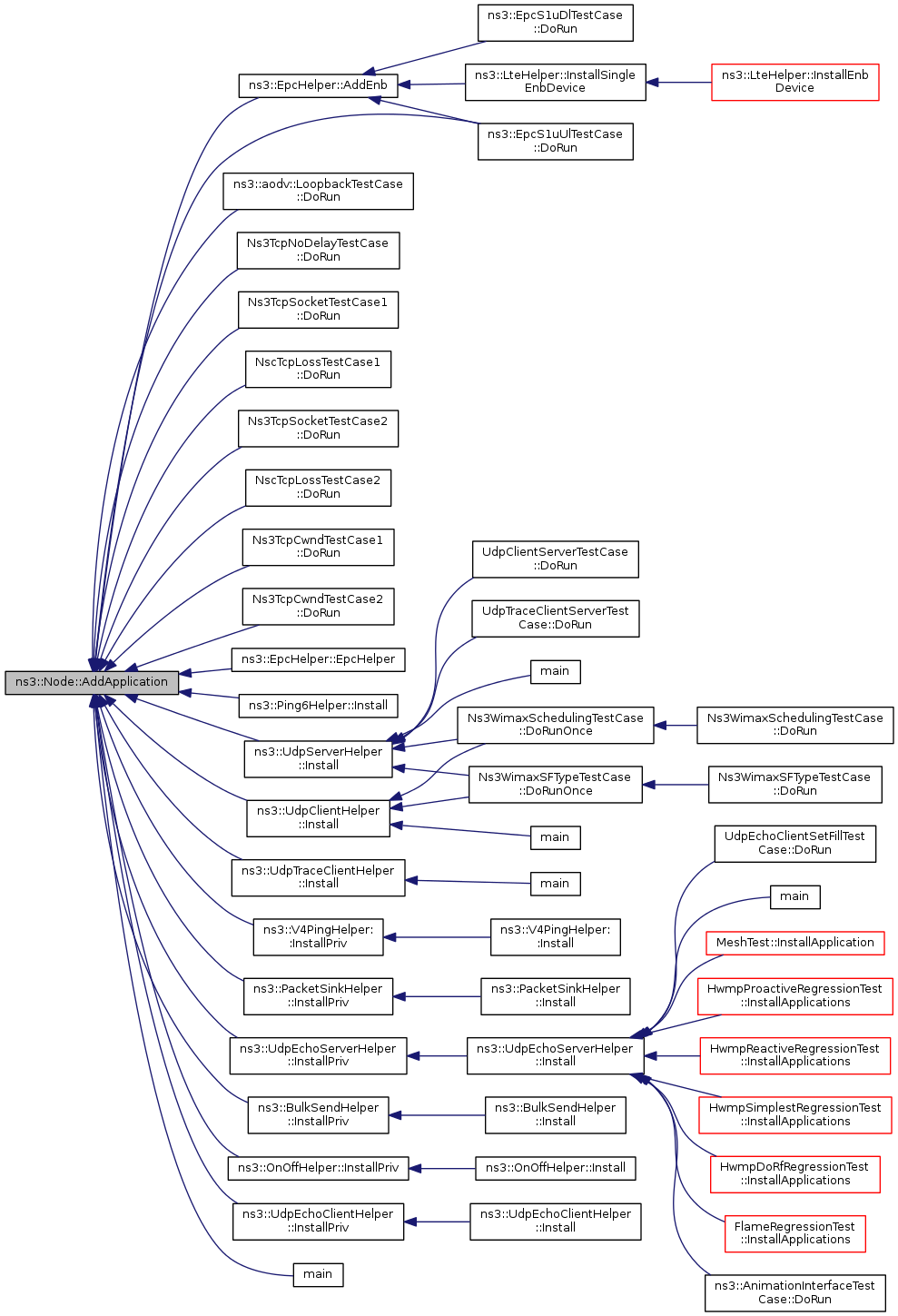

+ Here is the caller graph for this function:

void ns3::Node::UnregisterDeviceAdditionListener ( DeviceAdditionListener  listener)
Parameters
listenerthe listener to remove

Remove an existing listener from the list of listeners for the device-added event.

Definition at line 310 of file node.cc.

References m_deviceAdditionListeners.

void ns3::Node::UnregisterProtocolHandler ( ProtocolHandler  handler)
Parameters
handlerthe handler to unregister

After this call returns, the input handler will never be invoked anymore.

Definition at line 230 of file node.cc.

References m_handlers.

Referenced by ns3::PacketSocket::Close().

+ Here is the caller graph for this function:

Member Data Documentation

std::vector<Ptr<Application> > ns3::Node::m_applications
private

Definition at line 228 of file node.h.

Referenced by AddApplication(), DoDispose(), DoStart(), GetApplication(), GetNApplications(), and GetTypeId().

DeviceAdditionListenerList ns3::Node::m_deviceAdditionListeners
private
std::vector<Ptr<NetDevice> > ns3::Node::m_devices
private
ProtocolHandlerList ns3::Node::m_handlers
private
uint32_t ns3::Node::m_id
private

Definition at line 225 of file node.h.

Referenced by Construct(), GetId(), and GetTypeId().

uint32_t ns3::Node::m_sid
private

Definition at line 226 of file node.h.

Referenced by GetSystemId().


The documentation for this class was generated from the following files:
