Model a generic Lithium Ion Battery basing on [1][2]. More...

#include <li-ion-energy-source.h>

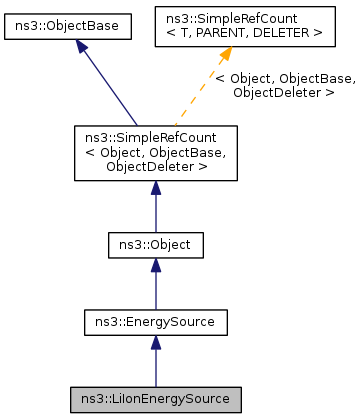

Inheritance diagram for ns3::LiIonEnergySource:

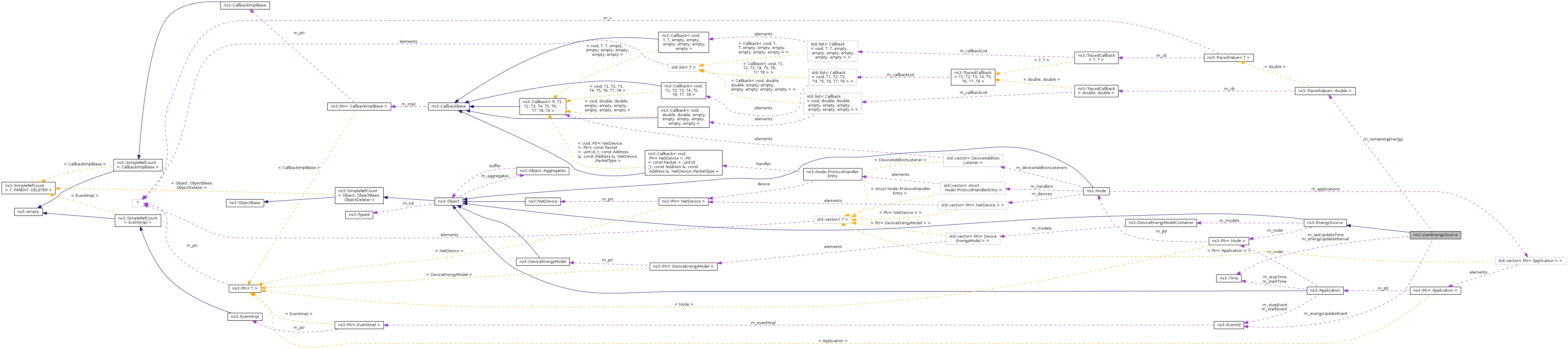

Collaboration diagram for ns3::LiIonEnergySource:

Public Member Functions
	LiIonEnergySource ()
virtual	~LiIonEnergySource ()
virtual void	DecreaseRemainingEnergy (double energyJ)
virtual double	GetEnergyFraction (void)
Time	GetEnergyUpdateInterval (void) const
virtual double	GetInitialEnergy (void) const
virtual double	GetRemainingEnergy (void)
virtual double	GetSupplyVoltage (void) const
virtual void	IncreaseRemainingEnergy (double energyJ)
void	SetEnergyUpdateInterval (Time interval)
void	SetInitialEnergy (double initialEnergyJ)
void	SetInitialSupplyVoltage (double supplyVoltageV)
virtual void	UpdateEnergySource (void)
Public Member Functions inherited from ns3::EnergySource
	EnergySource ()
virtual	~EnergySource ()
void	AppendDeviceEnergyModel (Ptr< DeviceEnergyModel > deviceEnergyModelPtr)
void	DisposeDeviceModels (void)
DeviceEnergyModelContainer	FindDeviceEnergyModels (TypeId tid)
DeviceEnergyModelContainer	FindDeviceEnergyModels (std::string name)
Ptr< Node >	GetNode (void) const
void	SetNode (Ptr< Node > node)
	Sets pointer to node containing this EnergySource.
void	StartDeviceModels (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LiIonEnergySource.

Private Member Functions
void	CalculateRemainingEnergy (void)
void	DoDispose (void)
void	DoStart (void)
double	GetVoltage (double current) const
void	HandleEnergyDrainedEvent (void)

Private Attributes
double	m_drainedCapacity
double	m_eExp
double	m_eFull
EventId	m_energyUpdateEvent
Time	m_energyUpdateInterval
double	m_eNom
double	m_initialEnergyJ
double	m_internalResistance
Time	m_lastUpdateTime
double	m_minVoltTh
double	m_qExp
double	m_qNom
double	m_qRated
TracedValue< double >	m_remainingEnergyJ
double	m_supplyVoltageV
double	m_typCurrent

Additional Inherited Members
Protected Member Functions inherited from ns3::EnergySource
void	BreakDeviceEnergyModelRefCycle (void)
double	CalculateTotalCurrent (void)
void	NotifyEnergyDrained (void)

Detailed Description

Model a generic Lithium Ion Battery basing on [1][2].

The model can be fitted to any type of Li-Ion Battery, simply changing the model parameters. The default values are fitted for the Panasonic CGR18650DA Li-Ion Battery [3].

The energy is drained as defined from the EnergySource interface but, this class consider the non-linear behaviour of Li-Ion cell. Each time energy is drained from the cell, the class evaluates the discharge curve to get the actual cell's voltage, accordingly to State of Charge (SOC) and current's drain.

If the actual voltage of the cell goes below the minimum threshold voltage, the cell is considered depleted and the energy drained event fired up.

The model requires several parameters to approximates the discharge curves:

IntialCellVoltage, maximum voltage of the fully charged cell
NominalCellVoltage, nominal cell's voltage, is used to determine the end of the nominal zone.
ExpCellVoltage, cell's voltage at the end of the exponential zone
RatedCapacity, rated capacity of the cell, in Ah
NomCapacity, cell's capacity at the end of the nominal zone, in Ah
ExpCapacity, cell's capacity at the end of the exponential zone, in Ah
InternalResistance, internal resistance of the cell, in Ohms
TypCurrent, typical discharge current value, used during the fitting process, in Ah
ThresholdVoltage, minimum threshold voltage below which the cell is considered depleted

For a complete reference of the energy source model and model's fitting please refer to UAN Framework page and Li-Ion model fitting page.

References: [1] C. M. Shepherd, "Design of Primary and Secondary Cells - Part 3. Battery discharge equation," U.S. Naval Research Laboratory, 1963 [2] Tremblay, O.; Dessaint, L.-A.; Dekkiche, A.-I., "A Generic Battery Model for the Dynamic Simulation of Hybrid Electric Vehicles," Ecole de Technologie Superieure, Universite du Quebec, 2007 [3] http://www.panasonic.com/industrial/includes/pdf/Panasonic_LiIon_CGR18650DA.pdf

Definition at line 72 of file li-ion-energy-source.h.

Constructor & Destructor Documentation

ns3::LiIonEnergySource::LiIonEnergySource ( )

Definition at line 107 of file li-ion-energy-source.cc.

ns3::LiIonEnergySource::~LiIonEnergySource ( )

virtual

Definition at line 113 of file li-ion-energy-source.cc.

Member Function Documentation

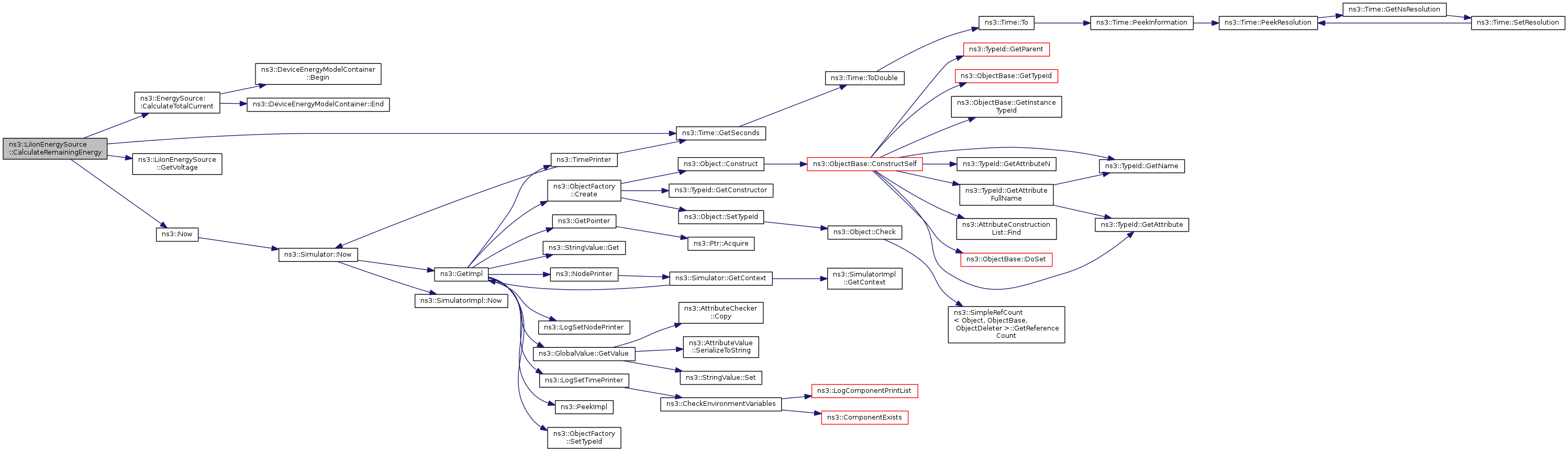

void ns3::LiIonEnergySource::CalculateRemainingEnergy ( void )

private

Calculates remaining energy. This function uses the total current from all device models to calculate the amount of energy to decrease. The energy to decrease is given by: energy to decrease = total current * supply voltage * time duration This function subtracts the calculated energy to decrease from remaining energy.

Definition at line 264 of file li-ion-energy-source.cc.

References ns3::EnergySource::CalculateTotalCurrent(), ns3::Time::GetSeconds(), GetVoltage(), m_drainedCapacity, m_lastUpdateTime, m_remainingEnergyJ, m_supplyVoltageV, ns3::Now(), NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoDispose(), and UpdateEnergySource().

Here is the call graph for this function:

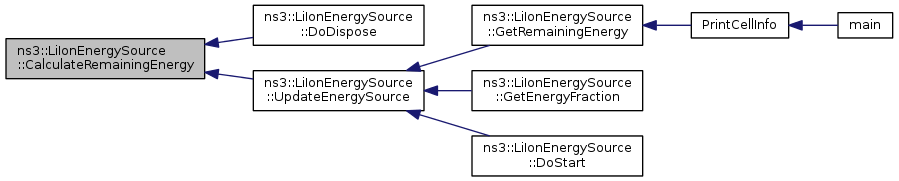

Here is the caller graph for this function:

void ns3::LiIonEnergySource::DecreaseRemainingEnergy ( double energyJ )

virtual

Parameters

energyJ Amount of energy (in Joules) to decrease from energy source.

Implements DecreaseRemainingEnergy.

Definition at line 181 of file li-ion-energy-source.cc.

References HandleEnergyDrainedEvent(), m_minVoltTh, m_remainingEnergyJ, m_supplyVoltageV, NS_ASSERT, and NS_LOG_FUNCTION.

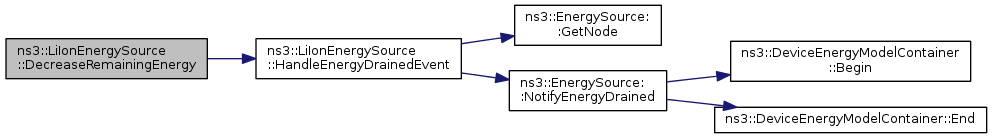

Here is the call graph for this function:

void ns3::LiIonEnergySource::DoDispose ( void )

private

Definition at line 243 of file li-ion-energy-source.cc.

References ns3::EnergySource::BreakDeviceEnergyModelRefCycle(), CalculateRemainingEnergy(), and NS_LOG_FUNCTION.

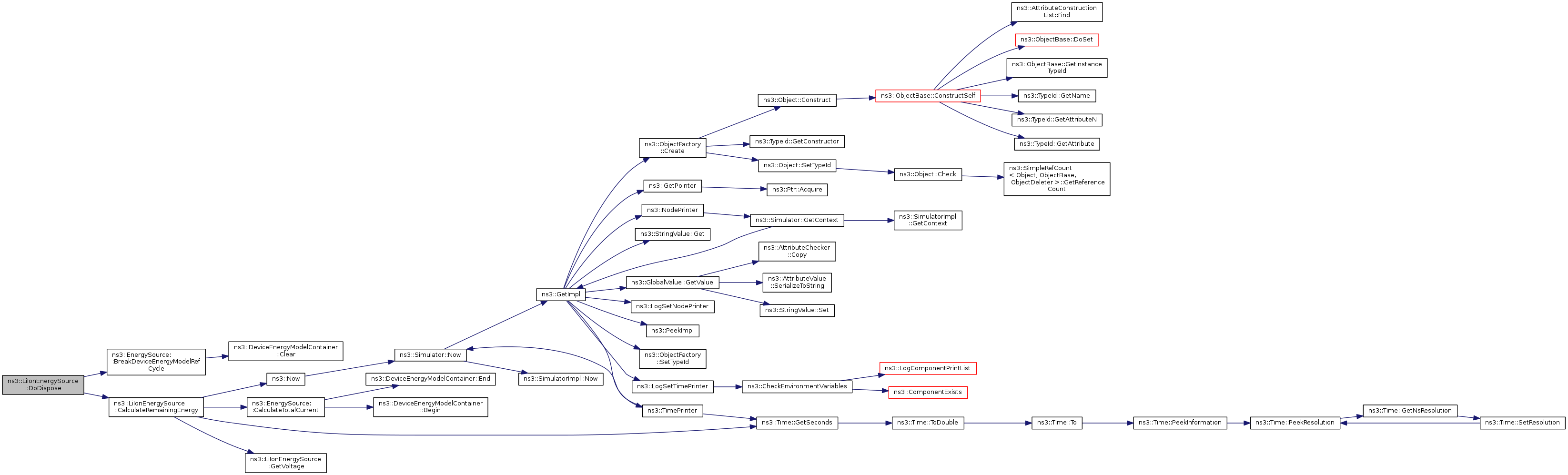

Here is the call graph for this function:

void ns3::LiIonEnergySource::DoStart ( void )

private

Definition at line 236 of file li-ion-energy-source.cc.

References NS_LOG_FUNCTION, and UpdateEnergySource().

Here is the call graph for this function:

double ns3::LiIonEnergySource::GetEnergyFraction ( void )

virtual

Returns: Energy fraction.

Implements GetEnergyFraction.

Implements ns3::EnergySource.

Definition at line 172 of file li-ion-energy-source.cc.

References m_initialEnergyJ, m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

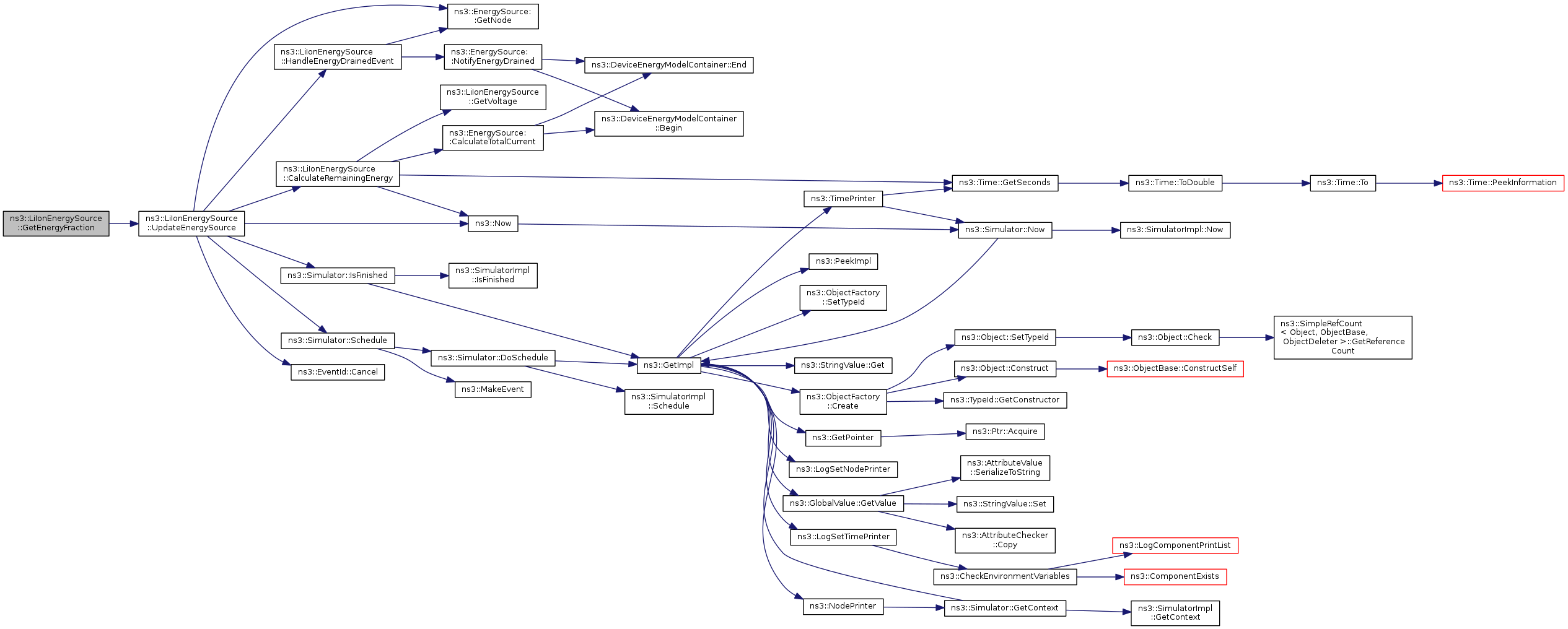

Here is the call graph for this function:

Time ns3::LiIonEnergySource::GetEnergyUpdateInterval ( void ) const

Returns: The interval between each energy update.

Definition at line 156 of file li-ion-energy-source.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LiIonEnergySource::GetInitialEnergy ( void ) const

virtual

Returns: Initial energy stored in energy source, in Joules.

Implements GetInitialEnergy.

Implements ns3::EnergySource.

Definition at line 128 of file li-ion-energy-source.cc.

References m_initialEnergyJ, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LiIonEnergySource::GetRemainingEnergy ( void )

virtual

Returns: Remaining energy in energy source, in Joules

Implements GetRemainingEnergy.

Implements ns3::EnergySource.

Definition at line 163 of file li-ion-energy-source.cc.

References m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

Referenced by PrintCellInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::LiIonEnergySource::GetSupplyVoltage ( void ) const

virtual

Returns: Supply voltage at the energy source.

Implements GetSupplyVoltage.

Implements ns3::EnergySource.

Definition at line 142 of file li-ion-energy-source.cc.

References m_supplyVoltageV, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and PrintCellInfo().

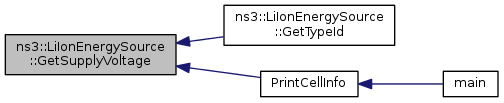

Here is the caller graph for this function:

TypeId ns3::LiIonEnergySource::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LiIonEnergySource.

Attributes defined for this type:

LiIonEnergySourceInitialEnergyJ: Initial energy stored in basic energy source.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 31752
- Flags: construct write read
InitialCellVoltage: Initial (maximum) voltage of the cell (fully charged).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 4.05
- Flags: construct write read
NominalCellVoltage: Nominal voltage of the cell.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.6
- Flags: construct write read
ExpCellVoltage: Cell voltage at the end of the exponential zone.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.6
- Flags: construct write read
RatedCapacity: Rated capacity of the cell.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.45
- Flags: construct write read
NomCapacity: Cell capacity at the end of the nominal zone.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.1
- Flags: construct write read
ExpCapacity: Cell Capacity at the end of the exponential zone.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.2
- Flags: construct write read
InternalResistance: Internal resistance of the cell
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.083
- Flags: construct write read
TypCurrent: Typical discharge current used to fit the curves
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.33
- Flags: construct write read
ThresholdVoltage: Minimum threshold voltage to consider the battery depleted.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.3
- Flags: construct write read
PeriodicEnergyUpdateInterval: Time between two consecutive periodic energy updates.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +1000000000.0ns
- Flags: construct write read

TraceSources defined for this type:

RemainingEnergy: Remaining energy at BasicEnergySource.

Reimplemented from ns3::EnergySource.

Definition at line 37 of file li-ion-energy-source.cc.

References GetEnergyUpdateInterval(), GetInitialEnergy(), GetSupplyVoltage(), m_eExp, m_eNom, m_internalResistance, m_minVoltTh, m_qExp, m_qNom, m_qRated, m_remainingEnergyJ, m_typCurrent, ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetEnergyUpdateInterval(), SetInitialEnergy(), SetInitialSupplyVoltage(), and ns3::TypeId::SetParent().

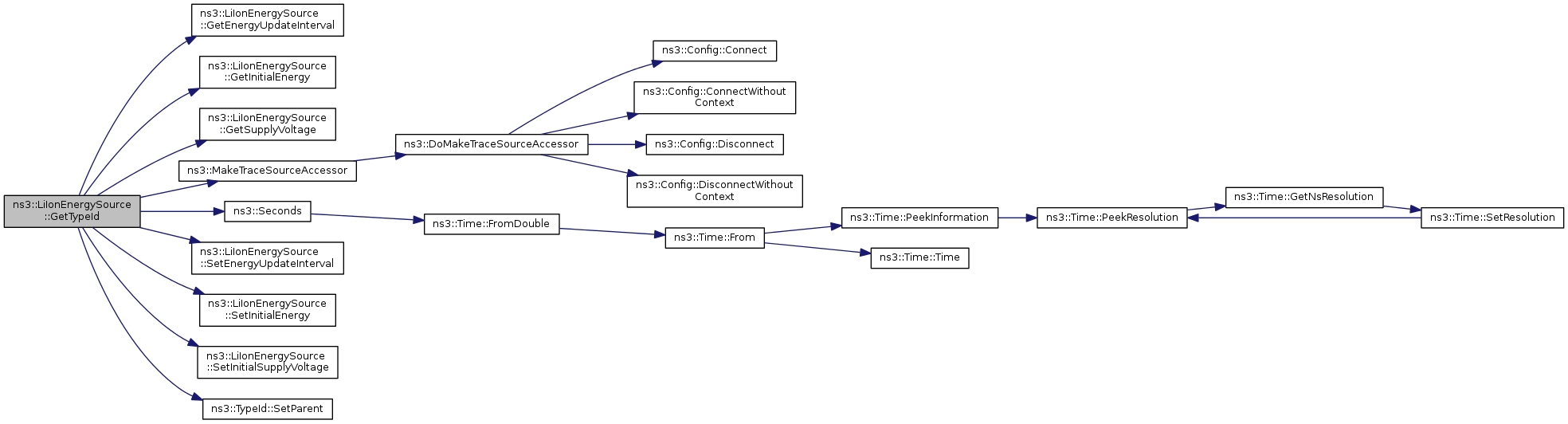

Here is the call graph for this function:

double ns3::LiIonEnergySource::GetVoltage ( double current ) const

private

Parameters

current the actual discharge current value.

Get the cell voltage in function of the discharge current. It consider different discharge curves for different discharge currents and the remaining energy of the cell.

Definition at line 280 of file li-ion-energy-source.cc.

References E, m_drainedCapacity, m_eExp, m_eFull, m_eNom, m_internalResistance, m_qExp, m_qNom, m_qRated, m_typCurrent, NS_LOG_DEBUG, NS_LOG_FUNCTION, and V.

Referenced by CalculateRemainingEnergy().

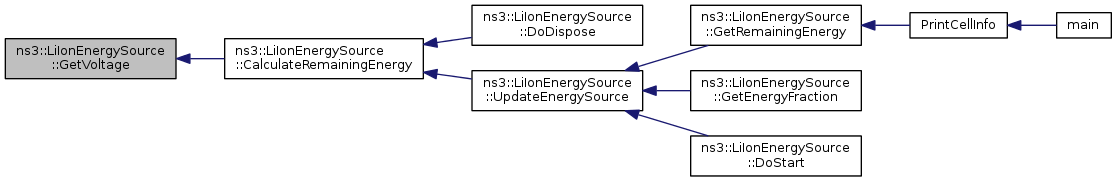

Here is the caller graph for this function:

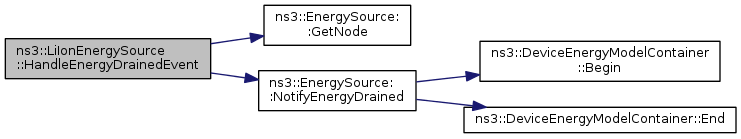

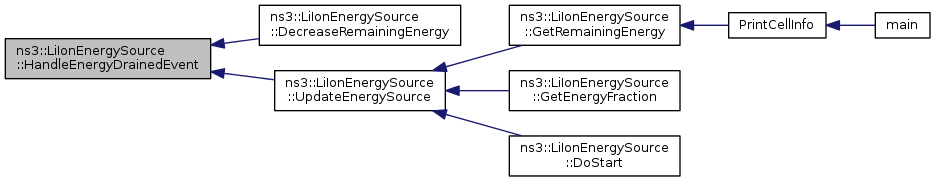

void ns3::LiIonEnergySource::HandleEnergyDrainedEvent ( void )

private

Handles the remaining energy going to zero event. This function notifies all the energy models aggregated to the node about the energy being depleted. Each energy model is then responsible for its own handler.

Definition at line 253 of file li-ion-energy-source.cc.

References ns3::EnergySource::GetNode(), m_remainingEnergyJ, ns3::EnergySource::NotifyEnergyDrained(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

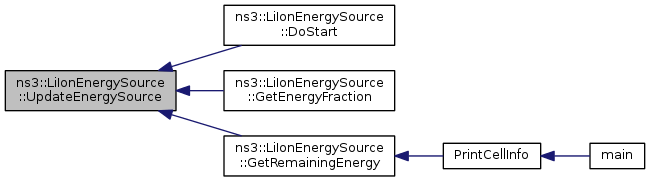

Referenced by DecreaseRemainingEnergy(), and UpdateEnergySource().

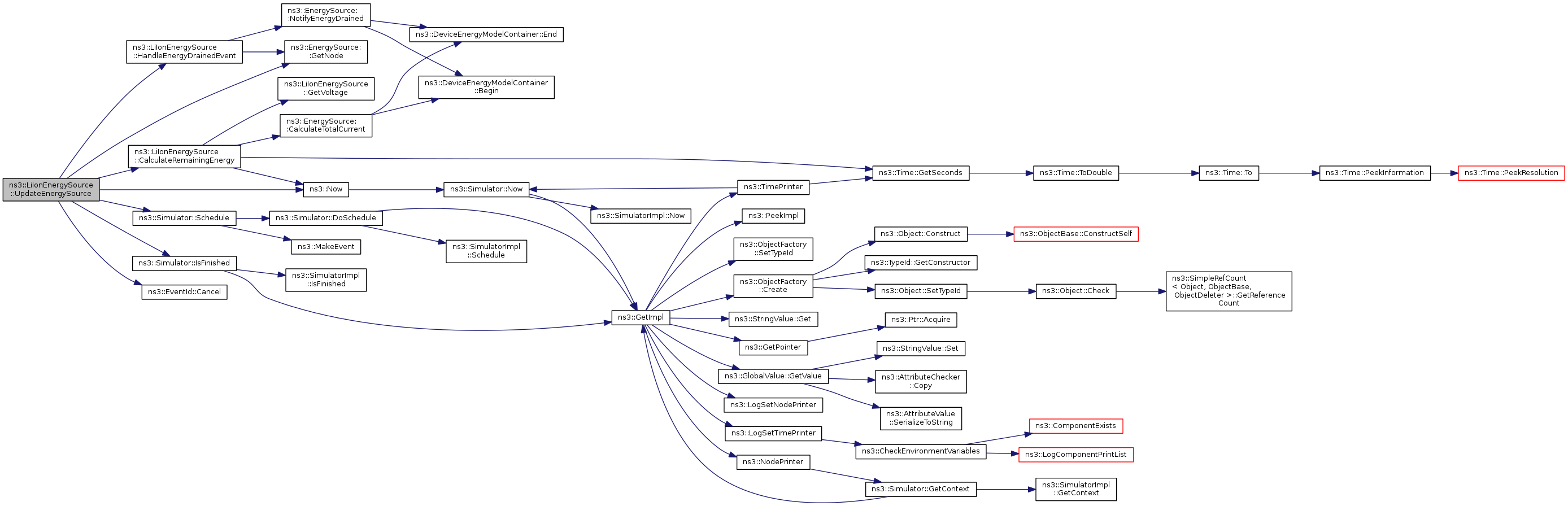

Here is the call graph for this function:
