#include <lte-hex-grid-enb-topology-helper.h>

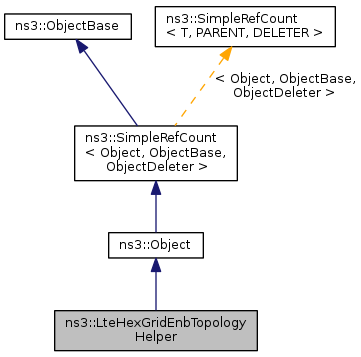

Inheritance diagram for ns3::LteHexGridEnbTopologyHelper:

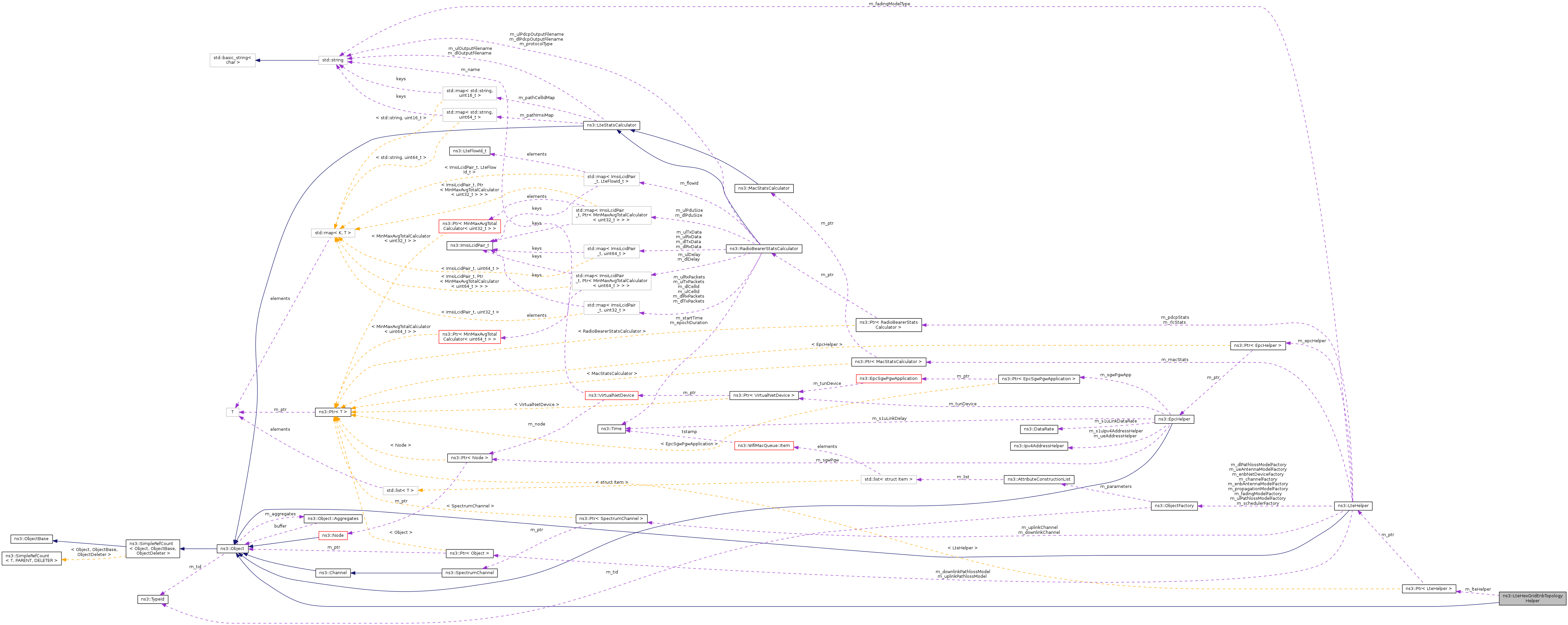

Collaboration diagram for ns3::LteHexGridEnbTopologyHelper:

Public Member Functions
	LteHexGridEnbTopologyHelper (void)
virtual	~LteHexGridEnbTopologyHelper (void)
virtual void	DoDispose (void)
void	SetLteHelper (Ptr< LteHelper > h)
NetDeviceContainer	SetPositionAndInstallEnbDevice (NodeContainer c)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteHexGridEnbTopologyHelper.

Private Attributes
double	m_d
uint32_t	m_gridWidth
Ptr< LteHelper >	m_lteHelper
double	m_offset
uint32_t	m_siteHeight
double	m_xMin
double	m_yMin

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This helper class allows to easily create a topology with eNBs grouped in three-sector sites layed out on an hexagonal grid. The layout is done row-wise.

Definition at line 36 of file lte-hex-grid-enb-topology-helper.h.

Constructor & Destructor Documentation

ns3::LteHexGridEnbTopologyHelper::LteHexGridEnbTopologyHelper ( void )

Definition at line 37 of file lte-hex-grid-enb-topology-helper.cc.

References NS_LOG_FUNCTION.

ns3::LteHexGridEnbTopologyHelper::~LteHexGridEnbTopologyHelper ( void )

virtual

Definition at line 42 of file lte-hex-grid-enb-topology-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteHexGridEnbTopologyHelper::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 87 of file lte-hex-grid-enb-topology-helper.cc.

References NS_LOG_FUNCTION.

TypeId ns3::LteHexGridEnbTopologyHelper::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteHexGridEnbTopologyHelper.

Attributes defined for this type:

InterSiteDistance: The distance [m] between nearby sites
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 500
- Flags: construct write read
SectorOffset: The offset [m] in the position for the node of each sector with respect to the center of the three-sector site
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.5
- Flags: construct write read
SiteHeight: The height [m] of each site
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 30
- Flags: construct write read
MinX: The x coordinate where the hex grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
MinY: The y coordinate where the hex grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
GridWidth: The number of sites in even rows (odd rows will have one additional site).
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 47 of file lte-hex-grid-enb-topology-helper.cc.

References m_d, m_gridWidth, m_offset, m_siteHeight, m_xMin, m_yMin, and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::LteHexGridEnbTopologyHelper::SetLteHelper ( Ptr< LteHelper > h )

Set the LteHelper to be used to actually create the EnbNetDevices

Note: if no EpcHelper is ever set, then LteHexGridEnbTopologyHelper will default to creating an LTE-only simulation with no EPC, using LteRlcSm as the RLC model, and without supporting any IP networking. In other words, it will be a radio-level simulation involving only LTE PHY and MAC and the FF Scheduler, with a saturation traffic model for the RLC.

Parameters
