#include <lte-rlc.h>

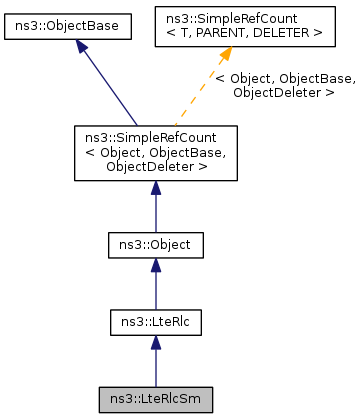

Inheritance diagram for ns3::LteRlcSm:

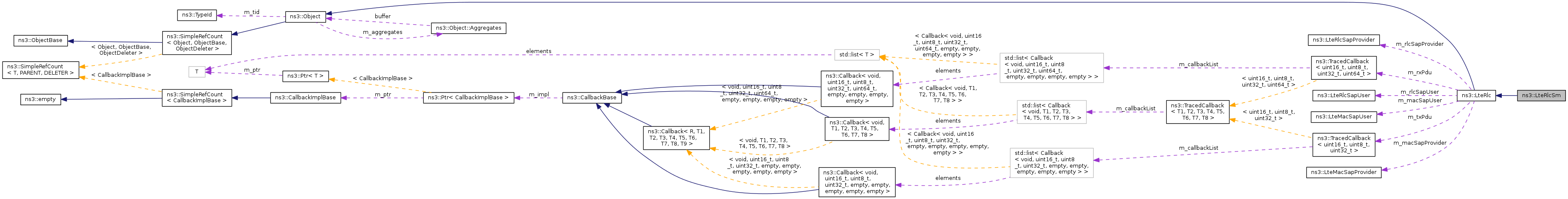

Collaboration diagram for ns3::LteRlcSm:

Public Member Functions
	LteRlcSm ()
virtual	~LteRlcSm ()
virtual void	DoNotifyHarqDeliveryFailure ()
virtual void	DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer)
virtual void	DoReceivePdu (Ptr< Packet > p)
virtual void	DoTransmitPdcpPdu (Ptr< Packet > p)
void	Start ()
Public Member Functions inherited from ns3::LteRlc
	LteRlc ()
virtual	~LteRlc ()
LteMacSapUser *	GetLteMacSapUser ()
LteRlcSapProvider *	GetLteRlcSapProvider ()
void	SetLcId (uint8_t lcId)
void	SetLteMacSapProvider (LteMacSapProvider *s)
void	SetLteRlcSapUser (LteRlcSapUser *s)
void	SetRnti (uint16_t rnti)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteRlcSm.

Private Member Functions
void	ReportBufferStatus ()

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::LteRlc
uint8_t	m_lcid
LteMacSapProvider *	m_macSapProvider
LteMacSapUser *	m_macSapUser
LteRlcSapProvider *	m_rlcSapProvider
LteRlcSapUser *	m_rlcSapUser
uint16_t	m_rnti
TracedCallback< uint16_t, uint8_t, uint32_t, uint64_t >	m_rxPdu
TracedCallback< uint16_t, uint8_t, uint32_t >	m_txPdu

Detailed Description

LTE_RLC Saturation Mode (SM): simulation-specific mode used for experiments that do not need to consider the layers above the LTE_RLC. The LTE_RLC SM, unlike the standard LTE_RLC modes, it does not provide data delivery services to upper layers; rather, it just generates a new LTE_RLC PDU whenever the MAC notifies a transmission opportunity.

Definition at line 145 of file lte-rlc.h.

Constructor & Destructor Documentation

ns3::LteRlcSm::LteRlcSm ( )

Definition at line 166 of file lte-rlc.cc.

References NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and Start().

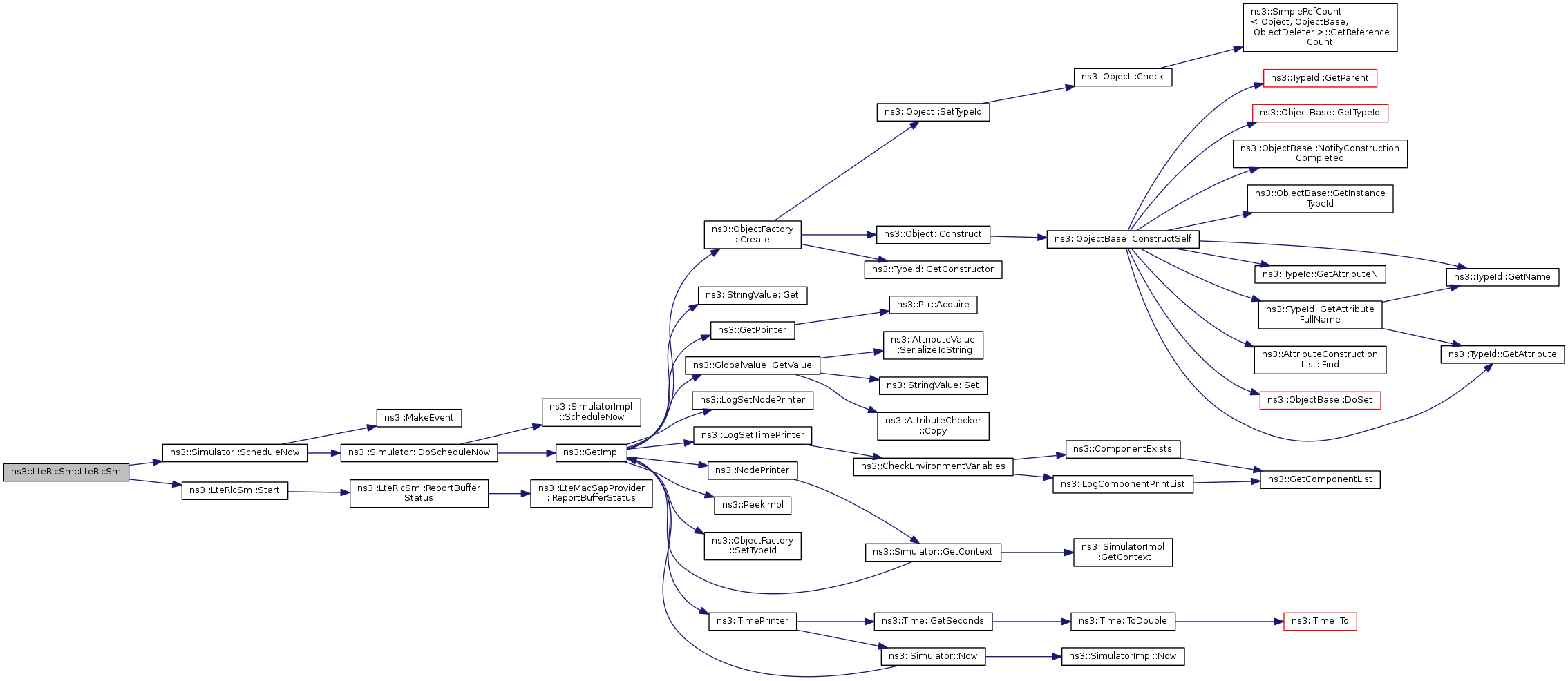

Here is the call graph for this function:

ns3::LteRlcSm::~LteRlcSm ( )

virtual

Definition at line 173 of file lte-rlc.cc.

Member Function Documentation

void ns3::LteRlcSm::DoNotifyHarqDeliveryFailure ( )

virtual

Implements ns3::LteRlc.

Definition at line 235 of file lte-rlc.cc.

References NS_LOG_FUNCTION.

void ns3::LteRlcSm::DoNotifyTxOpportunity	(	uint32_t	bytes,
		uint8_t	layer
	)

virtual

Implements ns3::LteRlc.

Definition at line 213 of file lte-rlc.cc.

References ns3::Packet::AddByteTag(), ns3::LteMacSapProvider::TransmitPduParameters::layer, ns3::LteMacSapProvider::TransmitPduParameters::lcid, ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, ns3::LteRlc::m_rnti, ns3::LteRlc::m_txPdu, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ReportBufferStatus(), ns3::LteMacSapProvider::TransmitPduParameters::rnti, and ns3::LteMacSapProvider::TransmitPdu().

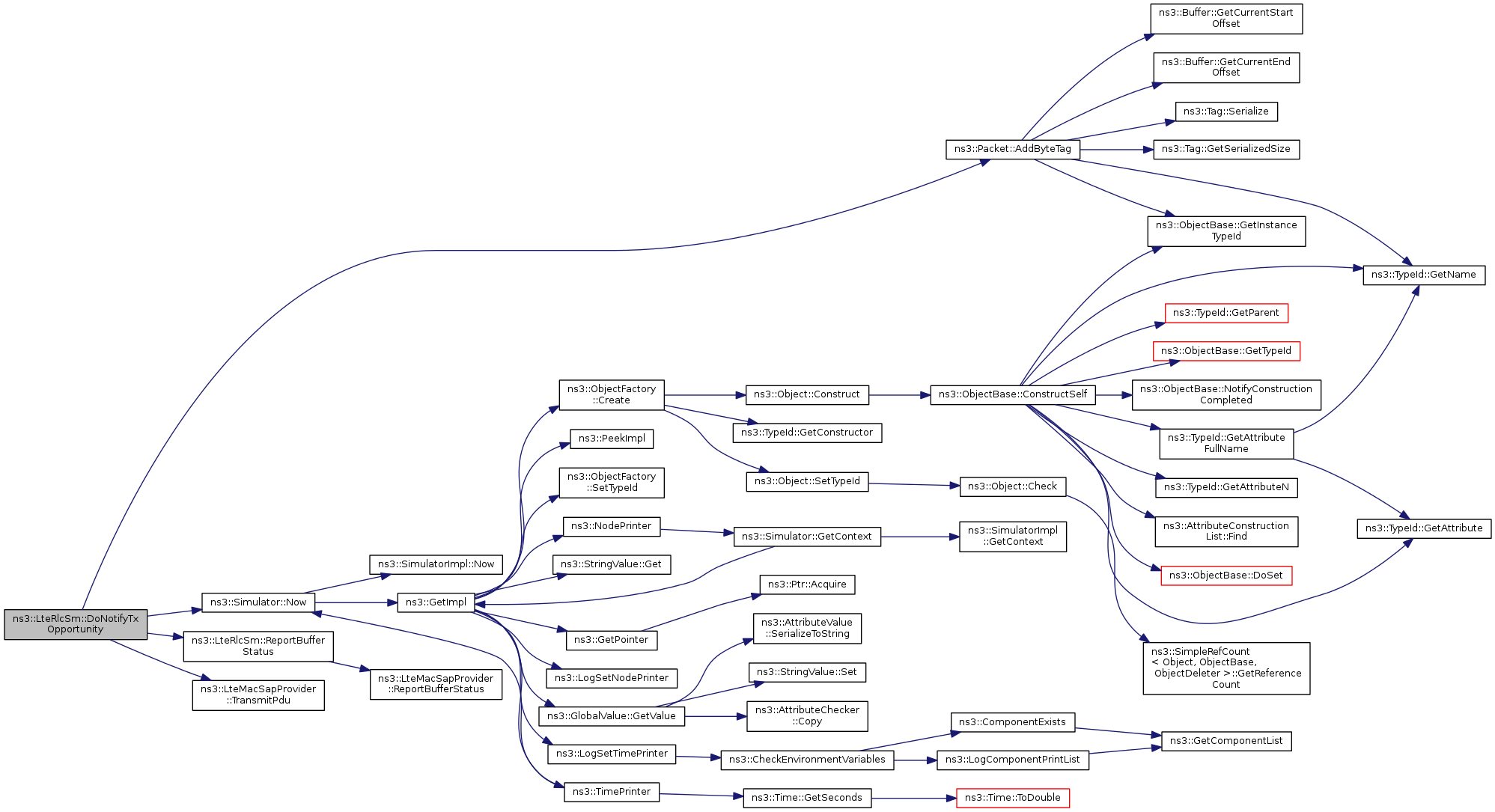

Here is the call graph for this function:

void ns3::LteRlcSm::DoReceivePdu ( Ptr< Packet > p )

virtual

Implements ns3::LteRlc.

Definition at line 195 of file lte-rlc.cc.

References ns3::Packet::FindFirstMatchingByteTag(), ns3::Time::GetNanoSeconds(), ns3::RlcTag::GetSenderTimestamp(), ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, ns3::LteRlc::m_rnti, ns3::LteRlc::m_rxPdu, ns3::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

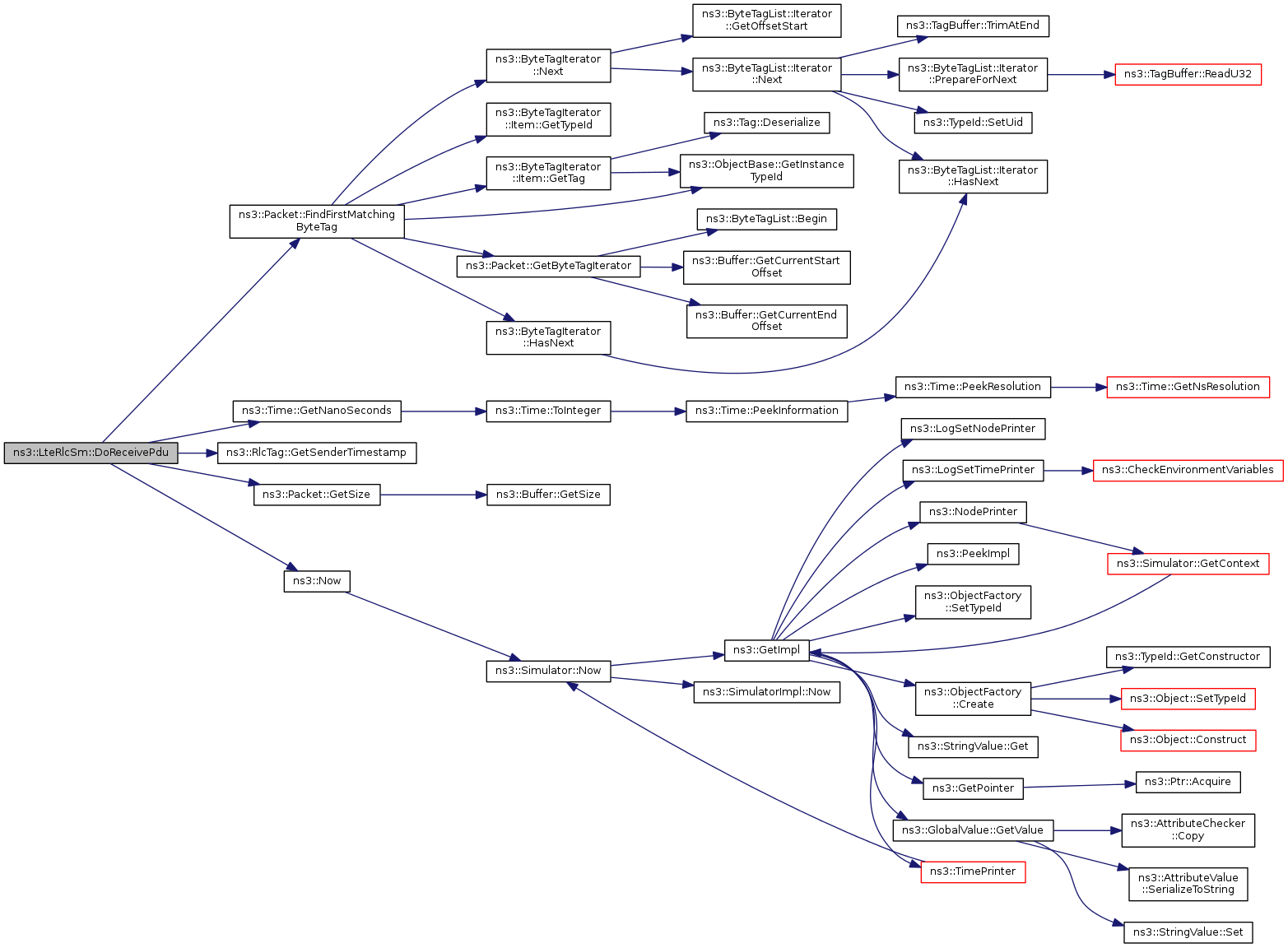

Here is the call graph for this function:

void ns3::LteRlcSm::DoTransmitPdcpPdu ( Ptr< Packet > p )

virtual

Implements ns3::LteRlc.

Definition at line 189 of file lte-rlc.cc.

References NS_LOG_FUNCTION.

TypeId ns3::LteRlcSm::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteRlcSm.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm

No Attributes defined for this type.
No TraceSources defined for this type.
TraceSources defined in parent class ns3::LteRlc:

TxPDU: PDU transmission notified to the MAC.
RxPDU: PDU received.

Reimplemented from ns3::LteRlc.

Definition at line 179 of file lte-rlc.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::LteUeRrc::SetupRadioBearer(), and ns3::LteEnbRrc::SetupRadioBearer().

Here is the call graph for this function:

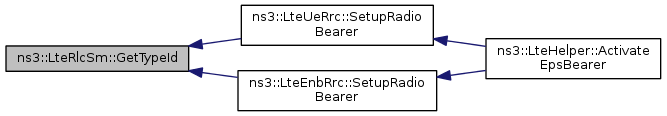

Here is the caller graph for this function:

void ns3::LteRlcSm::ReportBufferStatus ( )

private

Definition at line 248 of file lte-rlc.cc.

Referenced by DoNotifyTxOpportunity(), and Start().

Here is the call graph for this function:

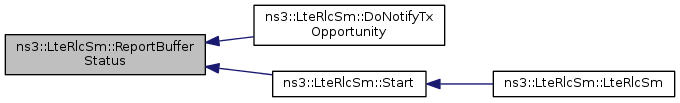

Here is the caller graph for this function:

void ns3::LteRlcSm::Start ( void )

This method calls the virtual DoStart method on all the objects aggregated to this object. DoStart will be called only once over the lifetime of an object, just like DoDispose is called only once.

See Also: DoStart

Note: the code here is a bit tricky because we need to protect ourselves from modifications in the aggregate array while DoStart is called. The user's implementation of the DoStart method could call GetObject (which could reorder the array) and it could call AggregateObject which would add an object at the end of the array. To be safe, we restart iteration over the array whenever we call some user code, just in case.

Reimplemented from ns3::Object.

Definition at line 241 of file lte-rlc.cc.

References NS_LOG_FUNCTION, and ReportBufferStatus().

Referenced by LteRlcSm().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/lte/model/lte-rlc.h
doc/introspected-doxygen.h
src/lte/model/lte-rlc.cc
