#include <lte-radio-bearer-tag.h>

Inheritance diagram for ns3::LteRadioBearerTag:

Collaboration diagram for ns3::LteRadioBearerTag:

Public Member Functions
	LteRadioBearerTag ()
	LteRadioBearerTag (uint16_t rnti, uint8_t lcId)
	LteRadioBearerTag (uint16_t rnti, uint8_t lcId, uint8_t layer)
virtual void	Deserialize (TagBuffer i)
virtual TypeId	GetInstanceTypeId (void) const
uint8_t	GetLayer (void) const
uint8_t	GetLcid (void) const
uint16_t	GetRnti (void) const
virtual uint32_t	GetSerializedSize () const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
void	SetLayer (uint8_t lcid)
void	SetLcid (uint8_t lcid)
void	SetRnti (uint16_t tid)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteRadioBearerTag.

Private Attributes
uint8_t	m_layer
uint8_t	m_lcid
uint16_t	m_rnti

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Tag used to define the RNTI and LC id for each MAC packet trasmitted

Definition at line 34 of file lte-radio-bearer-tag.h.

Constructor & Destructor Documentation

ns3::LteRadioBearerTag::LteRadioBearerTag ( )

Create an empty LteRadioBearerTag

Definition at line 54 of file lte-radio-bearer-tag.cc.

ns3::LteRadioBearerTag::LteRadioBearerTag	(	uint16_t	rnti,
		uint8_t	lcId
	)

Create a LteRadioBearerTag with the given RNTI and LC id

Definition at line 60 of file lte-radio-bearer-tag.cc.

ns3::LteRadioBearerTag::LteRadioBearerTag	(	uint16_t	rnti,
		uint8_t	lcId,
		uint8_t	layer
	)

Create a LteRadioBearerTag with the given RNTI, LC id and layer

Definition at line 66 of file lte-radio-bearer-tag.cc.

Member Function Documentation

void ns3::LteRadioBearerTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 105 of file lte-radio-bearer-tag.cc.

References m_lcid, m_rnti, ns3::TagBuffer::ReadU16(), and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

TypeId ns3::LteRadioBearerTag::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 49 of file lte-radio-bearer-tag.cc.

References GetTypeId().

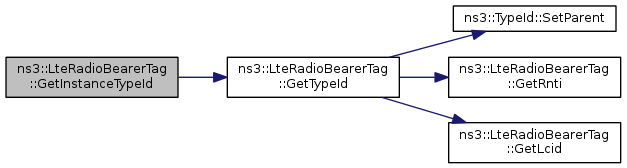

Here is the call graph for this function:

uint8_t ns3::LteRadioBearerTag::GetLayer ( void ) const

Definition at line 124 of file lte-radio-bearer-tag.cc.

References m_layer.

Referenced by ns3::LteSpectrumPhy::EndRx().

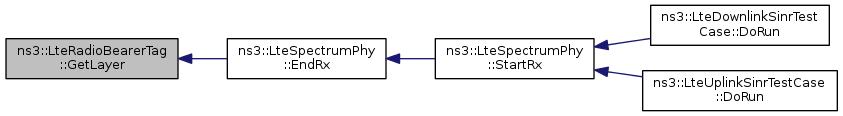

Here is the caller graph for this function:

uint8_t ns3::LteRadioBearerTag::GetLcid ( void ) const

Definition at line 118 of file lte-radio-bearer-tag.cc.

References m_lcid.

Referenced by ns3::LteUeMac::DoReceivePhyPdu(), ns3::LteEnbMac::DoReceivePhyPdu(), GetTypeId(), ns3::EpcEnbApplication::RecvFromLteSocket(), and ns3::LteEnbRrc::Send().

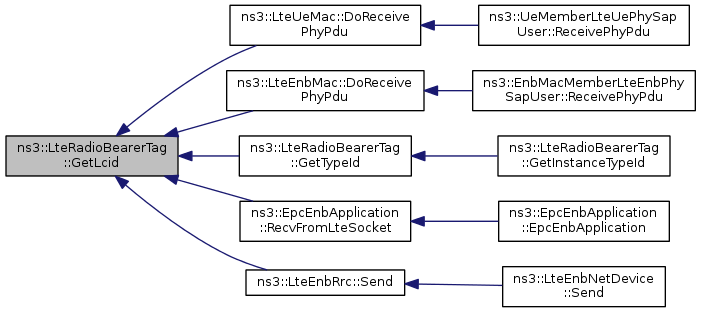

Here is the caller graph for this function:

uint16_t ns3::LteRadioBearerTag::GetRnti ( void ) const

Definition at line 112 of file lte-radio-bearer-tag.cc.

References m_rnti.

Referenced by ns3::LteUeMac::DoReceivePhyPdu(), ns3::LteEnbMac::DoReceivePhyPdu(), ns3::LteSpectrumPhy::EndRx(), GetTypeId(), ns3::EpcEnbApplication::RecvFromLteSocket(), and ns3::LteEnbRrc::Send().

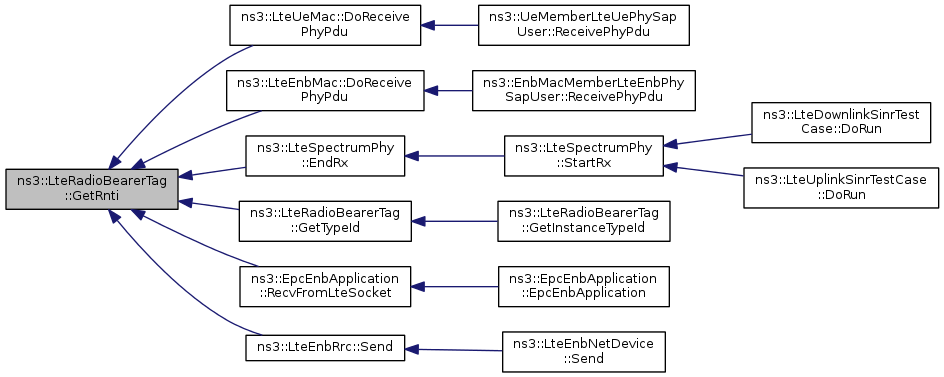

Here is the caller graph for this function:

uint32_t ns3::LteRadioBearerTag::GetSerializedSize ( ) const

virtual

Returns: the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 92 of file lte-radio-bearer-tag.cc.

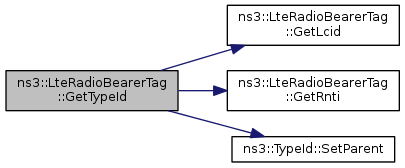

TypeId ns3::LteRadioBearerTag::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteRadioBearerTag.

Attributes defined for this type:

rnti: The rnti that indicates the UE which packet belongs
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read
lcid: The LC id that indicates the UE which packet belongs
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
