ns3::LteRlcSduStatusTag Class Reference

This class implements a tag that carries the status of a RLC SDU for the fragmentation process Status of RLC SDU. More...

#include <lte-rlc-sdu-status-tag.h>

Inheritance diagram for ns3::LteRlcSduStatusTag:

Collaboration diagram for ns3::LteRlcSduStatusTag:

Public Types
enum	SduStatus_t {   FULL_SDU = 1, FIRST_SEGMENT = 2, MIDDLE_SEGMENT = 3, LAST_SEGMENT = 4,   ANY_SEGMENT = 5 }

Public Member Functions
	LteRlcSduStatusTag ()
virtual void	Deserialize (TagBuffer i)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
uint8_t	GetStatus (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
void	SetStatus (uint8_t status)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteRlcSduStatusTag.

Private Attributes
uint8_t	m_sduStatus

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

This class implements a tag that carries the status of a RLC SDU for the fragmentation process Status of RLC SDU.

Definition at line 34 of file lte-rlc-sdu-status-tag.h.

Member Enumeration Documentation

enum ns3::LteRlcSduStatusTag::SduStatus_t

Enumerator:

FULL_SDU
FIRST_SEGMENT
MIDDLE_SEGMENT
LAST_SEGMENT
ANY_SEGMENT

Definition at line 49 of file lte-rlc-sdu-status-tag.h.

Constructor & Destructor Documentation

ns3::LteRlcSduStatusTag::LteRlcSduStatusTag

(

)

Definition at line 27 of file lte-rlc-sdu-status-tag.cc.

Member Function Documentation

void ns3::LteRlcSduStatusTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 69 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus, and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

TypeId ns3::LteRlcSduStatusTag::GetInstanceTypeId ( void  ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 53 of file lte-rlc-sdu-status-tag.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::LteRlcSduStatusTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 59 of file lte-rlc-sdu-status-tag.cc.

uint8_t ns3::LteRlcSduStatusTag::GetStatus

(

void

)

const

Definition at line 38 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus.

Referenced by ns3::LteRlcUm::DoNotifyTxOpportunity(), and ns3::LteRlcAm::DoNotifyTxOpportunity().

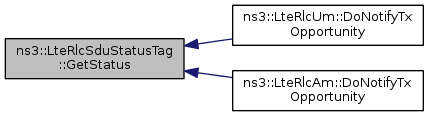

Here is the caller graph for this function:

TypeId ns3::LteRlcSduStatusTag::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::LteRlcSduStatusTag.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Tag.

Definition at line 44 of file lte-rlc-sdu-status-tag.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcSduStatusTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 74 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus.

void ns3::LteRlcSduStatusTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 64 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus, and ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

void ns3::LteRlcSduStatusTag::SetStatus

(

uint8_t

status

)

Definition at line 32 of file lte-rlc-sdu-status-tag.cc.

References m_sduStatus.

Referenced by ns3::LteRlcUm::DoTransmitPdcpPdu(), and ns3::LteRlcAm::DoTransmitPdcpPdu().

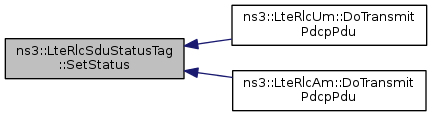

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::LteRlcSduStatusTag::m_sduStatus

private

Definition at line 56 of file lte-rlc-sdu-status-tag.h.

Referenced by Deserialize(), GetStatus(), Print(), Serialize(), and SetStatus().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-rlc-sdu-status-tag.h
• doc/introspected-doxygen.h
• src/lte/model/lte-rlc-sdu-status-tag.cc
