ns3::MacTxMiddle Class Reference

#include <mac-tx-middle.h>

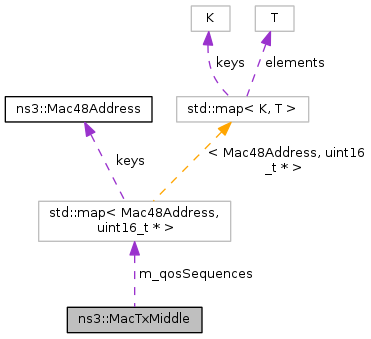

Collaboration diagram for ns3::MacTxMiddle:

Public Member Functions
	MacTxMiddle ()
	~MacTxMiddle ()
uint16_t	GetNextSeqNumberByTidAndAddress (uint8_t tid, Mac48Address addr) const
uint16_t	GetNextSequenceNumberfor (const WifiMacHeader *hdr)

Private Attributes
std::map< Mac48Address, uint16_t * >	m_qosSequences
uint16_t	m_sequence

Detailed Description

Handles sequence numbering of IEEE 802.11 data frames

Definition at line 39 of file mac-tx-middle.h.

Constructor & Destructor Documentation

ns3::MacTxMiddle::MacTxMiddle

(

)

Definition at line 30 of file mac-tx-middle.cc.

ns3::MacTxMiddle::~MacTxMiddle

(

)

Definition at line 35 of file mac-tx-middle.cc.

References m_qosSequences.

Member Function Documentation

uint16_t ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress	(	uint8_t	tid,
		Mac48Address	addr
	)		const

Definition at line 82 of file mac-tx-middle.cc.

References m_qosSequences, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::CompleteTx(), ns3::BlockAckManager::NotifyGotBlockAck(), and ns3::EdcaTxopN::SetupBlockAckIfNeeded().

Here is the caller graph for this function:

uint16_t ns3::MacTxMiddle::GetNextSequenceNumberfor

(

const WifiMacHeader *

hdr

)

Definition at line 44 of file mac-tx-middle.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), m_qosSequences, m_sequence, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), and ns3::EdcaTxopN::SendAddBaRequest().

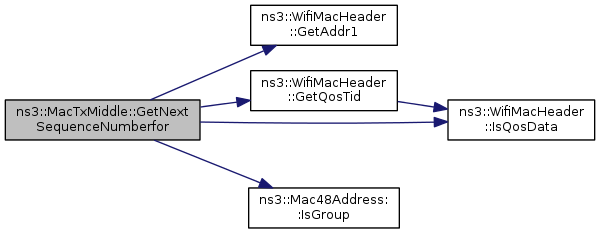

Here is the call graph for this function:

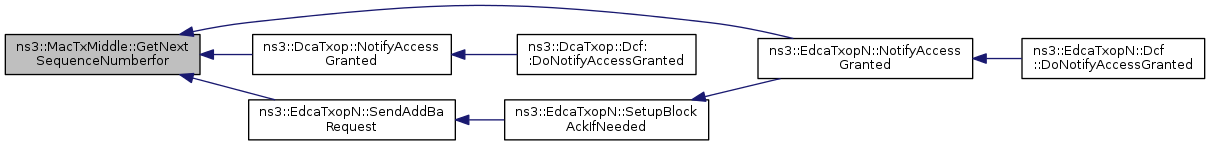

Here is the caller graph for this function:

Member Data Documentation

std::map<Mac48Address,uint16_t*> ns3::MacTxMiddle::m_qosSequences

private

Definition at line 49 of file mac-tx-middle.h.

Referenced by GetNextSeqNumberByTidAndAddress(), GetNextSequenceNumberfor(), and ~MacTxMiddle().

uint16_t ns3::MacTxMiddle::m_sequence

private

Definition at line 50 of file mac-tx-middle.h.

Referenced by GetNextSequenceNumberfor().

---

The documentation for this class was generated from the following files:

• src/wifi/model/mac-tx-middle.h
• src/wifi/model/mac-tx-middle.cc
