A record that holds information about an NdiscCache entry. More...

#include <ndisc-cache.h>

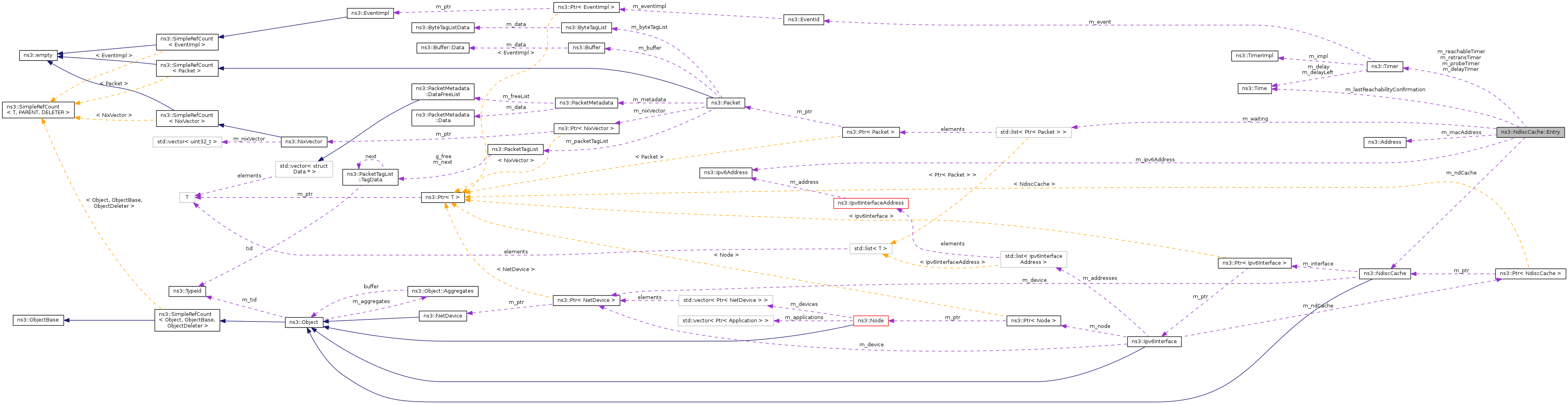

Collaboration diagram for ns3::NdiscCache::Entry:

Public Member Functions
	Entry (NdiscCache *nd)
	Constructor.
void	AddWaitingPacket (Ptr< Packet > p)
	Add a packet (or replace old value) in the queue.
void	ClearWaitingPacket ()
	Clear the waiting packet list.
void	FunctionDelayTimeout ()
	Function called when delay timer timeout.
void	FunctionProbeTimeout ()
	Function called when probe timer timeout.
void	FunctionReachableTimeout ()
	Function called when reachable timer timeout.
void	FunctionRetransmitTimeout ()
	Function called when retransmit timer timeout. It verify that the NS retransmit has reached the max so discard the entry otherwise it retransmit a NS.
Time	GetLastReachabilityConfirmation () const
	Get the time of last reachability confirmation.
Address	GetMacAddress () const
	Get the MAC address of this entry.
uint8_t	GetNSRetransmit () const
	Get the number of NS retransmit.
void	IncNSRetransmit ()
	Increment NS retransmit.
bool	IsDelay () const
	Is the entry DELAY.
bool	IsIncomplete () const
	Is the entry INCOMPLETE.
bool	IsProbe () const
	Is the entry PROBE.
bool	IsReachable () const
	Is the entry REACHABLE.
bool	IsRouter () const
	If the entry is a host or a router.
bool	IsStale () const
	Is the entry STALE.
void	MarkDelay ()
	Change the state to this entry to DELAY.
void	MarkIncomplete (Ptr< Packet > p)
	Changes the state to this entry to INCOMPLETE.
void	MarkProbe ()
	Changes the state to this entry to PROBE.
std::list< Ptr< Packet > >	MarkReachable (Address mac)
	Changes the state to this entry to REACHABLE.
void	MarkReachable ()
	Changes the state to this entry to REACHABLE.
std::list< Ptr< Packet > >	MarkStale (Address mac)
	Changes the state to this entry to STALE.
void	MarkStale ()
	Changes the state to this entry to STALE.
void	ResetNSRetransmit ()
	Reset NS retransmit (=0).
void	SetIpv6Address (Ipv6Address ipv6Address)
	Set the IPv6 address.
void	SetMacAddress (Address mac)
	Set the MAC address of this entry.
void	SetRouter (bool router)
	Set the node type.
void	StartDelayTimer ()
	Start delay timer.
void	StartProbeTimer ()
	Start probe timer.
void	StartReachableTimer ()
	Start the reachable timer.
void	StartRetransmitTimer ()
	Start retransmit timer.
void	StopDelayTimer ()
	Stop delay timer.
void	StopProbeTimer ()
	Stop probe timer.
void	StopReachableTimer ()
	Stop the reachable timer.
void	StopRetransmitTimer ()
	Stop retransmit timer.
void	UpdateLastReachabilityconfirmation ()
	Update the time of last reachability confirmation.

Private Types
enum	NdiscCacheEntryState_e { INCOMPLETE, REACHABLE, STALE, DELAY, PROBE }
	The Entry state enumeration. More...

Private Attributes
Timer	m_delayTimer
	Delay timer (used for NUD when in DELAY state).
Ipv6Address	m_ipv6Address
	The IPv6 address.
Time	m_lastReachabilityConfirmation
	Last time we see a reachability confirmation.
Address	m_macAddress
	The MAC address.
NdiscCache *	m_ndCache
	the NdiscCache associated.
uint8_t	m_nsRetransmit
	Number of NS retransmission.
Timer	m_probeTimer
	Probe timer (used for NUD in PROBE state).
Timer	m_reachableTimer
	Reachable timer (used for NUD in REACHABLE state).
Timer	m_retransTimer
	Retransmission timer (used for NUD in INCOMPLETE state).
bool	m_router
	Type of node (router or host).
NdiscCacheEntryState_e	m_state
	The state of the entry.
std::list< Ptr< Packet > >	m_waiting
	The list of packet waiting.

Detailed Description

A record that holds information about an NdiscCache entry.

Definition at line 131 of file ndisc-cache.h.

Member Enumeration Documentation

enum ns3::NdiscCache::Entry::NdiscCacheEntryState_e

private

The Entry state enumeration.

Enumerator:

INCOMPLETE	No mapping between IPv6 and L2 addresses
REACHABLE	Mapping exists between IPv6 and L2 addresses
STALE	Mapping is stale
DELAY	Try to wait contact from remote host
PROBE	Try to contact IPv6 address to know again its L2 address

Definition at line 349 of file ndisc-cache.h.

Constructor & Destructor Documentation

ns3::NdiscCache::Entry::Entry ( NdiscCache * nd )

Constructor.

Parameters

nd	The NdiscCache this entry belongs to.

Definition at line 152 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::NdiscCache::Entry::AddWaitingPacket ( Ptr< Packet > p )

Add a packet (or replace old value) in the queue.

Parameters

p	packet to add

Definition at line 178 of file ndisc-cache.cc.

References ns3::NdiscCache::m_ndCache, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

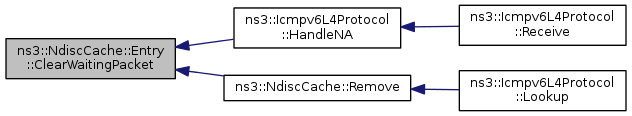

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::ClearWaitingPacket ( )

Clear the waiting packet list.

Definition at line 191 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), and ns3::NdiscCache::Remove().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::FunctionDelayTimeout ( )

Function called when delay timer timeout.

Definition at line 250 of file ndisc-cache.cc.

References ns3::Ipv6Address::IsAny(), ns3::NdiscCache::m_ndCache, NS_LOG_FUNCTION_NOARGS, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by StartDelayTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::FunctionProbeTimeout ( )

Function called when probe timer timeout.

Definition at line 287 of file ndisc-cache.cc.

References ns3::Ipv6Address::IsAny(), ns3::NdiscCache::m_ndCache, NS_LOG_FUNCTION_NOARGS, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by StartProbeTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::FunctionReachableTimeout ( )

Function called when reachable timer timeout.

Definition at line 198 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by StartReachableTimer().

Here is the caller graph for this function:

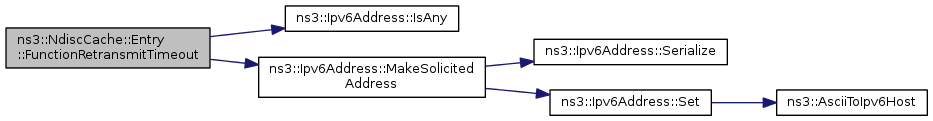

void ns3::NdiscCache::Entry::FunctionRetransmitTimeout ( )

Function called when retransmit timer timeout. It verify that the NS retransmit has reached the max so discard the entry otherwise it retransmit a NS.

Definition at line 204 of file ndisc-cache.cc.

References ns3::Icmpv6Header::ICMPV6_ADDR_UNREACHABLE, ns3::Ipv6Address::IsAny(), ns3::NdiscCache::m_ndCache, ns3::Ipv6Address::MakeSolicitedAddress(), and NS_LOG_FUNCTION_NOARGS.

Referenced by StartRetransmitTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::NdiscCache::Entry::GetLastReachabilityConfirmation ( ) const

Get the time of last reachability confirmation.

Returns: time

Definition at line 356 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

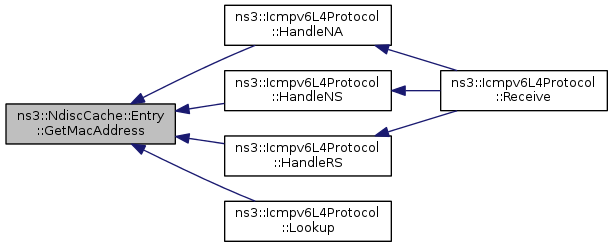

Address ns3::NdiscCache::Entry::GetMacAddress ( void ) const

Get the MAC address of this entry.

Returns: the L2 address

Definition at line 508 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRS(), and ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

uint8_t ns3::NdiscCache::Entry::GetNSRetransmit ( ) const

Get the number of NS retransmit.

Returns: number of NS that have been retransmit

Definition at line 338 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

void ns3::NdiscCache::Entry::IncNSRetransmit ( )

Increment NS retransmit.

Definition at line 344 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

bool ns3::NdiscCache::Entry::IsDelay ( ) const

Is the entry DELAY.

Returns: true if the entry is in DELAY state, false otherwise

Definition at line 490 of file ndisc-cache.cc.

References DELAY, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsIncomplete ( ) const

Is the entry INCOMPLETE.

Returns: true if the entry is in INCOMPLETE state, false otherwise

Definition at line 496 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsProbe ( ) const

Is the entry PROBE.

Returns: true if the entry is in PROBE state, false otherwise

Definition at line 502 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

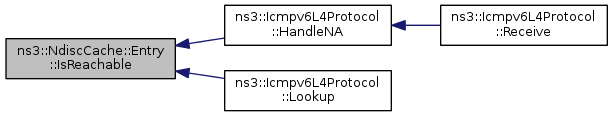

bool ns3::NdiscCache::Entry::IsReachable ( ) const

Is the entry REACHABLE.

Returns: true if the entry is in REACHABLE state, false otherwise

Definition at line 484 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), and ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

bool ns3::NdiscCache::Entry::IsRouter ( ) const

If the entry is a host or a router.

Returns: true if the node is a router, 0 if it is a host

Definition at line 172 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

bool ns3::NdiscCache::Entry::IsStale ( ) const

Is the entry STALE.

Returns: true if the entry is in STALE state, false otherwise

Definition at line 478 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkDelay ( )

Change the state to this entry to DELAY.

Definition at line 472 of file ndisc-cache.cc.

References DELAY, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkIncomplete ( Ptr< Packet > p )

Changes the state to this entry to INCOMPLETE.

Parameters

p	packet that wait to be sent

Definition at line 427 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkProbe ( )

Changes the state to this entry to PROBE.

Definition at line 446 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

std::list< Ptr< Packet > > ns3::NdiscCache::Entry::MarkReachable ( Address mac )

Changes the state to this entry to REACHABLE.

Parameters

mac	MAC address

Returns: the list of packet waiting

Definition at line 438 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkReachable ( )

Changes the state to this entry to REACHABLE.

Definition at line 458 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

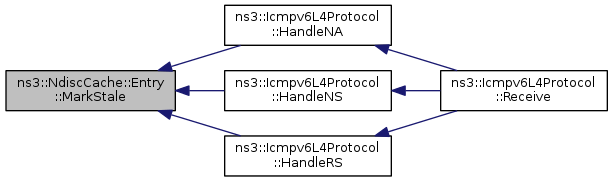

std::list< Ptr< Packet > > ns3::NdiscCache::Entry::MarkStale ( Address mac )

Changes the state to this entry to STALE.

Parameters

mac	L2 address

Returns: the list of packet waiting

Definition at line 464 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), and ns3::Icmpv6L4Protocol::HandleRS().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::MarkStale ( )

Changes the state to this entry to STALE.

Definition at line 452 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

void ns3::NdiscCache::Entry::ResetNSRetransmit ( )

Reset NS retransmit (=0).

Definition at line 350 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

void ns3::NdiscCache::Entry::SetIpv6Address ( Ipv6Address ipv6Address )

Set the IPv6 address.

Parameters

ipv6Address IPv6 address

Definition at line 332 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

void ns3::NdiscCache::Entry::SetMacAddress ( Address mac )

Set the MAC address of this entry.

Parameters

mac	the MAC address to set

Definition at line 514 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

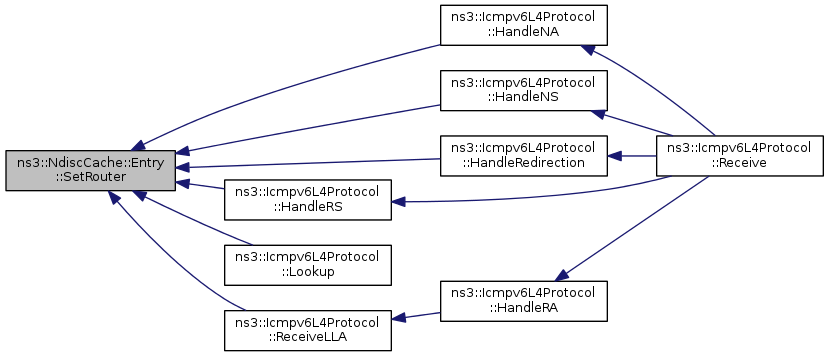

void ns3::NdiscCache::Entry::SetRouter ( bool router )

Set the node type.

Parameters

router true is a router, false means a host

Definition at line 166 of file ndisc-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRedirection(), ns3::Icmpv6L4Protocol::HandleRS(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

Here is the caller graph for this function:

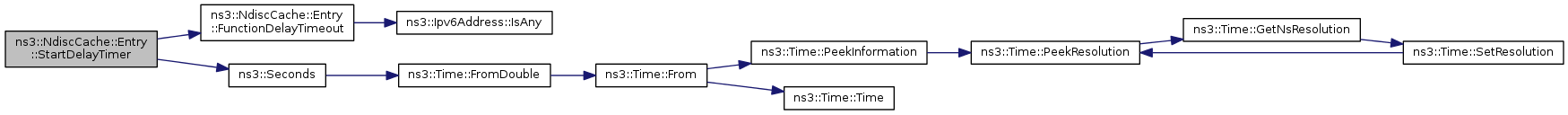

void ns3::NdiscCache::Entry::StartDelayTimer ( )

Start delay timer.

Definition at line 397 of file ndisc-cache.cc.

References ns3::Icmpv6L4Protocol::DELAY_FIRST_PROBE_TIME, FunctionDelayTimeout(), NS_LOG_FUNCTION_NOARGS, and ns3::Seconds().

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the call graph for this function:

Here is the caller graph for this function:

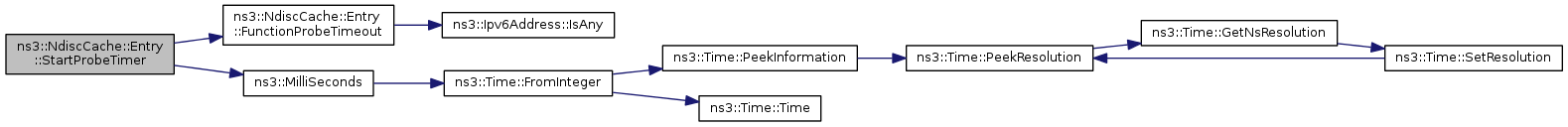

void ns3::NdiscCache::Entry::StartProbeTimer ( )

Start probe timer.

Definition at line 381 of file ndisc-cache.cc.

References FunctionProbeTimeout(), ns3::MilliSeconds(), NS_LOG_FUNCTION_NOARGS, and ns3::Icmpv6L4Protocol::RETRANS_TIMER.

Here is the call graph for this function:

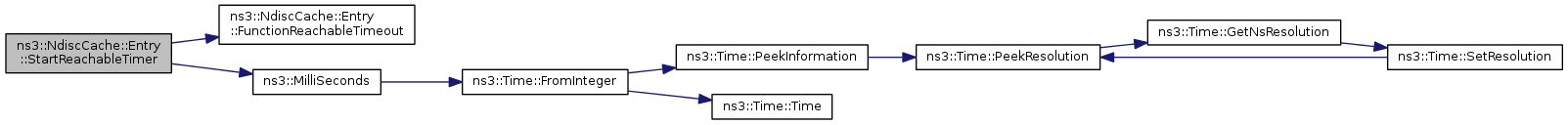

void ns3::NdiscCache::Entry::StartReachableTimer ( )

Start the reachable timer.

Definition at line 367 of file ndisc-cache.cc.

References FunctionReachableTimeout(), ns3::MilliSeconds(), NS_LOG_FUNCTION_NOARGS, and ns3::Icmpv6L4Protocol::REACHABLE_TIME.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the call graph for this function:

Here is the caller graph for this function:

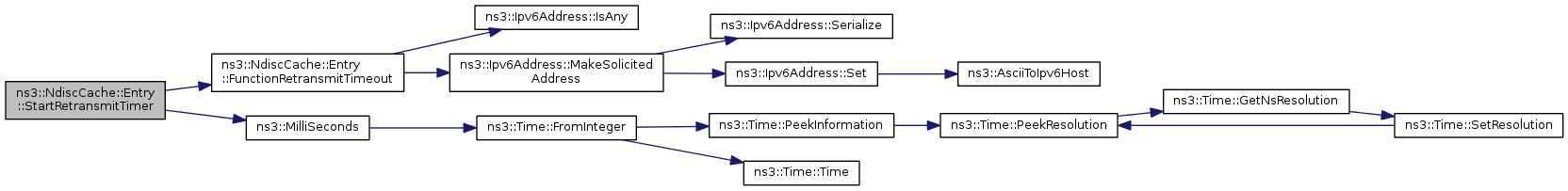

void ns3::NdiscCache::Entry::StartRetransmitTimer ( )

Start retransmit timer.

Definition at line 412 of file ndisc-cache.cc.

References FunctionRetransmitTimeout(), ns3::MilliSeconds(), NS_LOG_FUNCTION_NOARGS, and ns3::Icmpv6L4Protocol::RETRANS_TIMER.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StopDelayTimer ( )

Stop delay timer.

Definition at line 405 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StopProbeTimer ( )

Stop probe timer.

Definition at line 389 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StopReachableTimer ( )

Stop the reachable timer.

Definition at line 375 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::StopRetransmitTimer ( )

Stop retransmit timer.

Definition at line 420 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA().

Here is the caller graph for this function:

void ns3::NdiscCache::Entry::UpdateLastReachabilityconfirmation ( )

Update the time of last reachability confirmation.

Definition at line 362 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Data Documentation

Timer ns3::NdiscCache::Entry::m_delayTimer

private

Delay timer (used for NUD when in DELAY state).

Definition at line 401 of file ndisc-cache.h.

Ipv6Address ns3::NdiscCache::Entry::m_ipv6Address

private

The IPv6 address.

Definition at line 344 of file ndisc-cache.h.

Time ns3::NdiscCache::Entry::m_lastReachabilityConfirmation

private

Last time we see a reachability confirmation.

Definition at line 406 of file ndisc-cache.h.

Address ns3::NdiscCache::Entry::m_macAddress

private

The MAC address.

Definition at line 371 of file ndisc-cache.h.

NdiscCache* ns3::NdiscCache::Entry::m_ndCache

private

the NdiscCache associated.

Definition at line 366 of file ndisc-cache.h.

uint8_t ns3::NdiscCache::Entry::m_nsRetransmit

private

Number of NS retransmission.

Definition at line 411 of file ndisc-cache.h.

Timer ns3::NdiscCache::Entry::m_probeTimer

private

Probe timer (used for NUD in PROBE state).

Definition at line 396 of file ndisc-cache.h.

Timer ns3::NdiscCache::Entry::m_reachableTimer

private

Reachable timer (used for NUD in REACHABLE state).

Definition at line 386 of file ndisc-cache.h.

Timer ns3::NdiscCache::Entry::m_retransTimer

private

Retransmission timer (used for NUD in INCOMPLETE state).

Definition at line 391 of file ndisc-cache.h.

bool ns3::NdiscCache::Entry::m_router

private

Type of node (router or host).

Definition at line 381 of file ndisc-cache.h.

NdiscCacheEntryState_e ns3::NdiscCache::Entry::m_state

private

The state of the entry.

Definition at line 361 of file ndisc-cache.h.

std::list<Ptr<Packet> > ns3::NdiscCache::Entry::m_waiting

private

The list of packet waiting.

Definition at line 376 of file ndisc-cache.h.

The documentation for this class was generated from the following files:

src/internet/model/ndisc-cache.h
src/internet/model/ndisc-cache.cc

Public Member Functions

Private Types

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
