#include <oh-buildings-propagation-loss-model.h>

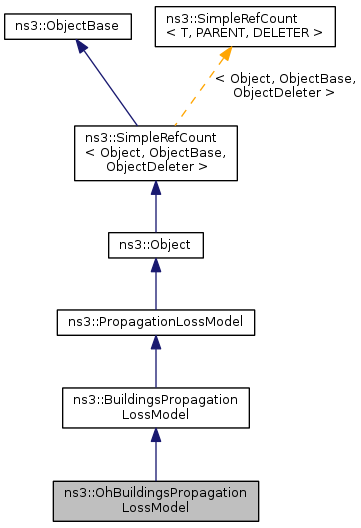

Inheritance diagram for ns3::OhBuildingsPropagationLossModel:

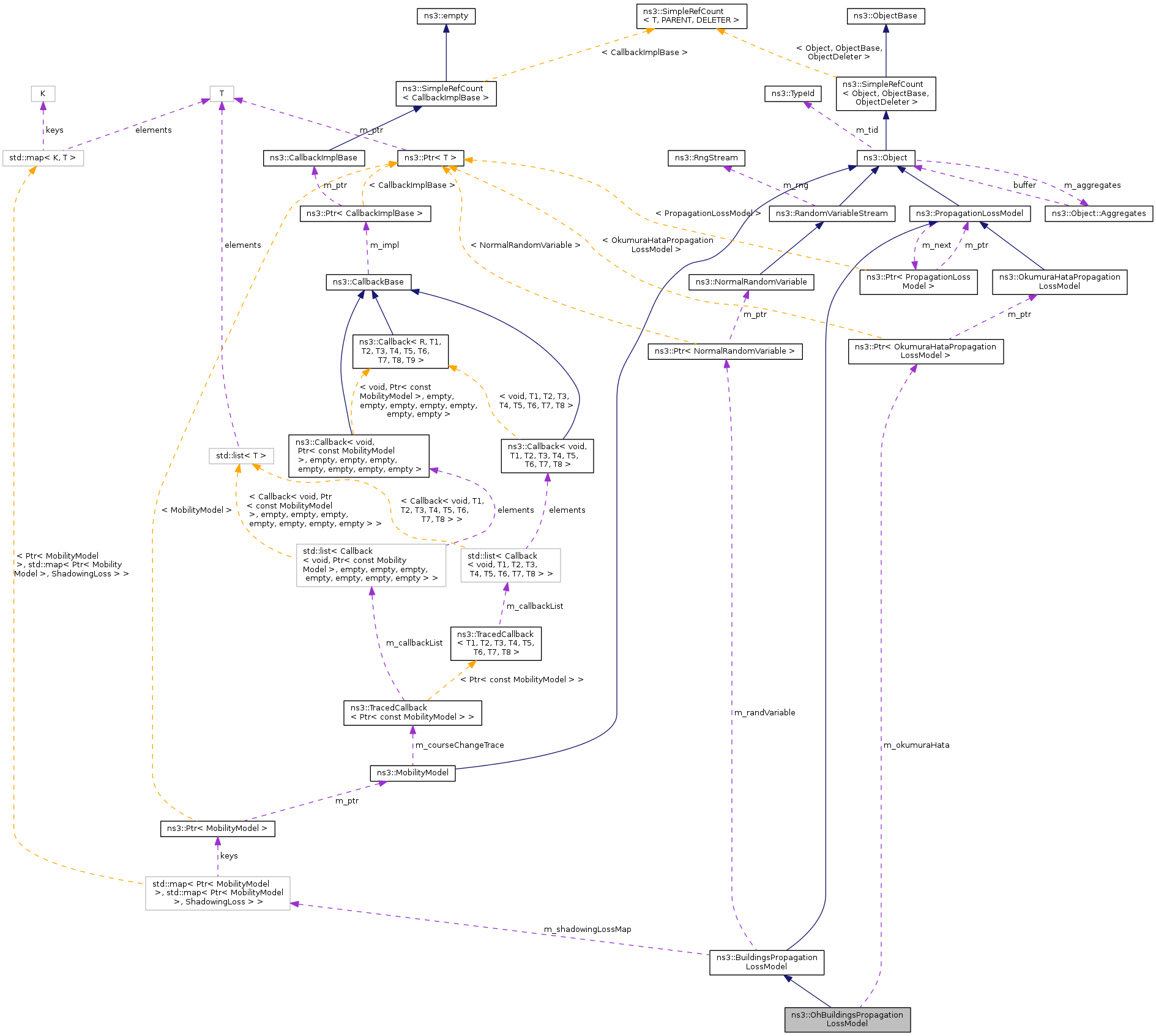

Collaboration diagram for ns3::OhBuildingsPropagationLossModel:

Public Member Functions
	OhBuildingsPropagationLossModel ()
	~OhBuildingsPropagationLossModel ()
virtual double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Public Member Functions inherited from ns3::BuildingsPropagationLossModel
	BuildingsPropagationLossModel ()
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::OhBuildingsPropagationLossModel.

Private Attributes
Ptr < OkumuraHataPropagationLossModel >	m_okumuraHata

Additional Inherited Members
Protected Member Functions inherited from ns3::BuildingsPropagationLossModel
virtual int64_t	DoAssignStreams (int64_t stream)
double	EvaluateSigma (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const
double	ExternalWallLoss (Ptr< BuildingsMobilityModel > a) const
double	GetShadowing (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
double	HeightLoss (Ptr< BuildingsMobilityModel > n) const
double	InternalWallsLoss (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const
Protected Attributes inherited from ns3::BuildingsPropagationLossModel
double	m_lossInternalWall
Ptr< NormalRandomVariable >	m_randVariable
std::map< Ptr< MobilityModel > , std::map< Ptr< MobilityModel > , ShadowingLoss > >	m_shadowingLossMap
double	m_shadowingSigmaExtWalls
double	m_shadowingSigmaIndoor
double	m_shadowingSigmaOutdoor

Detailed Description

this model combines the OkumuraHata model with the BuildingsPropagationLossModel

Warning: This model works with BuildingsMobilityModel only

Definition at line 39 of file oh-buildings-propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::OhBuildingsPropagationLossModel::OhBuildingsPropagationLossModel ( )

Definition at line 42 of file oh-buildings-propagation-loss-model.cc.

References m_okumuraHata.

ns3::OhBuildingsPropagationLossModel::~OhBuildingsPropagationLossModel ( )

Definition at line 47 of file oh-buildings-propagation-loss-model.cc.

Member Function Documentation

double ns3::OhBuildingsPropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

virtual

Parameters

a	the mobility model of the source
b	the mobility model of the destination

Returns: the propagation loss (in dBm)

Implements ns3::BuildingsPropagationLossModel.

Definition at line 65 of file oh-buildings-propagation-loss-model.cc.

References ns3::BuildingsPropagationLossModel::ExternalWallLoss(), ns3::BuildingsMobilityModel::GetBuilding(), ns3::OkumuraHataPropagationLossModel::GetLoss(), ns3::BuildingsPropagationLossModel::InternalWallsLoss(), ns3::BuildingsMobilityModel::IsOutdoor(), m_okumuraHata, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

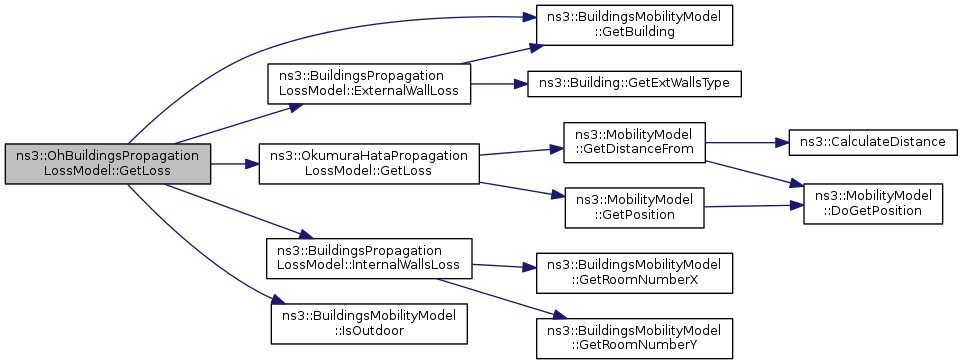

Here is the call graph for this function:

TypeId ns3::OhBuildingsPropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::OhBuildingsPropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::BuildingsPropagationLossModel/$ns3::OhBuildingsPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::OhBuildingsPropagationLossModel

No Attributes defined for this type.
Attributes defined in parent class ns3::BuildingsPropagationLossModel:

ShadowSigmaOutdoor: Standard deviation of the normal distribution used for calculate the shadowing for outdoor nodes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write read
ShadowSigmaIndoor: Standard deviation of the normal distribution used for calculate the shadowing for indoor nodes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 8
- Flags: construct write read
ShadowSigmaExtWalls: Standard deviation of the normal distribution used for calculate the shadowing due to ext walls
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
InternalWallLoss: Additional loss for each internal wall [dB]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
