#include <buildings-propagation-loss-model.h>

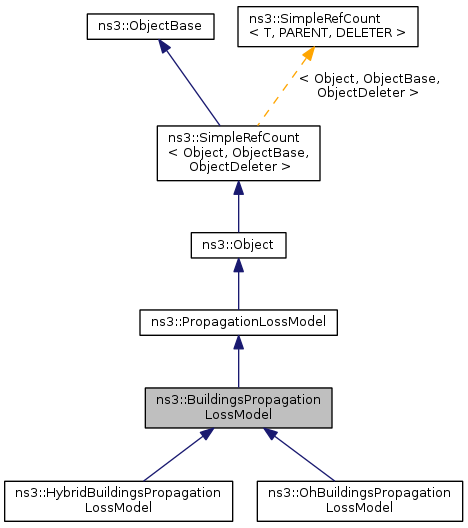

Inheritance diagram for ns3::BuildingsPropagationLossModel:

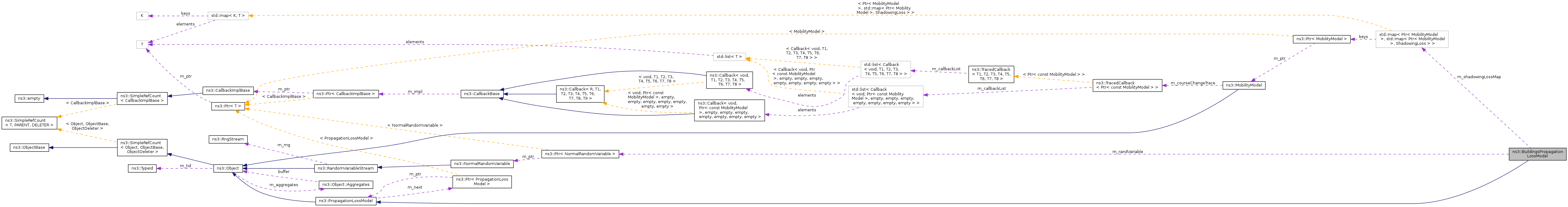

Collaboration diagram for ns3::BuildingsPropagationLossModel:

Classes
class	ShadowingLoss

Public Member Functions
	BuildingsPropagationLossModel ()
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
virtual double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const =0
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::BuildingsPropagationLossModel.

Protected Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)
double	EvaluateSigma (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const
double	ExternalWallLoss (Ptr< BuildingsMobilityModel > a) const
double	GetShadowing (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
double	HeightLoss (Ptr< BuildingsMobilityModel > n) const
double	InternalWallsLoss (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const

Protected Attributes
double	m_lossInternalWall
Ptr< NormalRandomVariable >	m_randVariable
std::map< Ptr< MobilityModel > , std::map< Ptr< MobilityModel > , ShadowingLoss > >	m_shadowingLossMap
double	m_shadowingSigmaExtWalls
double	m_shadowingSigmaIndoor
double	m_shadowingSigmaOutdoor

Detailed Description

This model provides means for simulating the following propagation phenomena in the presence of buildings:

shadowing (indoor, outdoor)
external wall penetration loss
internal wall penetration loss

The distance-dependent component of propagation loss is deferred to derived classes which are expected to implement the GetLoss method.

Warning: This model works only with BuildingsMobilityModel

Definition at line 55 of file buildings-propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::BuildingsPropagationLossModel::BuildingsPropagationLossModel ( )

Definition at line 97 of file buildings-propagation-loss-model.cc.

References m_randVariable.

Member Function Documentation

int64_t ns3::BuildingsPropagationLossModel::DoAssignStreams ( int64_t stream )

protectedvirtual

Subclasses must implement this; those not using random variables can return zero

Implements ns3::PropagationLossModel.

Definition at line 222 of file buildings-propagation-loss-model.cc.

References m_randVariable, and ns3::RandomVariableStream::SetStream().

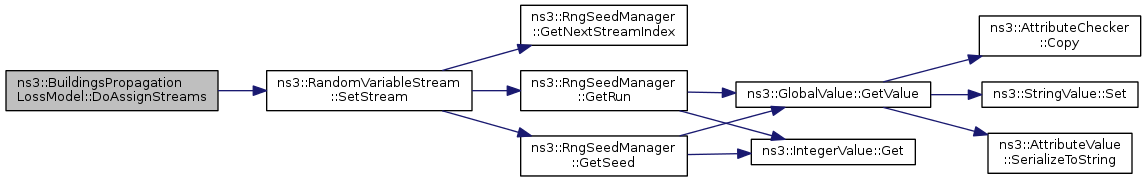

Here is the call graph for this function:

double ns3::BuildingsPropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

virtual

Implements ns3::PropagationLossModel.

Definition at line 216 of file buildings-propagation-loss-model.cc.

References GetLoss(), and GetShadowing().

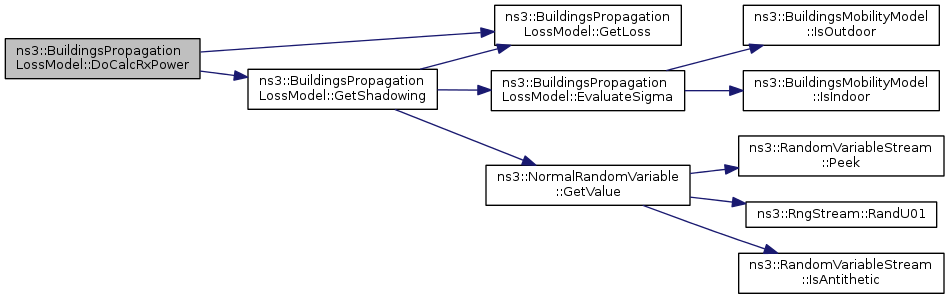

Here is the call graph for this function:

double ns3::BuildingsPropagationLossModel::EvaluateSigma	(	Ptr< BuildingsMobilityModel >	a,
		Ptr< BuildingsMobilityModel >	b
	)		const

protected

Definition at line 187 of file buildings-propagation-loss-model.cc.

References ns3::BuildingsMobilityModel::IsIndoor(), ns3::BuildingsMobilityModel::IsOutdoor(), m_shadowingSigmaExtWalls, m_shadowingSigmaIndoor, and m_shadowingSigmaOutdoor.

Referenced by GetShadowing().

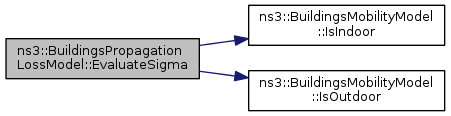

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::BuildingsPropagationLossModel::ExternalWallLoss ( Ptr< BuildingsMobilityModel > a ) const

protected

Definition at line 103 of file buildings-propagation-loss-model.cc.

References ns3::Building::ConcreteWithoutWindows, ns3::Building::ConcreteWithWindows, ns3::BuildingsMobilityModel::GetBuilding(), ns3::Building::GetExtWallsType(), ns3::Building::StoneBlocks, and ns3::Building::Wood.

Referenced by ns3::OhBuildingsPropagationLossModel::GetLoss(), and ns3::HybridBuildingsPropagationLossModel::GetLoss().

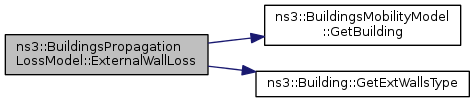

Here is the call graph for this function:

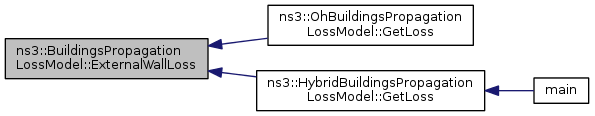

Here is the caller graph for this function:

virtual double ns3::BuildingsPropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

pure virtual

Parameters

a	the mobility model of the source
b	the mobility model of the destination

Returns: the propagation loss (in dBm)

Implemented in ns3::HybridBuildingsPropagationLossModel, and ns3::OhBuildingsPropagationLossModel.

Referenced by DoCalcRxPower(), and GetShadowing().

Here is the caller graph for this function:

double ns3::BuildingsPropagationLossModel::GetShadowing	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

protected

Definition at line 148 of file buildings-propagation-loss-model.cc.

References EvaluateSigma(), GetLoss(), ns3::NormalRandomVariable::GetValue(), m_randVariable, m_shadowingLossMap, and NS_ASSERT_MSG.

Referenced by DoCalcRxPower().

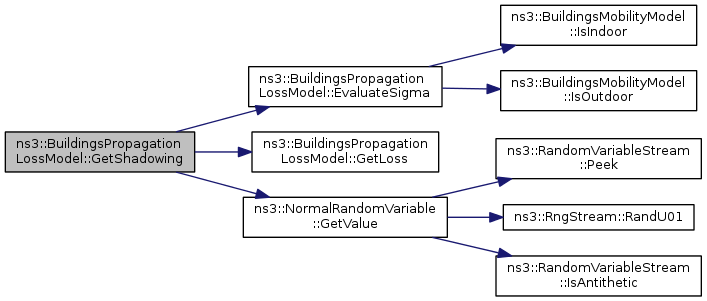

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::BuildingsPropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::BuildingsPropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::BuildingsPropagationLossModel

Attributes defined for this type:

ShadowSigmaOutdoor: Standard deviation of the normal distribution used for calculate the shadowing for outdoor nodes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write read
ShadowSigmaIndoor: Standard deviation of the normal distribution used for calculate the shadowing for indoor nodes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 8
- Flags: construct write read
ShadowSigmaExtWalls: Standard deviation of the normal distribution used for calculate the shadowing due to ext walls
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
InternalWallLoss: Additional loss for each internal wall [dB]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
