The HybridBuildingsPropagationModel is a compound of different models able to evaluate the pathloss from 200 to 2600 MHz, in different environments and with buildings (i.e., indoor and outdoor communications). More...

#include <hybrid-buildings-propagation-loss-model.h>

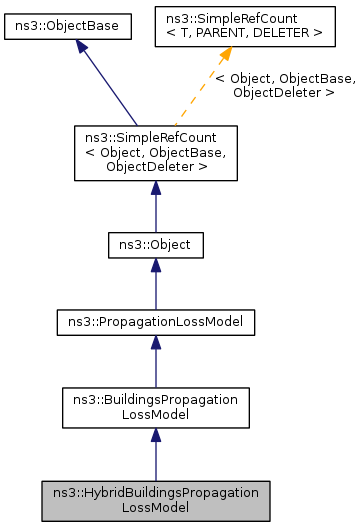

Inheritance diagram for ns3::HybridBuildingsPropagationLossModel:

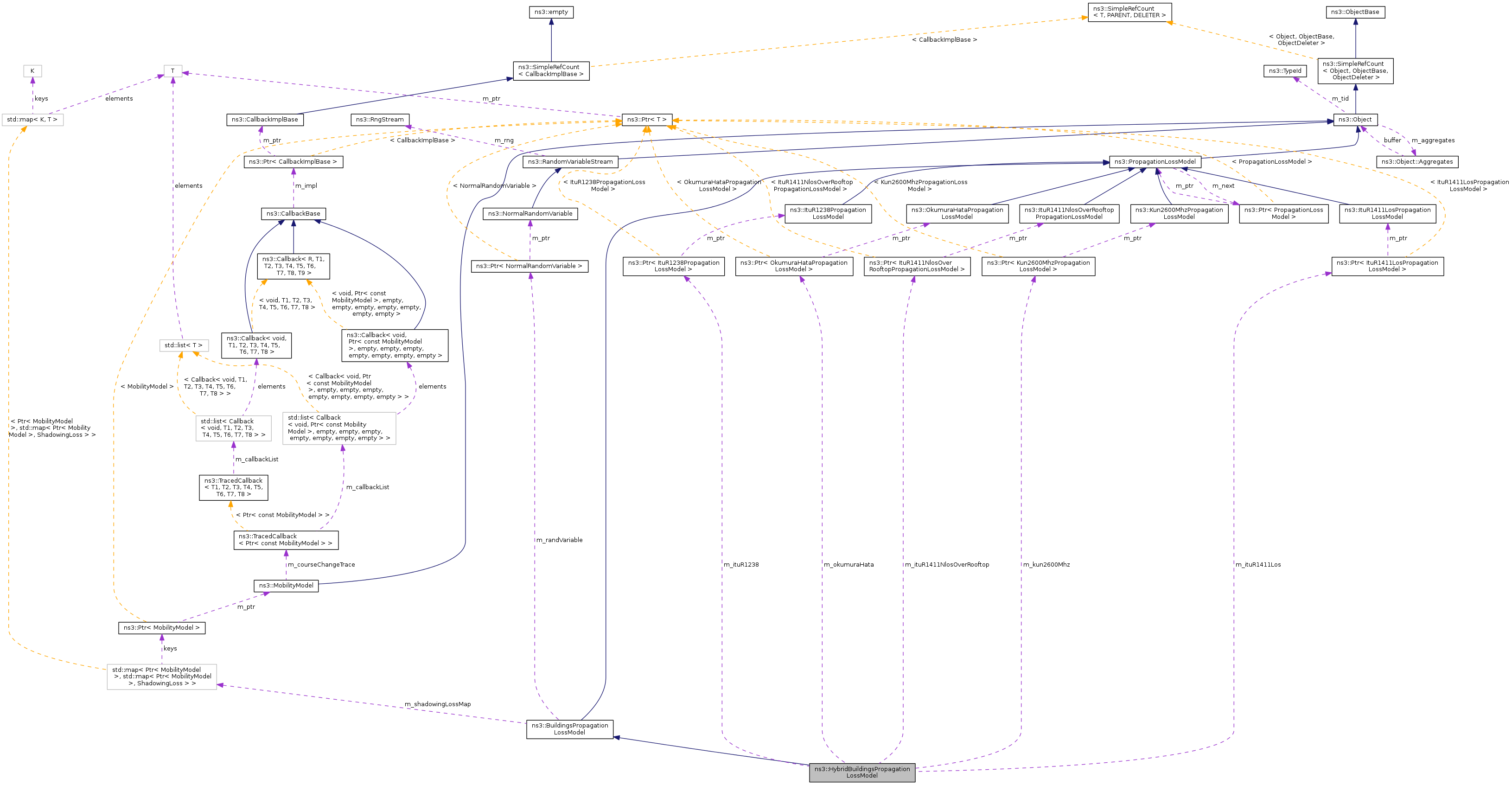

Collaboration diagram for ns3::HybridBuildingsPropagationLossModel:

Public Member Functions
	HybridBuildingsPropagationLossModel ()
	~HybridBuildingsPropagationLossModel ()
virtual double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
void	SetCitySize (CitySize size)

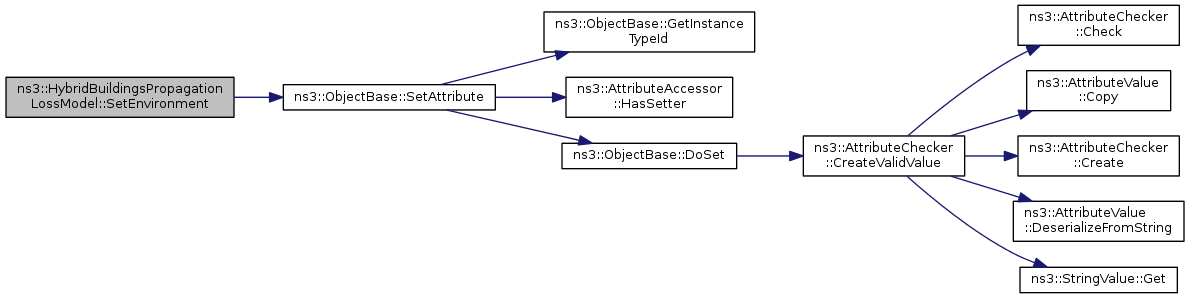

void	SetEnvironment (EnvironmentType env)
void	SetFrequency (double freq)
void	SetRooftopHeight (double rooftopHeight)
Public Member Functions inherited from ns3::BuildingsPropagationLossModel
	BuildingsPropagationLossModel ()
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::HybridBuildingsPropagationLossModel.

Private Member Functions

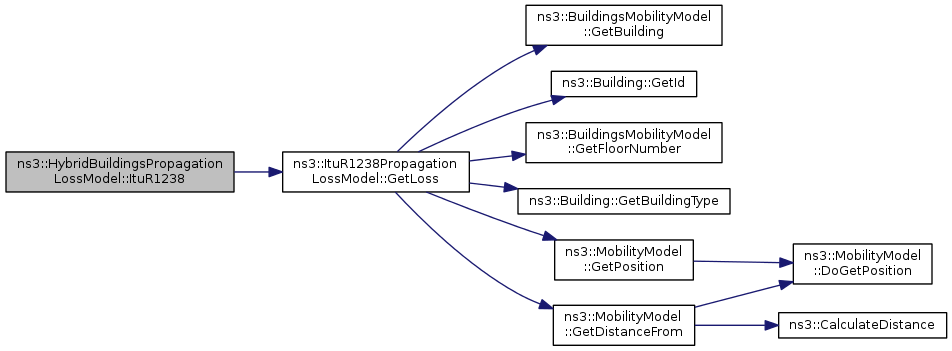

double	ItuR1238 (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const
double	ItuR1411 (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const

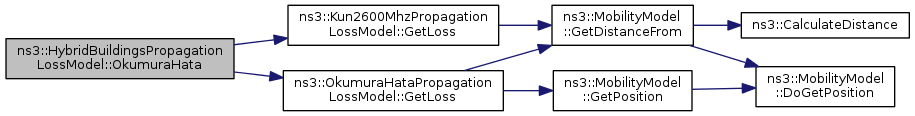

double	OkumuraHata (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const

Private Attributes
double	m_frequency
double	m_itu1411NlosThreshold
	in meters (switch Los -> NLoS)
Ptr< ItuR1238PropagationLossModel >	m_ituR1238
Ptr < ItuR1411LosPropagationLossModel >	m_ituR1411Los
Ptr < ItuR1411NlosOverRooftopPropagationLossModel >	m_ituR1411NlosOverRooftop
Ptr < Kun2600MhzPropagationLossModel >	m_kun2600Mhz
Ptr < OkumuraHataPropagationLossModel >	m_okumuraHata
double	m_rooftopHeight

Additional Inherited Members
Protected Member Functions inherited from ns3::BuildingsPropagationLossModel
virtual int64_t	DoAssignStreams (int64_t stream)
double	EvaluateSigma (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const
double	ExternalWallLoss (Ptr< BuildingsMobilityModel > a) const
double	GetShadowing (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
double	HeightLoss (Ptr< BuildingsMobilityModel > n) const
double	InternalWallsLoss (Ptr< BuildingsMobilityModel > a, Ptr< BuildingsMobilityModel > b) const
Protected Attributes inherited from ns3::BuildingsPropagationLossModel
double	m_lossInternalWall
Ptr< NormalRandomVariable >	m_randVariable
std::map< Ptr< MobilityModel > , std::map< Ptr< MobilityModel > , ShadowingLoss > >	m_shadowingLossMap
double	m_shadowingSigmaExtWalls
double	m_shadowingSigmaIndoor
double	m_shadowingSigmaOutdoor

Detailed Description

The HybridBuildingsPropagationModel is a compound of different models able to evaluate the pathloss from 200 to 2600 MHz, in different environments and with buildings (i.e., indoor and outdoor communications).

This model includes Hata model, COST231, ITU-R P.1411 (short range communications), ITU-R P.1238 (indoor communications), which are combined in order to be able to evaluate the pathloss under different scenarios, in detail:

Environments: urban, suburban, open-areas;
frequency: from 200 uo to 2600 MHz
short range communications vs long range communications
Node position respect to buildings: indoor, outdoor and hybrid (indoor <-> outdoor)
Building penetretation loss
floors, etc...

Warning: This model works only with BuildingsMobilityModel

Definition at line 56 of file hybrid-buildings-propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::HybridBuildingsPropagationLossModel::HybridBuildingsPropagationLossModel ( )

Definition at line 48 of file hybrid-buildings-propagation-loss-model.cc.

References m_ituR1238, m_ituR1411Los, m_ituR1411NlosOverRooftop, m_kun2600Mhz, and m_okumuraHata.

ns3::HybridBuildingsPropagationLossModel::~HybridBuildingsPropagationLossModel ( )

Definition at line 57 of file hybrid-buildings-propagation-loss-model.cc.

Member Function Documentation

double ns3::HybridBuildingsPropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

virtual

Parameters

a	the mobility model of the source
b	the mobility model of the destination

Returns: the propagation loss (in dBm)

Implements ns3::BuildingsPropagationLossModel.

Definition at line 142 of file hybrid-buildings-propagation-loss-model.cc.

References ns3::BuildingsPropagationLossModel::ExternalWallLoss(), ns3::BuildingsMobilityModel::GetBuilding(), ns3::MobilityModel::GetDistanceFrom(), ns3::MobilityModel::GetPosition(), ns3::BuildingsPropagationLossModel::HeightLoss(), ns3::BuildingsPropagationLossModel::InternalWallsLoss(), ns3::BuildingsMobilityModel::IsOutdoor(), ItuR1238(), ItuR1411(), m_rooftopHeight, NS_ASSERT_MSG, NS_LOG_INFO, OkumuraHata(), and ns3::Vector3D::z.

Referenced by main().

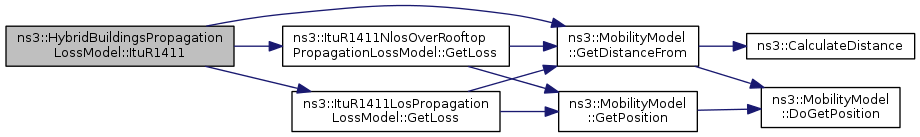

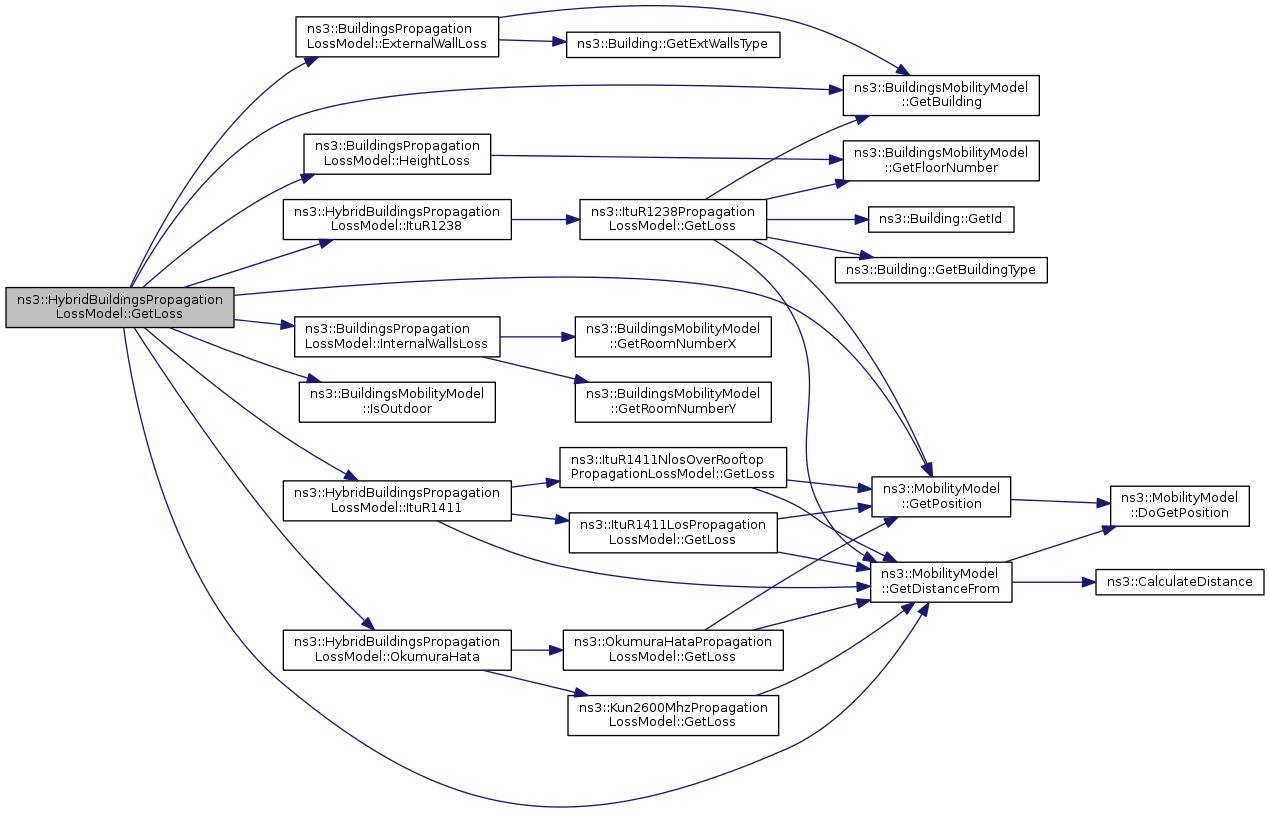

Here is the call graph for this function:

Here is the caller graph for this function:

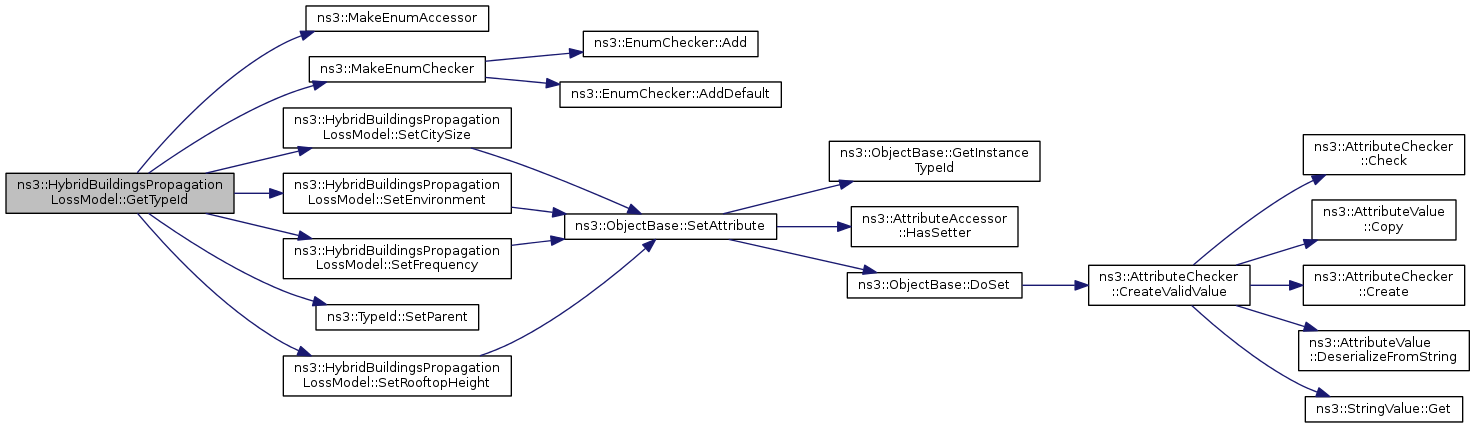

TypeId ns3::HybridBuildingsPropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::HybridBuildingsPropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::BuildingsPropagationLossModel/$ns3::HybridBuildingsPropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::HybridBuildingsPropagationLossModel

Attributes defined for this type:

Frequency: The Frequency (default is 2.106 GHz).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.16e+09
- Flags: construct write
Los2NlosThr: Threshold from LoS to NLoS in ITU 1411 [m].
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 200
- Flags: construct write read
Environment: Environment Scenario
- Set with class: ns3::EnumValue
- Underlying type: Urban|SubUrban|OpenAreas
- Initial value: Urban
- Flags: construct write
CitySize: Dimension of the city
- Set with class: ns3::EnumValue
- Underlying type: Small|Medium|Large
- Initial value: Large
- Flags: construct write
RooftopLevel: The height of the rooftop level in meters
- Set with class: ns3::DoubleValue
- Underlying type: double 0:90
- Initial value: 20
- Flags: construct write

Attributes defined in parent class ns3::BuildingsPropagationLossModel:

ShadowSigmaOutdoor: Standard deviation of the normal distribution used for calculate the shadowing for outdoor nodes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write read
ShadowSigmaIndoor: Standard deviation of the normal distribution used for calculate the shadowing for indoor nodes
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 8
- Flags: construct write read
ShadowSigmaExtWalls: Standard deviation of the normal distribution used for calculate the shadowing due to ext walls
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
InternalWallLoss: Additional loss for each internal wall [dB]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
