ns3::PcapHelper Class Reference

Manage pcap files for device models. More...

#include <trace-helper.h>

Public Types
enum	{   DLT_NULL = 0, DLT_EN10MB = 1, DLT_PPP = 9, DLT_RAW = 101,   DLT_IEEE802_11 = 105, DLT_PRISM_HEADER = 119, DLT_IEEE802_11_RADIO = 127 }

Public Member Functions
	PcapHelper ()
	Create a pcap helper.
	~PcapHelper ()
	Destroy a pcap helper.
Ptr< PcapFileWrapper >	CreateFile (std::string filename, std::ios::openmode filemode, uint32_t dataLinkType, uint32_t snapLen=65535, int32_t tzCorrection=0)
	Create and initialize a pcap file.
std::string	GetFilenameFromDevice (std::string prefix, Ptr< NetDevice > device, bool useObjectNames=true)
	Let the pcap helper figure out a reasonable filename to use for a pcap file associated with a device.
std::string	GetFilenameFromInterfacePair (std::string prefix, Ptr< Object > object, uint32_t interface, bool useObjectNames=true)
	Let the pcap helper figure out a reasonable filename to use for the pcap file associated with a node.
template<typename T >
void	HookDefaultSink (Ptr< T > object, std::string traceName, Ptr< PcapFileWrapper > file)
	Hook a trace source to the default trace sink.

Static Private Member Functions
static void	DefaultSink (Ptr< PcapFileWrapper > file, Ptr< const Packet > p)

Detailed Description

Manage pcap files for device models.

Handling pcap files is a common operation for ns-3 devices. It is useful to provide a common base class for dealing with these ops.

Definition at line 38 of file trace-helper.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

DLT_NULL
DLT_EN10MB
DLT_PPP
DLT_RAW
DLT_IEEE802_11
DLT_PRISM_HEADER
DLT_IEEE802_11_RADIO

Definition at line 47 of file trace-helper.h.

Constructor & Destructor Documentation

ns3::PcapHelper::PcapHelper

(

)

Create a pcap helper.

Definition at line 38 of file trace-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::PcapHelper::~PcapHelper

(

)

Destroy a pcap helper.

Definition at line 43 of file trace-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

Ptr< PcapFileWrapper > ns3::PcapHelper::CreateFile	(	std::string	filename,
		std::ios::openmode	filemode,
		uint32_t	dataLinkType,
		uint32_t	snapLen = 65535,
		int32_t	tzCorrection = 0
	)

Create and initialize a pcap file.

Definition at line 49 of file trace-helper.cc.

References NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by ns3::EmuHelper::EnablePcapInternal(), ns3::PointToPointHelper::EnablePcapInternal(), ns3::CsmaHelper::EnablePcapInternal(), ns3::YansWifiPhyHelper::EnablePcapInternal(), ns3::WimaxHelper::EnablePcapInternal(), ns3::InternetStackHelper::EnablePcapIpv4Internal(), and ns3::InternetStackHelper::EnablePcapIpv6Internal().

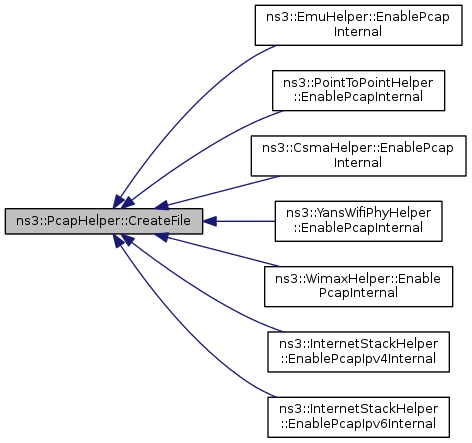

Here is the caller graph for this function:

void ns3::PcapHelper::DefaultSink ( Ptr< PcapFileWrapper >  file, Ptr< const Packet >  p  )

staticprivate

Definition at line 167 of file trace-helper.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by HookDefaultSink().

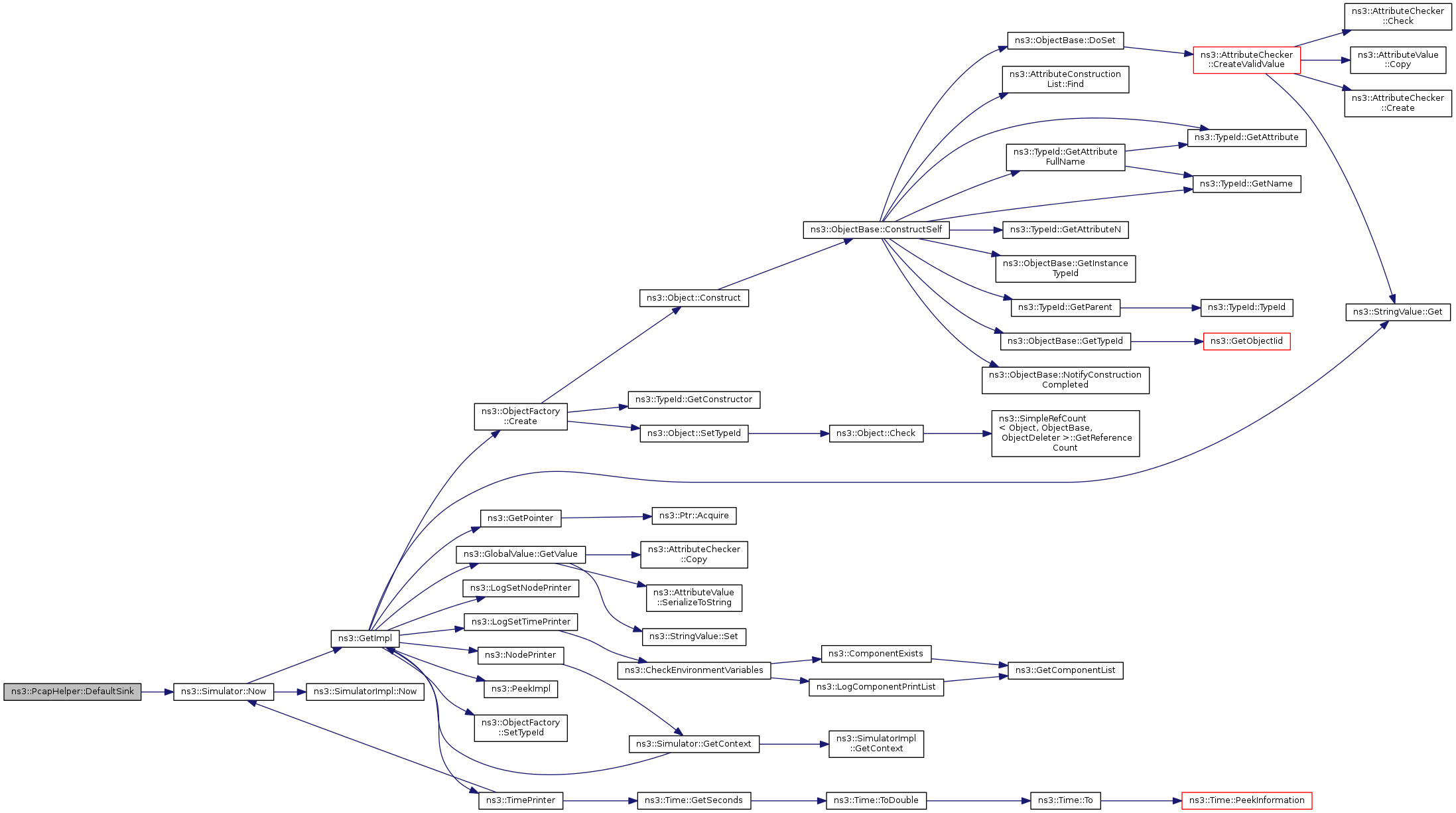

Here is the call graph for this function:

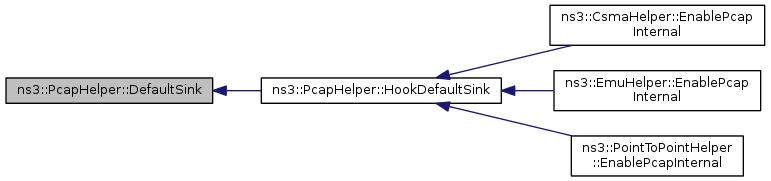

Here is the caller graph for this function:

std::string ns3::PcapHelper::GetFilenameFromDevice	(	std::string	prefix,
		Ptr< NetDevice >	device,
		bool	useObjectNames = true
	)

Let the pcap helper figure out a reasonable filename to use for a pcap file associated with a device.

Definition at line 80 of file trace-helper.cc.

References ns3::Names::FindName(), ns3::Node::GetId(), ns3::NetDevice::GetIfIndex(), ns3::NetDevice::GetNode(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION.

Referenced by ns3::EmuHelper::EnablePcapInternal(), ns3::PointToPointHelper::EnablePcapInternal(), ns3::CsmaHelper::EnablePcapInternal(), ns3::YansWifiPhyHelper::EnablePcapInternal(), and ns3::WimaxHelper::EnablePcapInternal().

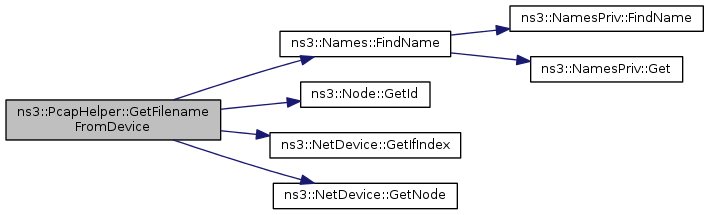

Here is the call graph for this function:

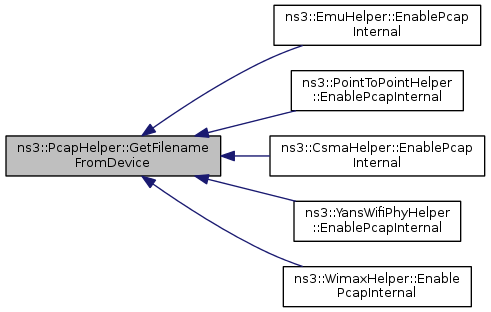

Here is the caller graph for this function:

std::string ns3::PcapHelper::GetFilenameFromInterfacePair	(	std::string	prefix,
		Ptr< Object >	object,
		uint32_t	interface,
		bool	useObjectNames = true
	)

Let the pcap helper figure out a reasonable filename to use for the pcap file associated with a node.

Definition at line 125 of file trace-helper.cc.

References ns3::Names::FindName(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION.

Referenced by ns3::InternetStackHelper::EnablePcapIpv4Internal(), and ns3::InternetStackHelper::EnablePcapIpv6Internal().

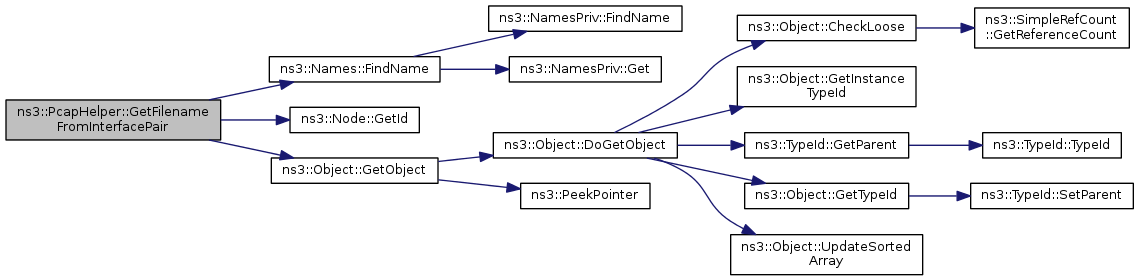

Here is the call graph for this function:

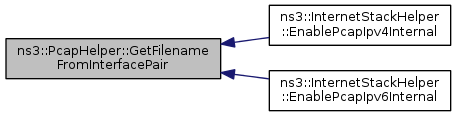

Here is the caller graph for this function:

template<typename T >

void ns3::PcapHelper::HookDefaultSink	(	Ptr< T >	object,
		std::string	traceName,
		Ptr< PcapFileWrapper >	file
	)

Hook a trace source to the default trace sink.

Definition at line 95 of file trace-helper.h.

References DefaultSink(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Referenced by ns3::EmuHelper::EnablePcapInternal(), ns3::PointToPointHelper::EnablePcapInternal(), and ns3::CsmaHelper::EnablePcapInternal().

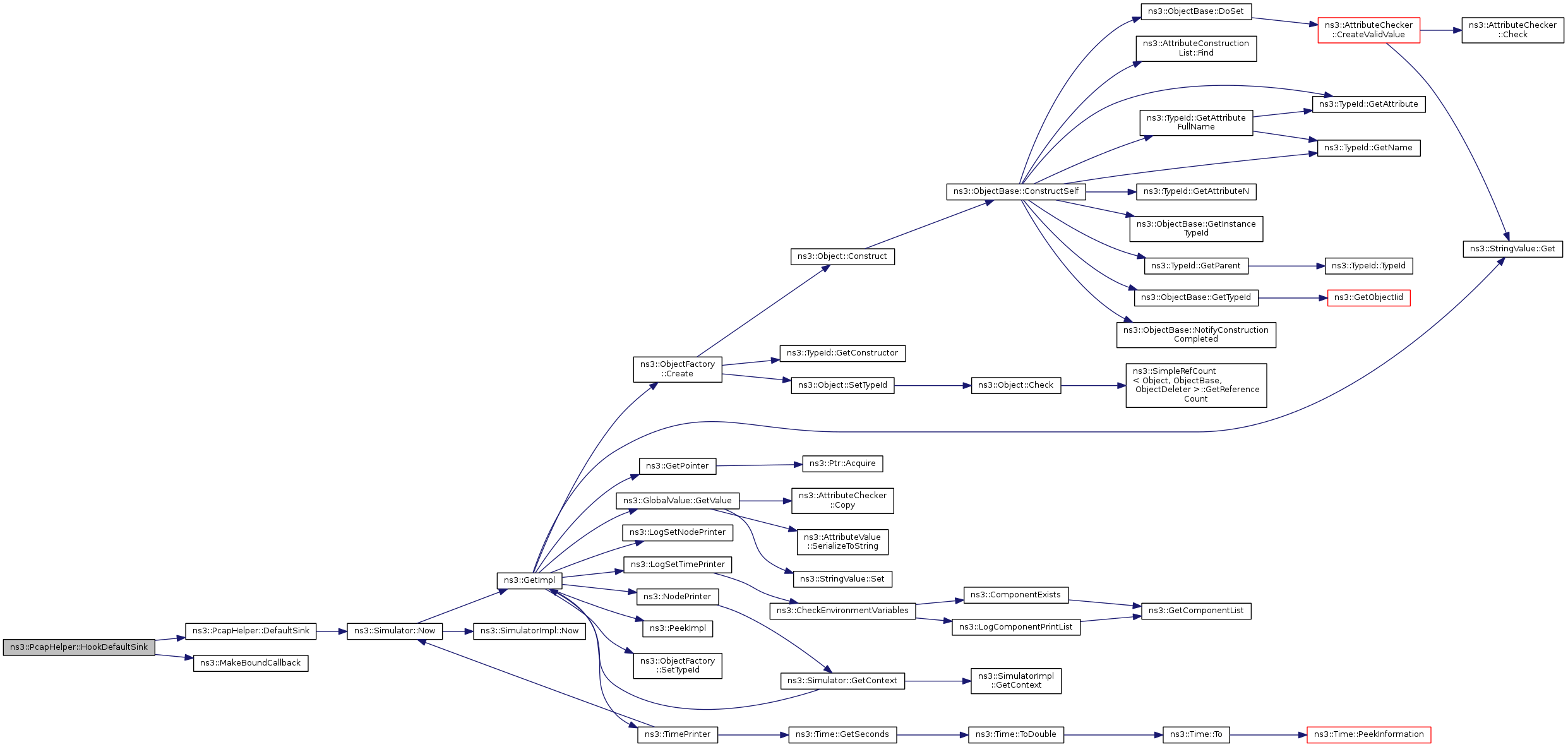

Here is the call graph for this function:

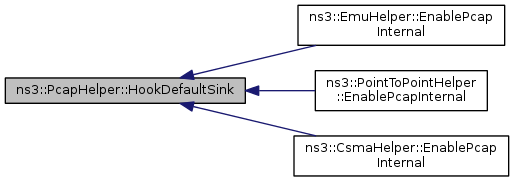

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/network/helper/trace-helper.h
• src/network/helper/trace-helper.cc
