A ping6 application. More...

#include <ping6.h>

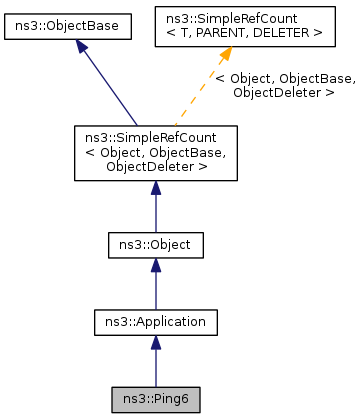

Inheritance diagram for ns3::Ping6:

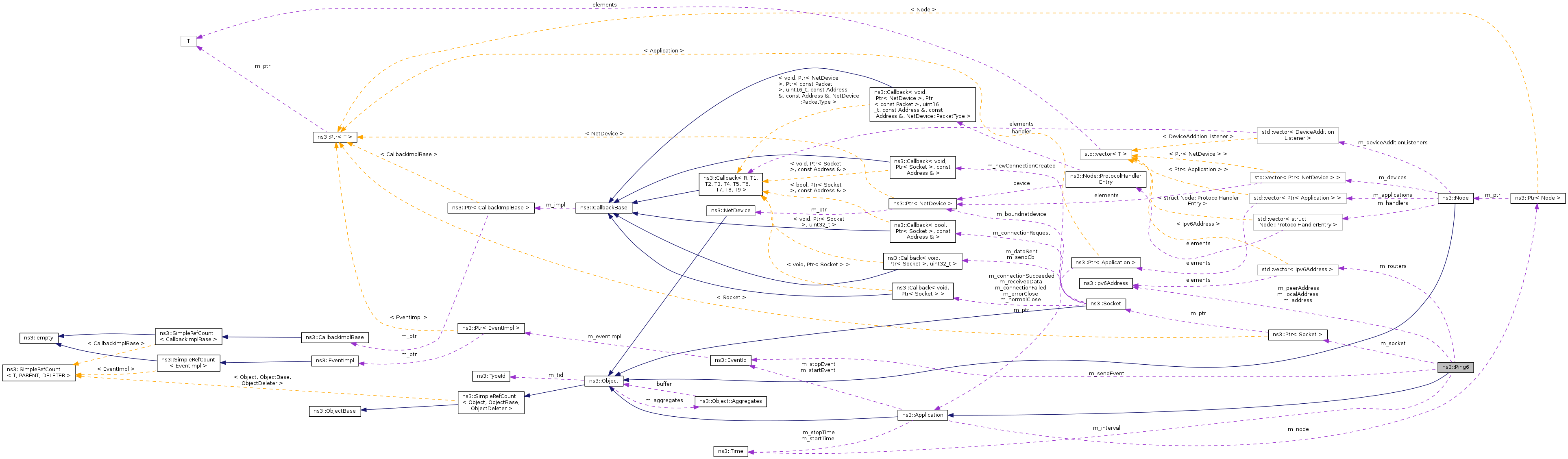

Collaboration diagram for ns3::Ping6:

Public Member Functions
	Ping6 ()
	Constructor.
virtual	~Ping6 ()
	Destructor.
void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.
void	SetLocal (Ipv6Address ipv6)
	Set the local address.
void	SetRemote (Ipv6Address ipv6)
	Set the remote peer.
void	SetRouters (std::vector< Ipv6Address > routers)
	Set routers for routing type 0 (loose routing).
Public Member Functions inherited from ns3::Application
	Application ()
virtual	~Application ()
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time.
void	SetStopTime (Time stop)
	Specify application stop time.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object;.
Protected Member Functions inherited from ns3::Application
virtual void	DoStart (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)

Private Member Functions

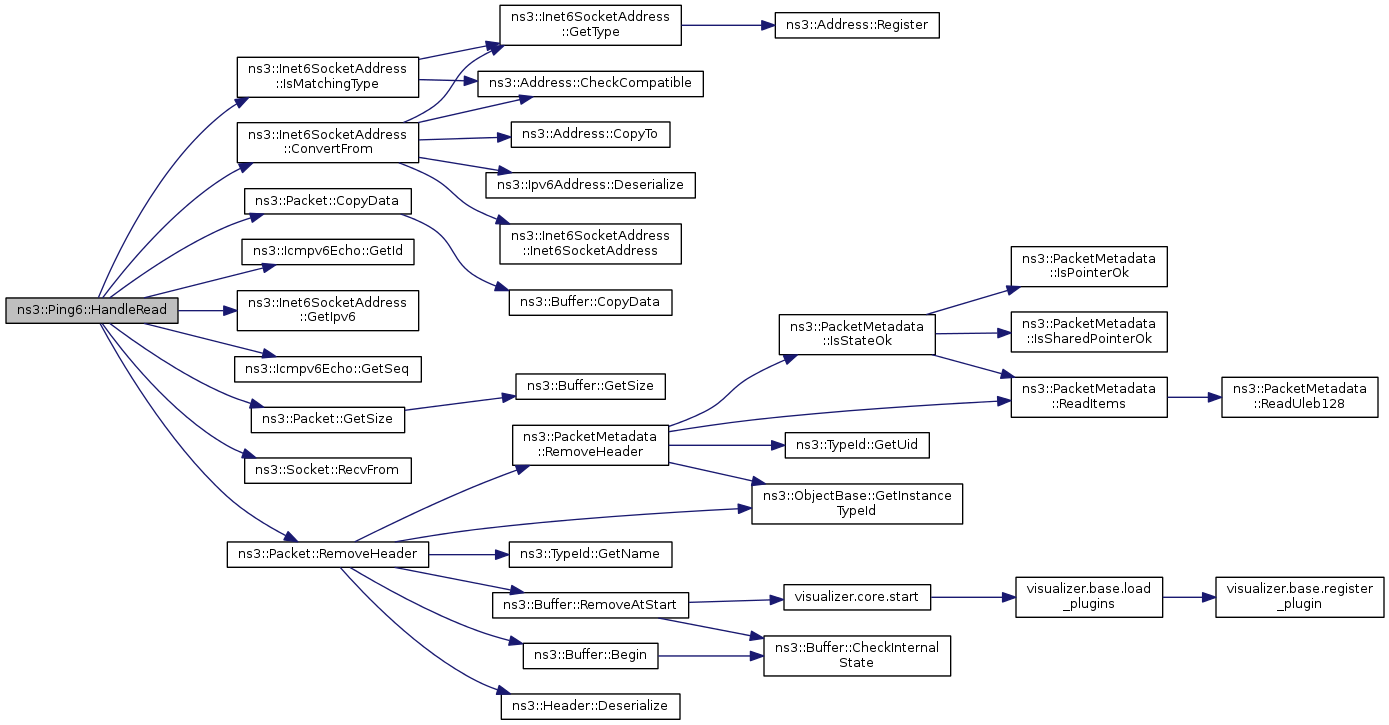

void	HandleRead (Ptr< Socket > socket)
	Receive method.

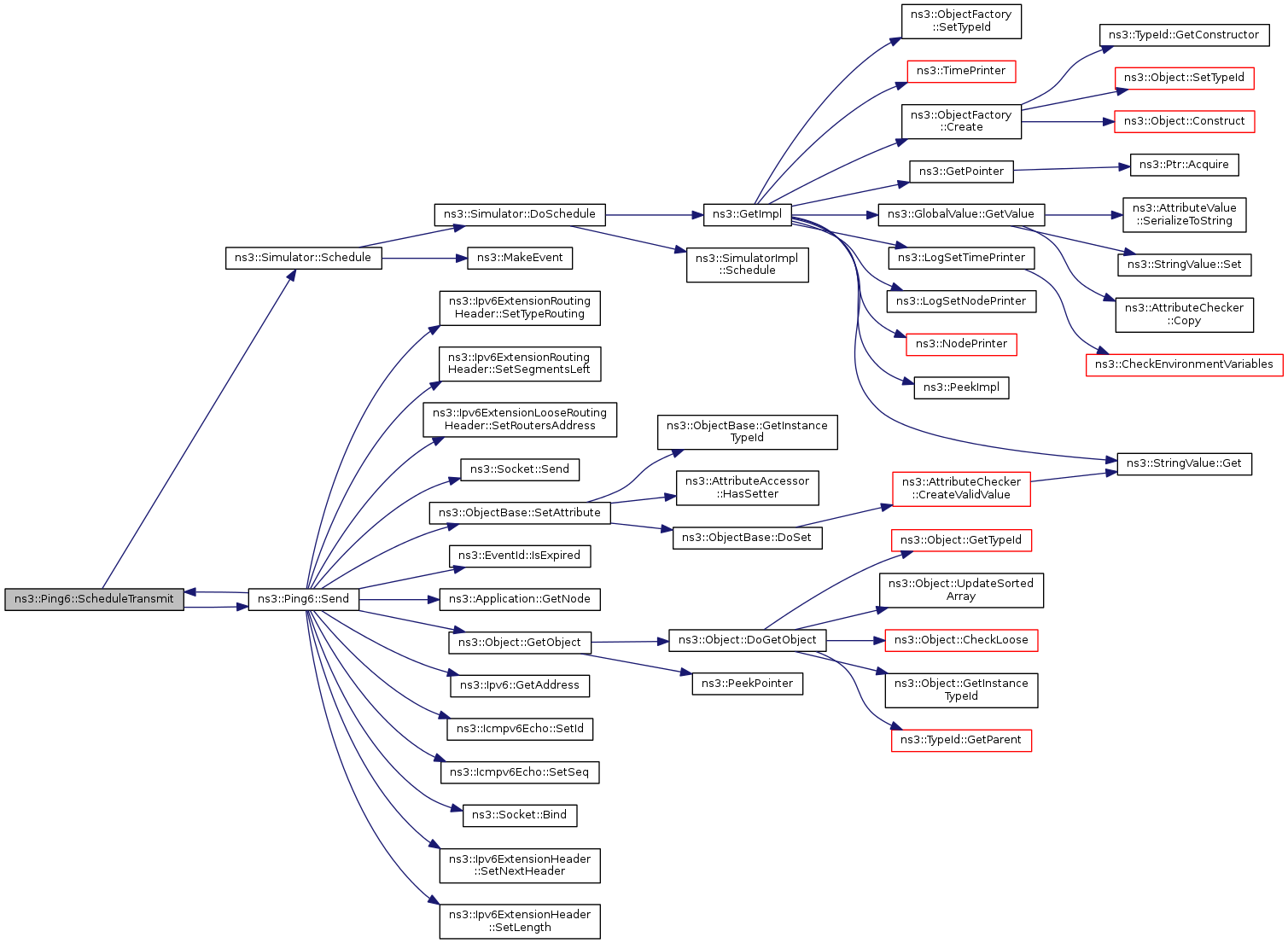

void	ScheduleTransmit (Time dt)
	Schedule sending a packet.

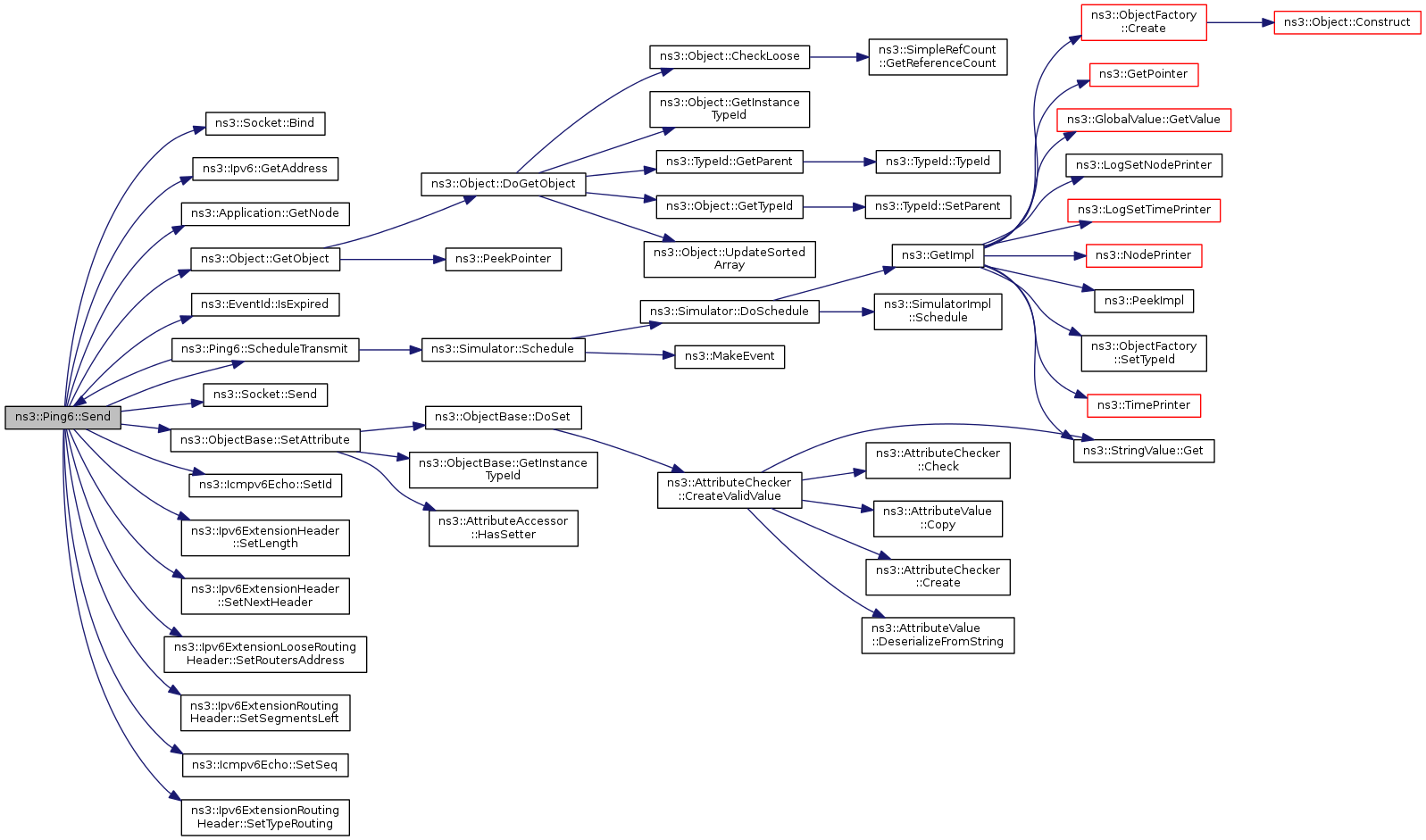

void	Send ()
	Send a packet.

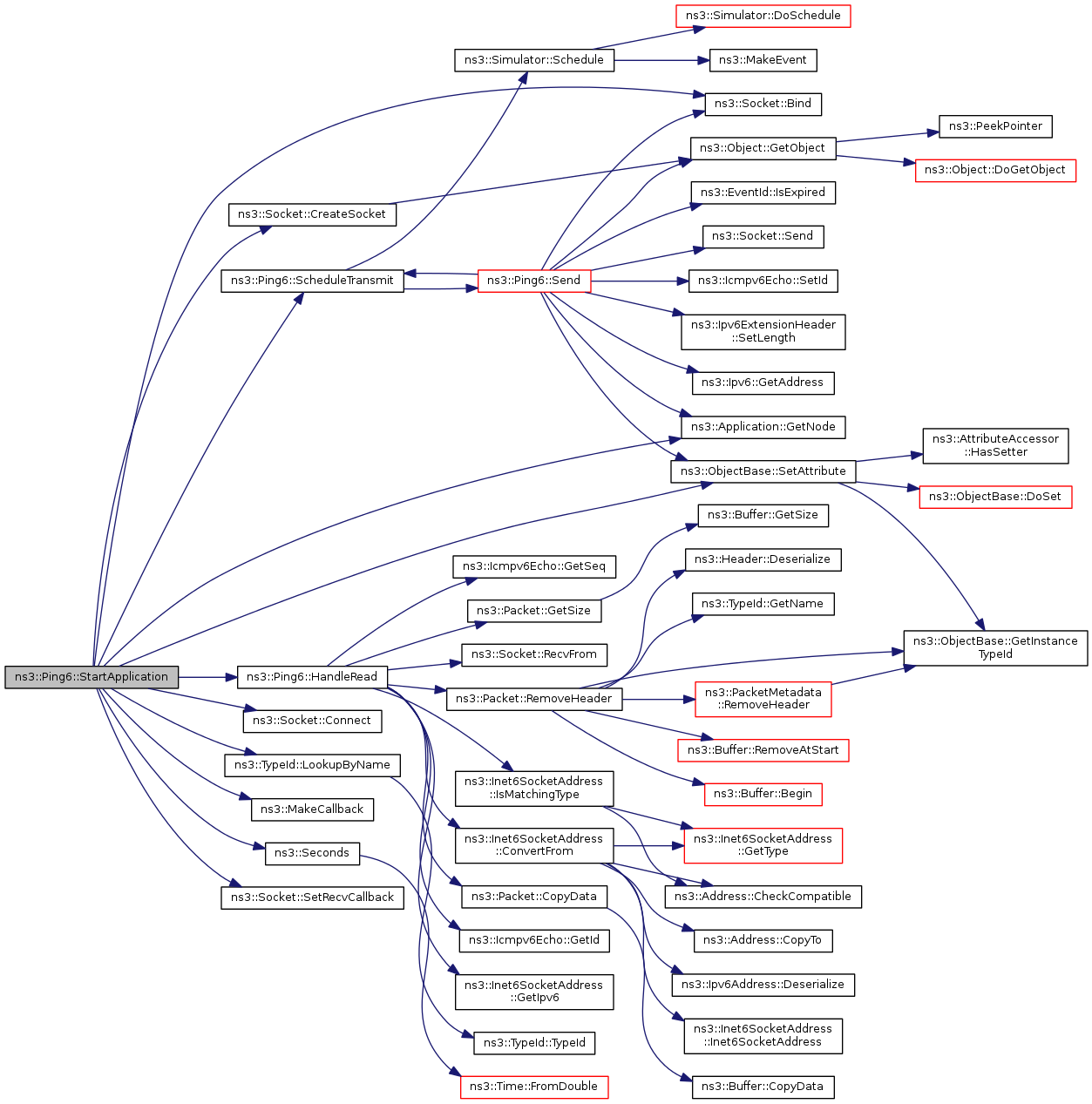

virtual void	StartApplication ()
	Start the application.

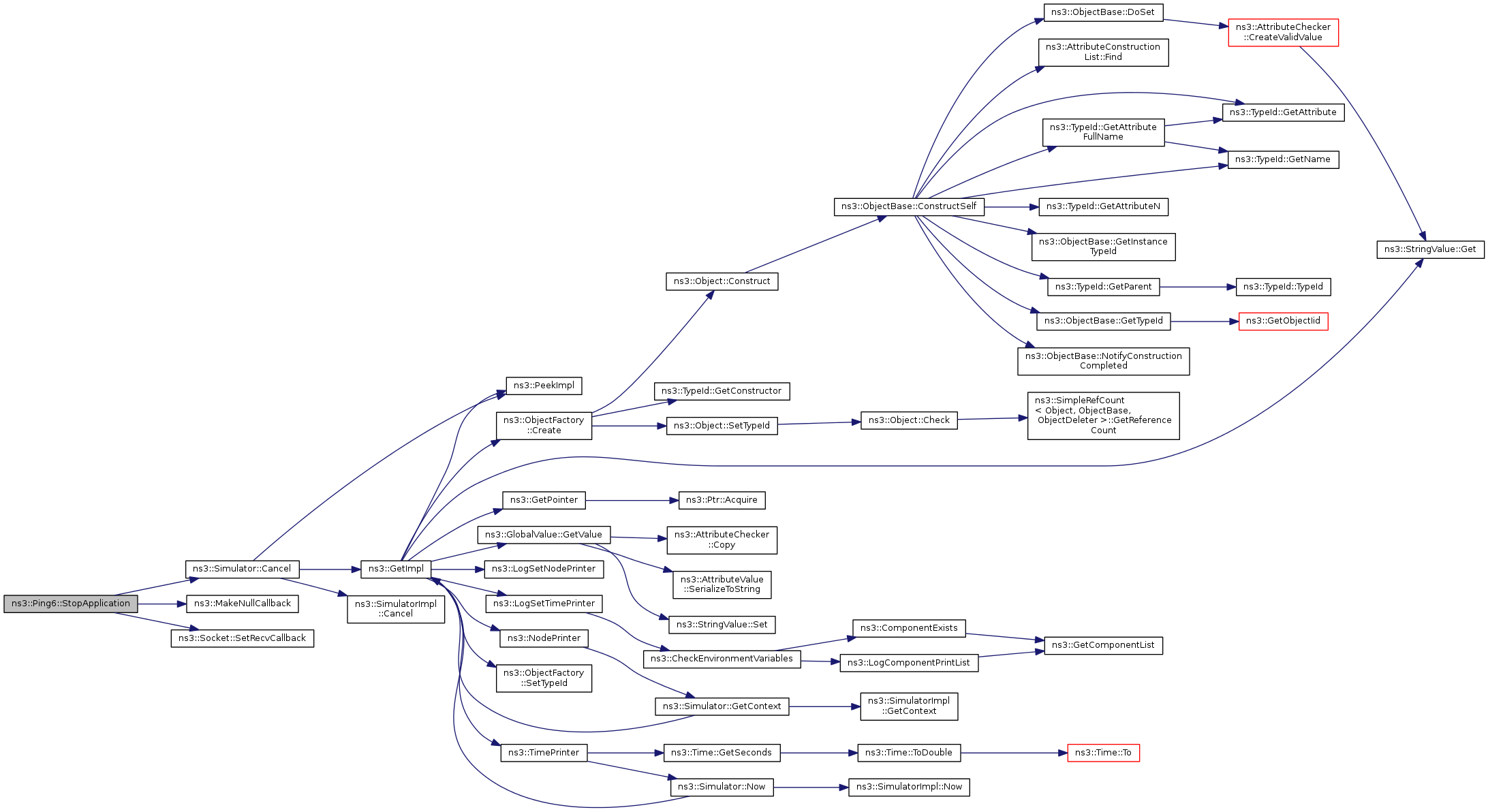

virtual void	StopApplication ()
	Stop the application.

Private Attributes
Ipv6Address	m_address
	Peer IPv6 address.
uint32_t	m_count
	Number of "Echo request" packets that will be sent.
uint32_t	m_ifIndex
	Out interface (i.e. for link-local communication).
Time	m_interval
	Intervall between packets sent.
Ipv6Address	m_localAddress
	Local address.
Ipv6Address	m_peerAddress
	Peer address.
std::vector< Ipv6Address >	m_routers
	Routers addresses for routing type 0.
EventId	m_sendEvent
	Event ID.
uint32_t	m_sent
	Number of packets sent.
uint16_t	m_seq
	Sequence number.
uint32_t	m_size
	Size of the packet.
Ptr< Socket >	m_socket
	Local socket.

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
EventId	m_startEvent
Time	m_startTime
EventId	m_stopEvent
Time	m_stopTime

Detailed Description

A ping6 application.

Definition at line 45 of file ping6.h.

Constructor & Destructor Documentation

ns3::Ping6::Ping6 ( )

Constructor.

Definition at line 79 of file ping6.cc.

References m_sendEvent, m_sent, m_seq, m_socket, and NS_LOG_FUNCTION_NOARGS.

ns3::Ping6::~Ping6 ( )

virtual

Destructor.

Definition at line 88 of file ping6.cc.

References m_socket, and NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::Ping6::DoDispose ( void )

protectedvirtual

Dispose this object;.

Reimplemented from ns3::Application.

Definition at line 94 of file ping6.cc.

References NS_LOG_FUNCTION_NOARGS.

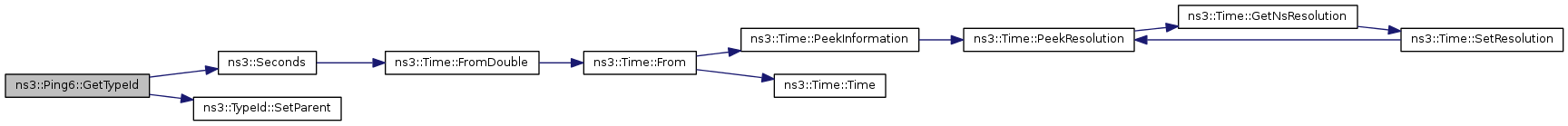

TypeId ns3::Ping6::GetTypeId ( void )

static

Get the type ID.

This method returns the TypeId associated to ns3::Ping6.

Returns: type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::Ping6

Attributes defined for this type:

MaxPackets: The maximum number of packets the application will send
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
Interval: The time to wait between packets
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +1000000000.0ns
- Flags: construct write read
RemoteIpv6: The Ipv6Address of the outbound packets
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
- Flags: construct write read
LocalIpv6: Local Ipv6Address of the sender
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
- Flags: construct write read
PacketSize: Size of packets generated
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read

Attributes defined in parent class ns3::Application:

StartTime: Time at which the application will start
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
