A helper to make it easier to create a star topology with PointToPoint links. More...

#include <point-to-point-star.h>

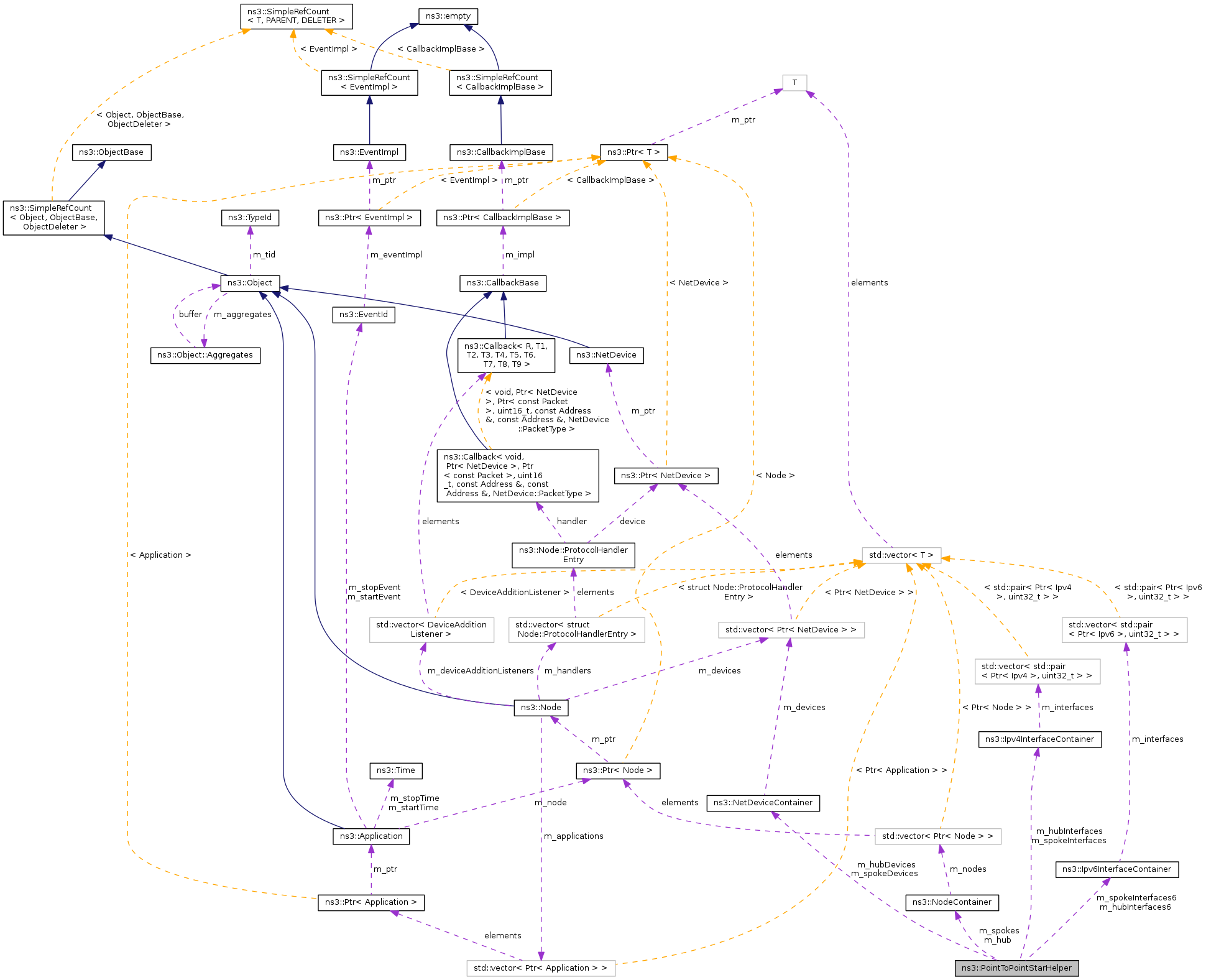

Collaboration diagram for ns3::PointToPointStarHelper:

Public Member Functions
	PointToPointStarHelper (uint32_t numSpokes, PointToPointHelper p2pHelper)
	~PointToPointStarHelper ()
void	AssignIpv4Addresses (Ipv4AddressHelper address)
void	AssignIpv6Addresses (Ipv6Address network, Ipv6Prefix prefix)
void	BoundingBox (double ulx, double uly, double lrx, double lry)
Ptr< Node >	GetHub () const
Ipv4Address	GetHubIpv4Address (uint32_t i) const
Ipv6Address	GetHubIpv6Address (uint32_t i) const
Ipv4Address	GetSpokeIpv4Address (uint32_t i) const
Ipv6Address	GetSpokeIpv6Address (uint32_t i) const
Ptr< Node >	GetSpokeNode (uint32_t i) const
void	InstallStack (InternetStackHelper stack)
uint32_t	SpokeCount () const

Private Attributes
NodeContainer	m_hub
NetDeviceContainer	m_hubDevices
Ipv4InterfaceContainer	m_hubInterfaces
Ipv6InterfaceContainer	m_hubInterfaces6
NetDeviceContainer	m_spokeDevices
Ipv4InterfaceContainer	m_spokeInterfaces
Ipv6InterfaceContainer	m_spokeInterfaces6
NodeContainer	m_spokes

Detailed Description

A helper to make it easier to create a star topology with PointToPoint links.

Definition at line 44 of file point-to-point-star.h.

Constructor & Destructor Documentation

ns3::PointToPointStarHelper::PointToPointStarHelper	(	uint32_t	numSpokes,
		PointToPointHelper	p2pHelper
	)

Create a PointToPointStarHelper in order to easily create star topologies using p2p links

Parameters

numSpokes	the number of links attached to the hub node, creating a total of numSpokes + 1 nodes
p2pHelper	the link helper for p2p links, used to link nodes together

Definition at line 34 of file point-to-point-star.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), ns3::PointToPointHelper::Install(), m_hub, m_hubDevices, m_spokeDevices, and m_spokes.

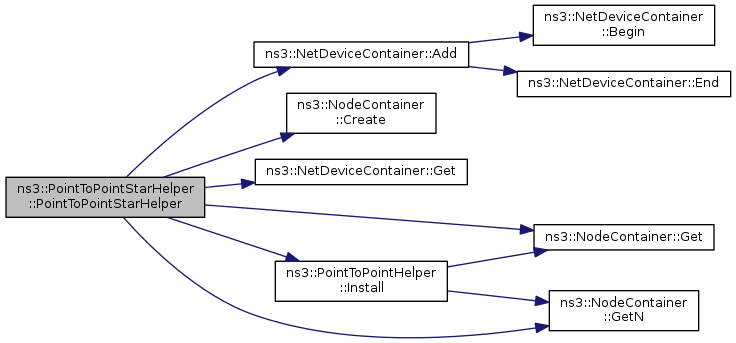

Here is the call graph for this function:

ns3::PointToPointStarHelper::~PointToPointStarHelper ( )

Definition at line 48 of file point-to-point-star.cc.

Member Function Documentation

void ns3::PointToPointStarHelper::AssignIpv4Addresses ( Ipv4AddressHelper address )

Parameters

address an Ipv4AddressHelper which is used to install Ipv4 addresses on all the node interfaces in the star

Definition at line 102 of file point-to-point-star.cc.

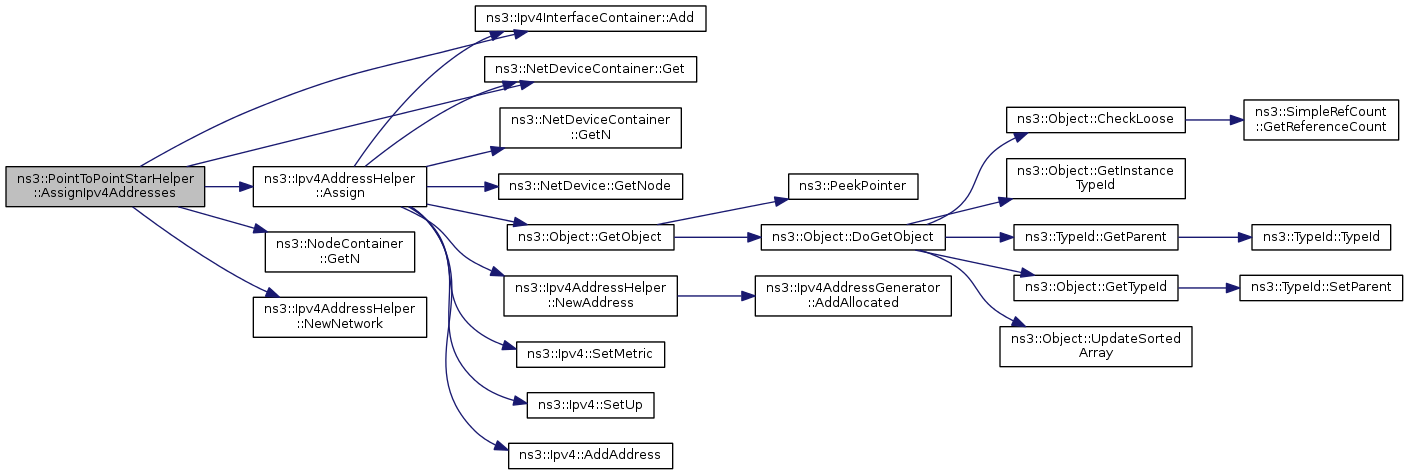

References ns3::Ipv4InterfaceContainer::Add(), ns3::Ipv4AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::GetN(), m_hubDevices, m_hubInterfaces, m_spokeDevices, m_spokeInterfaces, m_spokes, and ns3::Ipv4AddressHelper::NewNetwork().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PointToPointStarHelper::AssignIpv6Addresses	(	Ipv6Address	network,
		Ipv6Prefix	prefix
	)

Parameters

network	an IPv6 address representing the network portion of the IPv6 Address
prefix	the prefix length

Definition at line 113 of file point-to-point-star.cc.

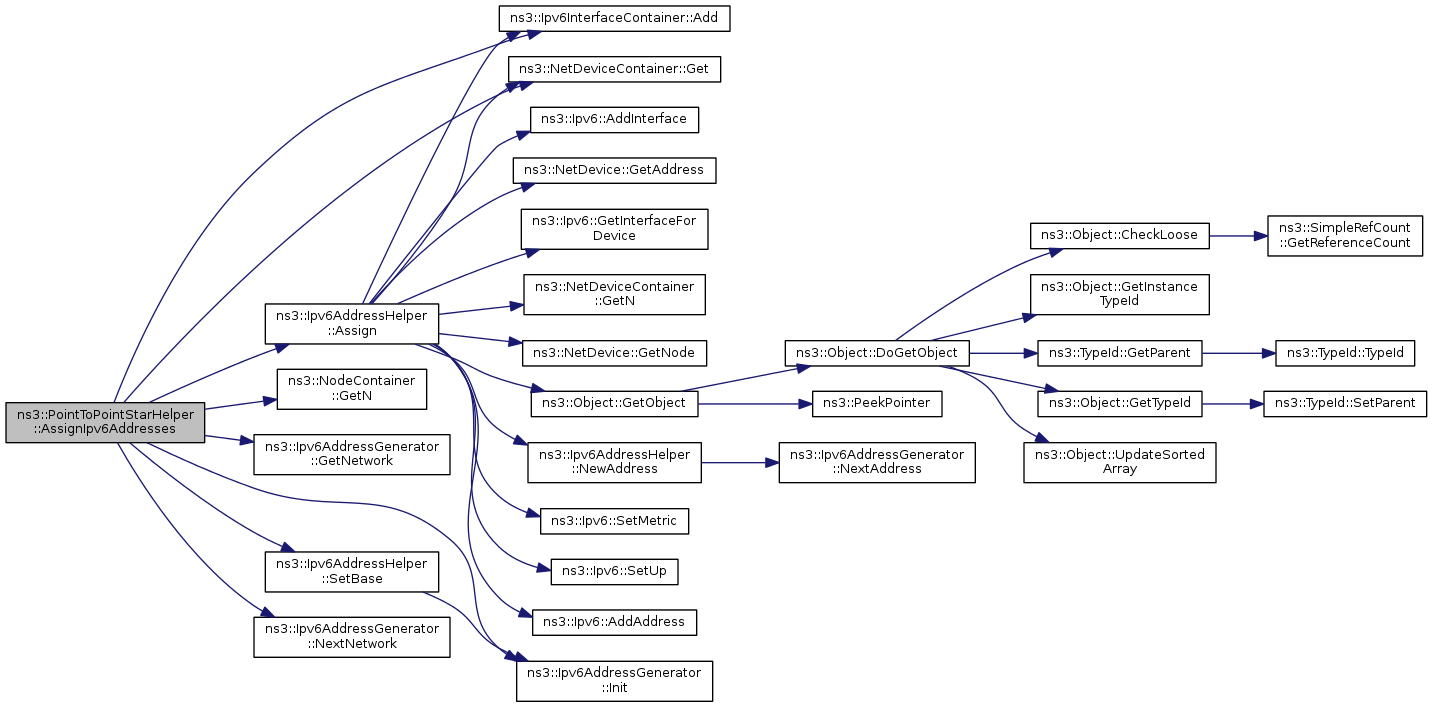

References ns3::Ipv6InterfaceContainer::Add(), ns3::Ipv6AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::GetN(), ns3::Ipv6AddressGenerator::GetNetwork(), ns3::Ipv6AddressGenerator::Init(), m_hubDevices, m_hubInterfaces6, m_spokeDevices, m_spokeInterfaces6, m_spokes, ns3::Ipv6AddressGenerator::NextNetwork(), and ns3::Ipv6AddressHelper::SetBase().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PointToPointStarHelper::BoundingBox	(	double	ulx,
		double	uly,
		double	lrx,
		double	lry
	)

Sets up the node canvas locations for every node in the star. This is needed for use with the animation interface

Parameters

ulx	upper left x value
uly	upper left y value
lrx	lower right x value
lry	lower right y value

Definition at line 134 of file point-to-point-star.cc.

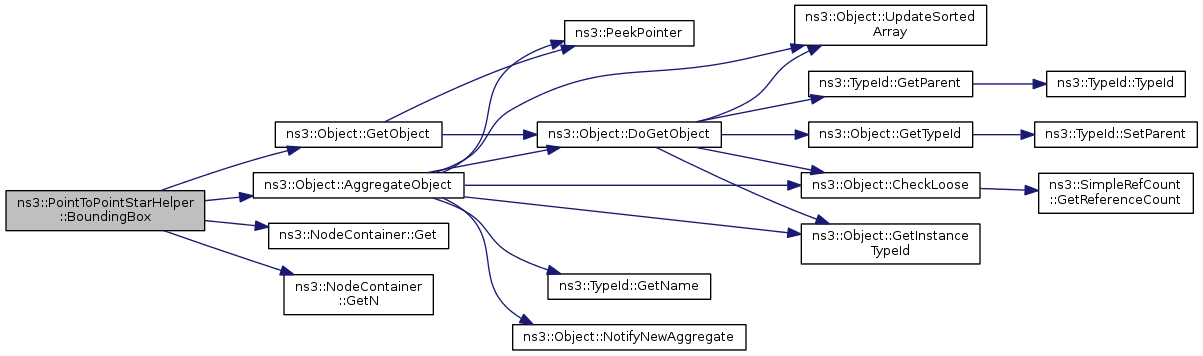

References ns3::Object::AggregateObject(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), m_hub, m_spokes, ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Node > ns3::PointToPointStarHelper::GetHub ( ) const

Returns: a node pointer to the hub node in the star, i.e., the center node

Definition at line 53 of file point-to-point-star.cc.

References ns3::NodeContainer::Get(), and m_hub.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::PointToPointStarHelper::GetHubIpv4Address ( uint32_t i ) const

Parameters

i	index into the hub interfaces

Returns: Ipv4Address according to indexed hub interface

Definition at line 65 of file point-to-point-star.cc.

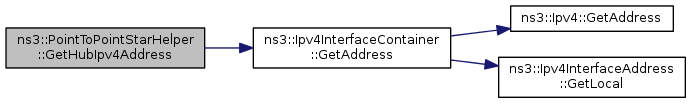

References ns3::Ipv4InterfaceContainer::GetAddress(), and m_hubInterfaces.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv6Address ns3::PointToPointStarHelper::GetHubIpv6Address ( uint32_t i ) const

Parameters

i	index into the hub interfaces

Returns: Ipv6Address according to indexed hub interface

Definition at line 77 of file point-to-point-star.cc.

References ns3::Ipv6InterfaceContainer::GetAddress(), and m_hubInterfaces6.

Referenced by main().

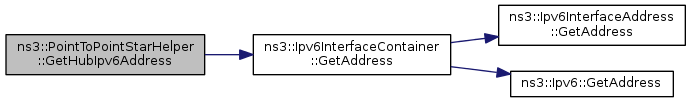

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::PointToPointStarHelper::GetSpokeIpv4Address ( uint32_t i ) const

Parameters

i	index into the spoke interfaces

Returns: Ipv4Address according to indexed spoke interface

Definition at line 71 of file point-to-point-star.cc.

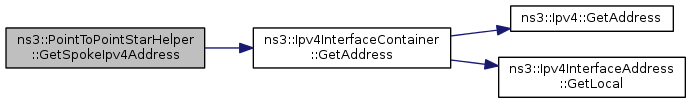

References ns3::Ipv4InterfaceContainer::GetAddress(), and m_spokeInterfaces.

Here is the call graph for this function:

Ipv6Address ns3::PointToPointStarHelper::GetSpokeIpv6Address ( uint32_t i ) const

Parameters

i	index into the spoke interfaces

Returns: Ipv6Address according to indexed spoke interface

Definition at line 83 of file point-to-point-star.cc.

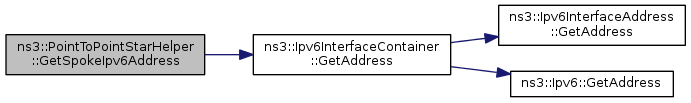

References ns3::Ipv6InterfaceContainer::GetAddress(), and m_spokeInterfaces6.

Here is the call graph for this function:

Ptr< Node > ns3::PointToPointStarHelper::GetSpokeNode ( uint32_t i ) const

Parameters

i	an index into the spokes of the star

Returns: a node pointer to the node at the indexed spoke

Definition at line 59 of file point-to-point-star.cc.

References ns3::NodeContainer::Get(), and m_spokes.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PointToPointStarHelper::InstallStack ( InternetStackHelper stack )

Parameters

stack an InternetStackHelper which is used to install on every node in the star

Definition at line 95 of file point-to-point-star.cc.

References ns3::InternetStackHelper::Install(), m_hub, and m_spokes.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::PointToPointStarHelper::SpokeCount ( ) const

Returns: the total number of spokes in the star

Definition at line 89 of file point-to-point-star.cc.

References ns3::NodeContainer::GetN(), and m_spokes.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

NodeContainer ns3::PointToPointStarHelper::m_hub

private

Definition at line 142 of file point-to-point-star.h.

Referenced by BoundingBox(), GetHub(), InstallStack(), and PointToPointStarHelper().

NetDeviceContainer ns3::PointToPointStarHelper::m_hubDevices

private

Definition at line 143 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), AssignIpv6Addresses(), and PointToPointStarHelper().

Ipv4InterfaceContainer ns3::PointToPointStarHelper::m_hubInterfaces

private

Definition at line 146 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), and GetHubIpv4Address().

Ipv6InterfaceContainer ns3::PointToPointStarHelper::m_hubInterfaces6

private

Definition at line 148 of file point-to-point-star.h.

Referenced by AssignIpv6Addresses(), and GetHubIpv6Address().

NetDeviceContainer ns3::PointToPointStarHelper::m_spokeDevices

private

Definition at line 145 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), AssignIpv6Addresses(), and PointToPointStarHelper().

Ipv4InterfaceContainer ns3::PointToPointStarHelper::m_spokeInterfaces

private

Definition at line 147 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), and GetSpokeIpv4Address().

Ipv6InterfaceContainer ns3::PointToPointStarHelper::m_spokeInterfaces6

private

Definition at line 149 of file point-to-point-star.h.

Referenced by AssignIpv6Addresses(), and GetSpokeIpv6Address().

NodeContainer ns3::PointToPointStarHelper::m_spokes

private

Definition at line 144 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), AssignIpv6Addresses(), BoundingBox(), GetSpokeNode(), InstallStack(), PointToPointStarHelper(), and SpokeCount().
