Provide a list of Packets to corrupt. More...

#include <error-model.h>

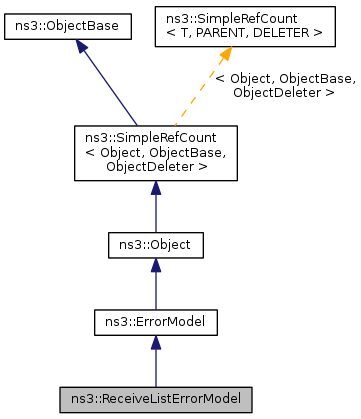

Inheritance diagram for ns3::ReceiveListErrorModel:

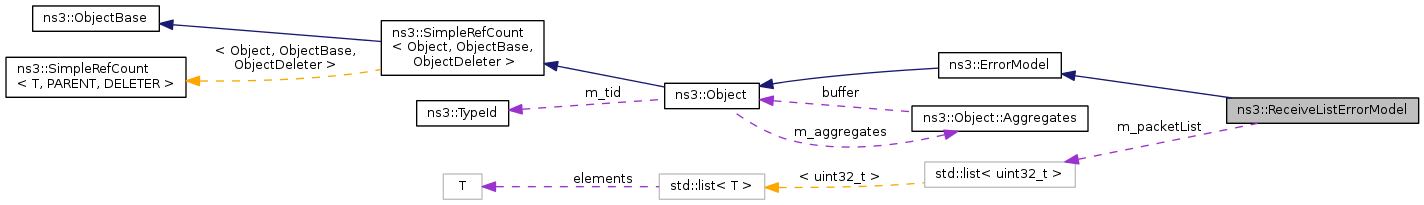

Collaboration diagram for ns3::ReceiveListErrorModel:

Public Member Functions
	ReceiveListErrorModel ()
virtual	~ReceiveListErrorModel ()
std::list< uint32_t >	GetList (void) const
void	SetList (const std::list< uint32_t > &packetlist)
Public Member Functions inherited from ns3::ErrorModel
	ErrorModel ()
virtual	~ErrorModel ()
void	Disable (void)
void	Enable (void)
bool	IsCorrupt (Ptr< Packet > pkt)
bool	IsEnabled (void) const
void	Reset (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ReceiveListErrorModel.

Private Types
typedef std::list< uint32_t >	PacketList
typedef std::list< uint32_t > ::const_iterator	PacketListCI

Private Member Functions
virtual bool	DoCorrupt (Ptr< Packet > p)
virtual void	DoReset (void)

Private Attributes
PacketList	m_packetList
uint32_t	m_timesInvoked

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Provide a list of Packets to corrupt.

This model also processes a user-generated list of packets to corrupt, except that the list corresponds to the sequence of received packets as observed by this error model, and not the Packet UID.

Reset() on this model will clear the list

IsCorrupt() will not modify the packet data buffer

Definition at line 289 of file error-model.h.

Member Typedef Documentation

typedef std::list<uint32_t> ns3::ReceiveListErrorModel::PacketList

private

Definition at line 311 of file error-model.h.

typedef std::list<uint32_t>::const_iterator ns3::ReceiveListErrorModel::PacketListCI

private

Definition at line 312 of file error-model.h.

Constructor & Destructor Documentation

ns3::ReceiveListErrorModel::ReceiveListErrorModel ( )

Definition at line 358 of file error-model.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::ReceiveListErrorModel::~ReceiveListErrorModel ( )

virtual

Definition at line 364 of file error-model.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::ReceiveListErrorModel::DoCorrupt ( Ptr< Packet > p )

privatevirtual

Definition at line 384 of file error-model.cc.

References ns3::ErrorModel::IsEnabled(), m_packetList, m_timesInvoked, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::ReceiveListErrorModel::DoReset ( void )

privatevirtual

Definition at line 404 of file error-model.cc.

References m_packetList, and NS_LOG_FUNCTION_NOARGS.

std::list< uint32_t > ns3::ReceiveListErrorModel::GetList ( void ) const

Returns: a copy of the underlying list

Definition at line 370 of file error-model.cc.

References m_packetList, and NS_LOG_FUNCTION_NOARGS.

TypeId ns3::ReceiveListErrorModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ReceiveListErrorModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::ReceiveListErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::ReceiveListErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::ReceiveListErrorModel

No Attributes defined for this type.
Attributes defined in parent class ns3::ErrorModel:

IsEnabled: Whether this ErrorModel is enabled or not.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::ErrorModel.

Definition at line 348 of file error-model.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:
