ns3::Reservation Class Reference

Stores reservation info for use in scheduling data channel by reservation channel MAC. More...

#include <uan-mac-rc.h>

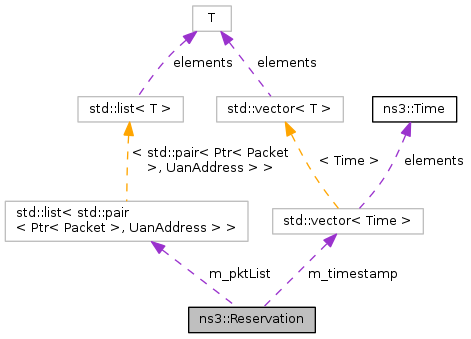

Collaboration diagram for ns3::Reservation:

Public Member Functions
	Reservation ()
	Create empty object with default values.
	Reservation (std::list< std::pair< Ptr< Packet >, UanAddress > > &list, uint8_t frameNo, uint32_t maxPkts=0)
	Create Reservation object with given packet list, frame number and max packets.
	~Reservation ()
void	AddTimestamp (Time t)
uint8_t	GetFrameNo () const
uint32_t	GetLength () const
uint32_t	GetNoFrames () const
const std::list< std::pair < Ptr< Packet >, UanAddress > > &	GetPktList (void) const
uint8_t	GetRetryNo () const
Time	GetTimestamp (uint8_t n) const
void	IncrementRetry ()
	Increments retry count by 1.
bool	IsTransmitted () const
void	SetFrameNo (uint8_t fn)
void	SetTransmitted (bool t=true)
	Sets reservation transmitted state.

Private Attributes
uint8_t	m_frameNo
uint32_t	m_length
std::list< std::pair< Ptr < Packet >, UanAddress > >	m_pktList
uint8_t	m_retryNo
std::vector< Time >	m_timestamp
bool	m_transmitted

Detailed Description

Stores reservation info for use in scheduling data channel by reservation channel MAC.

Definition at line 52 of file uan-mac-rc.h.

Constructor & Destructor Documentation

ns3::Reservation::Reservation

(

)

Create empty object with default values.

Definition at line 45 of file uan-mac-rc.cc.

ns3::Reservation::Reservation	(	std::list< std::pair< Ptr< Packet >, UanAddress > > &	list,
		uint8_t	frameNo,
		uint32_t	maxPkts = 0
	)

Create Reservation object with given packet list, frame number and max packets.

Parameters

list	List of packets for assigned to reservation
frameNo	Frame number of reservation transmission
maxPkts	Maximum number of packets to assign to reservation from packet list (0 = no maximum)

Definition at line 54 of file uan-mac-rc.cc.

References ns3::UanHeaderRcData::GetSerializedSize(), ns3::UanHeaderCommon::GetSerializedSize(), list, m_length, and m_pktList.

Here is the call graph for this function:

ns3::Reservation::~Reservation

(

)

Definition at line 75 of file uan-mac-rc.cc.

References m_pktList, and m_timestamp.

Member Function Documentation

void ns3::Reservation::AddTimestamp

(

Time

t

)

Parameters

t	Time of latest RTS send

Definition at line 134 of file uan-mac-rc.cc.

References m_timestamp.

Referenced by ns3::UanMacRc::Associate().

Here is the caller graph for this function:

uint8_t ns3::Reservation::GetFrameNo

(

void

)

const

Returns

Frame number of reservation

Definition at line 104 of file uan-mac-rc.cc.

References m_frameNo.

Referenced by ns3::UanMacRc::CreateRtsHeader().

Here is the caller graph for this function:

uint32_t ns3::Reservation::GetLength

(

void

)

const

Returns

total byte length of reservation (sum of all packets with headers)

Definition at line 92 of file uan-mac-rc.cc.

References m_length.

Referenced by ns3::UanMacRc::CreateRtsHeader().

Here is the caller graph for this function:

uint32_t ns3::Reservation::GetNoFrames

(

void

)

const

Returns

number of frames in reservation

Definition at line 86 of file uan-mac-rc.cc.

References m_pktList.

Referenced by ns3::UanMacRc::CreateRtsHeader().

Here is the caller graph for this function:

const std::list< std::pair< Ptr< Packet >, UanAddress > > & ns3::Reservation::GetPktList

(

void

)

const

Returns

reference to list of packets in this reservation

Definition at line 98 of file uan-mac-rc.cc.

References m_pktList.

uint8_t ns3::Reservation::GetRetryNo

(

void

)

const

Returns

Retry number of reservation

Definition at line 110 of file uan-mac-rc.cc.

References m_retryNo.

Referenced by ns3::UanMacRc::CreateRtsHeader().

Here is the caller graph for this function:

Time ns3::Reservation::GetTimestamp

(

uint8_t

n

)

const

Returns

Timestamp nth RTS send for this reservation

Parameters

n	Timestamp for retry number n to return

Definition at line 116 of file uan-mac-rc.cc.

References m_timestamp.

Referenced by ns3::UanMacRc::CreateRtsHeader().

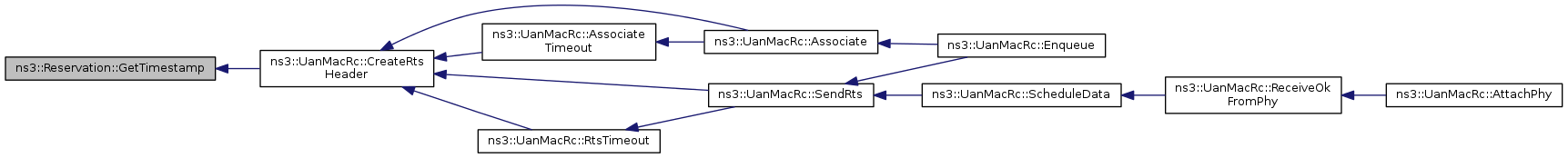

Here is the caller graph for this function:

void ns3::Reservation::IncrementRetry

(

)

Increments retry count by 1.

Definition at line 140 of file uan-mac-rc.cc.

References m_retryNo.

bool ns3::Reservation::IsTransmitted

(

)

const

Returns

True if reservation packets have been transmitted

Definition at line 122 of file uan-mac-rc.cc.

References m_transmitted.

void ns3::Reservation::SetFrameNo

(

uint8_t

fn

)

Parameters

fn	Frame number to set reservation to

Definition at line 128 of file uan-mac-rc.cc.

References m_frameNo.

void ns3::Reservation::SetTransmitted

(

bool

t = true

)

Sets reservation transmitted state.

Parameters

t	True if resevation has been transmitted

Definition at line 146 of file uan-mac-rc.cc.

References m_transmitted.

Member Data Documentation

uint8_t ns3::Reservation::m_frameNo

private

Definition at line 116 of file uan-mac-rc.h.

Referenced by GetFrameNo(), and SetFrameNo().

uint32_t ns3::Reservation::m_length

private

Definition at line 115 of file uan-mac-rc.h.

Referenced by GetLength(), and Reservation().

std::list<std::pair <Ptr<Packet>, UanAddress > > ns3::Reservation::m_pktList

private

Definition at line 114 of file uan-mac-rc.h.

Referenced by GetNoFrames(), GetPktList(), Reservation(), and ~Reservation().

uint8_t ns3::Reservation::m_retryNo

private

Definition at line 118 of file uan-mac-rc.h.

Referenced by GetRetryNo(), and IncrementRetry().

std::vector<Time> ns3::Reservation::m_timestamp

private

Definition at line 117 of file uan-mac-rc.h.

Referenced by AddTimestamp(), GetTimestamp(), and ~Reservation().

bool ns3::Reservation::m_transmitted

private

Definition at line 119 of file uan-mac-rc.h.

Referenced by IsTransmitted(), and SetTransmitted().

---

The documentation for this class was generated from the following files:

• src/uan/model/uan-mac-rc.h
• src/uan/model/uan-mac-rc.cc
