this class manages a list of SSrecord More...

#include <ss-manager.h>

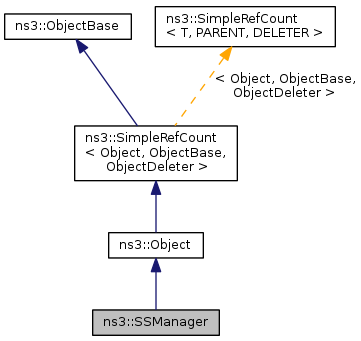

Inheritance diagram for ns3::SSManager:

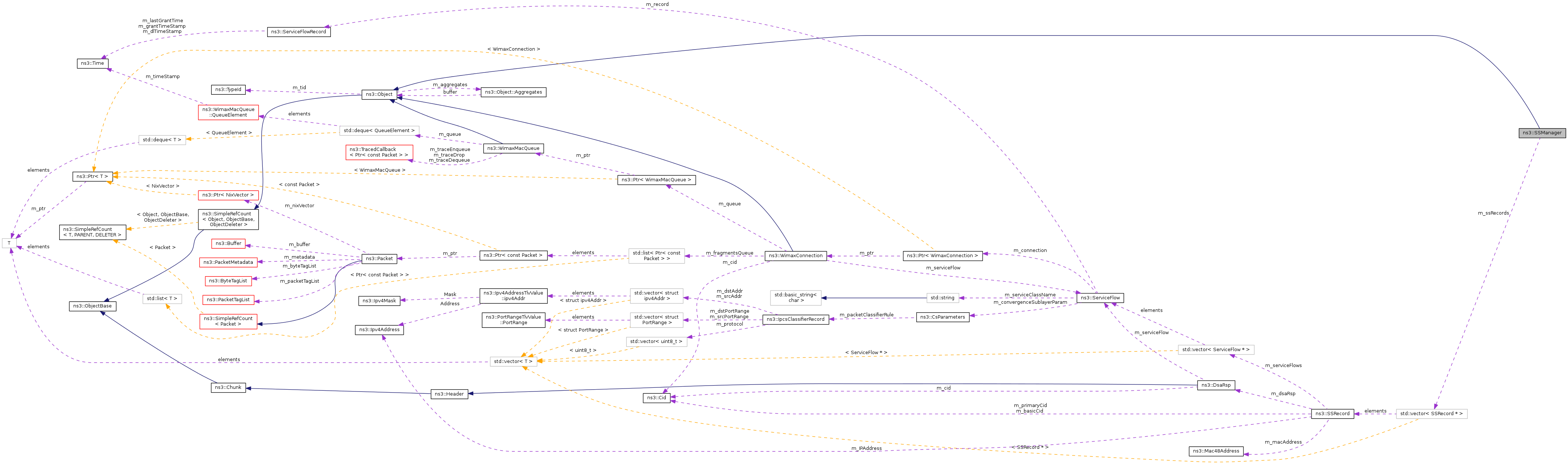

Collaboration diagram for ns3::SSManager:

Public Member Functions
	SSManager (void)
	~SSManager (void)
SSRecord *	CreateSSRecord (const Mac48Address &macAddress)
void	DeleteSSRecord (Cid cid)
Mac48Address	GetMacAddress (Cid cid) const
uint32_t	GetNRegisteredSSs (void) const
uint32_t	GetNSSs (void) const
SSRecord *	GetSSRecord (const Mac48Address &macAddress) const
SSRecord *	GetSSRecord (Cid cid) const
	returns the ssrecord which has been assigned this cid. Since different types of cids (basic, primary, transport) are assigned different values, all cids (basic, primary and transport) of the ssrecord are matched.
std::vector< SSRecord * > *	GetSSRecords (void) const
bool	IsInRecord (const Mac48Address &macAddress) const
bool	IsRegistered (const Mac48Address &macAddress) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SSManager.

Private Attributes
std::vector< SSRecord * > *	m_ssRecords

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

this class manages a list of SSrecord

See Also: SSrecord

Definition at line 37 of file ss-manager.h.

Constructor & Destructor Documentation

ns3::SSManager::SSManager ( void )

Definition at line 40 of file ss-manager.cc.

References m_ssRecords.

ns3::SSManager::~SSManager ( void )

Definition at line 45 of file ss-manager.cc.

References m_ssRecords.

Member Function Documentation

SSRecord * ns3::SSManager::CreateSSRecord ( const Mac48Address & macAddress )

Definition at line 56 of file ss-manager.cc.

References m_ssRecords.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

Here is the caller graph for this function:

void ns3::SSManager::DeleteSSRecord ( Cid cid )

Definition at line 132 of file ss-manager.cc.

References ns3::SSRecord::GetBasicCid(), ns3::SSRecord::GetPrimaryCid(), ns3::SSRecord::GetServiceFlows(), m_ssRecords, and ns3::ServiceFlow::SF_TYPE_ALL.

Here is the call graph for this function:

Mac48Address ns3::SSManager::GetMacAddress ( Cid cid ) const

Definition at line 158 of file ss-manager.cc.

References ns3::SSRecord::GetMacAddress(), and GetSSRecord().

Referenced by ns3::BaseStationNetDevice::DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::SSManager::GetNRegisteredSSs ( void ) const

Definition at line 170 of file ss-manager.cc.

References m_ssRecords, and ns3::WimaxNetDevice::RANGING_STATUS_SUCCESS.

Referenced by ns3::BaseStationNetDevice::CreateMapMessages().

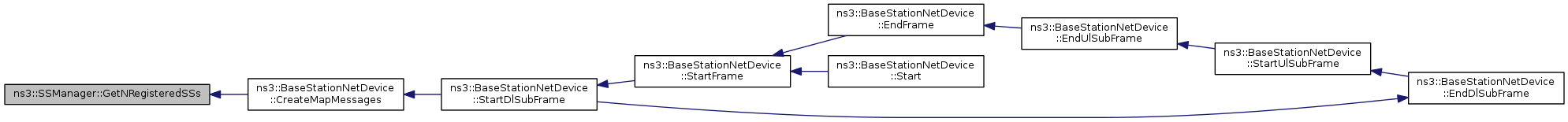

Here is the caller graph for this function:

uint32_t ns3::SSManager::GetNSSs ( void ) const

Definition at line 164 of file ss-manager.cc.

References m_ssRecords.

SSRecord * ns3::SSManager::GetSSRecord ( const Mac48Address & macAddress ) const

Definition at line 64 of file ss-manager.cc.

References m_ssRecords, and NS_LOG_DEBUG.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), GetMacAddress(), IsRegistered(), ns3::BSLinkManager::PerformInitialRanging(), ns3::BSLinkManager::PerformInvitedRanging(), ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest(), ns3::BsServiceFlowManager::ProcessDsaAck(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::BSSchedulerSimple::Schedule(), ns3::BsServiceFlowManager::ScheduleDsaRsp(), and ns3::BSLinkManager::VerifyInvitedRanging().

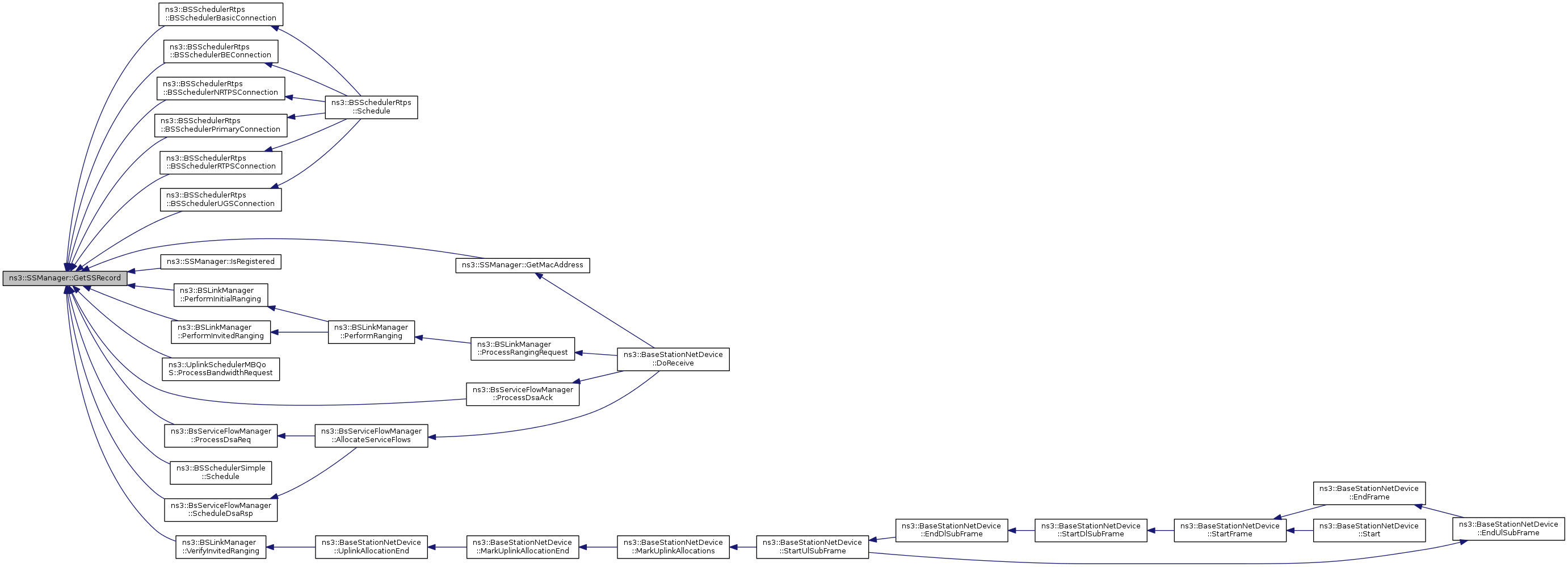

Here is the caller graph for this function:

SSRecord * ns3::SSManager::GetSSRecord ( Cid cid ) const

returns the ssrecord which has been assigned this cid. Since different types of cids (basic, primary, transport) are assigned different values, all cids (basic, primary and transport) of the ssrecord are matched.

Parameters

cid	the cid to be matched

Returns: the ss record that has the cid

Definition at line 79 of file ss-manager.cc.

References ns3::SSRecord::GetBasicCid(), ns3::SSRecord::GetPrimaryCid(), ns3::SSRecord::GetServiceFlows(), m_ssRecords, NS_LOG_DEBUG, and ns3::ServiceFlow::SF_TYPE_ALL.

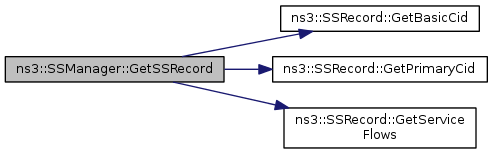

Here is the call graph for this function:

std::vector< SSRecord * > * ns3::SSManager::GetSSRecords ( void ) const

Definition at line 106 of file ss-manager.cc.

References m_ssRecords.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::BandwidthManager::GetSymbolsPerFrameAllocated(), ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

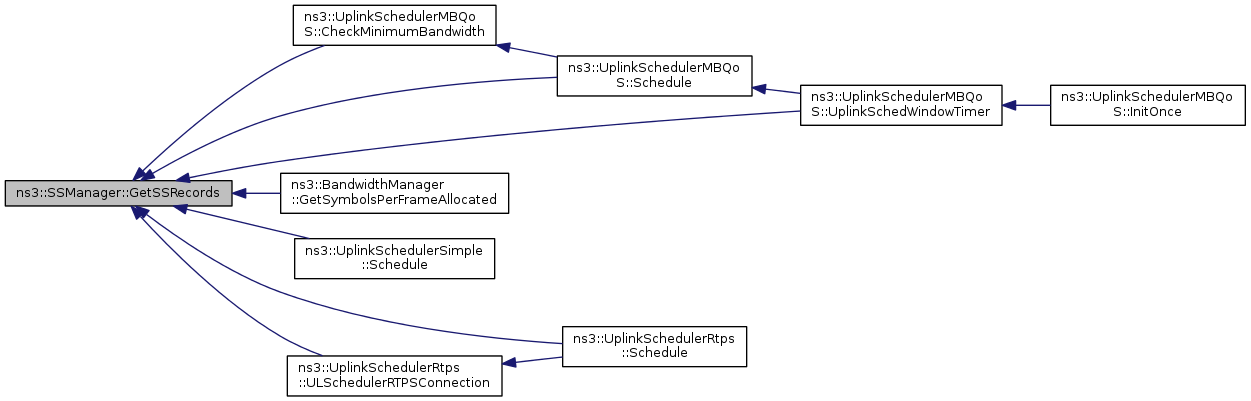

Here is the caller graph for this function:

TypeId ns3::SSManager::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::SSManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 33 of file ss-manager.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:
