#include <simple-ofdm-wimax-channel.h>

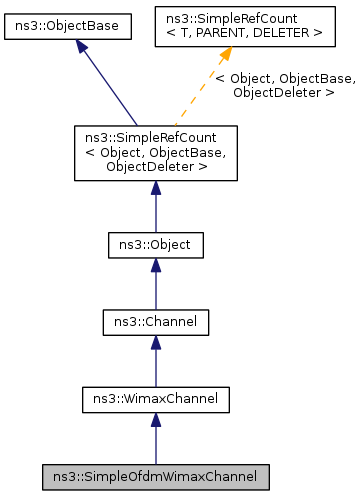

Inheritance diagram for ns3::SimpleOfdmWimaxChannel:

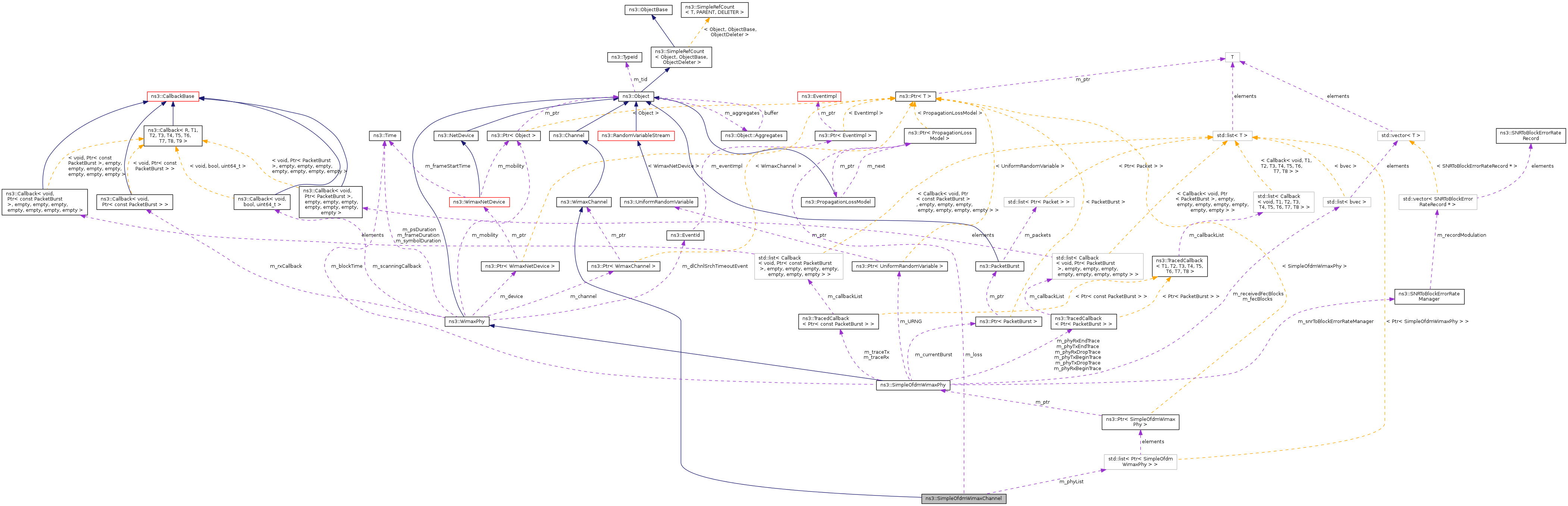

Collaboration diagram for ns3::SimpleOfdmWimaxChannel:

Public Types
enum	PropModel { RANDOM_PROPAGATION, FRIIS_PROPAGATION, LOG_DISTANCE_PROPAGATION, COST231_PROPAGATION }

Public Member Functions
	SimpleOfdmWimaxChannel (void)
	SimpleOfdmWimaxChannel (PropModel propModel)
	Creates a channel and sets the propagation model.
	~SimpleOfdmWimaxChannel (void)
int64_t	AssignStreams (int64_t stream)
void	Send (Time BlockTime, uint32_t burstSize, Ptr< WimaxPhy > phy, bool isFirstBlock, bool isLastBlock, uint64_t frequency, WimaxPhy::ModulationType modulationType, uint8_t direction, double txPowerDbm, Ptr< PacketBurst > burst)
	Sends a dummy fec block to all connected physical devices.
void	SetPropagationModel (PropModel propModel)
	sets the propagation model
Public Member Functions inherited from ns3::WimaxChannel
	WimaxChannel (void)
virtual	~WimaxChannel (void)
void	Attach (Ptr< WimaxPhy > phy)
	attach the channel to a physical layer of a device
Ptr< NetDevice >	GetDevice (uint32_t i) const
uint32_t	GetNDevices (void) const
Public Member Functions inherited from ns3::Channel
	Channel ()
virtual	~Channel ()
uint32_t	GetId (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Private Member Functions
void	DoAttach (Ptr< WimaxPhy > phy)
Ptr< NetDevice >	DoGetDevice (uint32_t i) const
uint32_t	DoGetNDevices (void) const
void	EndSendDummyBlock (Ptr< SimpleOfdmWimaxPhy > rxphy, simpleOfdmSendParam *param)

Private Attributes
Ptr< PropagationLossModel >	m_loss
std::list< Ptr < SimpleOfdmWimaxPhy > >	m_phyList

Additional Inherited Members
Static Public Member Functions inherited from ns3::WimaxChannel
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WimaxChannel.
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 41 of file simple-ofdm-wimax-channel.h.

Member Enumeration Documentation

enum ns3::SimpleOfdmWimaxChannel::PropModel

Enumerator:

RANDOM_PROPAGATION
FRIIS_PROPAGATION
LOG_DISTANCE_PROPAGATION
COST231_PROPAGATION

Definition at line 47 of file simple-ofdm-wimax-channel.h.

Constructor & Destructor Documentation

ns3::SimpleOfdmWimaxChannel::SimpleOfdmWimaxChannel ( void )

Definition at line 42 of file simple-ofdm-wimax-channel.cc.

References m_loss.

ns3::SimpleOfdmWimaxChannel::~SimpleOfdmWimaxChannel ( void )

Definition at line 47 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

ns3::SimpleOfdmWimaxChannel::SimpleOfdmWimaxChannel ( PropModel propModel )

Creates a channel and sets the propagation model.

Parameters

propModel the propagation model to use

Definition at line 52 of file simple-ofdm-wimax-channel.cc.

References COST231_PROPAGATION, FRIIS_PROPAGATION, LOG_DISTANCE_PROPAGATION, m_loss, and RANDOM_PROPAGATION.

Member Function Documentation

int64_t ns3::SimpleOfdmWimaxChannel::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WimaxChannel.

Definition at line 207 of file simple-ofdm-wimax-channel.cc.

References ns3::SimpleOfdmWimaxPhy::AssignStreams(), and m_phyList.

Here is the call graph for this function:

void ns3::SimpleOfdmWimaxChannel::DoAttach ( Ptr< WimaxPhy > phy )

private

Definition at line 105 of file simple-ofdm-wimax-channel.cc.

References ns3::Object::GetObject(), and m_phyList.

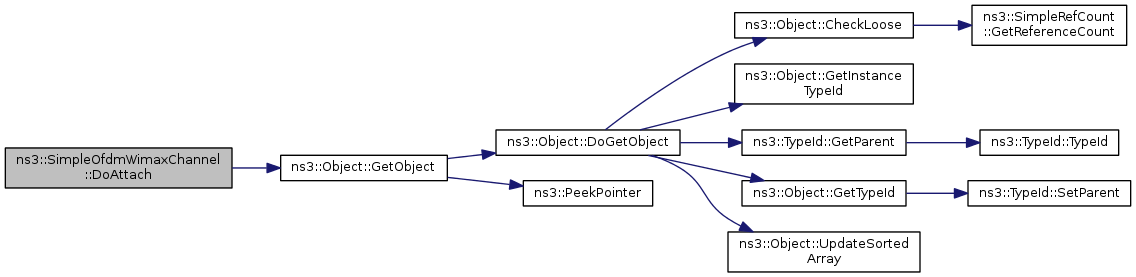

Here is the call graph for this function:

Ptr< NetDevice > ns3::SimpleOfdmWimaxChannel::DoGetDevice ( uint32_t i ) const

private

Definition at line 118 of file simple-ofdm-wimax-channel.cc.

References list, m_phyList, and NS_FATAL_ERROR.

uint32_t ns3::SimpleOfdmWimaxChannel::DoGetNDevices ( void ) const

private

Definition at line 112 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

void ns3::SimpleOfdmWimaxChannel::EndSendDummyBlock	(	Ptr< SimpleOfdmWimaxPhy >	rxphy,
		simpleOfdmSendParam *	param
	)

private

Definition at line 194 of file simple-ofdm-wimax-channel.cc.

References ns3::simpleOfdmSendParam::GetBurst(), ns3::simpleOfdmSendParam::GetBurstSize(), ns3::simpleOfdmSendParam::GetDirection(), ns3::simpleOfdmSendParam::GetFrequency(), ns3::simpleOfdmSendParam::GetIsFirstBlock(), ns3::simpleOfdmSendParam::GetModulationType(), ns3::simpleOfdmSendParam::GetRxPowerDbm(), and ns3::SimpleOfdmWimaxPhy::StartReceive().

Referenced by Send().

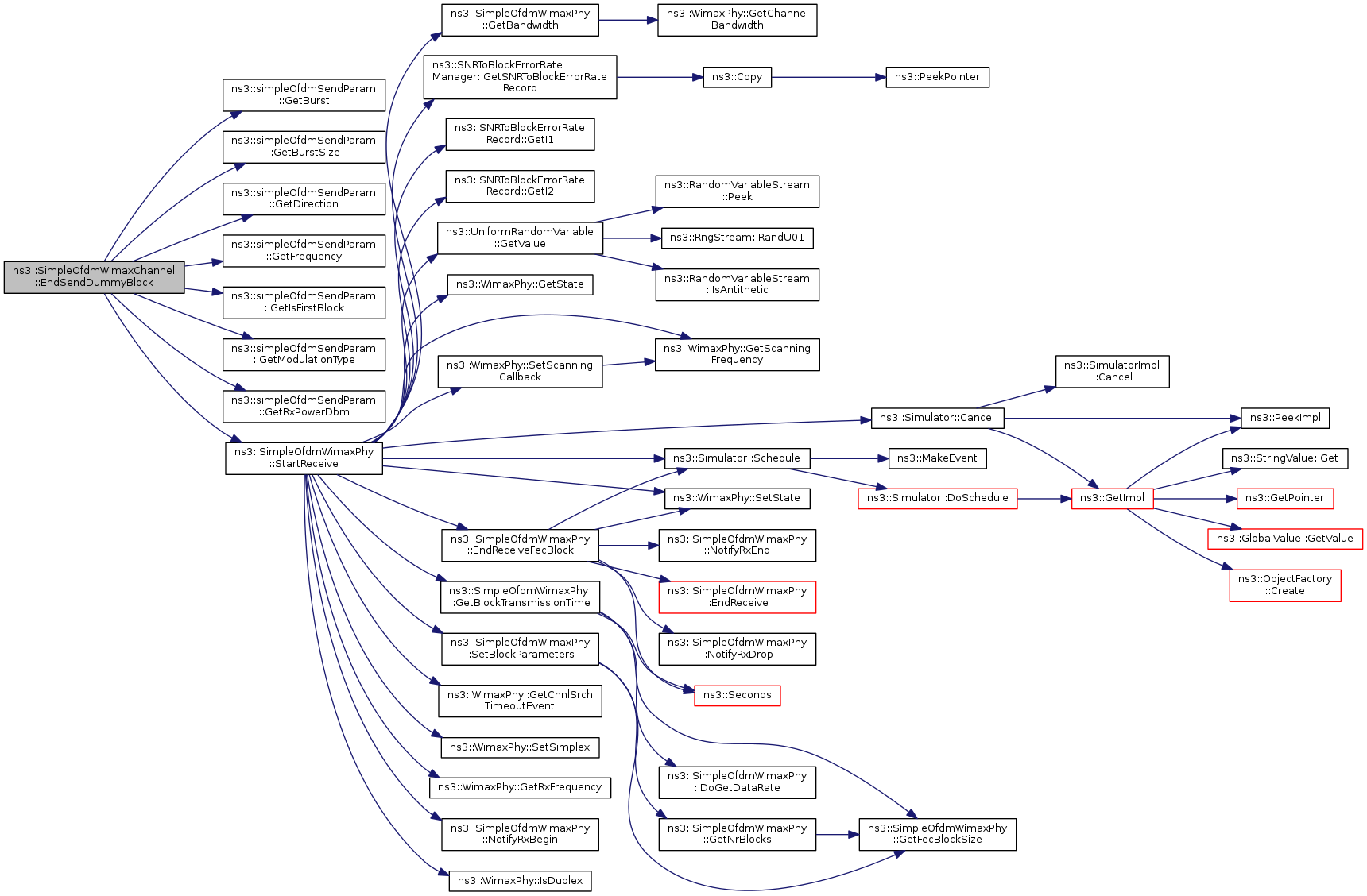

Here is the call graph for this function:

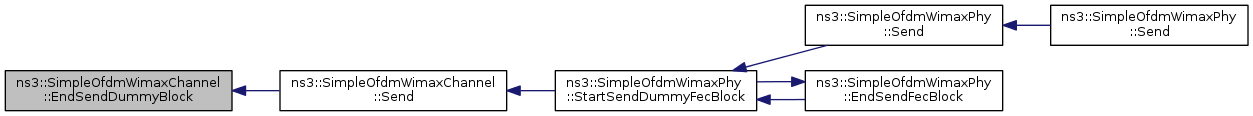

Here is the caller graph for this function:

void ns3::SimpleOfdmWimaxChannel::Send	(	Time	BlockTime,
		uint32_t	burstSize,
		Ptr< WimaxPhy >	phy,
		bool	isFirstBlock,
		bool	isLastBlock,
		uint64_t	frequency,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		double	txPowerDbm,
		Ptr< PacketBurst >	burst
	)

Sends a dummy fec block to all connected physical devices.

Parameters

BlockTime	the time needed to send the block
burstSize	the size of the burst
phy	the sender device
isFirstBlock	true if this block is the first one, false otherwise
isLastBlock	true if this block is the last one, false otherwise
frequency	the frequency on which the block is sent
modulationType	the modulation used to send the fec block
direction	uplink or downlink
txPowerDbm	the transmission power
burst	the packet burst to send
