ns3::WimaxChannel Class Reference
WiMAX Models

#include <wimax-channel.h>

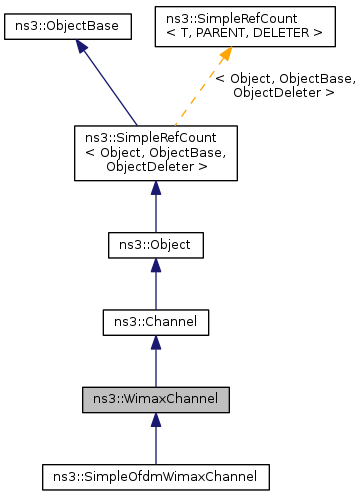

+ Inheritance diagram for ns3::WimaxChannel:

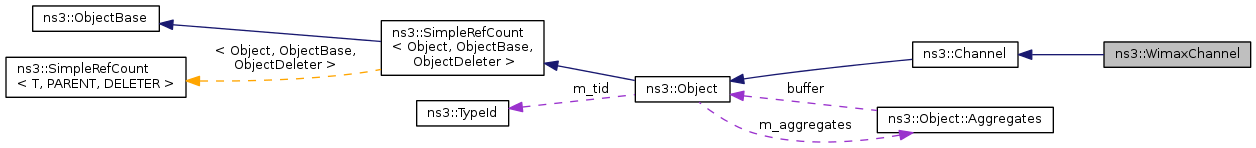

+ Collaboration diagram for ns3::WimaxChannel:

Public Member Functions

 WimaxChannel (void)
virtual ~WimaxChannel (void)
virtual int64_t AssignStreams (int64_t stream)=0
void Attach (Ptr< WimaxPhy > phy)
 attach the channel to a physical layer of a device
Ptr< NetDevice > GetDevice (uint32_t i) const
uint32_t GetNDevices (void) const
- Public Member Functions inherited from ns3::Channel
 Channel ()
virtual ~Channel ()
uint32_t GetId (void) const
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::WimaxChannel.

Private Member Functions

virtual void DoAttach (Ptr< WimaxPhy > phy)=0
virtual Ptr< NetDevice > DoGetDevice (uint32_t i) const =0
virtual uint32_t DoGetNDevices (void) const =0

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Definition at line 39 of file wimax-channel.h.

Constructor & Destructor Documentation

ns3::WimaxChannel::WimaxChannel ( void  )

Definition at line 39 of file wimax-channel.cc.

ns3::WimaxChannel::~WimaxChannel ( void  )
virtual

Definition at line 43 of file wimax-channel.cc.

Member Function Documentation

virtual int64_t ns3::WimaxChannel::AssignStreams ( int64_t  stream)
pure virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Implemented in ns3::SimpleOfdmWimaxChannel.

Referenced by ns3::WimaxHelper::AssignStreams().

+ Here is the caller graph for this function:

void ns3::WimaxChannel::Attach ( Ptr< WimaxPhy >  phy)

attach the channel to a physical layer of a device

Parameters
phythe physical layer to which the channel will be attached

Definition at line 48 of file wimax-channel.cc.

References DoAttach().

Referenced by ns3::SimpleOfdmWimaxPhy::DoAttach().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual void ns3::WimaxChannel::DoAttach ( Ptr< WimaxPhy >  phy)
privatepure virtual

Referenced by Attach().

+ Here is the caller graph for this function:

virtual Ptr<NetDevice> ns3::WimaxChannel::DoGetDevice ( uint32_t  i) const
privatepure virtual

Referenced by GetDevice().

+ Here is the caller graph for this function:

virtual uint32_t ns3::WimaxChannel::DoGetNDevices ( void  ) const
privatepure virtual

Referenced by GetNDevices().

+ Here is the caller graph for this function:

Ptr< NetDevice > ns3::WimaxChannel::GetDevice ( uint32_t  i) const
virtual
Returns
the ith attached device

Implements ns3::Channel.

Definition at line 60 of file wimax-channel.cc.

References DoGetDevice().

+ Here is the call graph for this function:

uint32_t ns3::WimaxChannel::GetNDevices ( void  ) const
virtual
Returns
the number of attached devices

Implements ns3::Channel.

Definition at line 54 of file wimax-channel.cc.

References DoGetNDevices().

+ Here is the call graph for this function:

TypeId ns3::WimaxChannel::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::WimaxChannel.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel

No Attributes defined for this type.
Attributes defined in parent class ns3::Channel:

No TraceSources defined for this type.

Reimplemented from ns3::Channel.

Definition at line 32 of file wimax-channel.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
