ns3::TcpSocketFactoryImpl Class Reference

socket factory implementation for native ns-3 TCP More...

#include <tcp-socket-factory-impl.h>

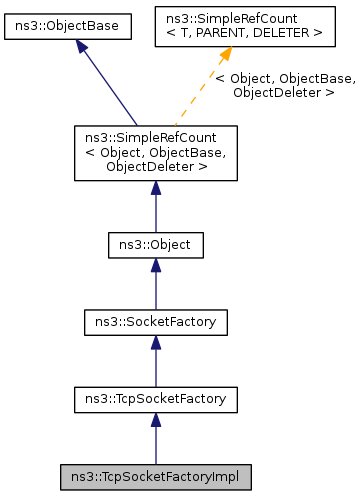

Inheritance diagram for ns3::TcpSocketFactoryImpl:

Collaboration diagram for ns3::TcpSocketFactoryImpl:

Public Member Functions
	TcpSocketFactoryImpl ()
virtual	~TcpSocketFactoryImpl ()
virtual Ptr< Socket >	CreateSocket (void)
void	SetTcp (Ptr< TcpL4Protocol > tcp)

Protected Member Functions
virtual void	DoDispose (void)

Private Attributes
Ptr< TcpL4Protocol >	m_tcp

Additional Inherited Members
Static Public Member Functions inherited from ns3::TcpSocketFactory
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::TcpSocketFactory.

Detailed Description

socket factory implementation for native ns-3 TCP

Definition at line 43 of file tcp-socket-factory-impl.h.

Constructor & Destructor Documentation

ns3::TcpSocketFactoryImpl::TcpSocketFactoryImpl

(

)

Definition at line 27 of file tcp-socket-factory-impl.cc.

ns3::TcpSocketFactoryImpl::~TcpSocketFactoryImpl ( )

virtual

Definition at line 31 of file tcp-socket-factory-impl.cc.

References m_tcp, and NS_ASSERT.

Member Function Documentation

Ptr< Socket > ns3::TcpSocketFactoryImpl::CreateSocket ( void  )

virtual

Returns

smart pointer to Socket

Base class method for creating socket instances.

Implements ns3::SocketFactory.

Definition at line 43 of file tcp-socket-factory-impl.cc.

References ns3::TcpL4Protocol::CreateSocket(), and m_tcp.

Here is the call graph for this function:

void ns3::TcpSocketFactoryImpl::DoDispose ( void  )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 49 of file tcp-socket-factory-impl.cc.

References m_tcp.

void ns3::TcpSocketFactoryImpl::SetTcp

(

Ptr< TcpL4Protocol >

tcp

)

Definition at line 37 of file tcp-socket-factory-impl.cc.

References m_tcp.

Member Data Documentation

Ptr<TcpL4Protocol> ns3::TcpSocketFactoryImpl::m_tcp

private

Definition at line 56 of file tcp-socket-factory-impl.h.

Referenced by CreateSocket(), DoDispose(), SetTcp(), and ~TcpSocketFactoryImpl().

---

The documentation for this class was generated from the following files:

• src/internet/model/tcp-socket-factory-impl.h
• src/internet/model/tcp-socket-factory-impl.cc
