A log distance path loss propagation model with three distance fields. This model is the same as ns3::LogDistancePropagationLossModel except that it has three distance fields: near, middle and far with different exponents. More...

#include <propagation-loss-model.h>

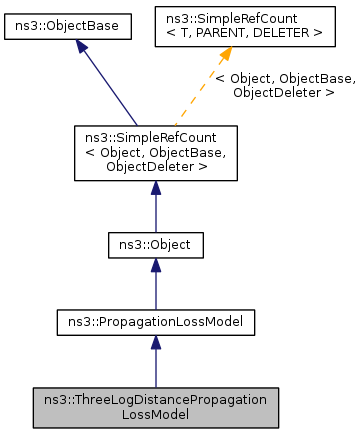

Inheritance diagram for ns3::ThreeLogDistancePropagationLossModel:

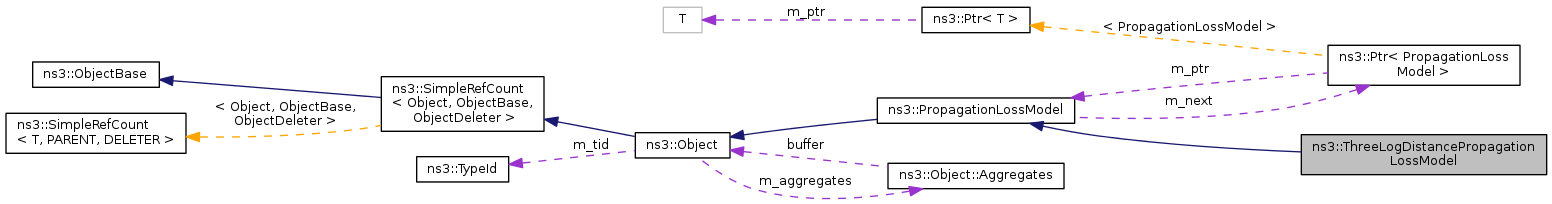

Collaboration diagram for ns3::ThreeLogDistancePropagationLossModel:

Public Member Functions
	ThreeLogDistancePropagationLossModel ()
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ThreeLogDistancePropagationLossModel.

Private Member Functions
	ThreeLogDistancePropagationLossModel (const ThreeLogDistancePropagationLossModel &o)
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
ThreeLogDistancePropagationLossModel &	operator= (const ThreeLogDistancePropagationLossModel &o)

Private Attributes
double	m_distance0
double	m_distance1
double	m_distance2
double	m_exponent0
double	m_exponent1
double	m_exponent2
double	m_referenceLoss

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

A log distance path loss propagation model with three distance fields. This model is the same as ns3::LogDistancePropagationLossModel except that it has three distance fields: near, middle and far with different exponents.

Within each field the reception power is calculated using the log-distance propagation equation:

$L = L_0 + 10 \cdot n_0 log_{10}(\frac{d}{d_0})$

Each field begins where the previous ends and all together form a continuous function.

There are three valid distance fields: near, middle, far. Actually four: the first from 0 to the reference distance is invalid and returns txPowerDbm.

$\underbrace{0 \cdots\cdots}_{=0} \underbrace{d_0 \cdots\cdots}_{n_0} \underbrace{d_1 \cdots\cdots}_{n_1} \underbrace{d_2 \cdots\cdots}_{n_2} \infty$

Complete formula for the path loss in dB:

$\displaystyle L = \begin{cases} 0 & d < d_0 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d}{d_0}) & d_0 \leq d < d_1 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d_1}{d_0}) + 10 \cdot n_1 \log_{10}(\frac{d}{d_1}) & d_1 \leq d < d_2 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d_1}{d_0}) + 10 \cdot n_1 \log_{10}(\frac{d_2}{d_1}) + 10 \cdot n_2 \log_{10}(\frac{d}{d_2})& d_2 \leq d \end{cases}$

where:

: resulting path loss (dB)
: distance (m)
: three distance fields (m)
: path loss distance exponent for each field (unitless)
: path loss at reference distance (dB)

When the path loss is requested at a distance smaller than the reference distance $ d_0 $ , the tx power (with no path loss) is returned. The reference distance defaults to 1m and reference loss defaults to ns3::FriisPropagationLossModel with 5.15 GHz and is thus $ L_0 $ = 46.67 dB.

Definition at line 424 of file propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::ThreeLogDistancePropagationLossModel::ThreeLogDistancePropagationLossModel ( )

Definition at line 588 of file propagation-loss-model.cc.

ns3::ThreeLogDistancePropagationLossModel::ThreeLogDistancePropagationLossModel ( const ThreeLogDistancePropagationLossModel & o )

private

Member Function Documentation

int64_t ns3::ThreeLogDistancePropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 634 of file propagation-loss-model.cc.

double ns3::ThreeLogDistancePropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Definition at line 593 of file propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), m_distance0, m_distance1, m_distance2, m_exponent0, m_exponent1, m_exponent2, m_referenceLoss, NS_ASSERT, and NS_LOG_DEBUG.

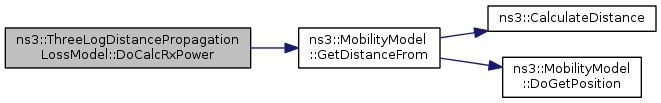

Here is the call graph for this function:

TypeId ns3::ThreeLogDistancePropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ThreeLogDistancePropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel

Attributes defined for this type:

Distance0: Beginning of the first (near) distance field
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
Distance1: Beginning of the second (middle) distance field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 200
- Flags: construct write read
Distance2: Beginning of the third (far) distance field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 500
- Flags: construct write read
Exponent0: The exponent for the first field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.9
- Flags: construct write read
Exponent1: The exponent for the second field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.8
- Flags: construct write read
Exponent2: The exponent for the third field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.8
- Flags: construct write read
ReferenceLoss: The reference loss at distance d0 (dB). (Default is Friis at 1m with 5.15 GHz)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 46.6777
- Flags: construct write read
