#include <uan-phy.h>

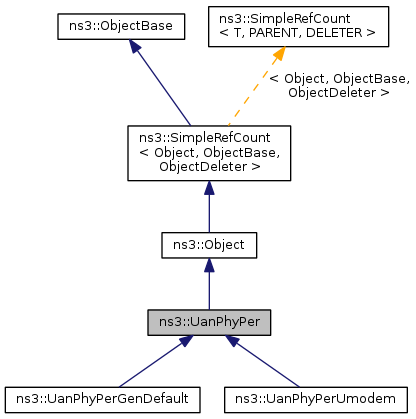

Inheritance diagram for ns3::UanPhyPer:

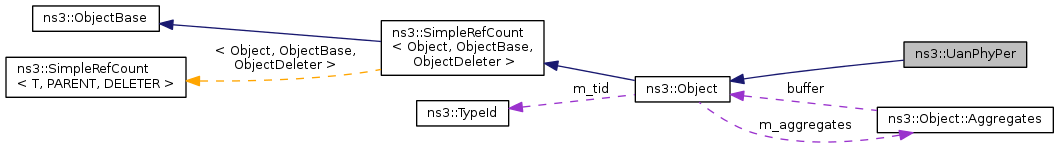

Collaboration diagram for ns3::UanPhyPer:

Public Member Functions
virtual double	CalcPer (Ptr< Packet > pkt, double sinrDb, UanTxMode mode)=0
virtual void	Clear (void)
virtual void	DoDispose (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyPer.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Used in UanPhy for determining probability of packet error based on received SINR and modulation (mode). Can be set in UanPhy via attributes

Definition at line 98 of file uan-phy.h.

Member Function Documentation

virtual double ns3::UanPhyPer::CalcPer	(	Ptr< Packet >	pkt,
		double	sinrDb,
		UanTxMode	mode
	)

pure virtual

Calculates the prob. of packet error based on SINR at the receiver and a tx mode.

Parameters

pkt	Packet which is under consideration
sinrDb	SINR at receiver
mode	TX mode used to transmit packet

Returns: Probability of packet error

Implemented in ns3::UanPhyPerUmodem, and ns3::UanPhyPerGenDefault.

Referenced by ns3::UanPhyGen::RxEndEvent().

Here is the caller graph for this function:

void ns3::UanPhyPer::Clear ( void )

virtual

Clears all pointer references

Definition at line 56 of file uan-phy.cc.

Referenced by ns3::UanPhyGen::Clear(), and DoDispose().

Here is the caller graph for this function:

void ns3::UanPhyPer::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 61 of file uan-phy.cc.

References Clear().

Here is the call graph for this function:

TypeId ns3::UanPhyPer::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::UanPhyPer.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual/PerModelPhy1
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual/PerModelPhy2
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyGen/PerModel

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::UanPhyPerUmodem, and ns3::UanPhyPerGenDefault.

Definition at line 48 of file uan-phy.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/uan/model/uan-phy.h
doc/introspected-doxygen.h
src/uan/model/uan-phy.cc
