See 7.3.2.98 of 802.11s draft 2.07. More...

#include <ie-dot11s-perr.h>

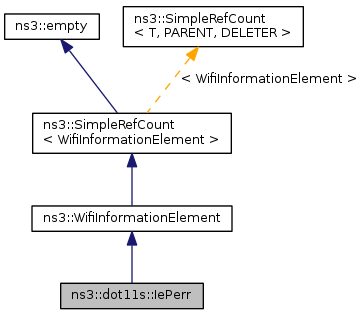

Inheritance diagram for ns3::dot11s::IePerr:

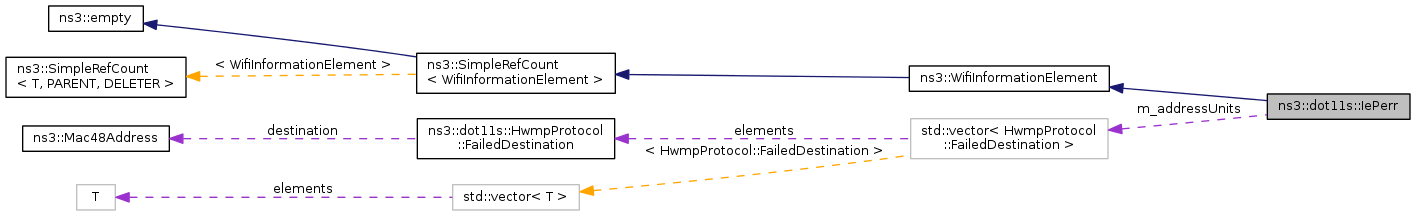

Collaboration diagram for ns3::dot11s::IePerr:

Public Member Functions
	IePerr ()
	~IePerr ()
void	AddAddressUnit (HwmpProtocol::FailedDestination unit)
void	DeleteAddressUnit (Mac48Address address)
std::vector < HwmpProtocol::FailedDestination >	GetAddressUnitVector () const
uint8_t	GetNumOfDest () const
bool	IsFull () const
void	ResetPerr ()
Inherited from WifiInformationElement
virtual WifiInformationElementId	ElementId () const
	Own unique Element ID.
virtual void	SerializeInformationField (Buffer::Iterator i) const
virtual uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following...
virtual uint8_t	GetInformationFieldSize () const
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
uint16_t	GetSerializedSize () const
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields.
virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID.
virtual bool	operator== (WifiInformationElement const &a) const
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
std::vector < HwmpProtocol::FailedDestination >	m_addressUnits

Friends
bool	operator== (const IePerr &a, const IePerr &b)

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)

Detailed Description

See 7.3.2.98 of 802.11s draft 2.07.

Definition at line 34 of file ie-dot11s-perr.h.

Constructor & Destructor Documentation

ns3::dot11s::IePerr::IePerr ( )

Definition at line 26 of file ie-dot11s-perr.cc.

ns3::dot11s::IePerr::~IePerr ( )

Definition at line 29 of file ie-dot11s-perr.cc.

Member Function Documentation

void ns3::dot11s::IePerr::AddAddressUnit ( HwmpProtocol::FailedDestination unit )

Definition at line 93 of file ie-dot11s-perr.cc.

References ns3::dot11s::HwmpProtocol::FailedDestination::destination, and m_addressUnits.

void ns3::dot11s::IePerr::DeleteAddressUnit ( Mac48Address address )

Definition at line 119 of file ie-dot11s-perr.cc.

References m_addressUnits.

uint8_t ns3::dot11s::IePerr::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Implements ns3::WifiInformationElement.

Definition at line 66 of file ie-dot11s-perr.cc.

References ns3::dot11s::HwmpProtocol::FailedDestination::destination, ns3::Buffer::Iterator::GetDistanceFrom(), m_addressUnits, ns3::Buffer::Iterator::Next(), NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::dot11s::HwmpProtocol::FailedDestination::seqnum, and visualizer.core::start().

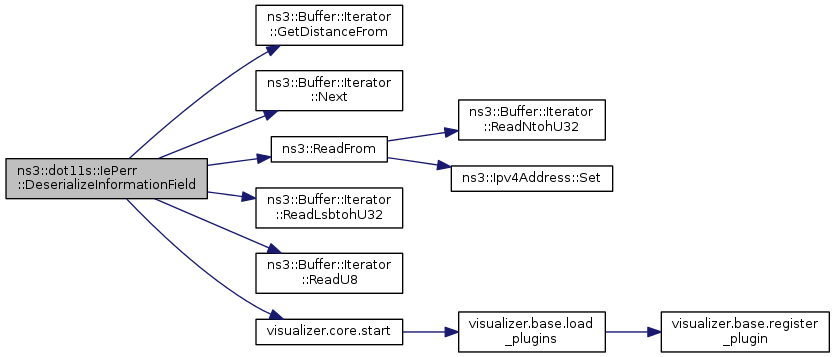

Here is the call graph for this function:

WifiInformationElementId ns3::dot11s::IePerr::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 33 of file ie-dot11s-perr.cc.

References IE11S_PERR.

Referenced by Print().

Here is the caller graph for this function:

std::vector< HwmpProtocol::FailedDestination > ns3::dot11s::IePerr::GetAddressUnitVector ( ) const

Definition at line 114 of file ie-dot11s-perr.cc.

References m_addressUnits.

uint8_t ns3::dot11s::IePerr::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. This is the value that will appear in the second octet of the entire IE - the length field)

Implements ns3::WifiInformationElement.

Definition at line 84 of file ie-dot11s-perr.cc.

References m_addressUnits.

Referenced by IsFull().

Here is the caller graph for this function:
